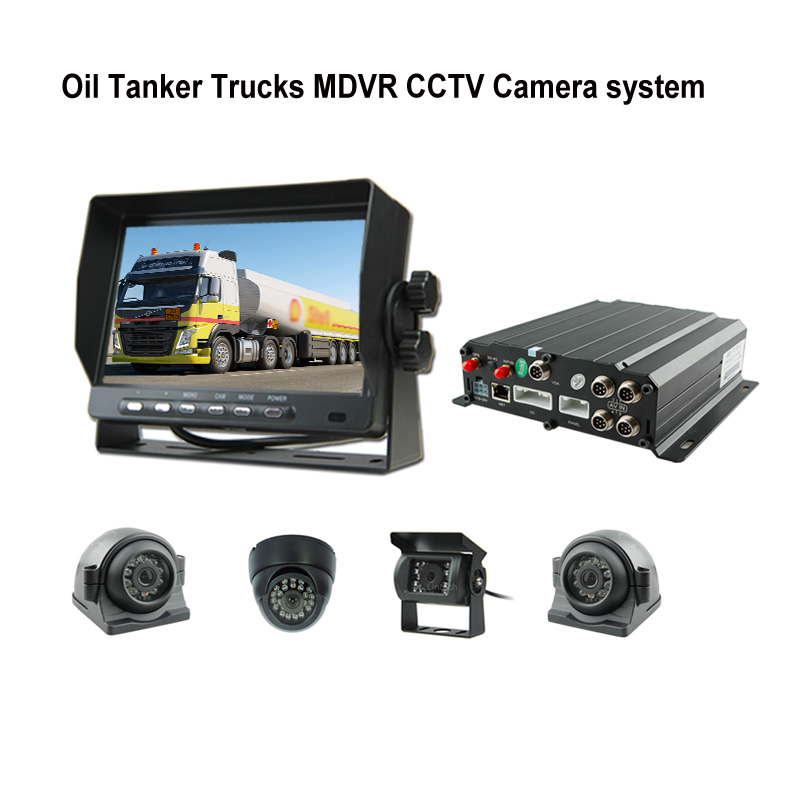

Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system kit for Gas tank truck



Main Features:

–MDVR support 3G/4G Live stream video

–GPS map tracking
–Camera IP68 / IP69K heavy duty
–AHD 1080P high resolution chipset
–7″ LCD Monitor 800 x 480 RGB
–CMS client playback software for free.
–Optional Heating function for extremely cold condition



1080P 4CHs 8CHs SD card + 2TB Hard Disk MDVR
1080P 4CHs 8CHs SD card + 2TB Hard Disk MDVR

MDVR unit features.

        ** Full aluminum housing for better Heat radiation

         ** Max support 2TB Hard Disk.

** 4G/WIFI /GPS module  for Live video stream.

         ** Free CMS client and cloud server.

                ** Technical online to assist you setting the MDVR

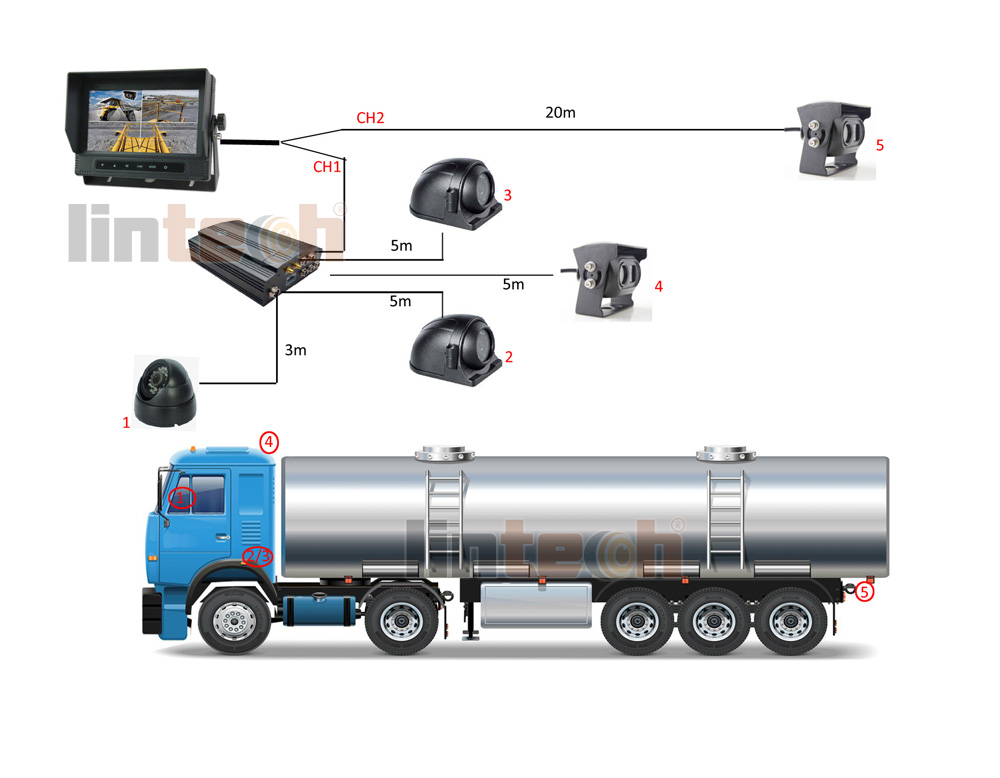

Oil tank MDVR 5 Cameras wiring diagram
Oil tank MDVR 5 Cameras wiring diagram

Oil Tanker Truck MDVR CCTV Camera system Wring guide.

When put to R-gear, 7″ screen will automatic switch to back view camera full display for reversing aid. (5th Camera at the back of tank).

Finish reversing, will auto switch to 4 cameras split image from MDVR.





Side view Camera LC-009D1.

– 1080P AHD sensor lens.

– IP68 Waterproof rating

– Heater build in function available



Rear view Camera LC-010C.

– Anti-IR lights reflecting New design

– IP69K heavy duty housing

– Microphone / image switching



7″ TFT LCD Monitor  LM-070D2

– Heavy duty Aluminium alloy housing

– 12~32V DC

Model #:
LC-009D1
LC-010C
LM-070D2
Sensor
1080P 1/3″ APTINA CMOS
1080P 1/3″ APTINA CMOS
-Heavy duty Aluminium alloy housing
Resolution
1920*1080 (2.0M Pixels)
1920*1080 (2.0M Pixels)
– 800 x 480 RGB
Lens
2.8mm (120°/ 90°)
2.8mm (120°/ 90°)
– High brightness LCD panel
IR LED
9pcs
11pcs (SMD  IR LED)
– 2CHs / 4CHs version optional
Waterproof
IP68
IP69K
Non-waterproof
Voltage
12V DC (±10%)
12V DC (±10%)
12~32V DC
Work Temp
-20℃ ~ +40℃
-20℃ ~ +40℃
Back lights for buttons
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system





Why  Your Fuel truck need to install  MDVR video Monitoring System?

Tank vehicles are responsible for the transportation of oil products from the oil depot to the gas station. Due to the characteristics of their movement, it is difficult to grasp the transportation status in real time and management is difficult. And supervision of the crude oil transport at present most of oil field enterprises couldn’t accomplish real-time call and share of data, thereby causing loss to the transportation of crude oil, to a certain extent, restrict the improvement of enterprise management benefit.

Although freight vehicle to install the GPS positioning system, vehicle navigation and scheduling can be accomplished, but crude oil safety not guaranteed, prone to leakage or outlaws colluded with the driver along the stolen, cause economic losses, and then suffer from does not have enough evidence against.

Fuel Truck System for hardware and software

The system USES MDVR host to encode and store audio and video, GPS and alarm data. Upload audio and video, alarm information and GPS data through 3G/4G mobile network; Meanwhile, remote management operations such as equipment remote upgrade, parameter modification, digital intercom and remote capture are realized.

The management personnel of the server monitoring center only need to authorize the corresponding vehicle through the server background software and generate the corresponding account number and password to conduct unified management. At the same time, other accounts can be created through the web client for other people to view and manage in real time on their smartphones and computers.

3G/4G on-board intelligent monitoring system includes front-end on-board monitoring system, mobile communication network and server monitoring center. Design principles of advanced, practical, expandable, reliable, safe and easy to use; Establish the aim of systematization, flexibility, high efficiency and stability.

A: front-end vehicle monitoring system

The front-end vehicle-mounted monitoring system is an important part of the whole scheme. It collects audio and video data by installing cameras inside and outside the vehicle, so as to realize safe and non-dead Angle monitoring. GPS global positioning system is used to realize real-time positioning of vehicles. At the same time, the alarm switch on the external vehicle can realize the corresponding alarm prompt (such as: alarm button, brake, door magnetic switch, etc.); Equipped with digital interphone, the intercom between the platform and single vehicle/multiple vehicles can be realized. Equipped with a fatigue driving device to monitor the fatigue status of drivers and prevent traffic accidents; Through the on-board MDVR host, the audio and video, GPS and alarm data are encoded, stored and reported to the server via 3G/4G wireless network, so as to realize remote monitoring and management of the vehicle.

Fuel Truck Hardware Requst :

Camera installation location (multi-channel car monitoring camera can be selected according to vehicle size) :

1) front-view camera of locomotive: function of driving recorder;

2) driving position camera: standardized operation, robbery prevention and alarm;

3) oil inlet camera: monitor oil injection to prevent oil theft;

4) oil outlet camera: prevent oil theft;

5) rear camera: prevent tail accident, reversing aid for driver;

Oil tank MDVR 5 Cameras wiring diagram
Oil tank MDVR 5 Cameras wiring diagram

Fuel Truck Software Request:

B: mobile communication networks

Because each monitoring point of the front-end vehicle monitoring system is in a constantly mobile environment, audio and video, GPS and alarm data can only be transmitted through 3G/4G mobile network.At the same time, 3G/4G mobile network can also complete remote management operations such as equipment remote upgrade, equipment parameter modification, digital intercom and alarm information inspection.

C: server monitoring center

Server monitoring center is by the CMS server group, background management software and client software of remote monitoring and management center, it USES the centralized and distributed network management architecture, can achieve remote real-time monitor of more vehicles at the same time, video, captured; Video search, download, analysis and playback; Combined with Google electronic map, vehicle distribution status can be seen. Query the driving track and play back; Check the alarm information, quickly locate the location of the alarm vehicle and video on site, etc.Meanwhile, the WiFi automatic download server is configured in the parking lot of the vehicle concentration, which can automatically download the monitoring video files to the specified server storage.

The management personnel of the server monitoring center only need to authorize the corresponding vehicle through the server background software and generate the corresponding account number and password to conduct unified management. At the same time, other accounts can be created through the web client for other people to view and manage in real time on their smartphones and computers.
