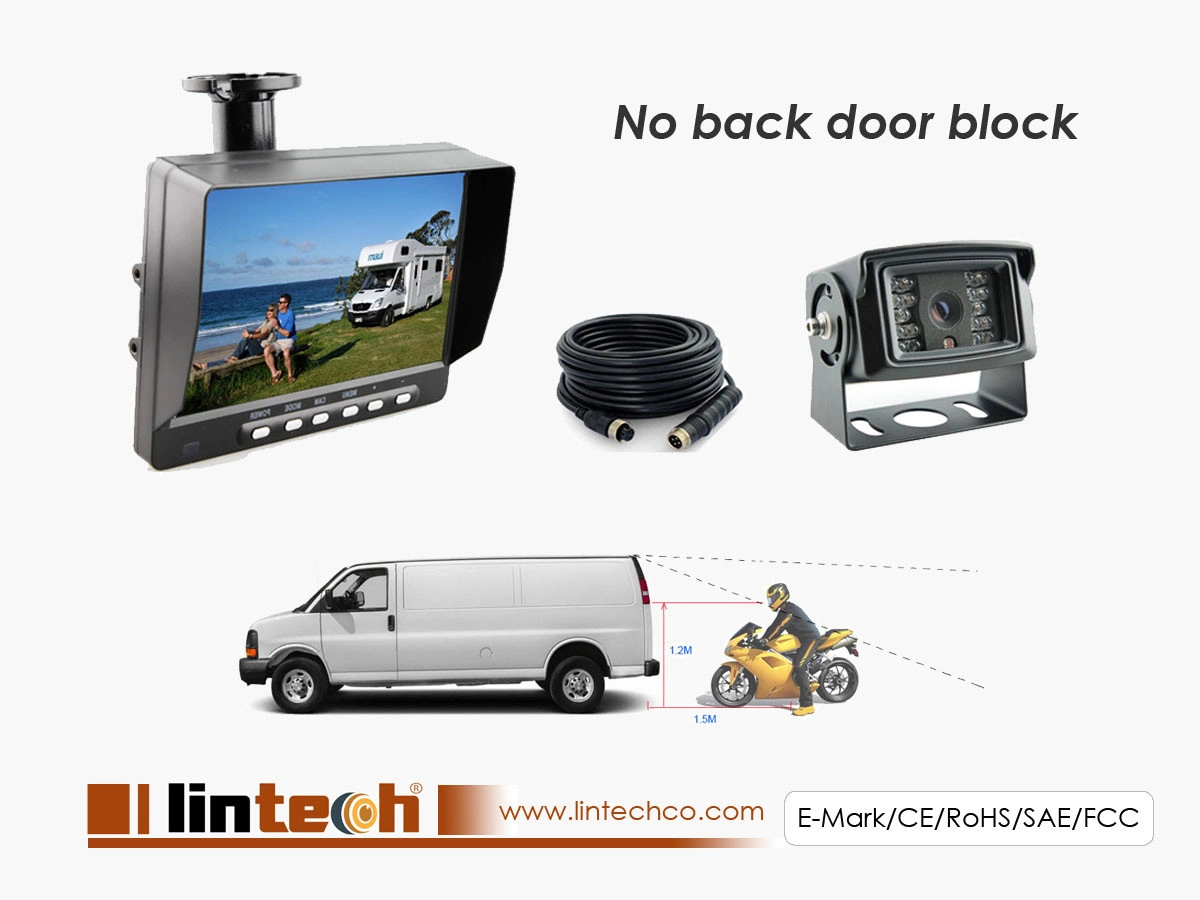

30 degree Narrow Angle Camera with 7″ Monitor to Replace mid-mirror, Back door block solution

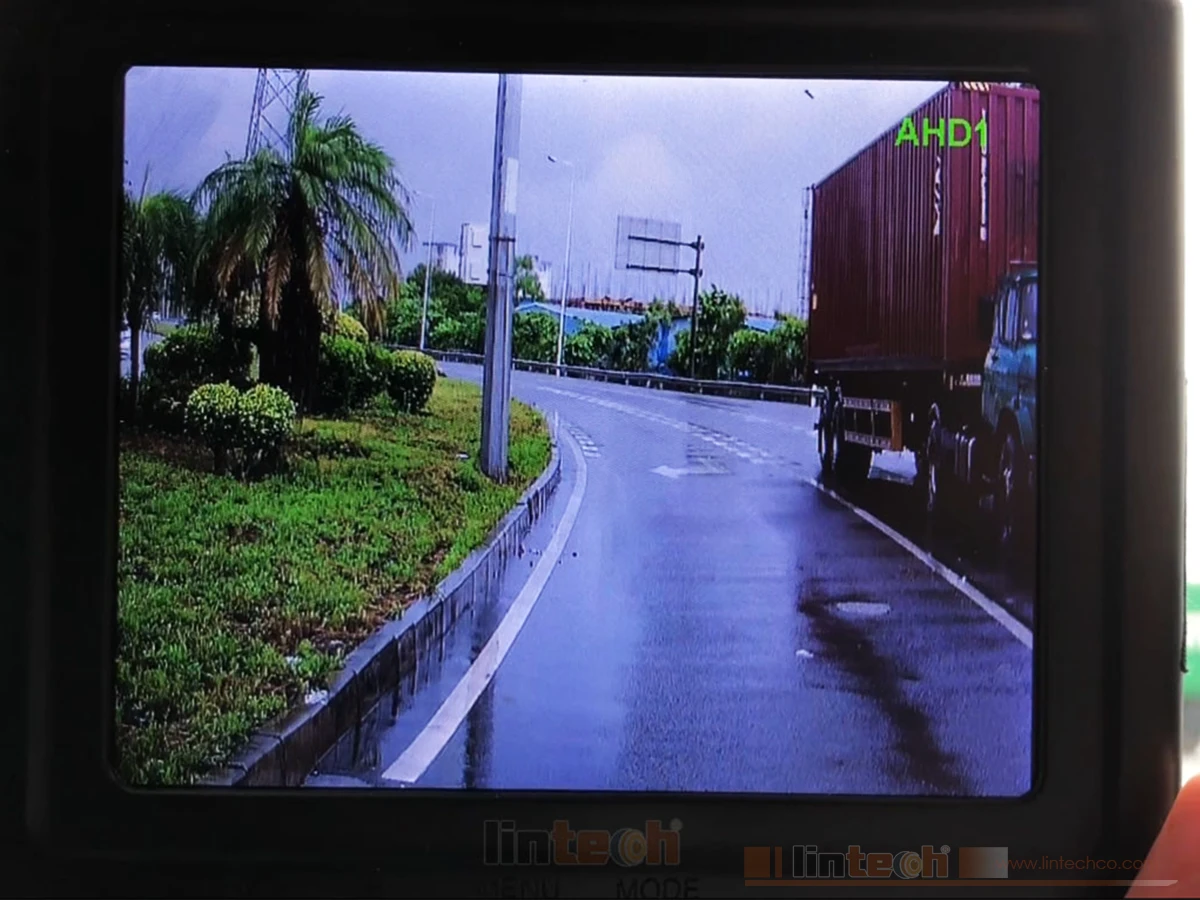

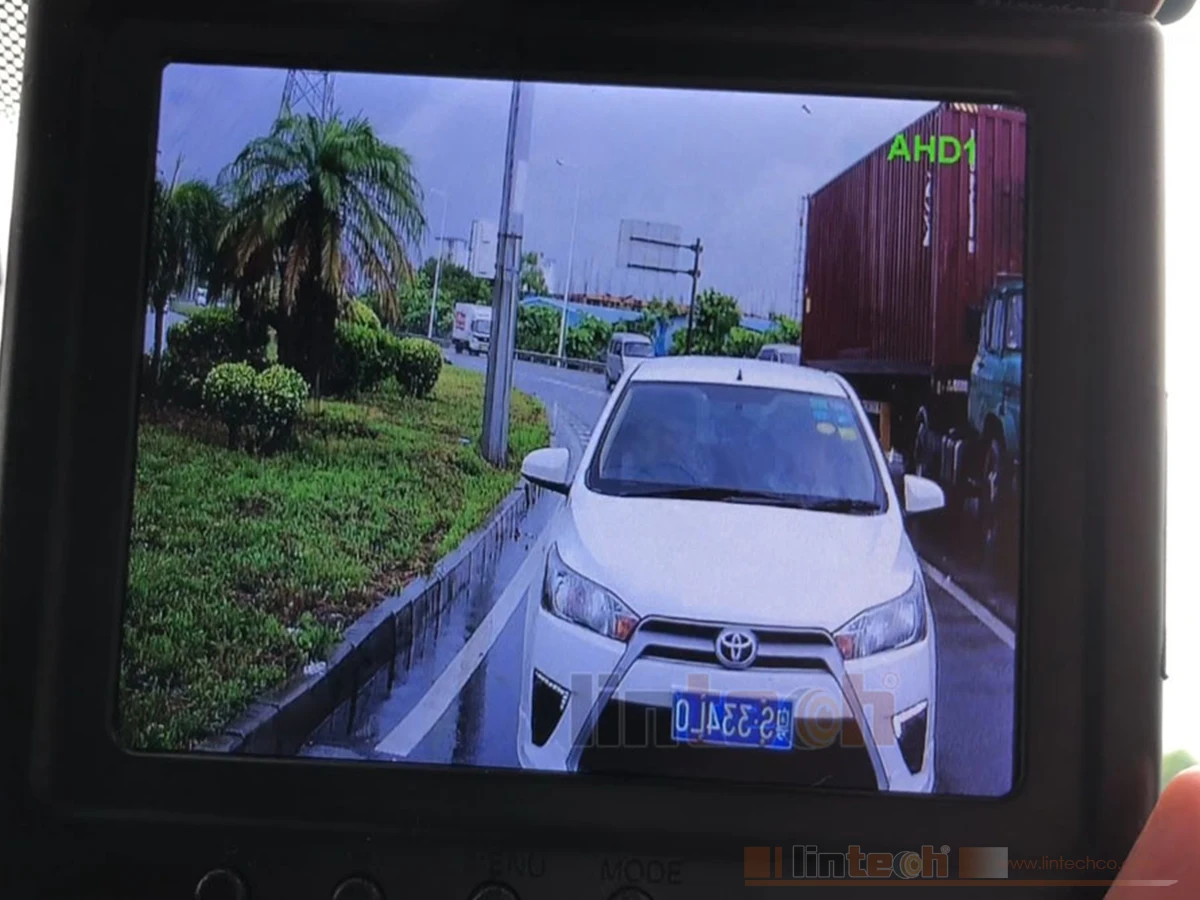

  • — Larger view angle than mid-mirror – Meanwhile have enough amplified factor can see clear back vehicles. (see pictures)
  • — Better anti-glare;
  • — Clear videos at Raining environment;
  • — IR LED for night vision;
  • — Automatic Heater built-in anti-freezing;
FacebookTwitterGoogle PlusPinterest

Descriptions

A special Narrow angle lens camera customized to fit European Regulation requirements  for cargo vans use.
As we know that cargo van, ambulance, RV these vehicle’s mid-mirror normally blocked by back doors or goods inside of vehicle.
According to European Regulation use the Electronic mirror to replace the mid-mirror, here we make out the 5″  / 7″ AHD LCD + special angle lens camera kit solution.

  • — Larger view angle than mid-mirror – Meanwhile have enough amplified factor can see clear back vehicles. (see pictures)
  • — Better anti-glare;
  • — Clear videos at Raining environment;
  • — IR LED for night vision;
  • — Automatic Heater built-in anti-freezing;



5” / 7″ TFT LCD Monitor

Functions:

  • TV System:NTSC/PAL/AUTO
  • Multiple menu languages: English, French, German, Spanish, Portuguese, Italian, Dutch, Swedish, Chines.
  • 2CHs videos input。
  • Images rotate up / down / left / right。
  • Channel 2 with green wire trigger can automatic switch to CH2。
  • Voltage DC 12~24V,power short circuit protection function。



Specification:

Screen size 5″/ 4:3   &   7″ / 16:9  (4:3)
Resolution 640 R.G.B x480 dots
TV System PAL/NTSC/AUTO
Brightness 300cd/㎡
Contrast 500:1
Visual angle Left/Right/Up/Down: 65°/65°/45°/65°
Image setting Brightness, Color, Contrast
Video format AHD
Image rotate Yes
Video input AV1 / AV2
Reverse guide line Channel 2 with guide line
Languages English, French, German, Spanish, Portuguese, Italian, Dutch, Swedish, Chines
Power consumption 12/24V DC/<9W
Working Temperature -20℃ to +65℃
Storage temperature -25℃ to +70℃







Color AHD Rear view Camera

Function:

  • Image Sensor:1/3″ CMOS
  • Effective resolution 1280*960 pixel
  • Digital wide dynamic function / Strong light suppression /2D/3D
  • Noise reduction
  • Waterproof:IP69K
  • Voltage:DC12V±1V



Image sensor 1/3 CMOS AHD
Resolution 1280(H)*960(V)
Effective Pixels 1.2M pixels
TV System PAL/NTSC(OSD Swtich)
Day & Night mode External control (default)
Noise-Signal Ratio ≥48db
Minimal illumination 0.01LUX
Backlight compensation (BLC) Auto
Automatic electronic shutter (AES) Auto/1/50(1/60)-1/100,000sec
Automatic white balance (AWB) Auto
Video output AHD VIDEO(720P)
Voltage DC12V/60mA±6mA(wide 9V-18V)
Working Temperature -20°C~70°C
Storage temperature -30°C~75°C



Data Sheet

Photos

30 degree Narrow Angle Camera with 7″ Monitor to Replace mid-mirror, Back door block solution
30 degree Narrow Angle Camera with 7″ Monitor to Replace mid-mirror, Back door block solution
30 degree Narrow Angle Camera with 7″ Monitor to Replace mid-mirror, Back door block solution
30 degree Narrow Angle Camera with 7″ Monitor to Replace mid-mirror, Back door block solution
