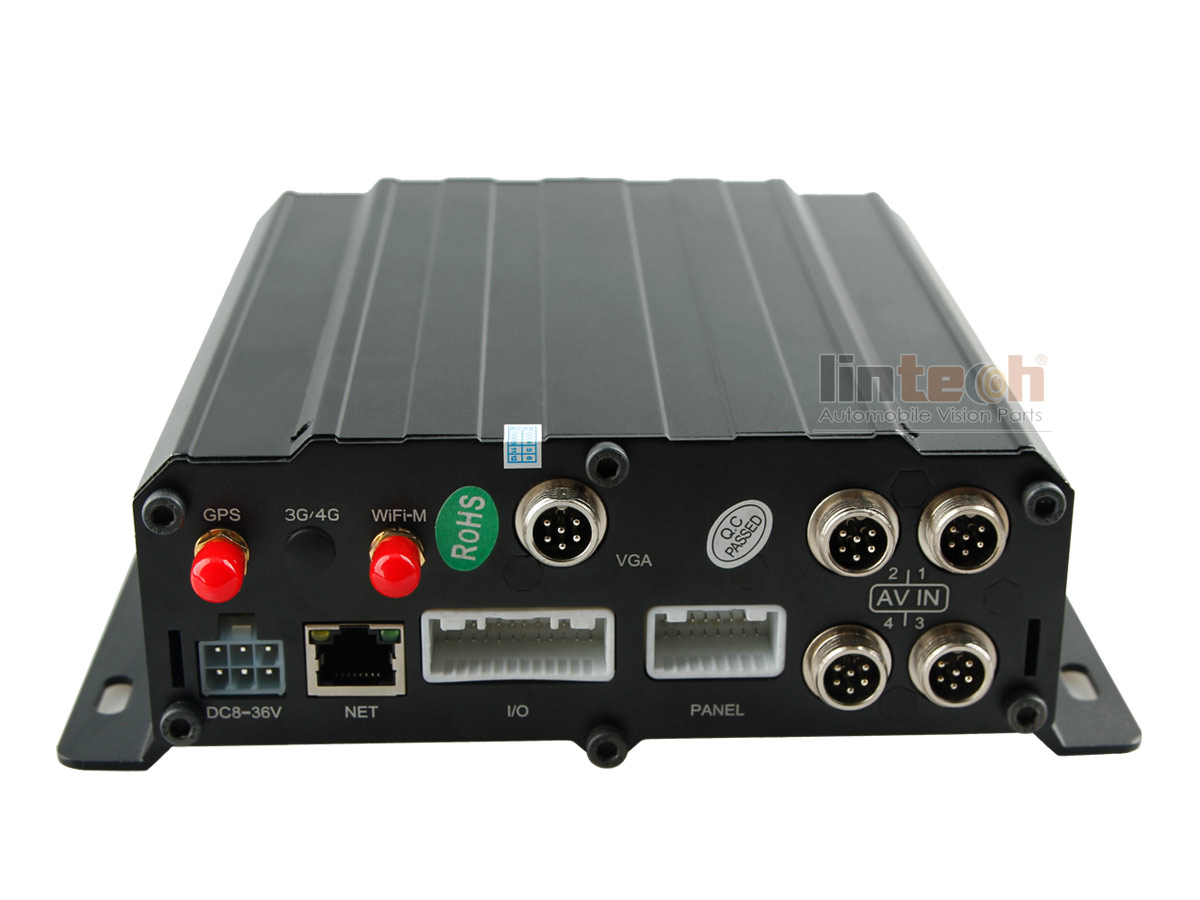

• 4CH AHDAnalog Car Mobile DVR with 3G WIFI GPS Optional

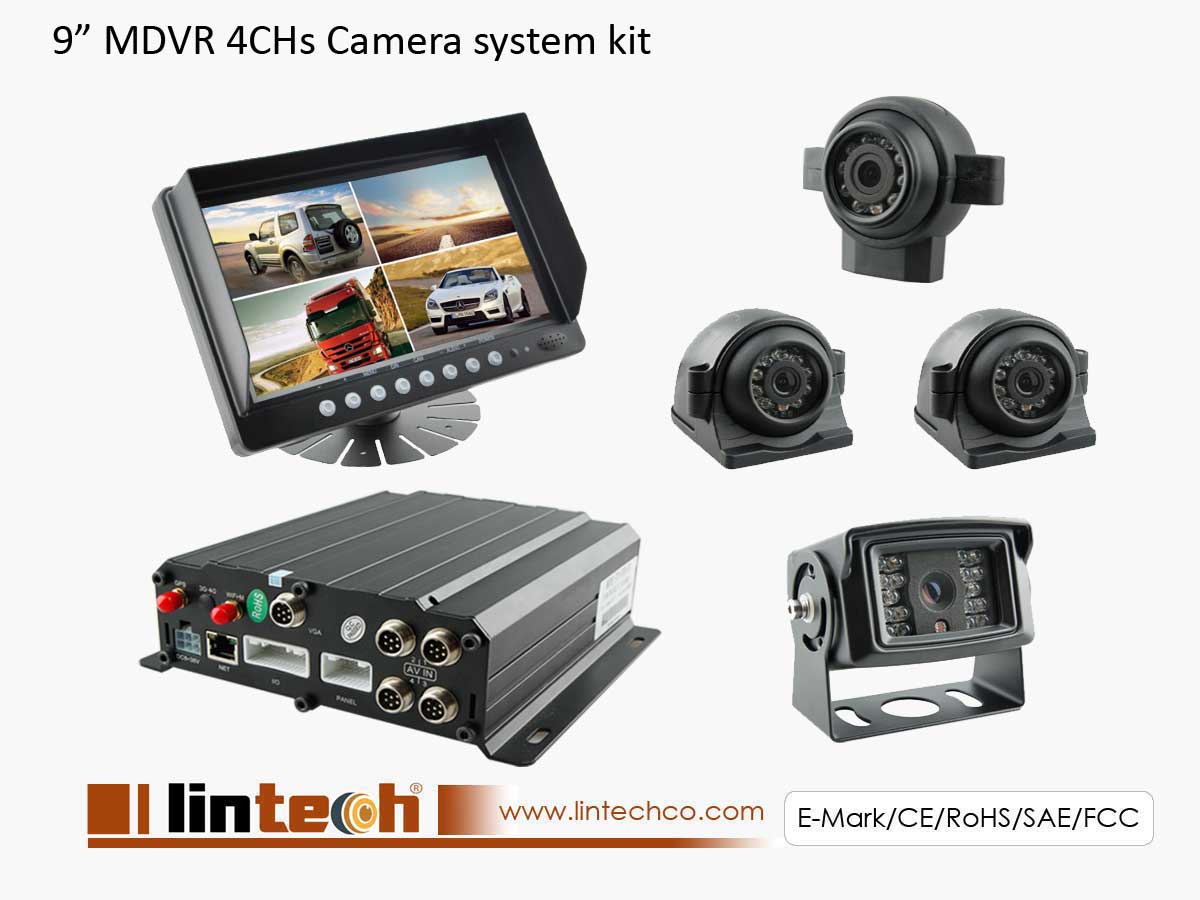

4 Channel Car DVR with 9 Inch Wide Screen, LWT-03

Futures:

  • Auto coil winder 5 M cable with 4/5 cores
  • DVR support 1-4Cameras 2TB HDD / 256GB SD Card
  • 9 Inch monitor with 800*R.G.B*480 digital resolution
  • Operate temperatures -20 – 80 C-degree
  • Camera built in 18pcs IR LED, waterproof rate IP68
  • Power supply:12V~24VDC
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B 4 Channel Car DVR Supplier.

Operation Description:

1. Constantly working, back view 4 camera videos display on 9″ 4CHs quad monitor.

2. When driver switch to R-gear to reversing, 9″ LCD will automatic ON and switch to display the Rear view camera LC-028A for reversing aid. After finished reversing aotumatic turn to 4CHs quad display.

SPECIFICATIONS of Monitor / camera:

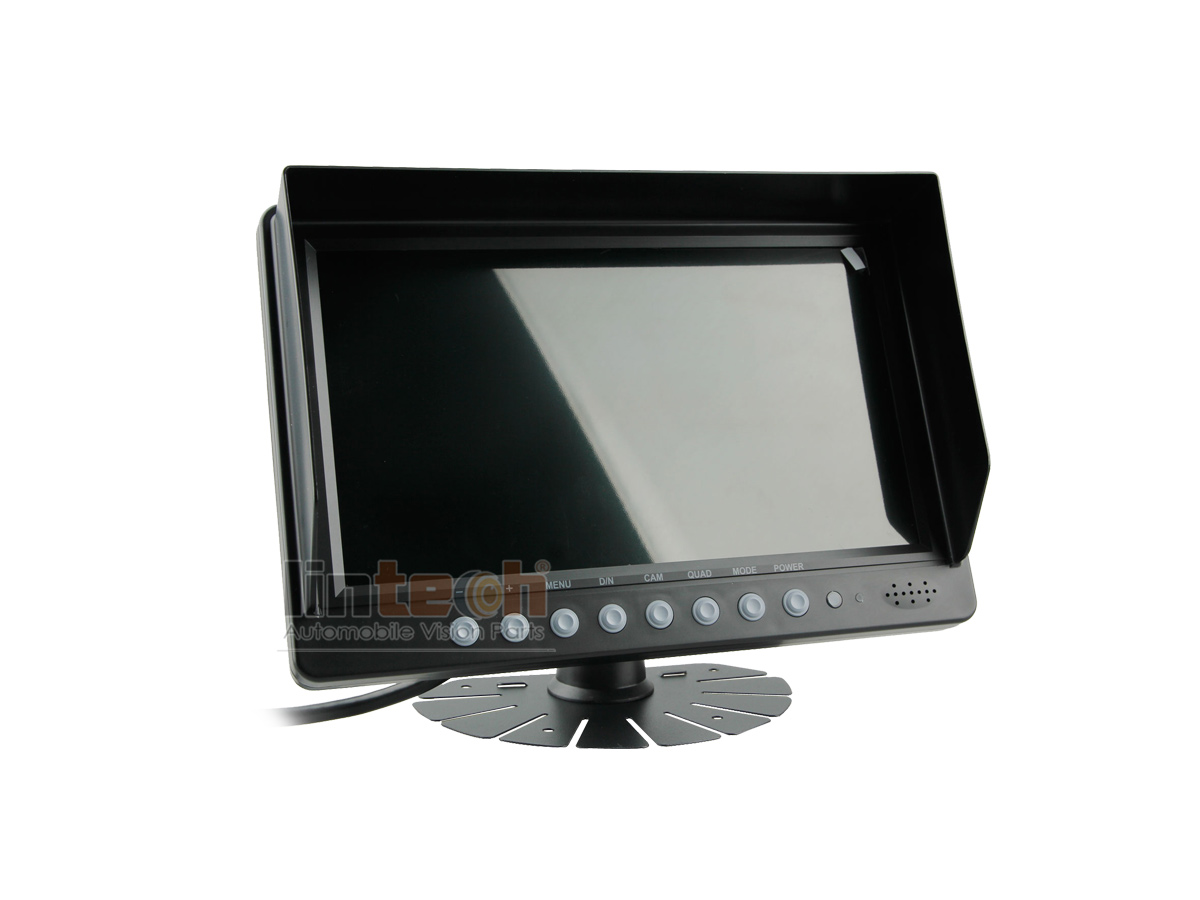

Monitor LM-090Q-B:

— 4CHs Resolution 800 x 400 R.G.B digital screen
— Top-rated monitor for trucks buses and other vehicles.
— Full function with remote
— Heavy duty and strong housing / bracket, good vibration proof.
— Trucks Quad function 4CHs split version, 3 split, 2 splits images are available.
— With sun visor for better view in strong light condition
— Reversing guide lines:  Red – Yellow – Green  with regerence distance (adjustable according to camera’s installed position).

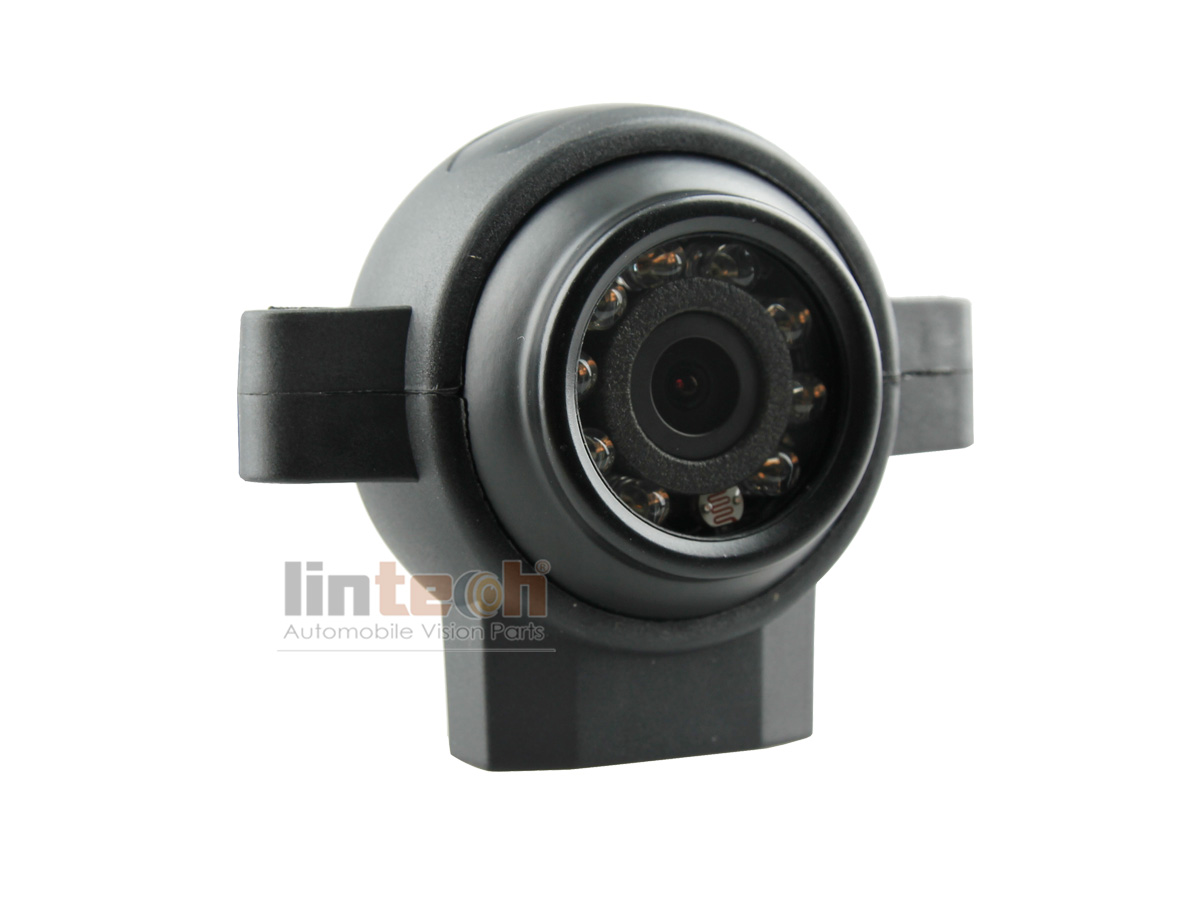

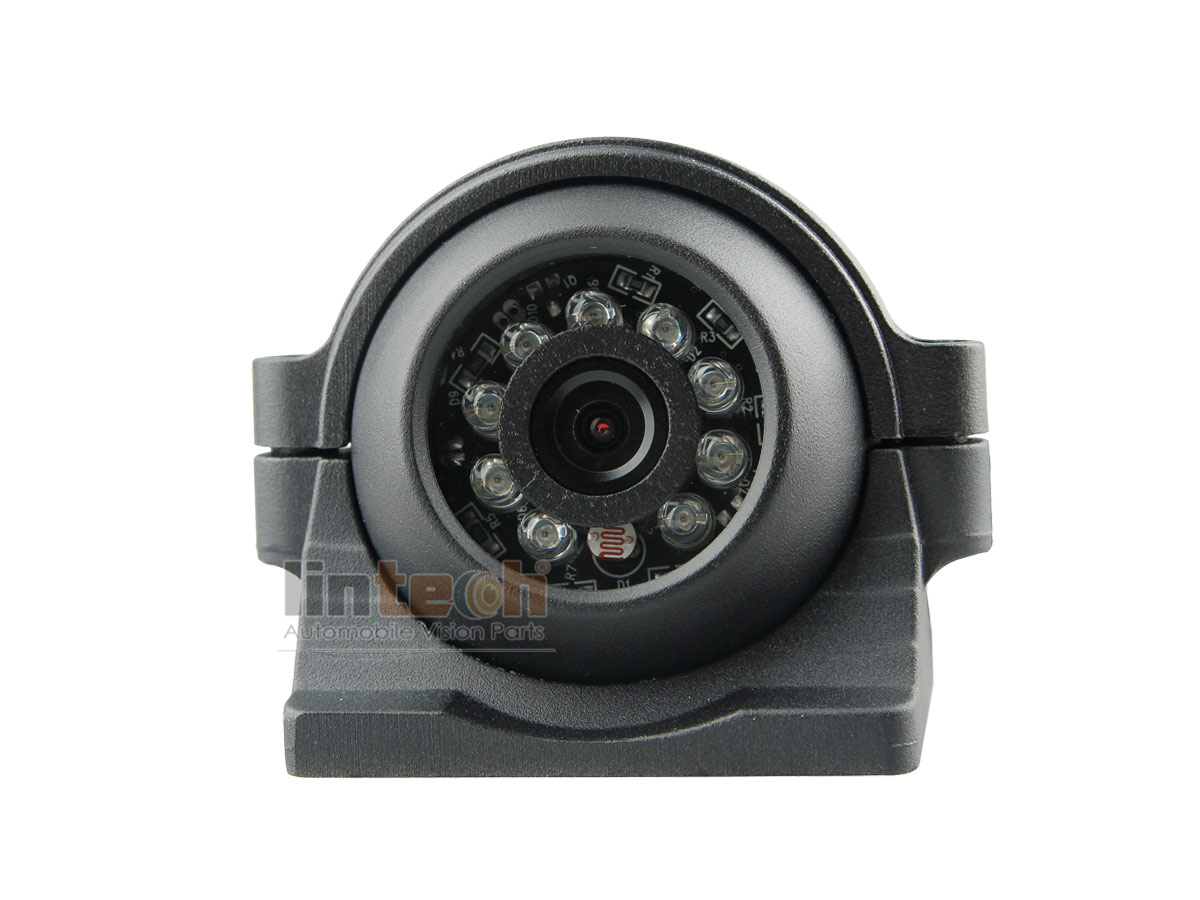

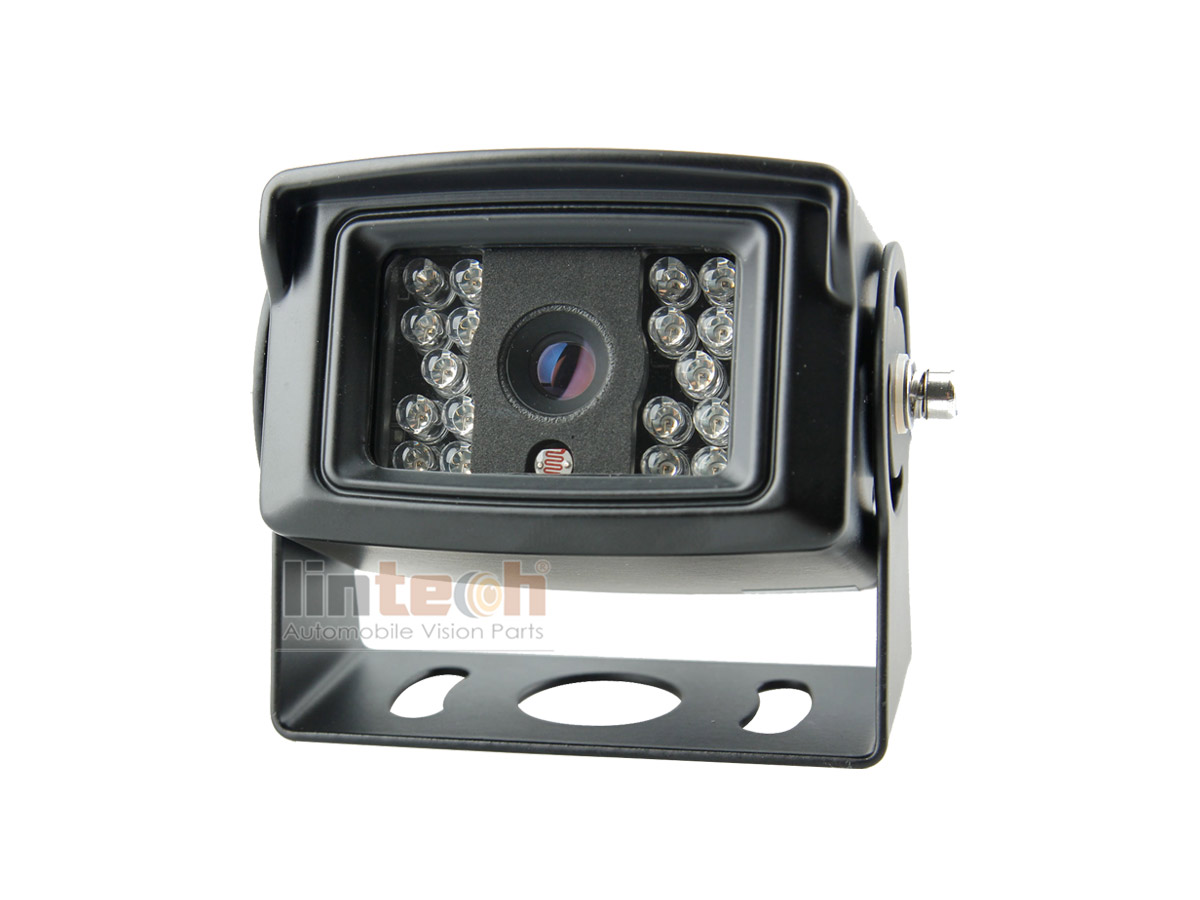

 Specification of Cameras  LC-018C:

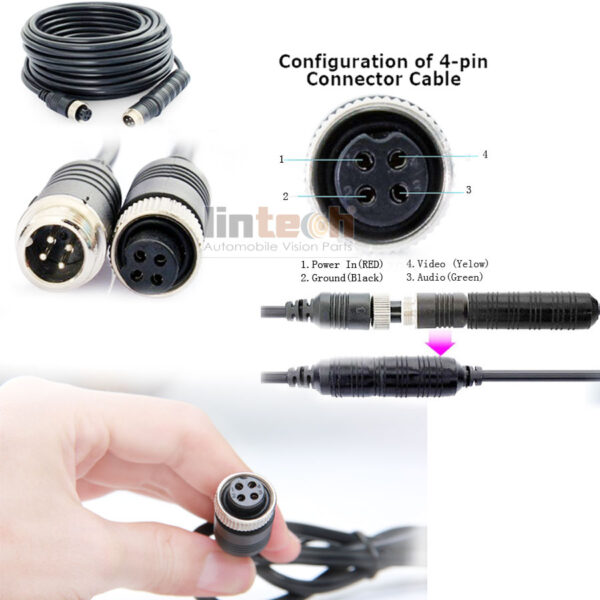

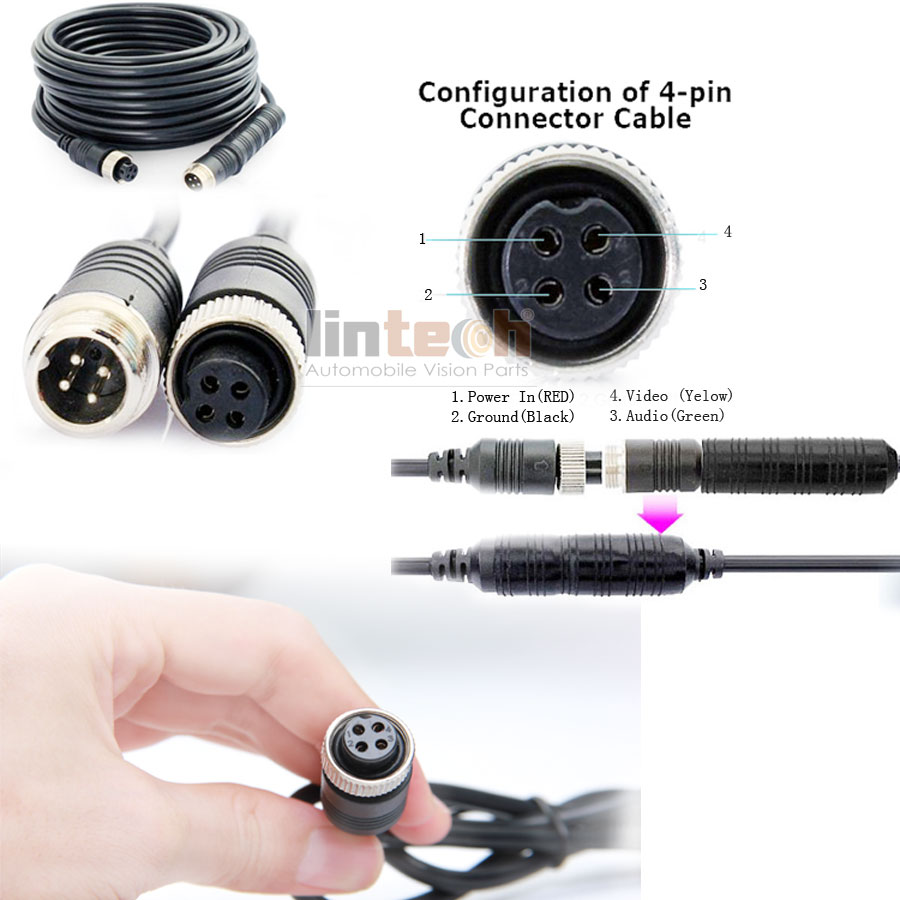

–4Pin DIN waterproof screw on connector
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
(1)1/4″ Sharp/SONY CCD Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 420 TV lines
(4)With 18 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature:  -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP68

Data Sheet

Photos

4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
4 Channel Car DVR with 9 Inch Wide Screen, LWT-03
