Descriptions

LintechCo: Leading Chinese B2B Backup Camera with Sensors Supplier.

CCTV Security Camera System for City Bus



City bus Camera Systems for Surveillance Security and Monitoring

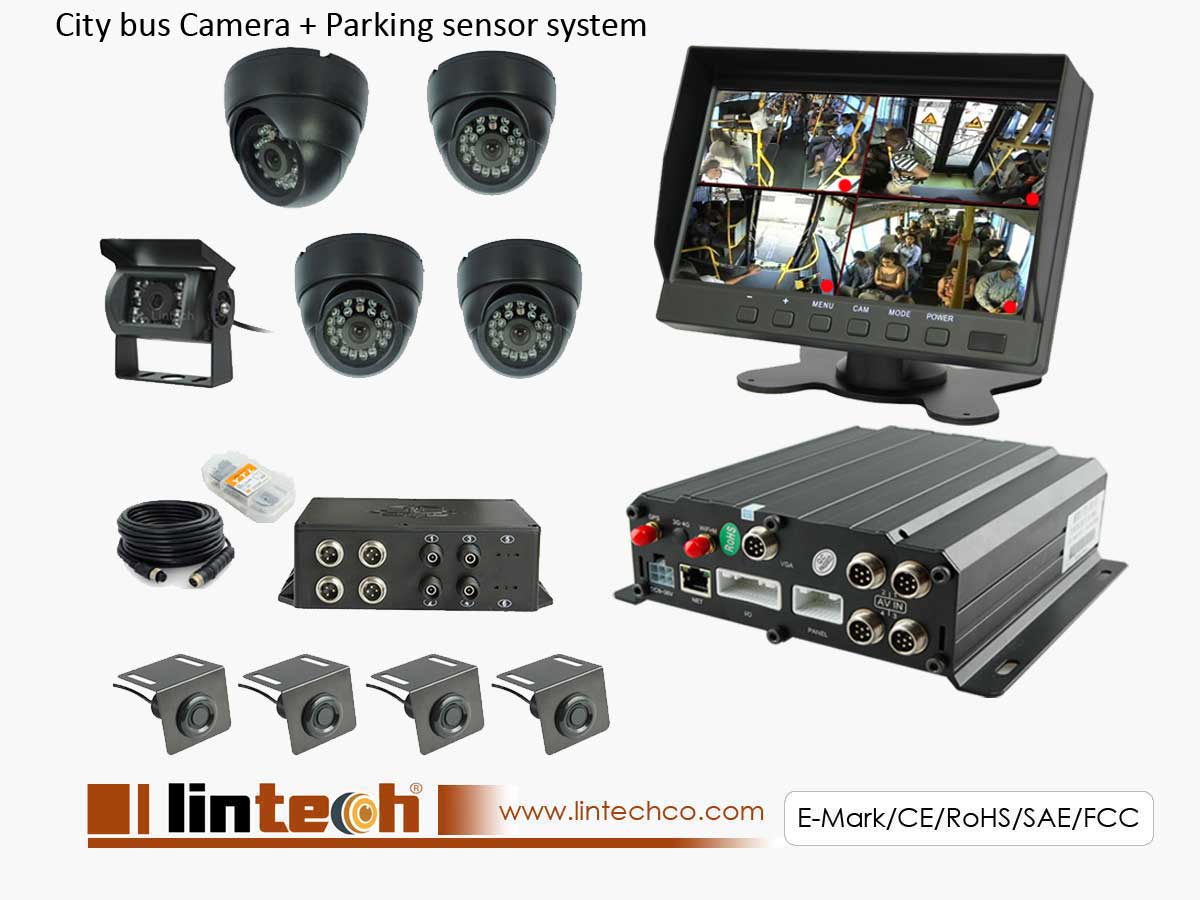

1-4 Cameras 2TB HDD / 256GB SD Card + Parking sensor Vision Alarm system kit





CCTV Security Camera System for City Bus

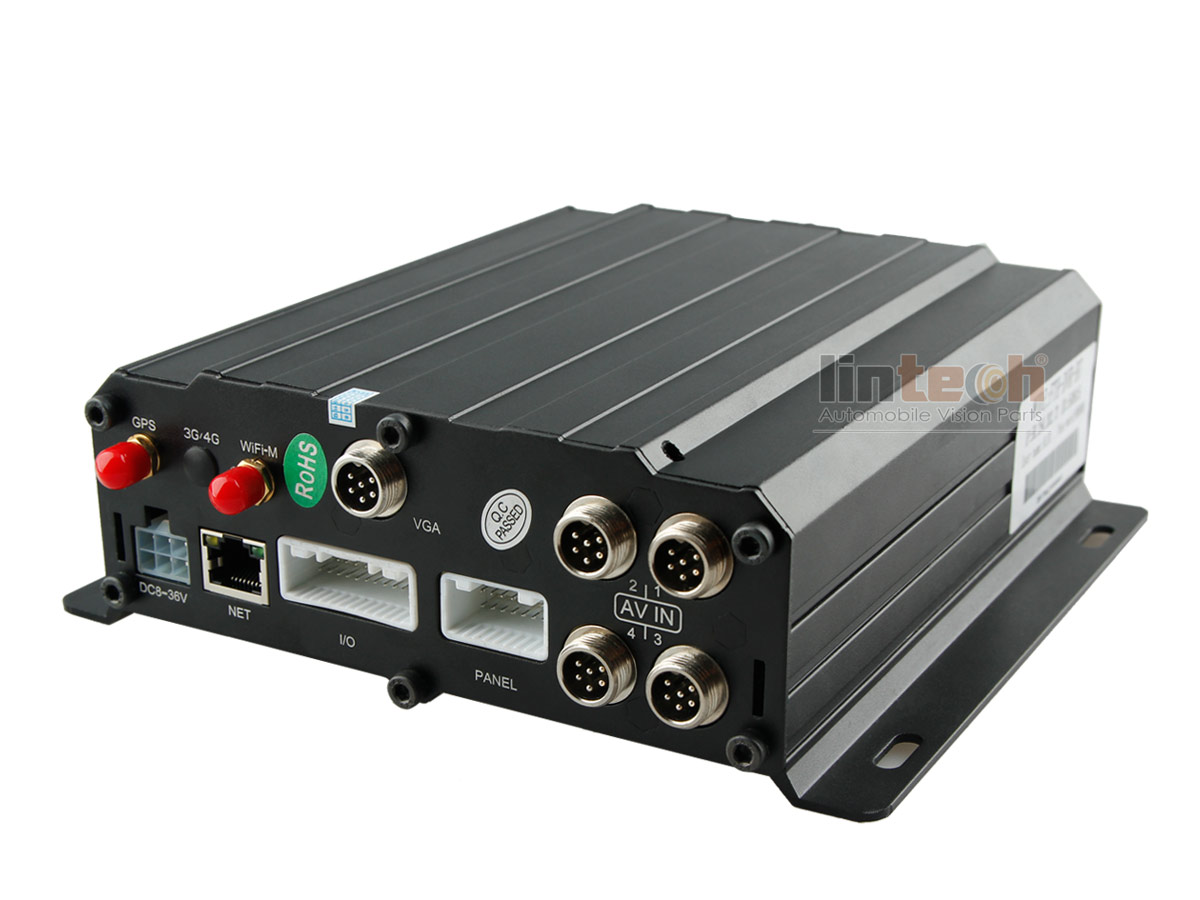

960P/720P MDVR DVR-A8 Main Features:
-CMSV6 Client Platform;
-3G 4G/WIFI for video files download (Optional);
-Video files can & alarm log can be downloaded remotely;
-4CHs/8CHs input AHD D1/720P/960P record optional;
-SD Card 128GB & HDD(maximun 2TB) for main recording
-USB mouse operation
-USB2.0 high speed for video files’ backup
-PC and mobile(Android and iPhone) client remote Live monitoring:
-Integrated with G-sensor,support motion detection



-Via 2x RS232,2x RS485 interface, can be integrated with oil sensor/TPMS/Fatigue driving/Passenger counting system;
-Working temperature -40~85C;
-Size: 158(W) x198(H) x65(D) mm,Weight: 1850g

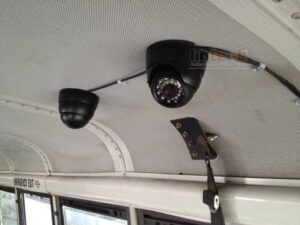

school-bus-internal-camera-installation





The DVR-A4 is an 4-channel cameras student transportation bus video surveillance camera system for school buses with a higher level of Video Evidence Security virtually eliminating the possibility video files will be viewed by outside parties or on unauthorized video players. The DVR-A8 mobile vehicle surveillance DVR has built in support for up to 2TB memory storage for either HDD or SD Card.



Student video surveillance camera system for school buses offers Built in GPS providing; vehicle speed and free On Screen Mapping during playback. In addition the DVR-A4 has a built in Wi-Fi Wireless module with external Wi-Fi antenna for increased range, as well as Automated Data File Download CMS software included with the system at no cost.

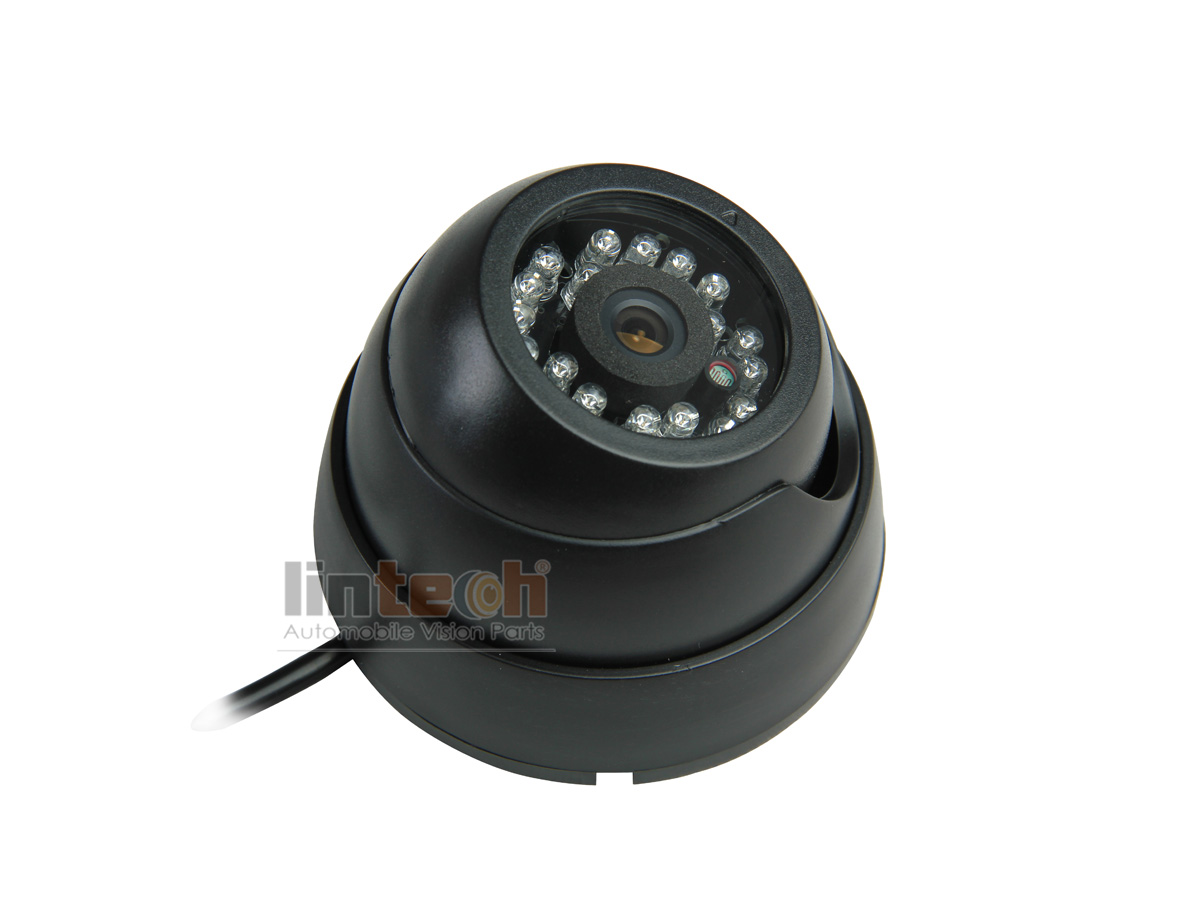

About cameras installation, normally 4 cameras internal including Front view of windscreen, driver position and front door, dome cameras on the roof of the bus to see students on seats.

4 external cameras to recording videos around the school bus, to collect and save the video of the traffic accident.

Your any question will be replied within 24 hours.
