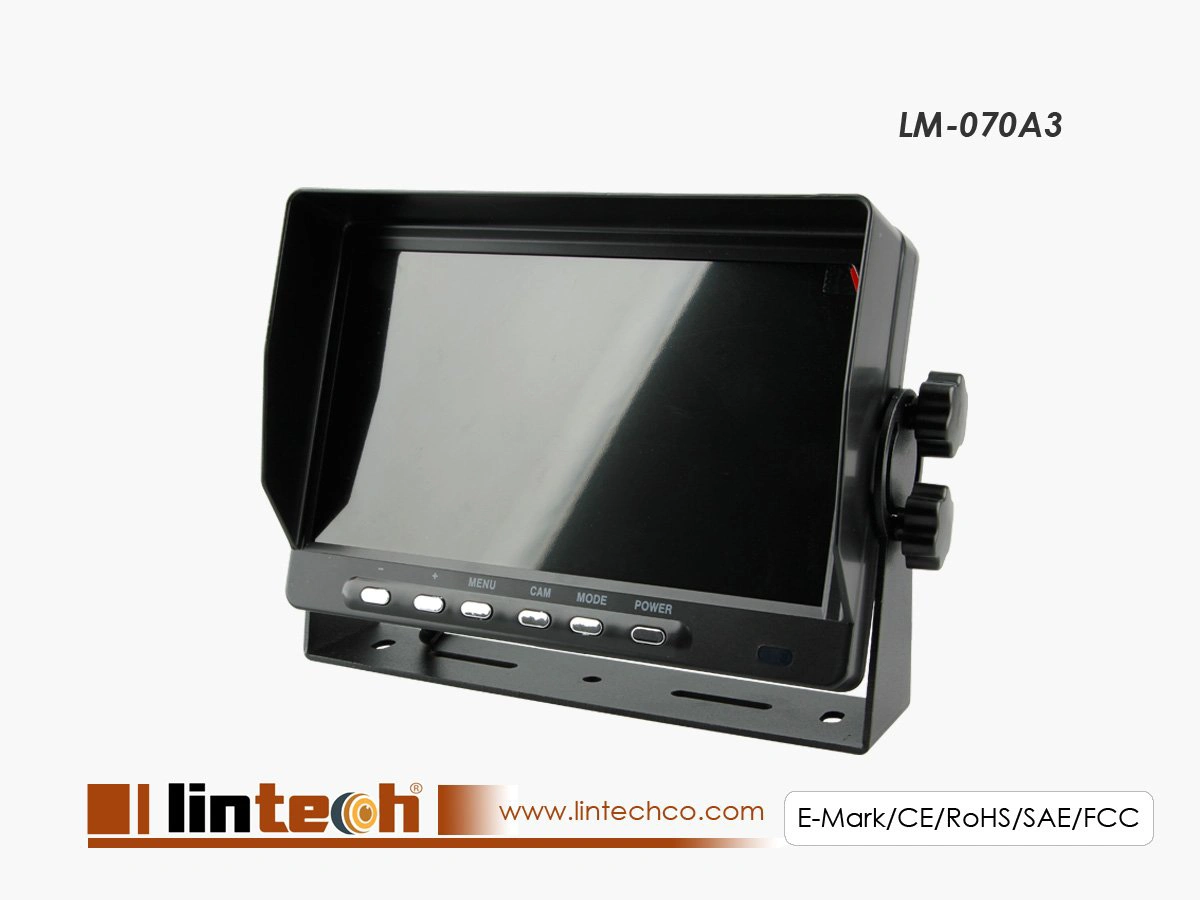

7 inches Car Monitor

Model No.:LM-070A3

  • With strong sun shield
  • Heavy duty
  • Resolution: 800*R.G.B*480 Pixels
  • Built in parking guide line
  • TV system: PAL/NTSC (auto switch)
  • Operated power: DC 12V~24V
  • 2 /4 Videos Input
  • E-Mark/CE/RoHs/FCC
FacebookTwitterGoogle PlusPinterest


LintechCo: Leading Chinese B2B Car Monitor Supplier.

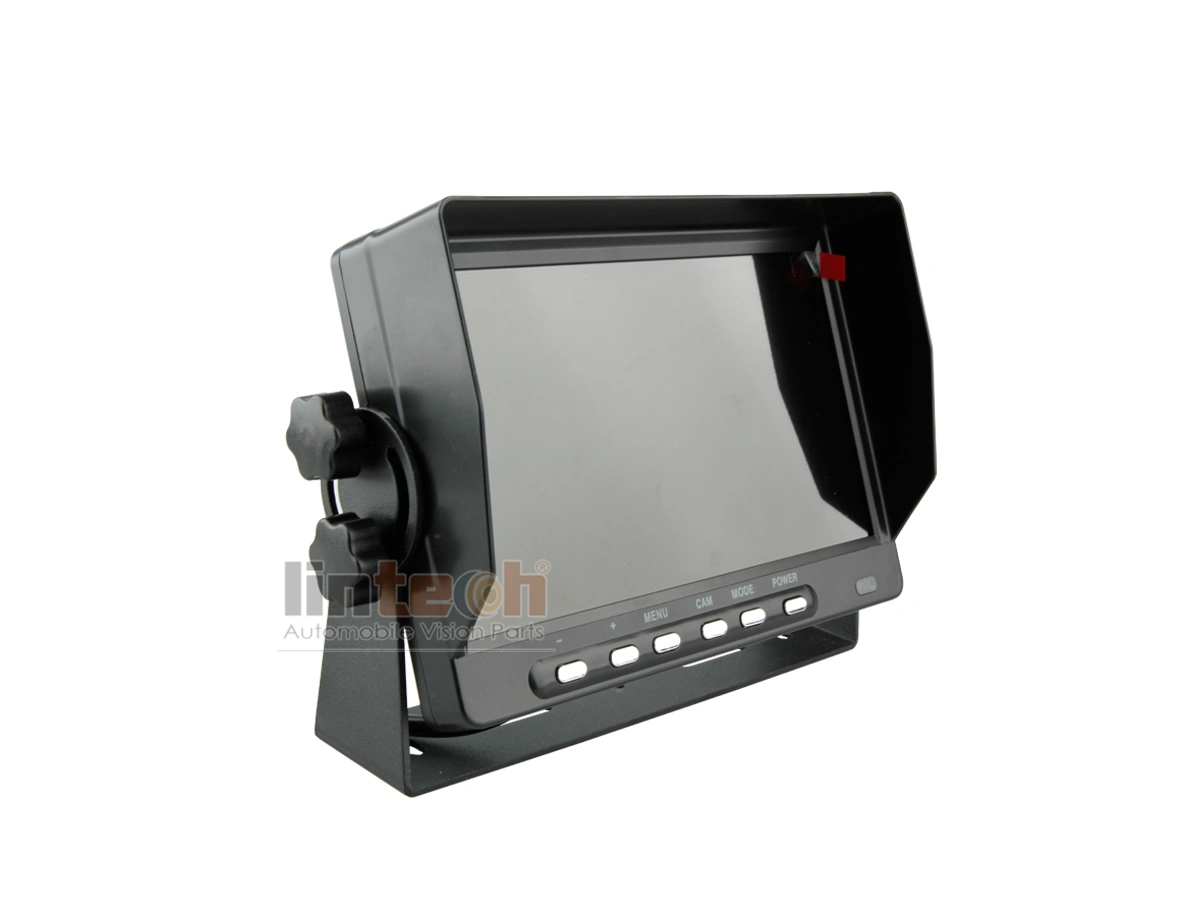

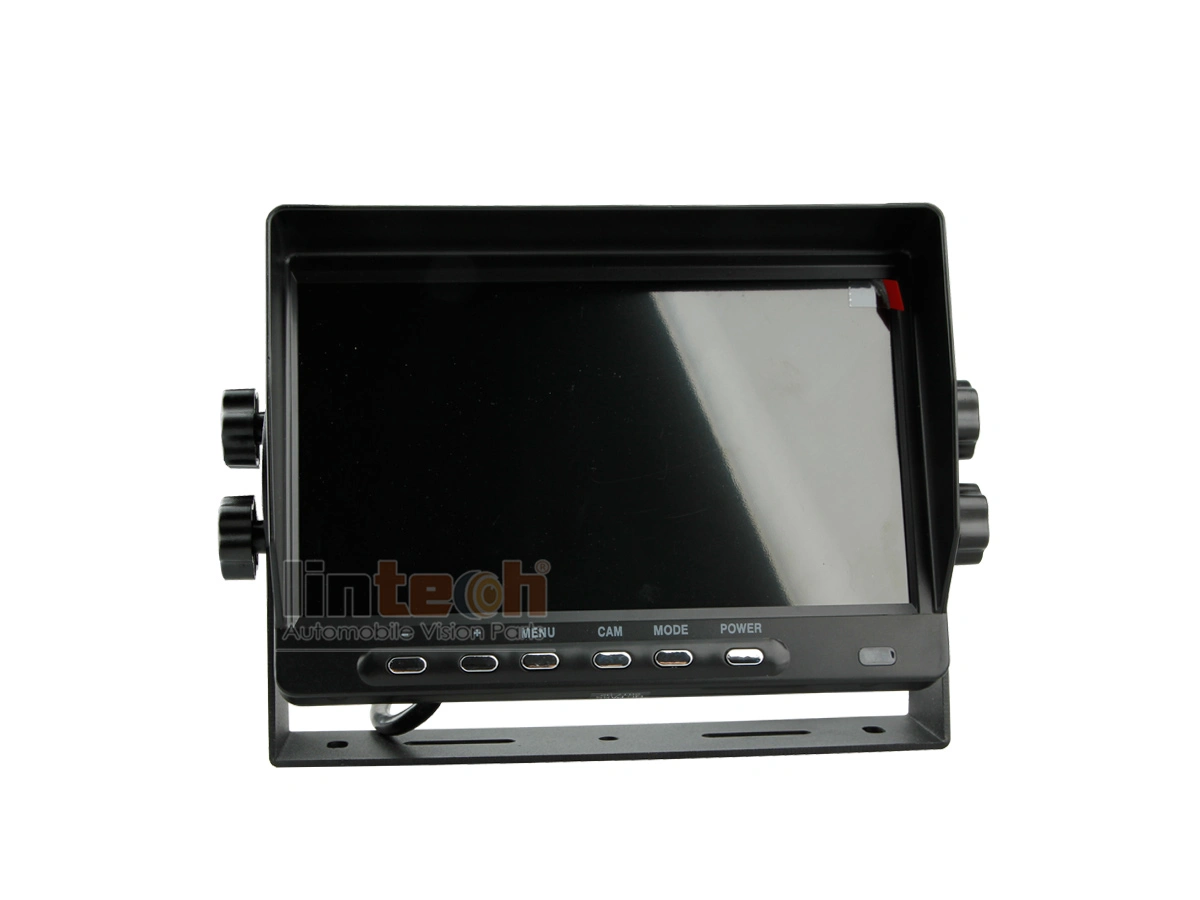

This monitor was design for heavy duty and simple style, front housing panel with sun shield design integrated to make sure it’s strong enought. Also, for the screen specification, it’s resolution at 800*480 pixels have clear image effect in such size screen, and adustable brightness and contrast to make sure you can adjust it meet your owe  requirements.

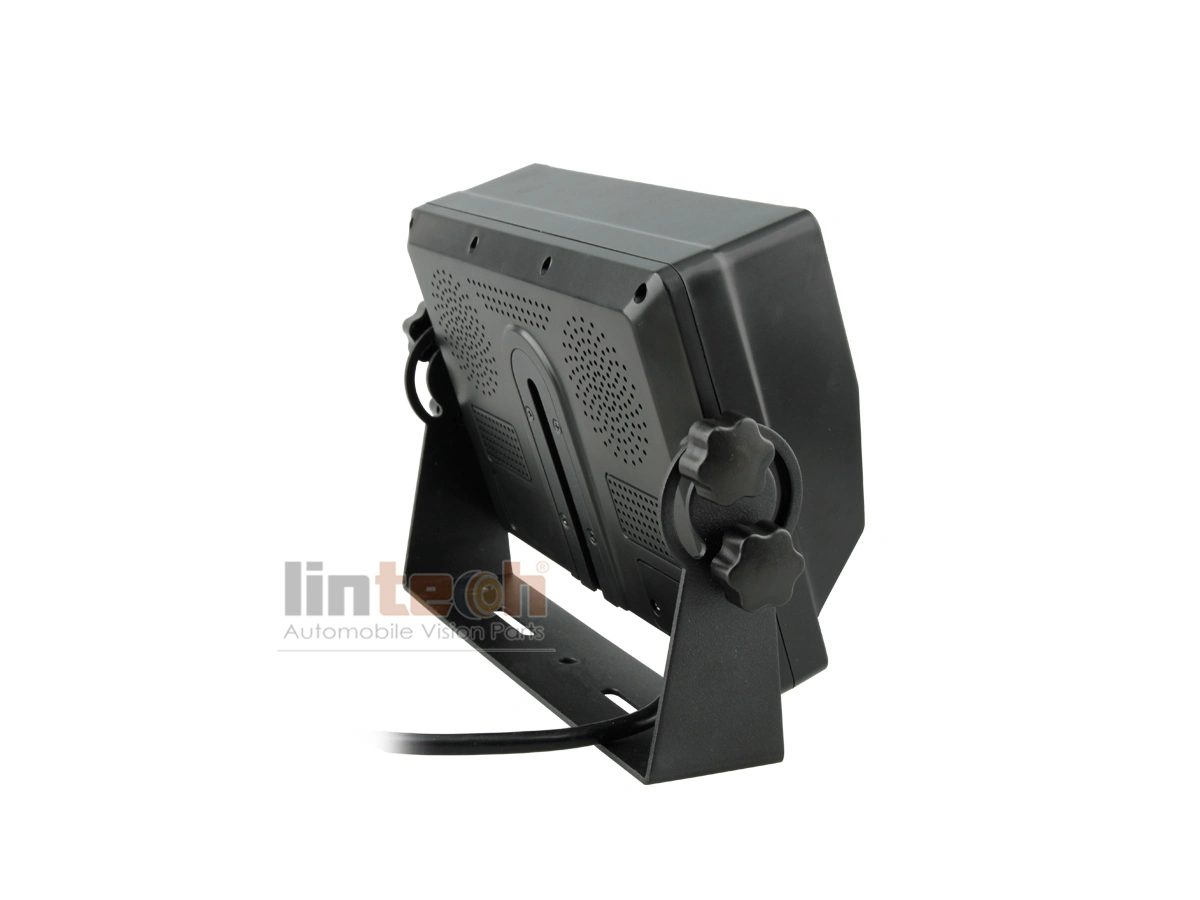

When concern to the U type bracket, it’s and stand for 10G shaking testing. It can performance steady well when goes with your trucks to any road condition.


Screen size:7 inches
Waterproof ratingIP30
Screen size ratio16 : 9 / 4 : 3
Resolution:800 x R.G.B x 480 dots
Contrast:500 : 1
Viewing angle:U: 50/ D: 60, R/L: 70 Degree
TV systemNTSC / PAL
Video input:2CHs video input4CHs video input, split display
Display modeSwitch, intervalSplit, triple, dual, single
Mirroring supportHorizontal/Vertical 180 degree turned
(mirror function)
Parking guide lineAdjust when camera finished install
Reference distance unitFeet/Meter
Video delay display1-20 second (after triggered)
Menu languageEnglish, French, Russian, Spanish, Portuguese, Italian, German
Pannel light sourceLED
Button backlightNo
Connector typeM12 4pins male connector / RCA Female
Power supply:12~24VDC
Output voltage12VDC
Power consumptionLess than 7W
Bracket: U-type bracket
Outer dimension:223mm x 163mm x 55mm (Max)
Net weight800g900g
