HD Backup Camera: AHD 2.0MP Sensor Anti-Reflex Design

This HD Backup Camera with high resolution image, special design for night vision IR light anti-reflex, suit for driving monitoring, DVR, backup assistants purpose.

FacebookTwitterGoogle PlusPinterest

Descriptions

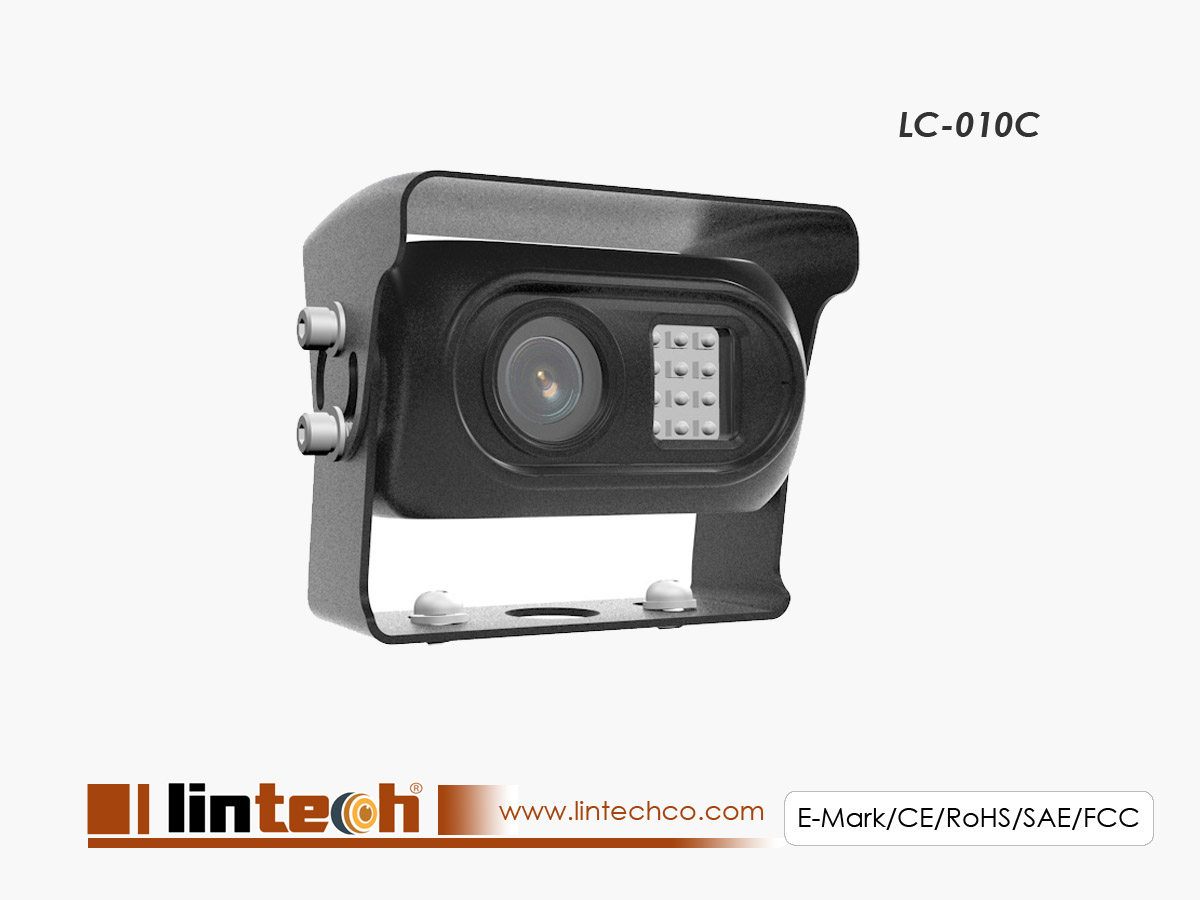

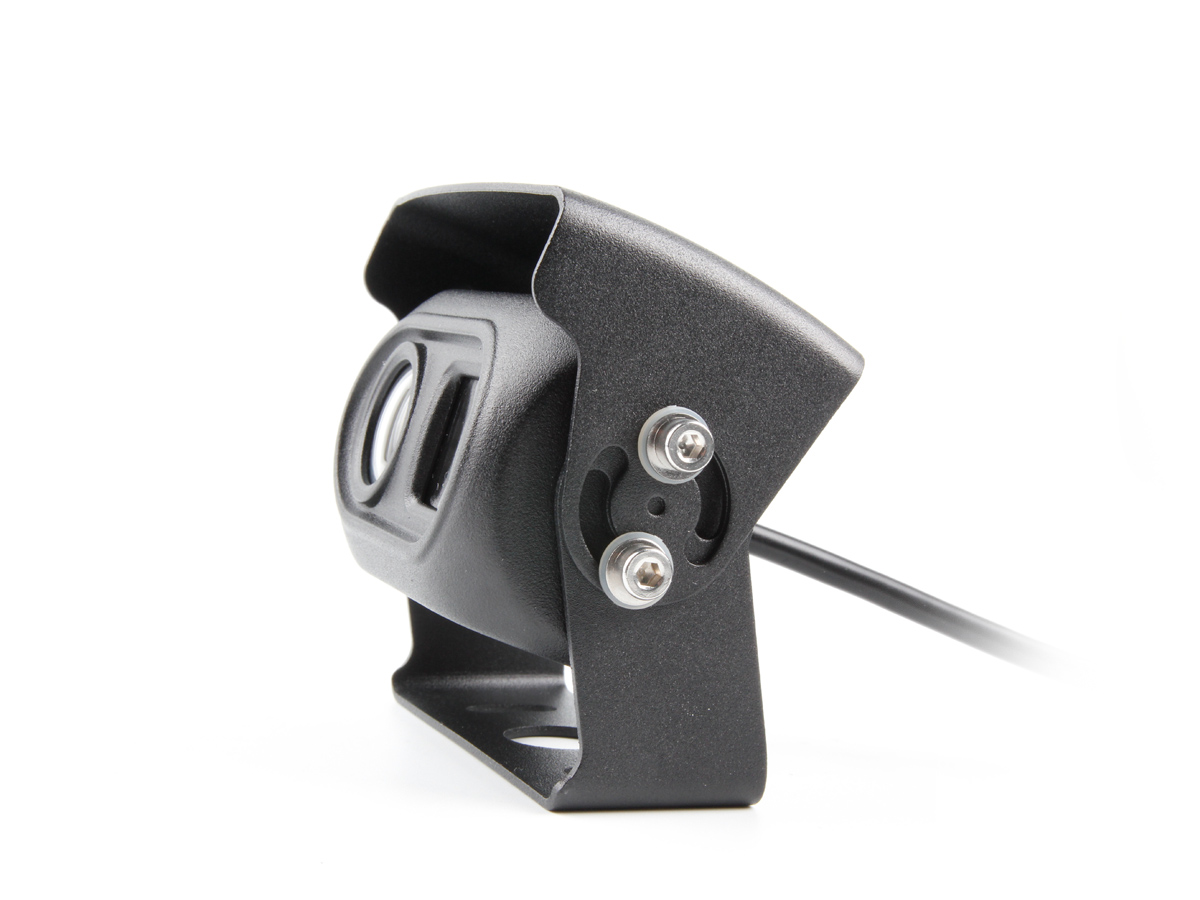

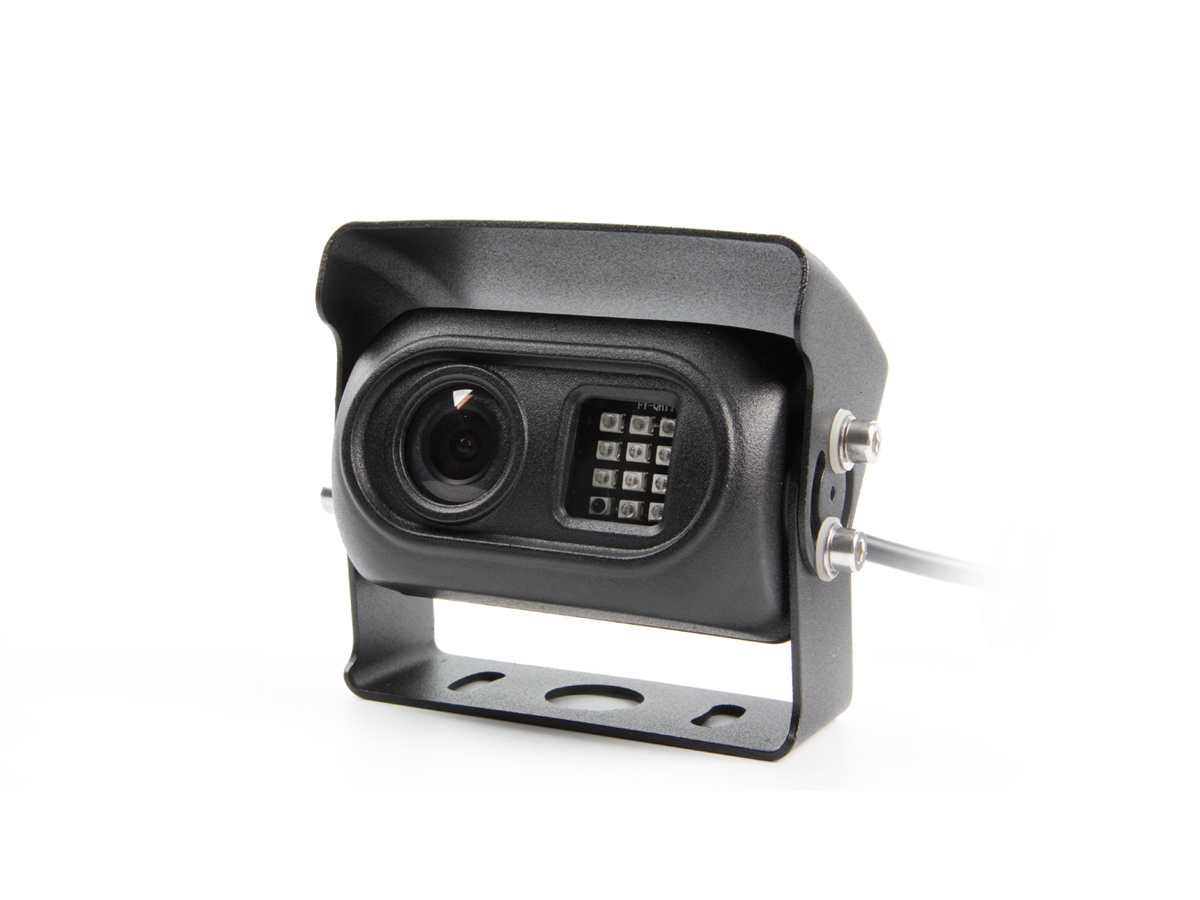

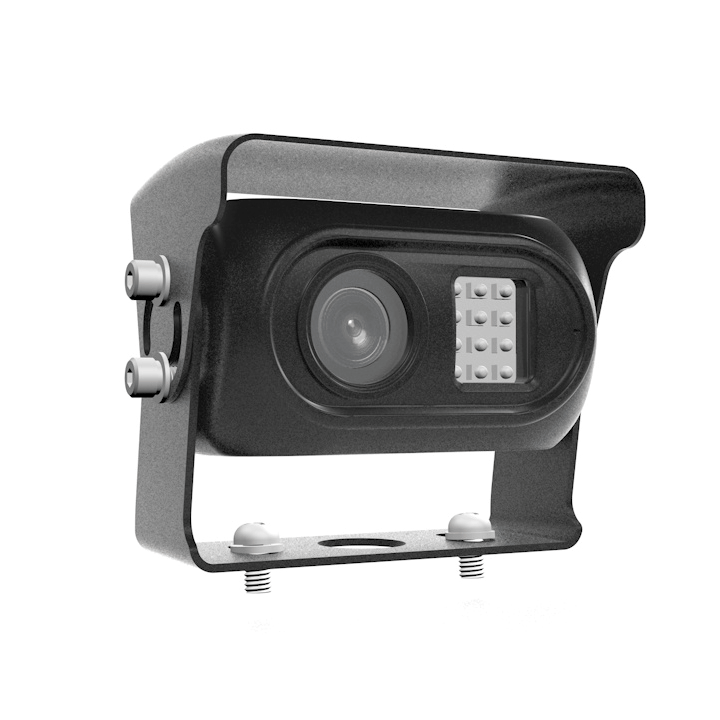

HD Backup Camera: AHD 2.0MP Sensor Anti-Reflex Design

Model No.: LC-10C

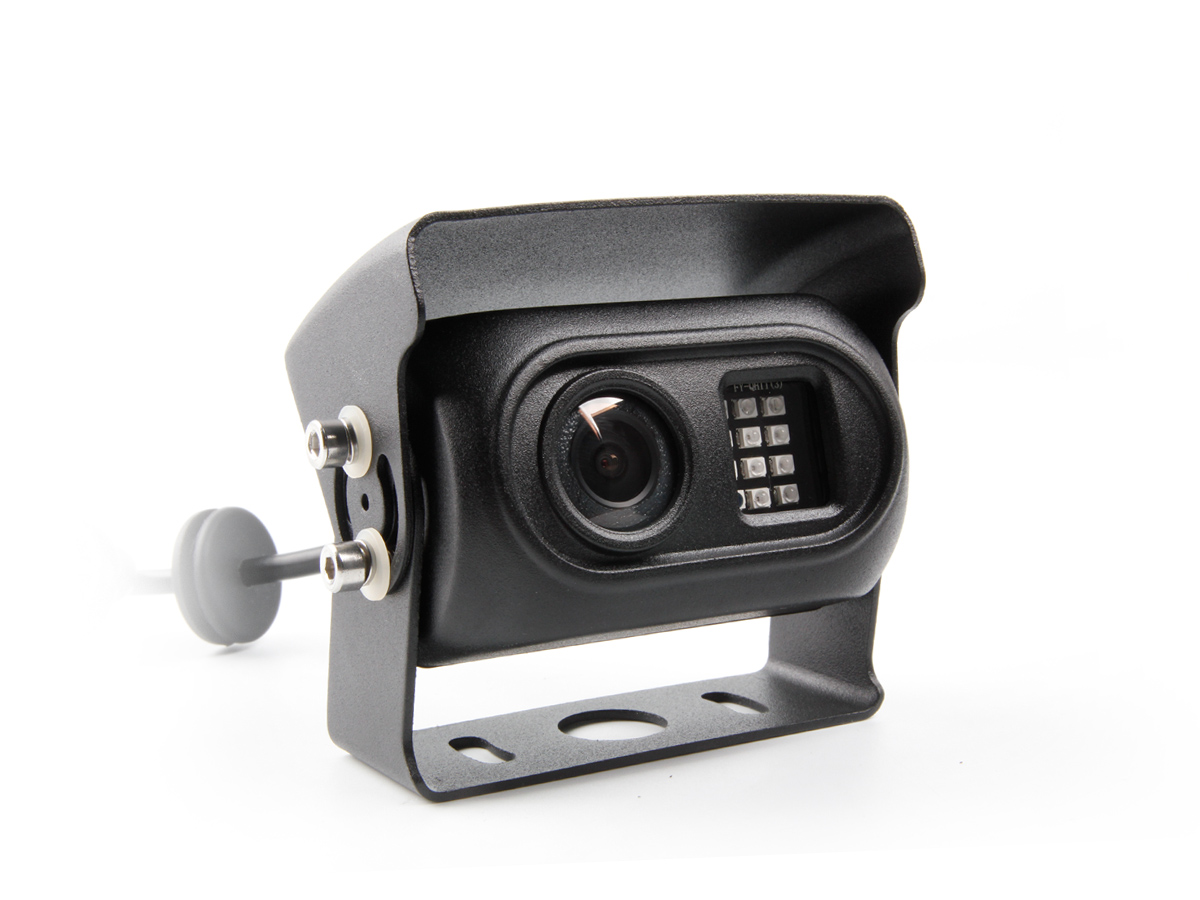

–Lens and IR LED separate room/glass design for prevent reflex IR light
–Appearance design meet ECE R26 Regulation
–Analog HD camera 2,000,000 Pixels, clear image
–1/3″ CCD Sony Sensor
–IR Night Vision Function,Used for truck/bus/ car all vehicles
–CE/FCC/RoHS/E-Mark



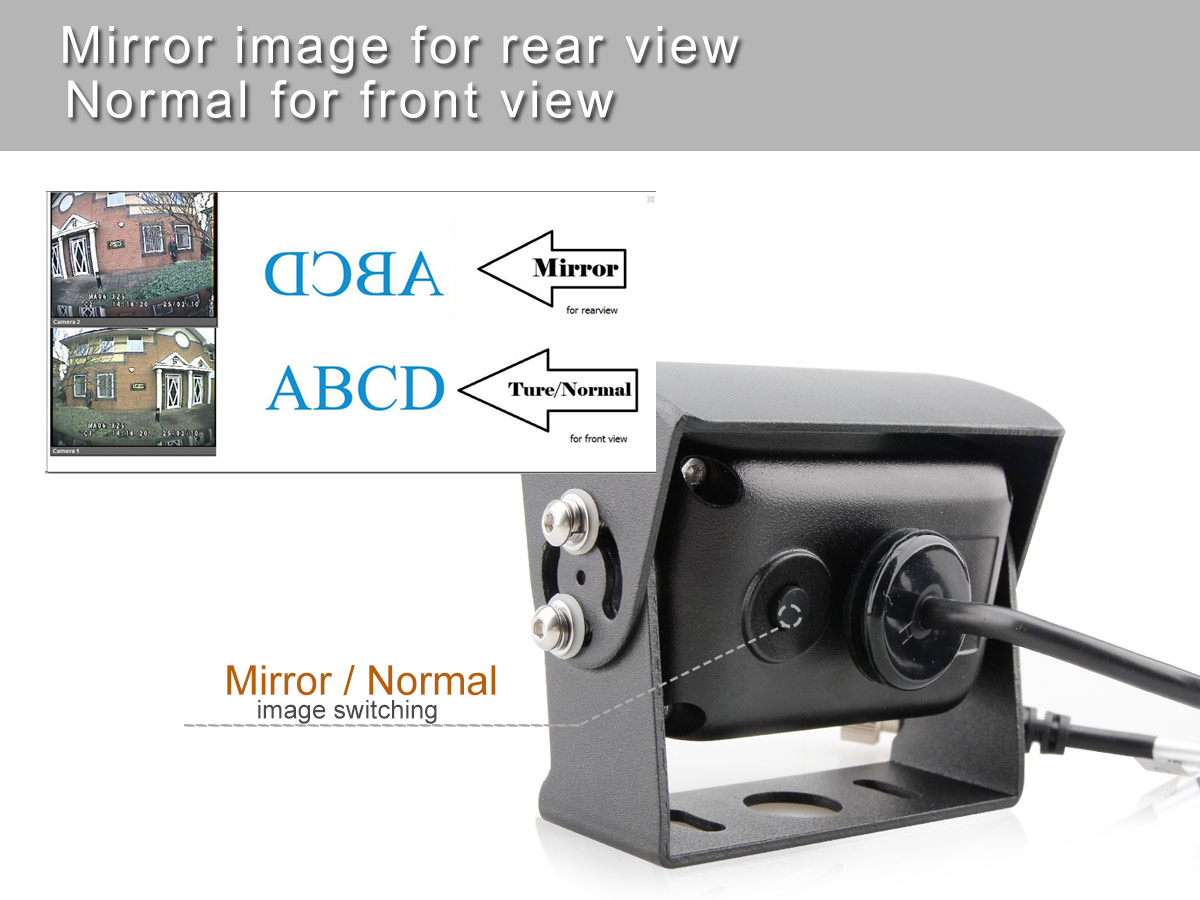

Further explain:

Most of night vision backup camera IR LED and Lens were put in the same space,when camera working at night time, IR LED start working, some of IR light was reflex to the camera lens, especially when the glass with some dust or dirty, it make the image indistinct.

After design IR led and Lens separate with 2pcs glasses, IR light reflex problem solve.



Specifications:

SubjectStandard ParameterOptional Parameter
Image sensor1/3” CMOS AR0130NVP2441H + IMX323 CMOS
Resolution1280*960 (1.2M Pixels)1920*1080 (2.07M Pixels)
Horizontal ResolutionAHD 960PAHD 1080P
TV SystemNTSC/PAL
Lens2.8mm
View angle (degree)Horizontal 90 , Vertical 50, Diagonal 102Horizontal 105 , Vertical 53, Diagonal 122
Power supplier12VDC
Current consumption150mA
Power consumption1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED 11 pcs (Night vision distance 5m)
Waterproof ratingIP69K

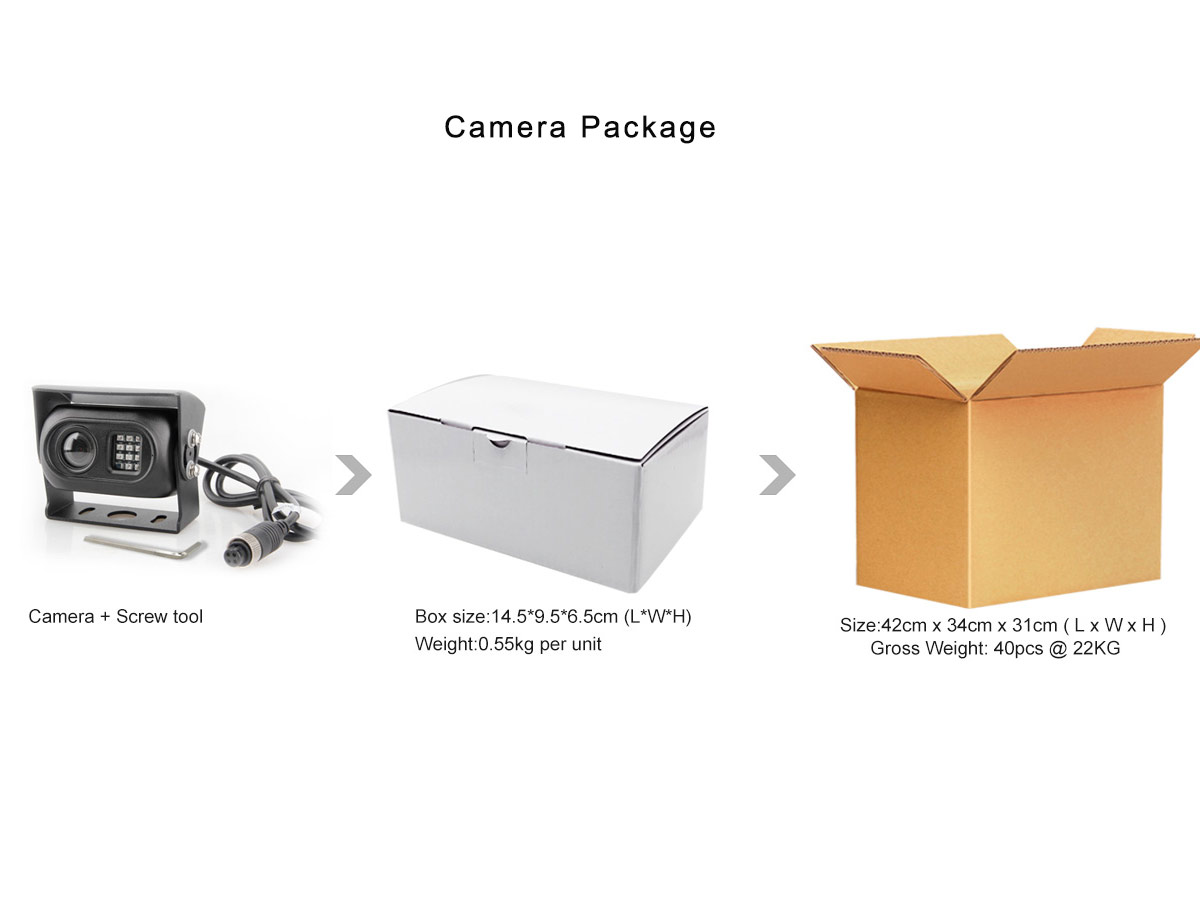

Packing weight450g

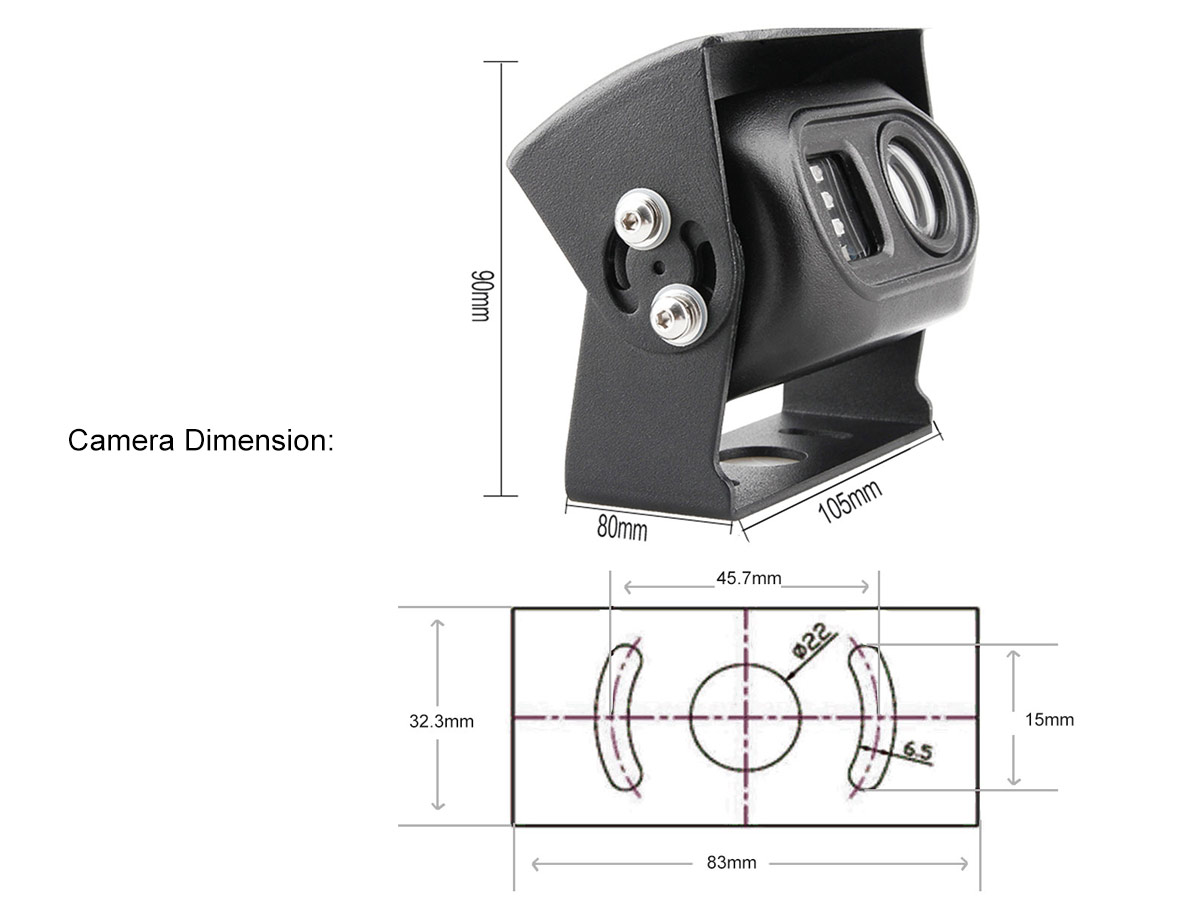

Dimension(WxHxD)96mm x 74mm x 55mm (MAX)
Operation temperature-20 ~ +70 C-degress

Certificates and Test Report Links:

E-Mark E9 Certificates and Report
CE Certificates and Test Report
FCC Certificates and Test Report
RoHs Certificates and Test Report



Data Sheet



Different Chips and Lens Effects:



CH1 — LC-10C: AHD 1080P + IR Cut
CH2 — LC-009DS: AHD 1080P (Without IR Cut, View angle 160 degree)
CH3 — LC-10C: 1080P with CVBS signal output
CH4 — LC-10C: SONY CCD 700TVL
