Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system kit for Gas tank truck

Main Features:

–MDVR support 3G/4G Live stream video

–GPS map tracking
–Camera IP68 / IP69K heavy duty
–AHD 1080P high resolution chipset
–7″ LCD Monitor 800 x 480 RGB

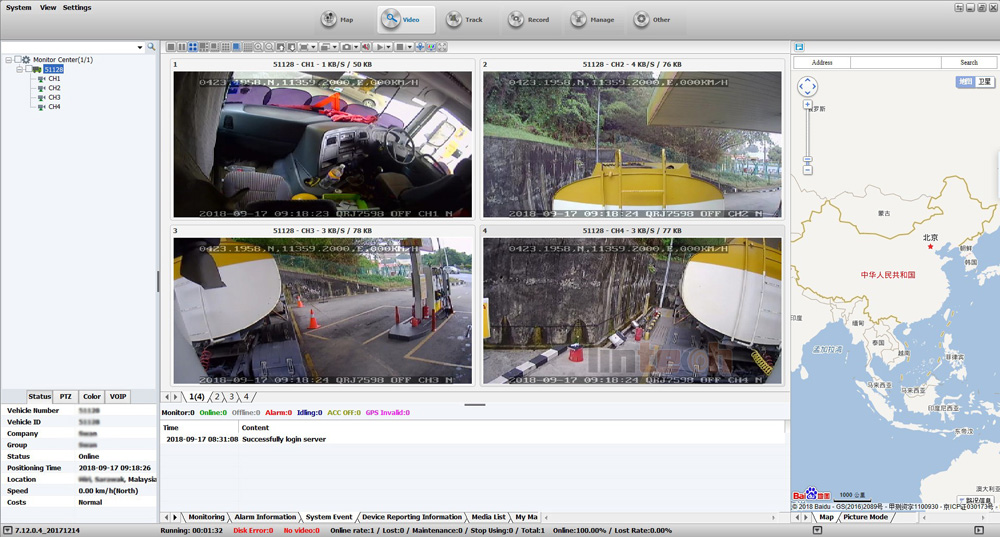

–CMS client playback software for free.
–Optional Heating function for extremely cold condition

FacebookTwitterGoogle PlusPinterest

Descriptions

Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system kit for Gas tank truck



Main Features:

–MDVR support 3G/4G Live stream video

–GPS map tracking
–Camera IP68 / IP69K heavy duty
–AHD 1080P high resolution chipset
–7″ LCD Monitor 800 x 480 RGB
–CMS client playback software for free.
–Optional Heating function for extremely cold condition

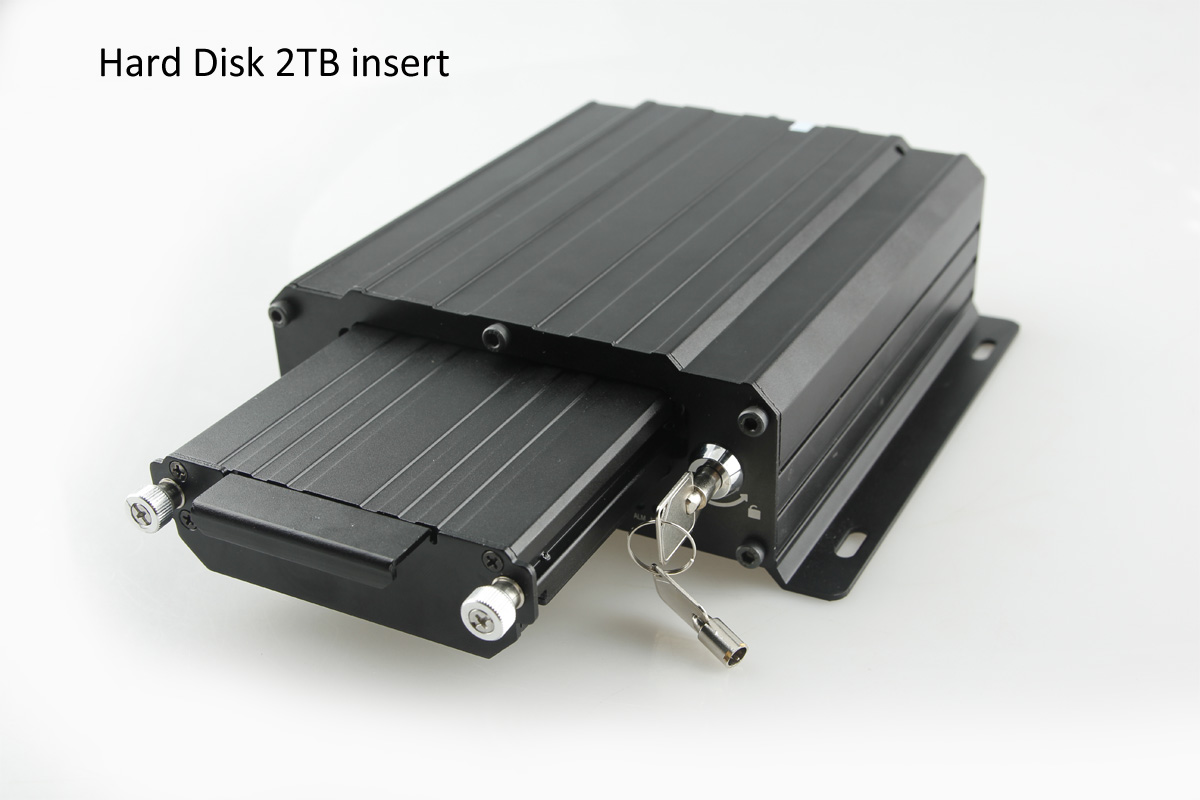

1080P 4CHs 8CHs SD card + 2TB Hard Disk MDVR
1080P 4CHs 8CHs SD card + 2TB Hard Disk MDVR

MDVR unit features.

        ** Full aluminum housing for better Heat radiation

         ** Max support 2TB Hard Disk.

** 4G/WIFI /GPS module  for Live video stream.

         ** Free CMS client and cloud server.

                ** Technical online to assist you setting the MDVR

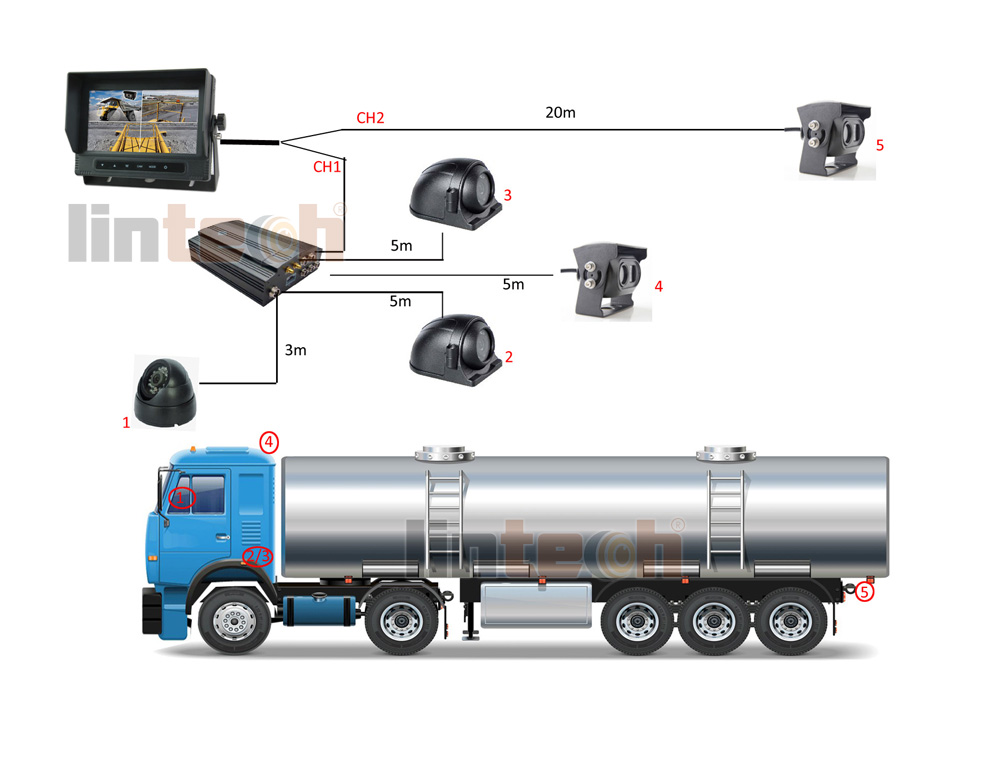

Oil tank MDVR 5 Cameras wiring diagram
Oil tank MDVR 5 Cameras wiring diagram

Oil Tanker Truck MDVR CCTV Camera system Wring guide.

When put to R-gear, 7″ screen will automatic switch to back view camera full display for reversing aid. (5th Camera at the back of tank).

Finish reversing, will auto switch to 4 cameras split image from MDVR.

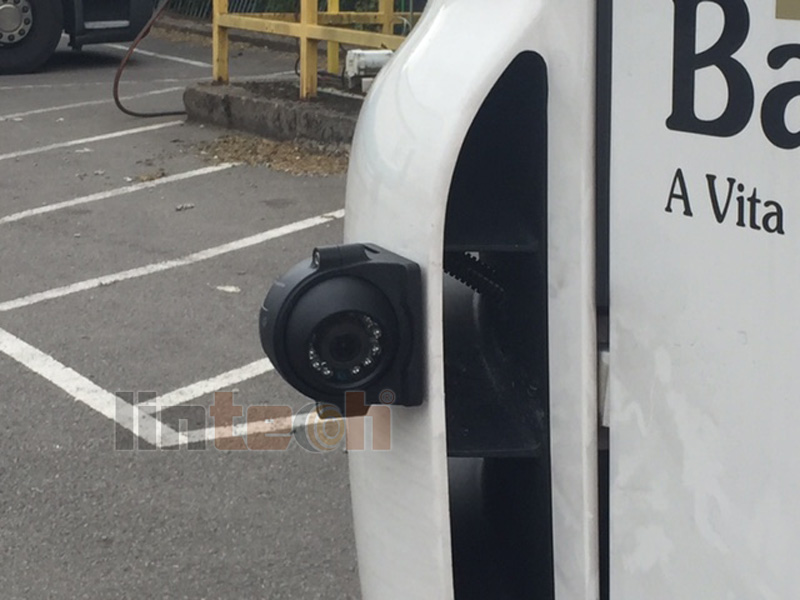

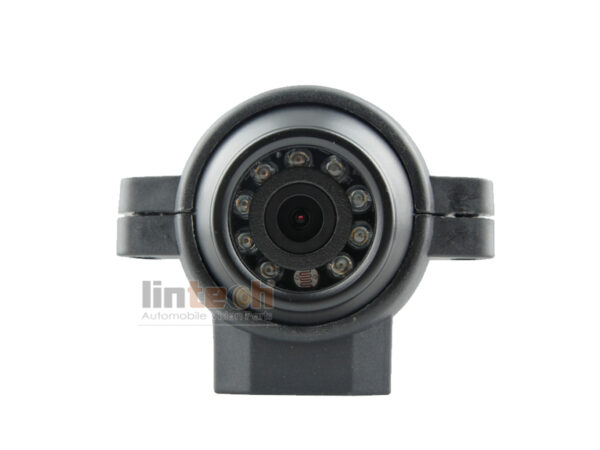

Side view Camera LC-009D1.

– 1080P AHD sensor lens.

– IP68 Waterproof rating

– Heater build in function available

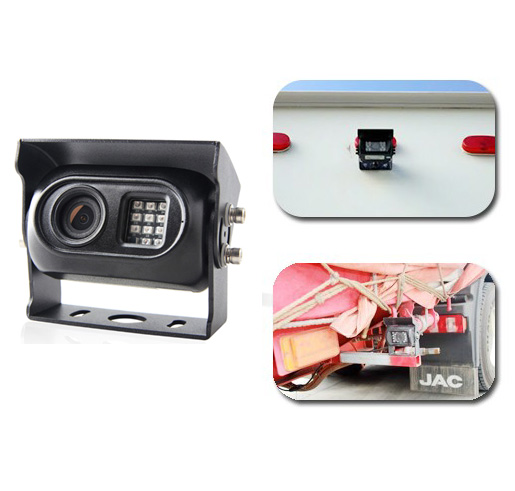

Rear view Camera LC-010C.

– Anti-IR lights reflecting New design

– IP69K heavy duty housing

– Microphone / image switching

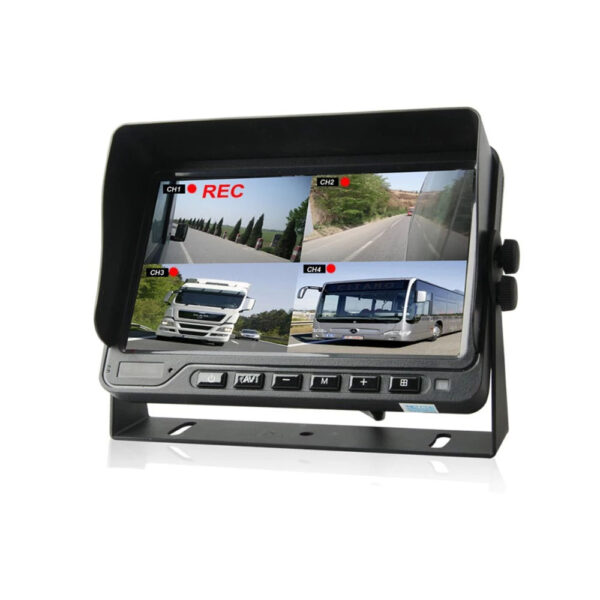

7″ TFT LCD Monitor  LM-070D2

– Heavy duty Aluminium alloy housing

– 12~32V DC

Model #:
LC-009D1
LC-010C
LM-070D2
Sensor
1080P 1/3″ APTINA CMOS
1080P 1/3″ APTINA CMOS
-Heavy duty Aluminium alloy housing
Resolution
1920*1080 (2.0M Pixels)
1920*1080 (2.0M Pixels)
– 800 x 480 RGB
Lens
2.8mm (120°/ 90°)
2.8mm (120°/ 90°)
– High brightness LCD panel
IR LED
9pcs
11pcs (SMD  IR LED)
– 2CHs / 4CHs version optional
Waterproof
IP68
IP69K
Non-waterproof
Voltage
12V DC (±10%)
12V DC (±10%)
12~32V DC
Work Temp
-20℃ ~ +40℃
-20℃ ~ +40℃
Back lights for buttons

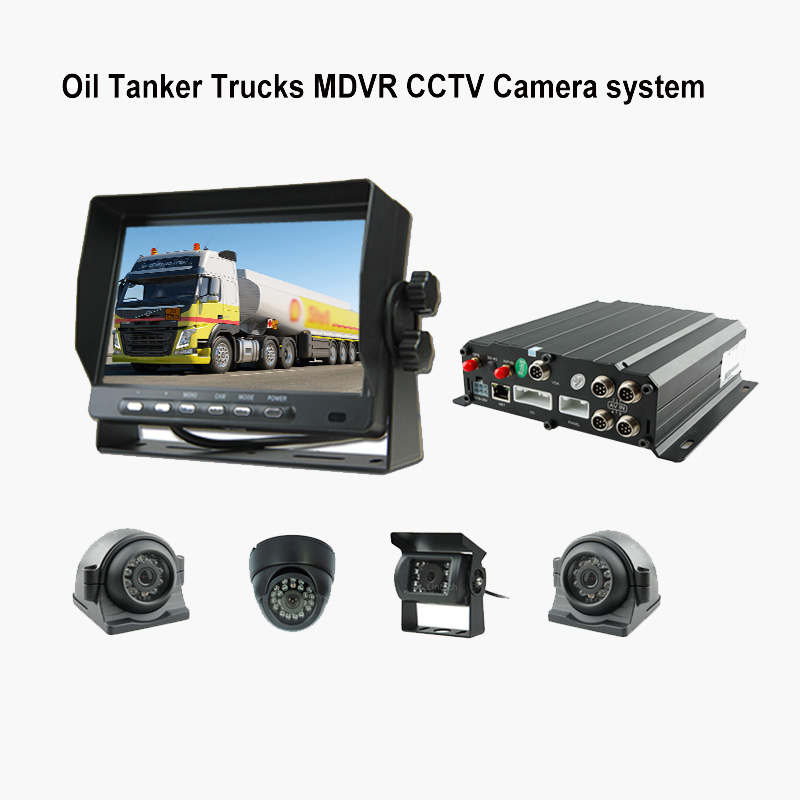

Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system
Oil Tanker Truck 4G Live video GPS MDVR CCTV Camera system



Packing include items:

— 1x MDVR unit (with harness, Not HDD)

— 1x Microphone for driver cab audio rec

— 1x 7″ LCD Monitor 2CHs
— 2x Side view cameras
— 2x Rear view Cameras
— 1x Dome driver cab camera
— 2x Extension cable 3Meter
— 3x Extension cable 5Meter
— 1x Extension cable 20Meter
Why  Your Fuel truck need to install  MDVR video Monitoring System?

Tank vehicles are responsible for the transportation of oil products from the oil depot to the gas station. Due to the characteristics of their movement, it is difficult to grasp the transportation status in real time and management is difficult.And supervision of the crude oil transport at present most of oil field enterprises couldn’t accomplish real-time call and share of data, thereby causing loss to the transportation of crude oil, to a certain extent, restrict the improvement of enterprise management benefit.

Although freight vehicle to install the GPS positioning system, vehicle navigation and scheduling can be accomplished, but crude oil safety not guaranteed, prone to leakage or outlaws colluded with the driver along the stolen, cause economic losses, and then suffer from does not have enough evidence against.
