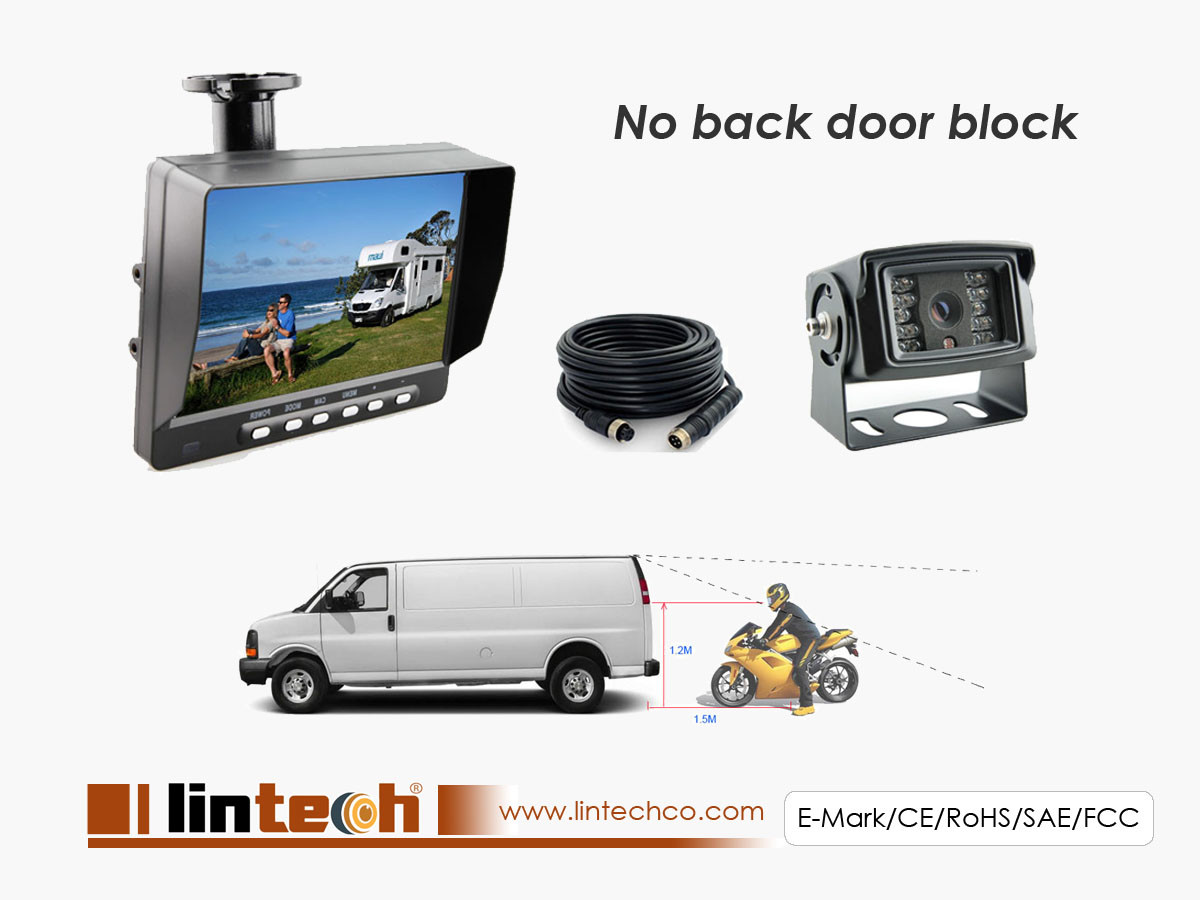

• 30 degree Narrow Angle Camera with 7" Monitor to Replace mid-mirror

Permanent Rear View Camera Monitor System

  • Larger view angle than mid-mirror – meanwhile have enough amplified factor can see clear back vehicles. (see pictures)
  • Better anti-glare;
  • Clear videos at raining environment;
  • IR LED for night vision;
  • Automatic Heater built-in anti-freezing(optional);
  • Different monitor installation style.
  • Exelent performance for those vehicle without inner middle mirror   2222222
FacebookTwitterGoogle PlusPinterest

Descriptions

A special Narrow angle lens camera customized to fit European Regulation requirements  for cargo vans use.
As we know that cargo van, ambulance, RV these vehicle's mid-mirror normally blocked by back doors or goods inside of vehicle.

According to European Regulation use the Electronic mirror to replace the mid-mirror, here we make out the 5"  / 7" AHD LCD + special angle lens camera kit solution.





7″ TFT LCD Monitor

Features:

TV System:NTSC/PAL/AUTO
Multiple menu languages: English, French, German, Spanish, Portuguese, Italian, Dutch, Swedish, Chines.
2CHs videos input
Images rotate up / down / left / right for any direction installed
Channel 2 with wire trigger function automatic switch to backup camera video
Voltage DC 12~24V,short circuit protection function



LC-018C Rear View Camera

Narrow view angle for getting larger image and reduce picture distortion, it’s a good solution for instead vehicle inner mirror.







Data Sheet



SubjectsLM-070A3LM-070A3-Q
Screen size:7 inches
Waterproof ratingIP30
Screen size ratio16 : 9 / 4 : 3
Resolution:800 x R.G.B x 480 dots
Brightness:400cd/m2
Contrast:500 : 1
Viewing angle:U: 50/ D: 60, R/L: 70 Degree
TV systemNTSC / PAL
Video input:2CHs video input4CHs video input, split display
Display modeSwitch, intervalSplit, triple, dual, single
Mirroring supportHorizontal/Vertical 180 degree turned
(mirror function)
Parking guide lineAdjust when camera finished install
Reference distance unitFeet/Meter
Video delay display1-20 second (after triggered)
Menu languageEnglish, French, Russian, Spanish, Portuguese, Italian, German
Pannel light sourceLED
Button backlightNo
Connector typeM12 4pins male connector / RCA Female
Power supply:12~24VDC
Output voltage12VDC
Power consumptionLess than 7W
Bracket:U-type bracket
Outer dimension:223mm x 163mm x 55mm (Max)
Net weight800g900g



SubjectStandard ParameterOptional Parameter
Image sensor1/4" SHARP CCD1/3" SONY CCD
ResolutionN:510×492 pixels
P: 500×582 pixels
N:976×494 pixels
P: 1020×508 pixels
Horizontal Resolution420TVL700TVL
TV SystemNTSC/PAL
Lens2.5mm2.8mm
View angle120 degree (90 Horizotal,75 Vertical)
Power supplier12VDC
Current consumption150mA150mA
Power consumption1.8W @ 12VDC1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED18 pcs (Night vision distance 7m)18 pcs (Night vision distance 9m)
Waterproof ratingIP68
Packing weight0.4KG
Dimension(WxHxD)79mm x 69mm x 68mm (MAX)
Operation temperature-20 ~ +70 C-degress

Photos

Permanent Rear View Camera Monitor System
Permanent Rear View Camera Monitor System
Permanent Rear View Camera Monitor System
