• Wide View Angle Car Rear View Camera

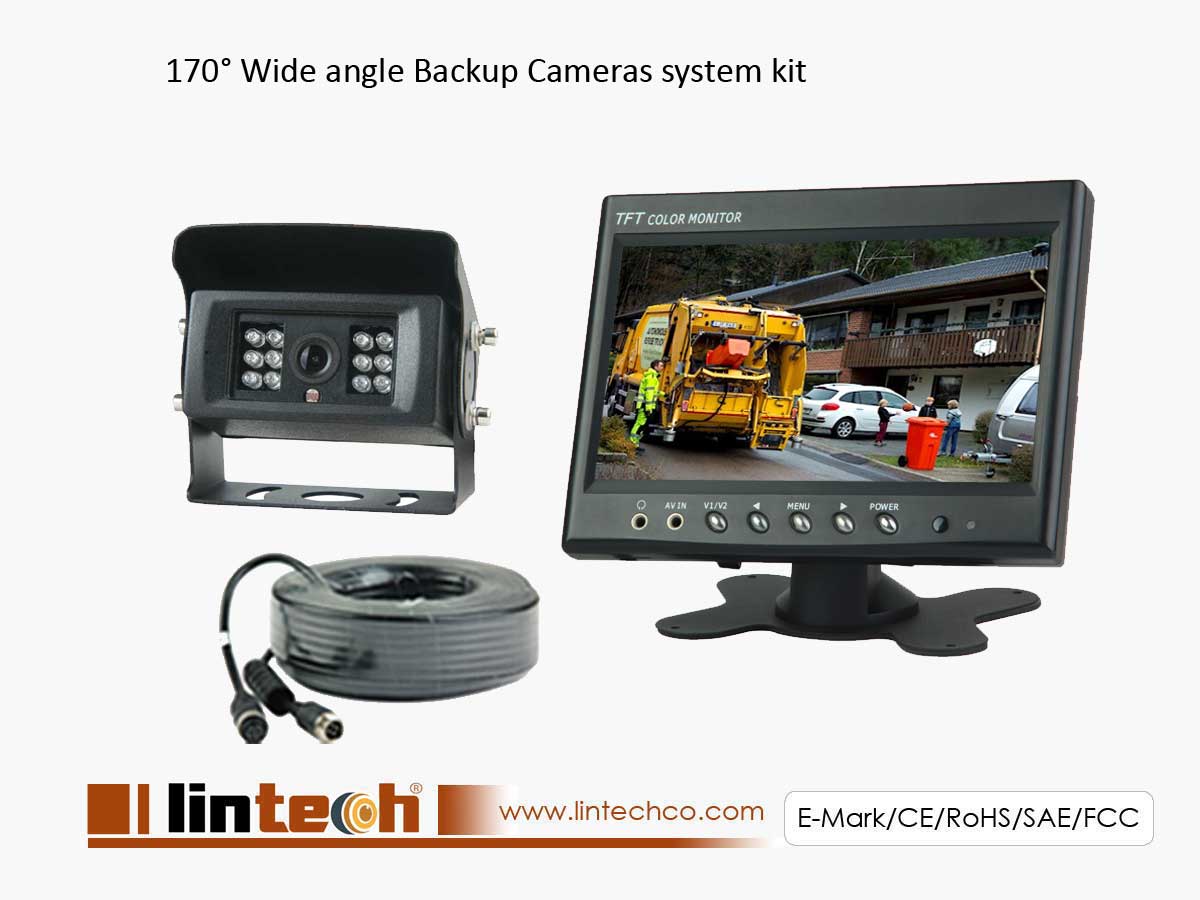

170 Degree Wide View Angle Rear View Camera Kit, LRW-01

Model No.:LRW-01

  • Resolution:800*R.G.B*480 digital
  • Built in parking guide line
  • Operated power: DC 12V~24V
  • 2 Videos Input
  • Camera  view angle: 170°
  • Night vision: 12pcs IR LED
  • IP rating: IP69K (Waterproof)
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Rear View Camera Kit Supplier.

SPECIFICATIONS of Monitor / camera:

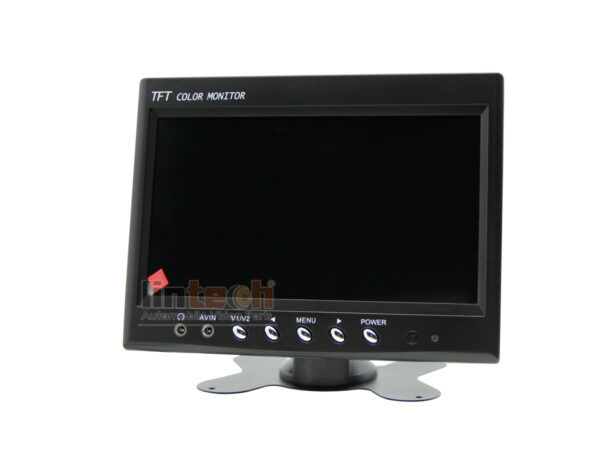

Monitor LM-070A-1:

–2CHs / 4CHs Resolution 800 x 400 R.G.B digital screen
— Top-rated monitor for trucks buses vehicle
— Full function with remote
— Heavy duty and strong housing / bracket for
— Trucks Quad function 4CHs split version is available
— Reversing guide lines:  Red – Yellow – Green  with regerence distance (adjustable according to camera’s installed position).

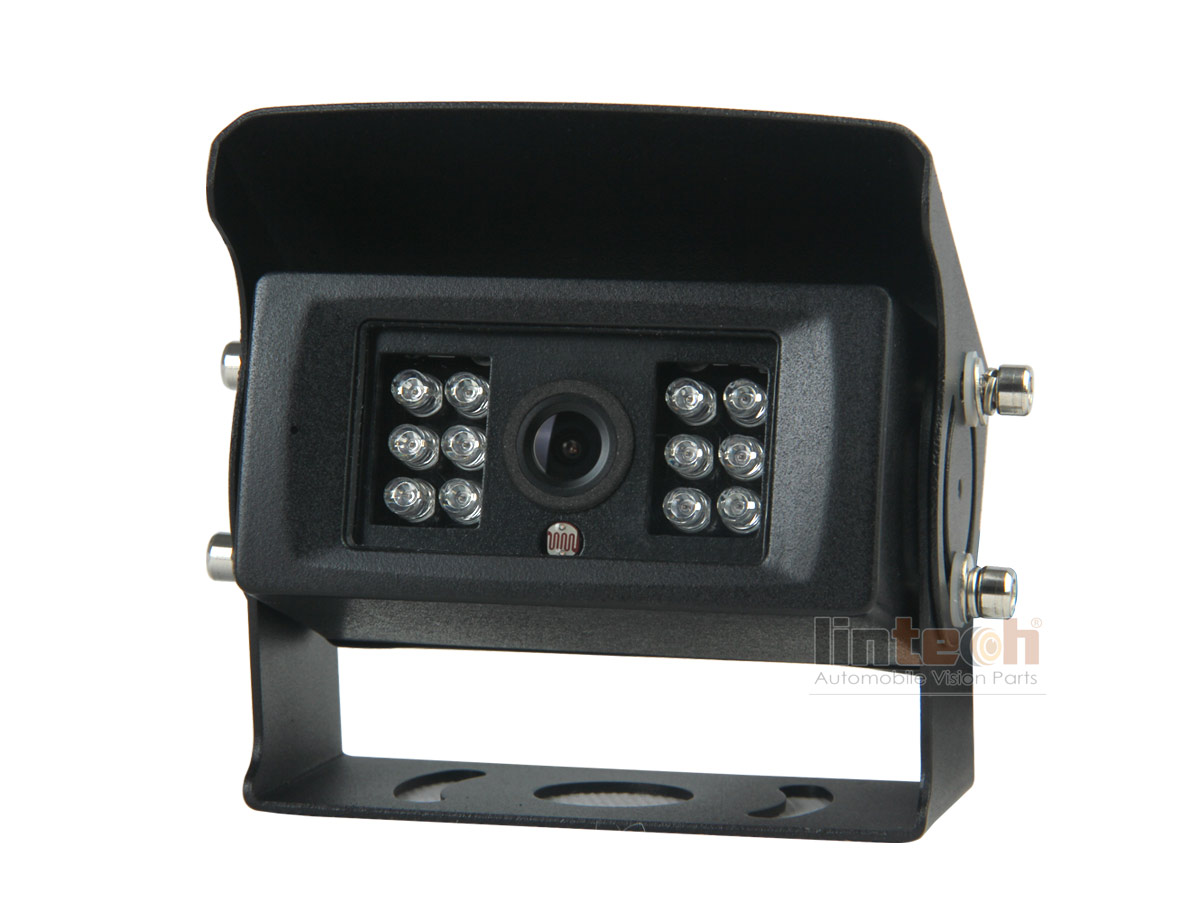

 Specification of Cameras :

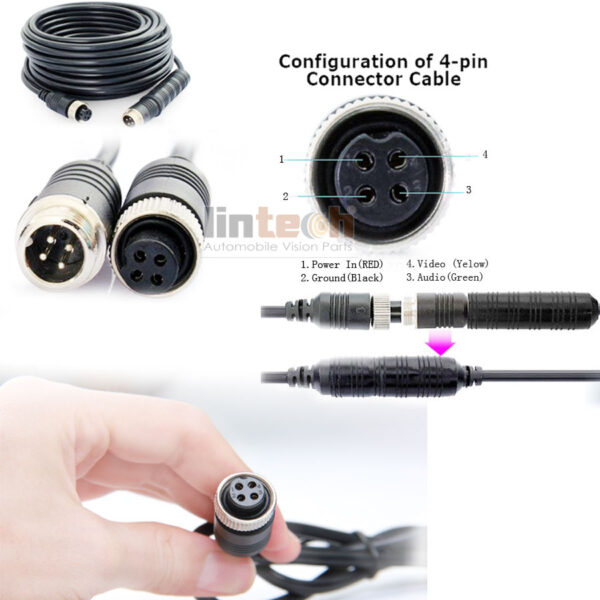

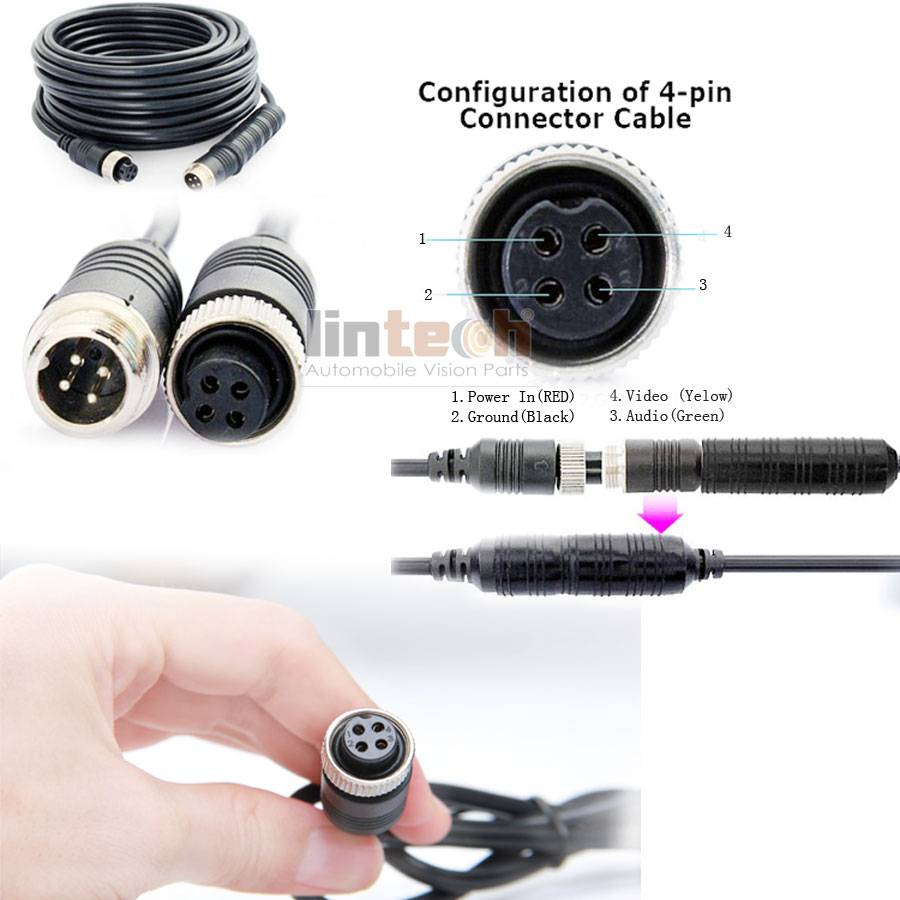

–4Pin DIN waterproof screw on connector

–Wide view angle 170 degree
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
(1)1/4″ Sharp/SONY CCD Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 420 TV lines
(4)With 12 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature:  -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP69K
