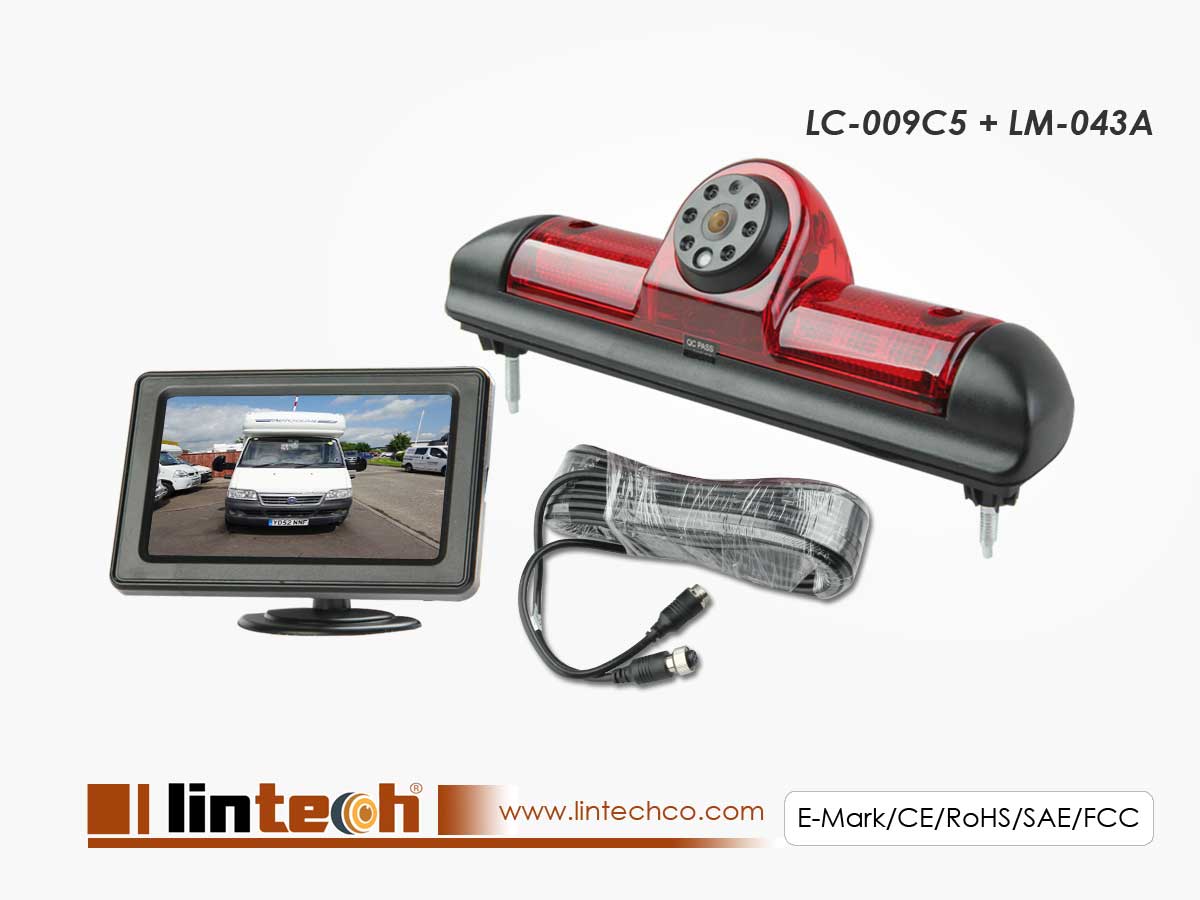

Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01

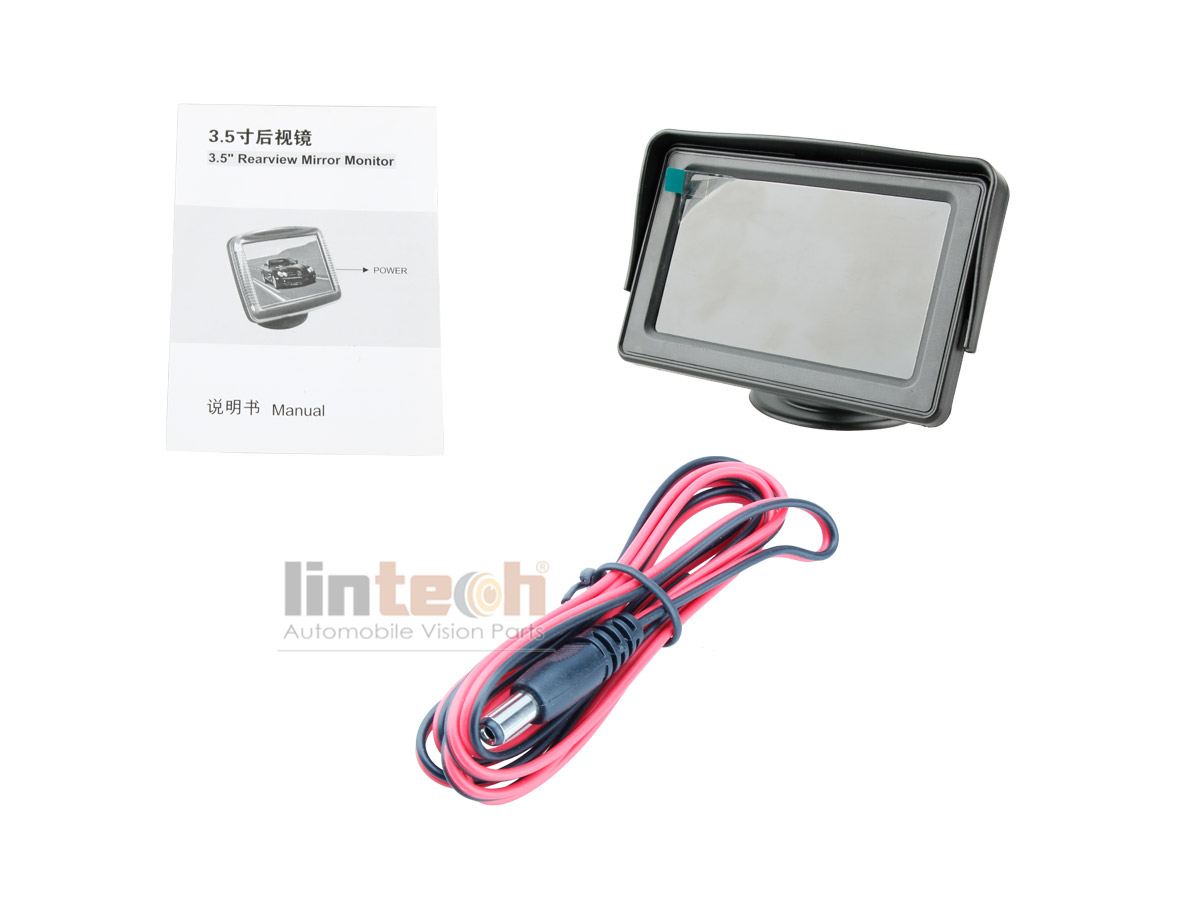

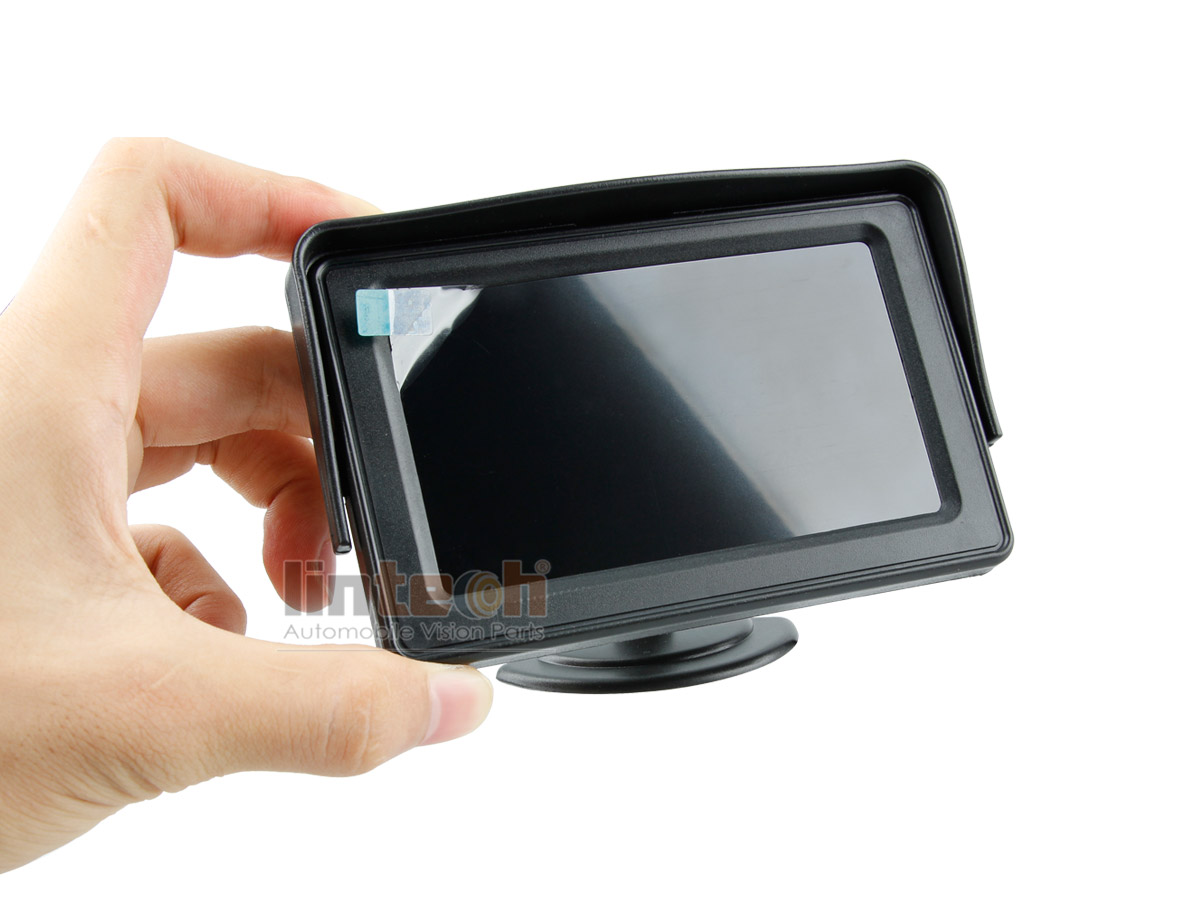

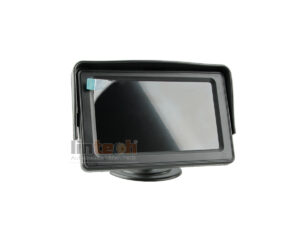

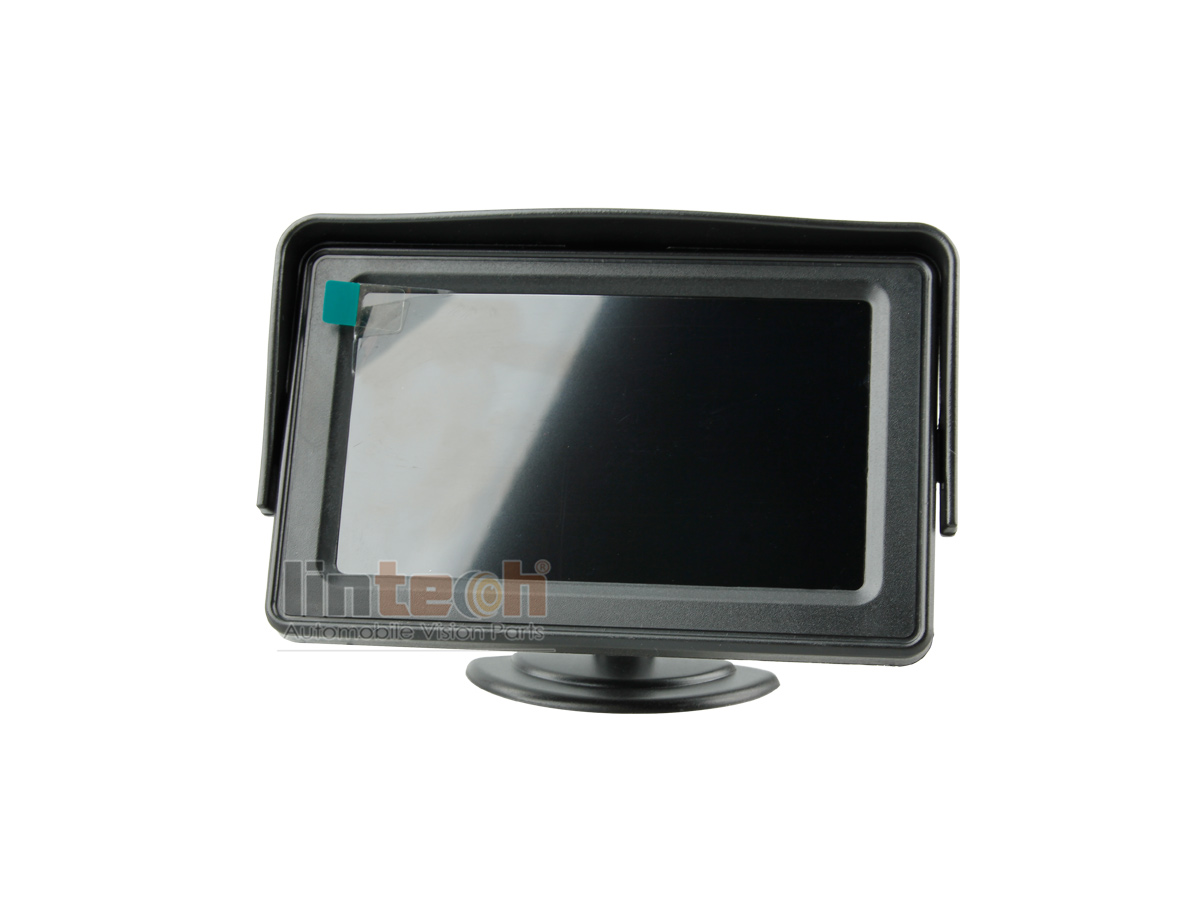

Car monitor Specification:

  • 4.3 inch TFT LCD car lcd monitor 12 volt
  • Two video input(AV1/AV2)
  • Camera waterproof rate:IP68

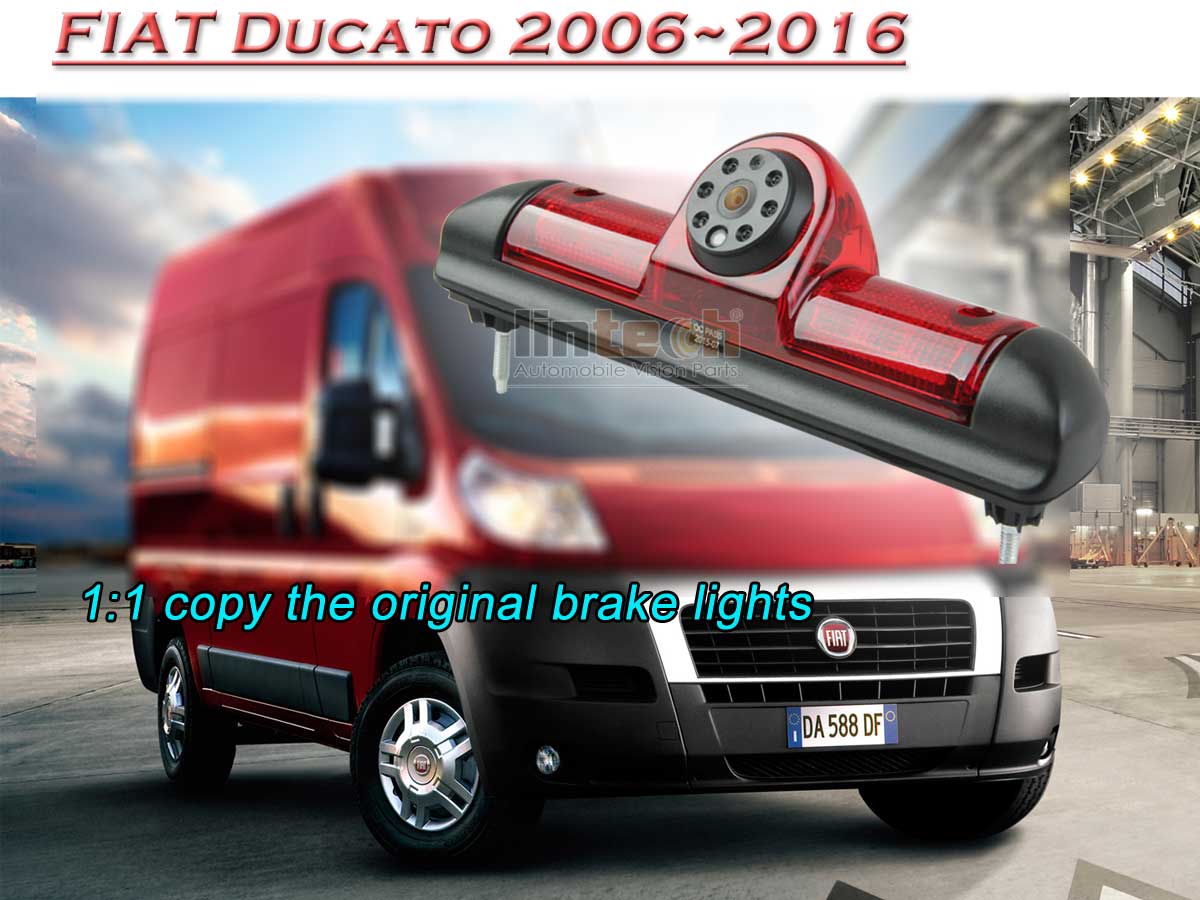

  • Camera for Fiat Dicato 2006~2016 year

** AV1 auto switching to reversing first.
Note: please connect the Rearview camera’s power cable with Reversing lamp,and connect camera’s video cable with LCD’s Yellow cable (Video 1),

then the car monitor will show camera’s video when you arereversing, and stop playing movie(auto switching).

FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Rear Vision Camera Kits Supplier.

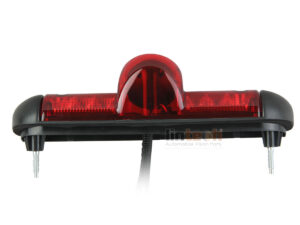

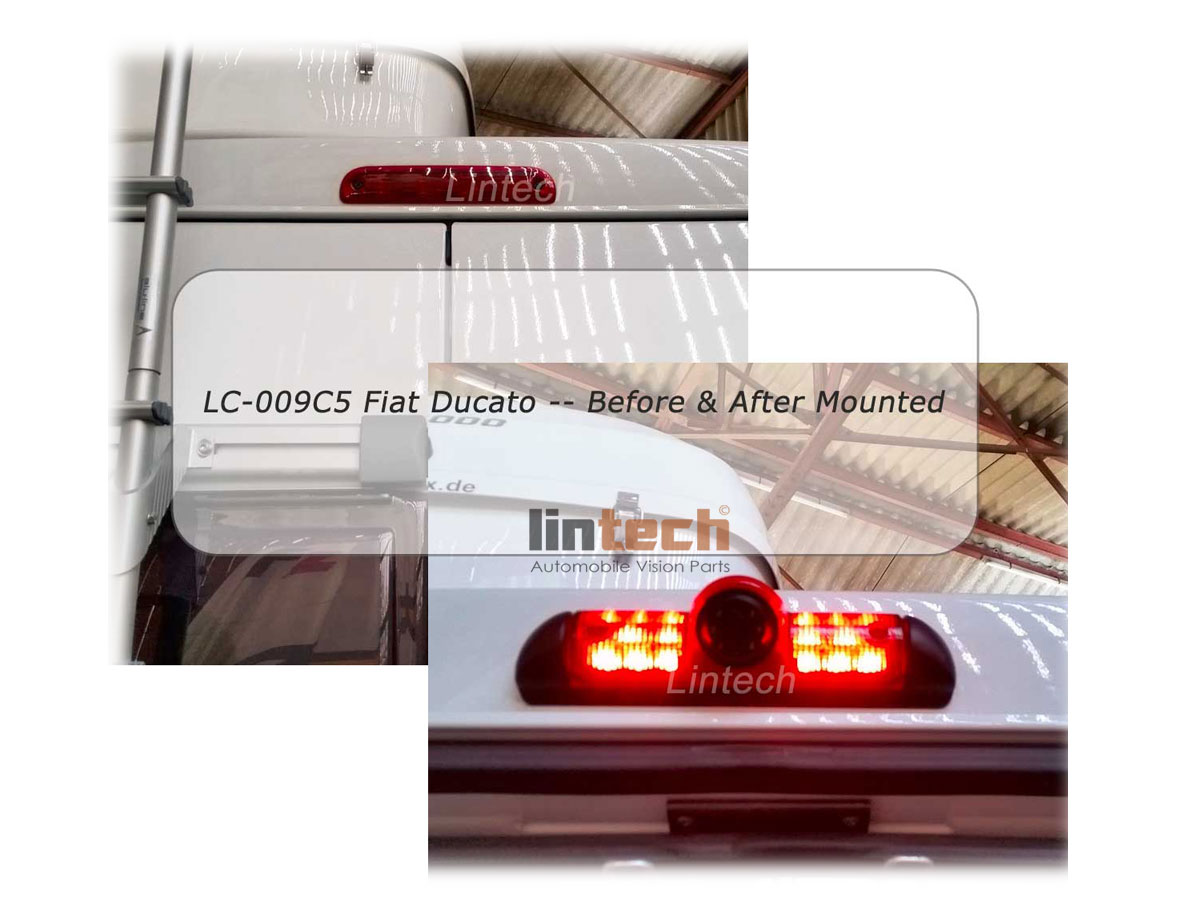

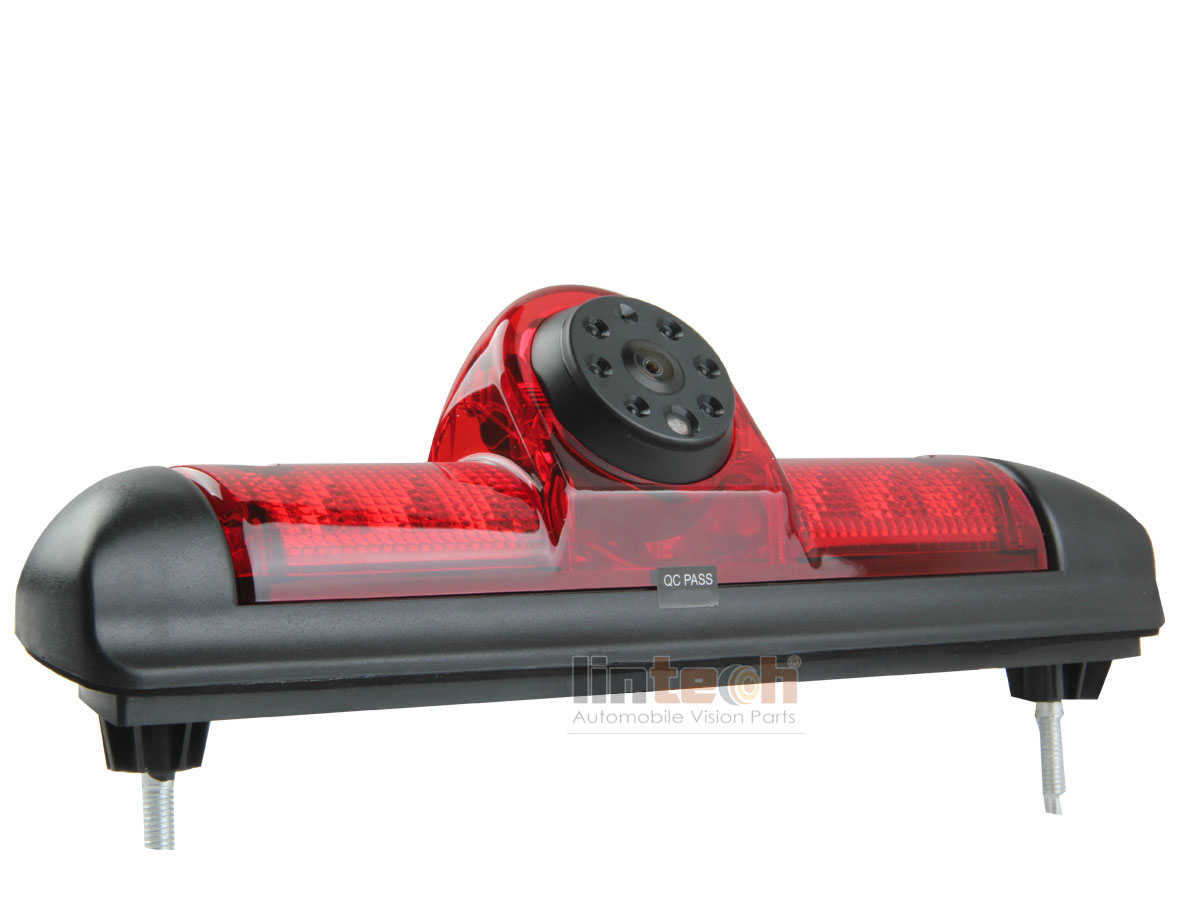

Stop Lights Camera for Fiat Ducato:

  • image Device: 1/4 SHARP CCD brake lights camera
  • Resolution: 420TV lines
  • Sensing Area: 3.6mm x 2.7mm
  • Scanning System: 2:1Interlace
  • Sync. System: Internal
  • Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz
  • Vertical Sync. Frequency: 50Hz / 60Hz
  • Minimum Illumination: 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2
  • Video Output: 1.0vp-p, 75Ohm
  • Gamma Consumption: 0.45
  • AGC: Auto
  • S/N Ratio: Better than 48dB
  • White Balance: Auto
  • Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
  • BLC: Auto
  • Heavy-duty brake lights camera
  • Reversing brake lights camera
  • Infrared LED light: 6 PCS night vision brake lights camera
  • Waterproof Rate:IP68
  • Shell material: aluminum alloy

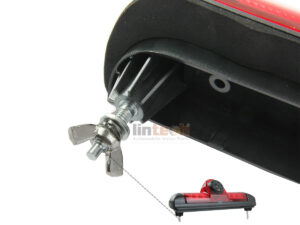

  • Bracket material: iron
  • Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
  • Current Consumption: Max. 190mA

Data Sheet

Photos

Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
Stop Lights Rear Vision Camera Kits for Fiat Ducato Van, LWC-01
