LWC-08 Renault Master,Opel Movano,Nissan NV400 Brake Light Reversing System

Camera Features

  • Sensor: 1/3″ Sony CCD Sensor 580TVL
  • View angle: 170°
  • Night vision: 6pcs IR LED
  • Microphone: Yes
  • IP rating: IP68 (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years
  • For Opel Movano2010~2015 year / Renault Master 2010~2015 year / Nissan NV400
FacebookTwitterGoogle PlusPinterest

Descriptions

Camera Features:

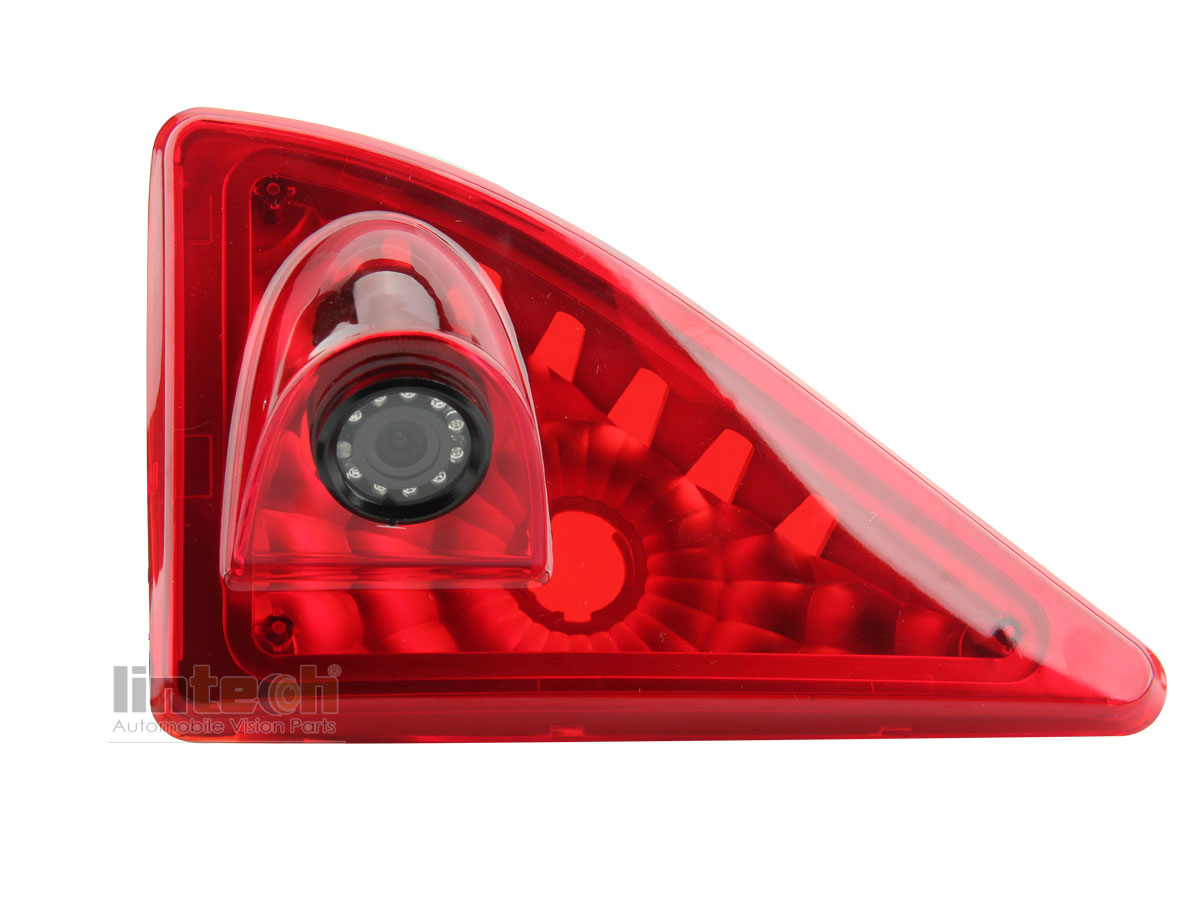

  • No Holes Drilled, completely replace the original 3rd Brake lights;
  • HD Sony CCD Sensor or COMSOV7959 clear images;
  • SONY CCD 120 degree vide angle;COMSOV7959 120 degree vide angle
  • For Opel Movano(2010~2015 year)/Renault Master(2010~2015 year)/ Nissan NV400

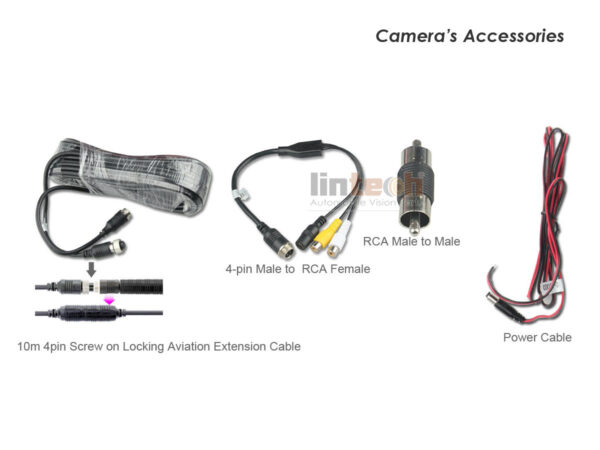

Package Details:

  • 1x Brake lights Camera
  • 1x Extension cable 10m
  • 1x RCA to 4-Pin connector cable
  • 1x RCA male to male converter

Monitor Package Details

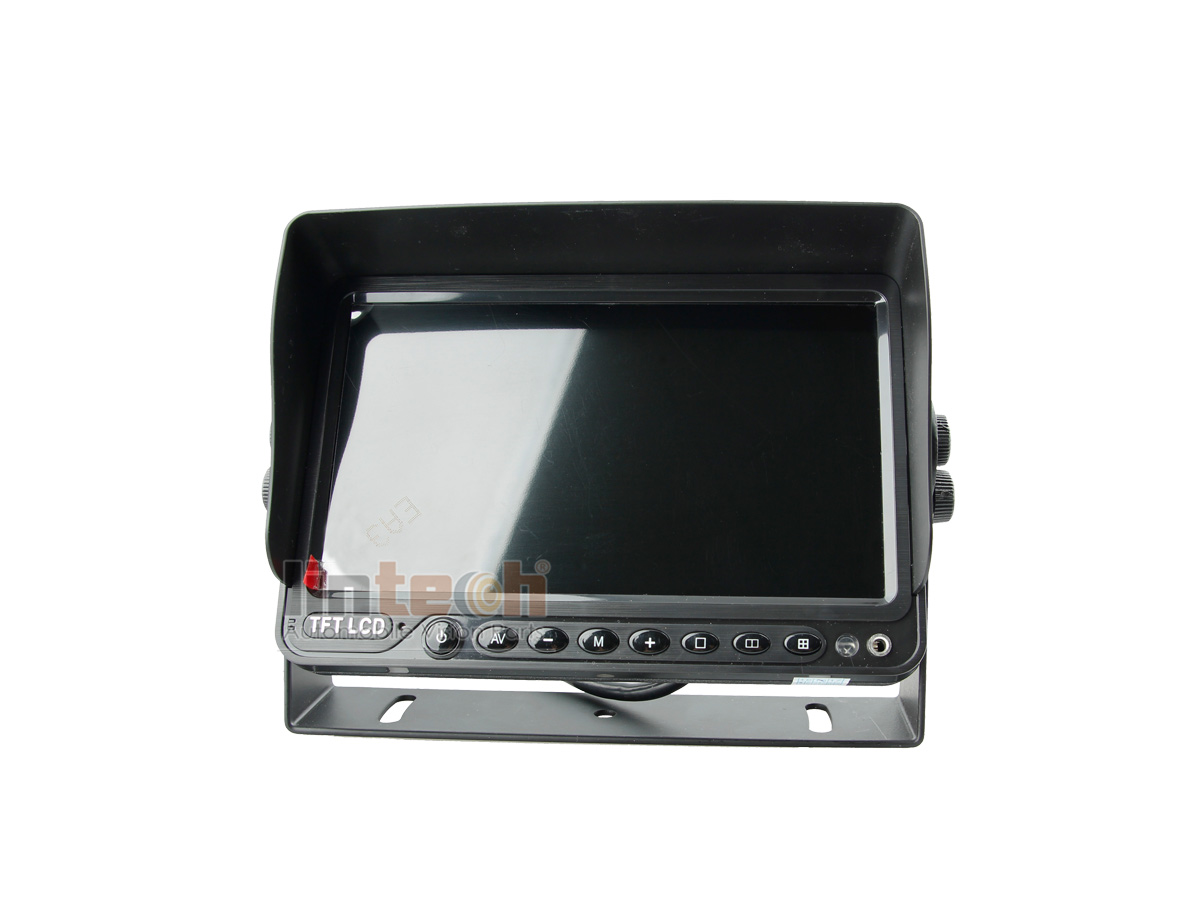

  • 1 x 7″ TFT LCD color monitor
  • 1 x  Screws for U bracket
  • 1 x Remote controller for monitr
  • 1 x Power cable for 3CHs monitor
  • 1 x Sunshade frame
SubjectStandard ParameterOptional Parameter
Image sensor1/3.6" CMOS OV79591/3" SONY CCD
ResolutionN: 648x488 pixels
P: 648x574 pixels
N:510×492 pixels P: 500×582 pixels
Horizontal Resolution420TVL420TVL
TV SystemNTSC/PAL
Lens1.8mm2.8mm
View angle170 degree (105 Horizotal,85 Vertical)120 degree (90 Horizotal, 75 Vertical)
Power supplier12VDC
Current consumption130mA150mA
Power consumption1.5W @ 12VDC1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED10 pcs (Night vision distance 5-7m)
Waterproof ratingIP68
Packing Weight1.3kg
Dimension(WxHxD)195mmx130mmx125mm (MAX)
Operation temperature-20 ~ +70 C-degress
