Reverse Backup Camera System for Tractor Trailer, LTT-01

Futures:

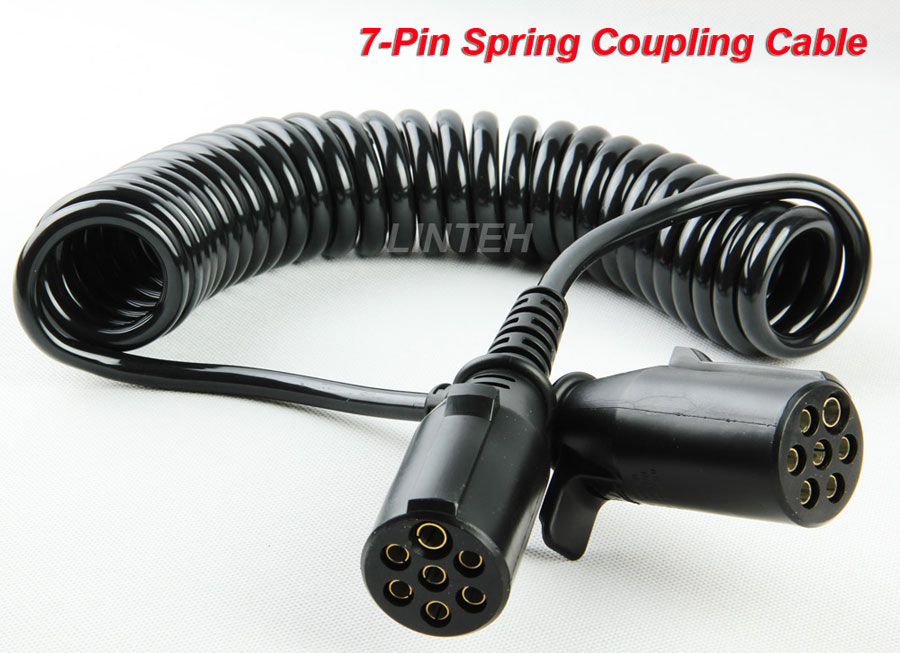

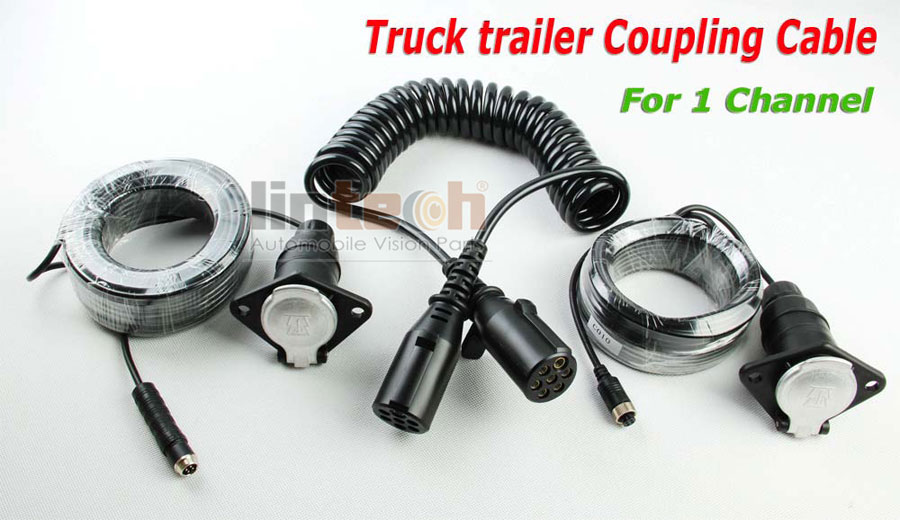

  • Trailer cable for 1 cameras to connection
  • Monitor with 2 CHs input, 800*R.G.B*480 dightal
  • Camera built in 28pcs IR LED, waterproof rate IP69K
  • Power supply:12V~24VDC
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Reverse Backup Camera System Supplier.

Operation Description:
1. Constantly working, back view 2 camera videos display on 7″ monitor.
2. When driver switch to R-gear to reversing, 7″ LCD will automatic ON and switch to display the Rear view camera LC-028A for reversing aid. After finished reversing aotumatic turn to 4CHs quad display.

Specification of Monitor / Camera:

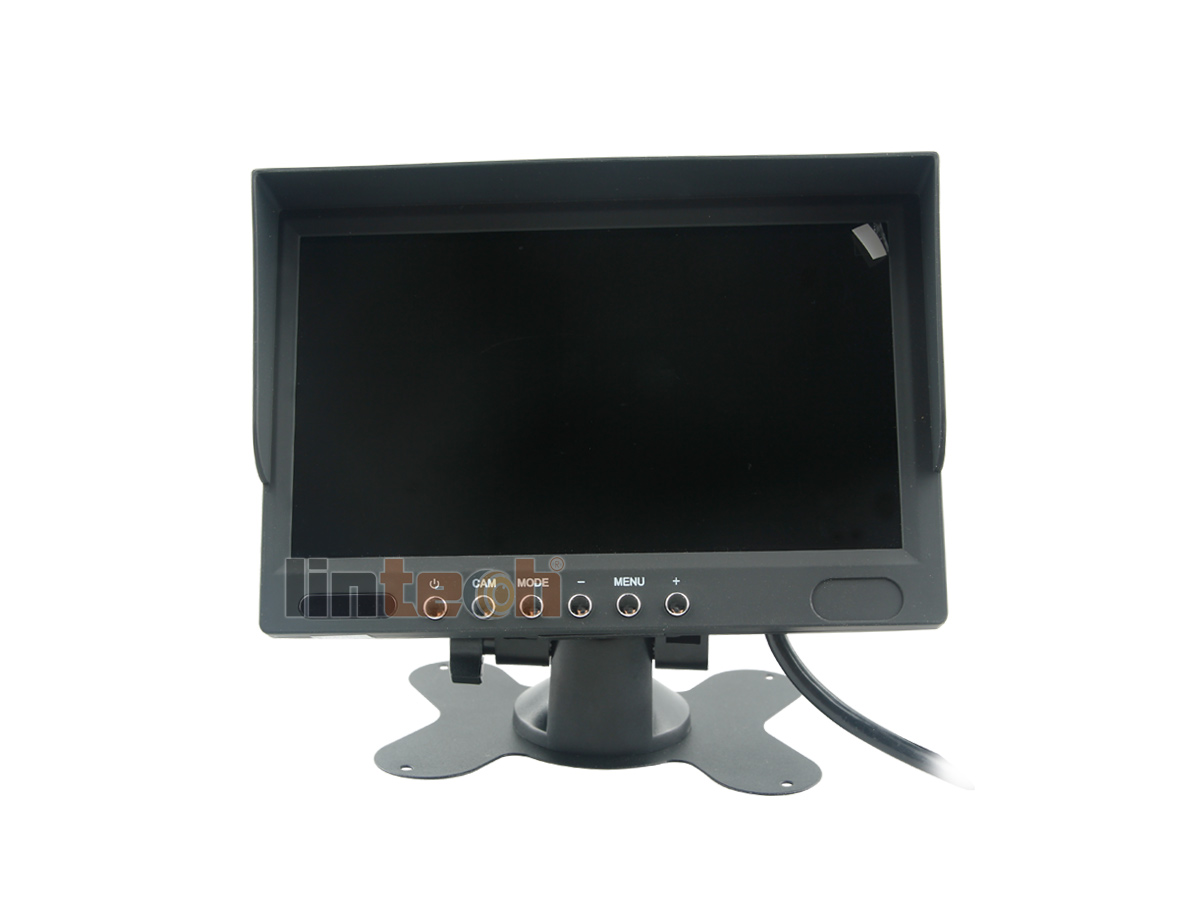

Monitor LM-070A-5:
— 2CHs Resolution 800 x 400 R.G.B digital screen

— Top-rated monitor for trucks buses and other vehicles.

— Full function with remote
— Heavy duty and strong housing / bracket, good vibration proof.

— Trucks Quad function 4CHs split version, 3 split, 2 splits images are available.

— With sun visor for better view in strong light condition

— Reversing guide lines:  Red – Yellow – Green  with regerence distance (adjustable according to camera’s installed position).
Specification of Cameras

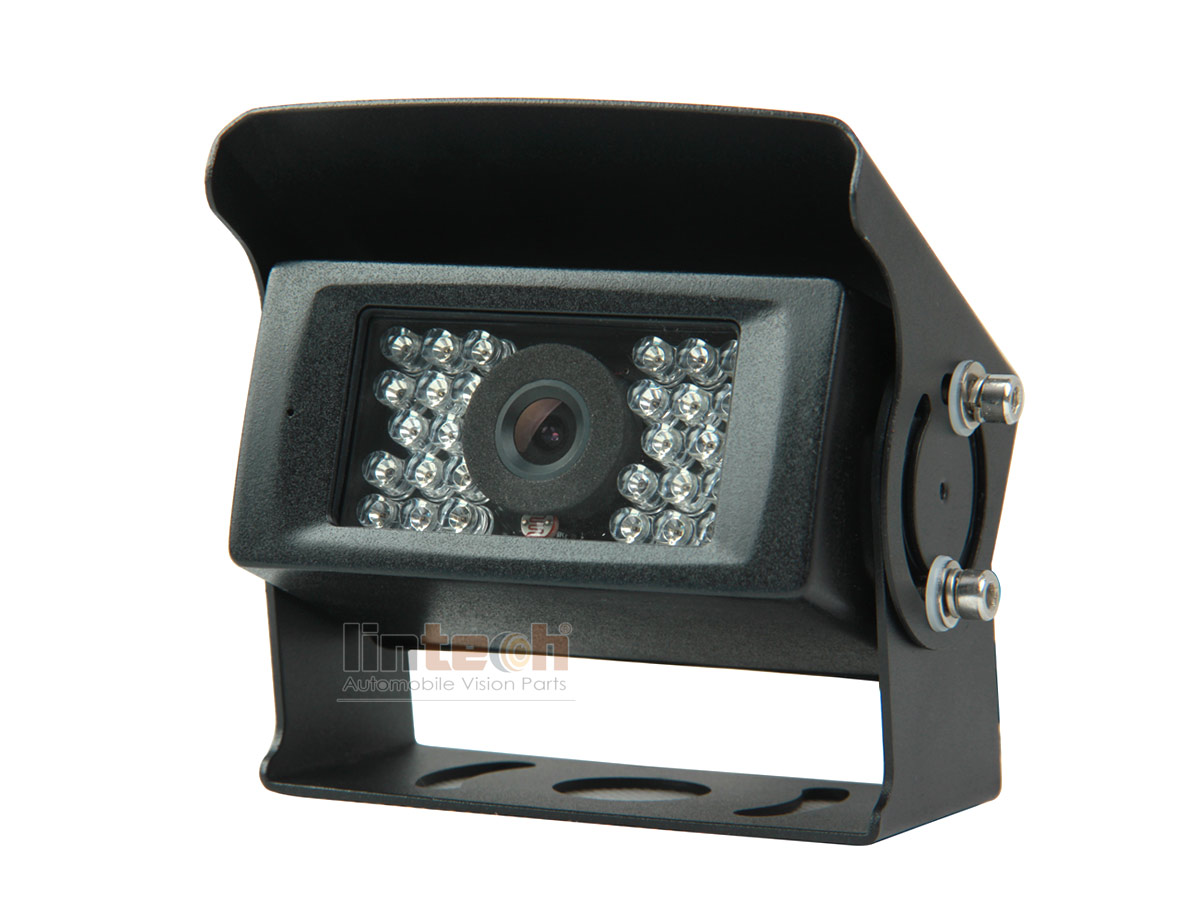

LC-028A:

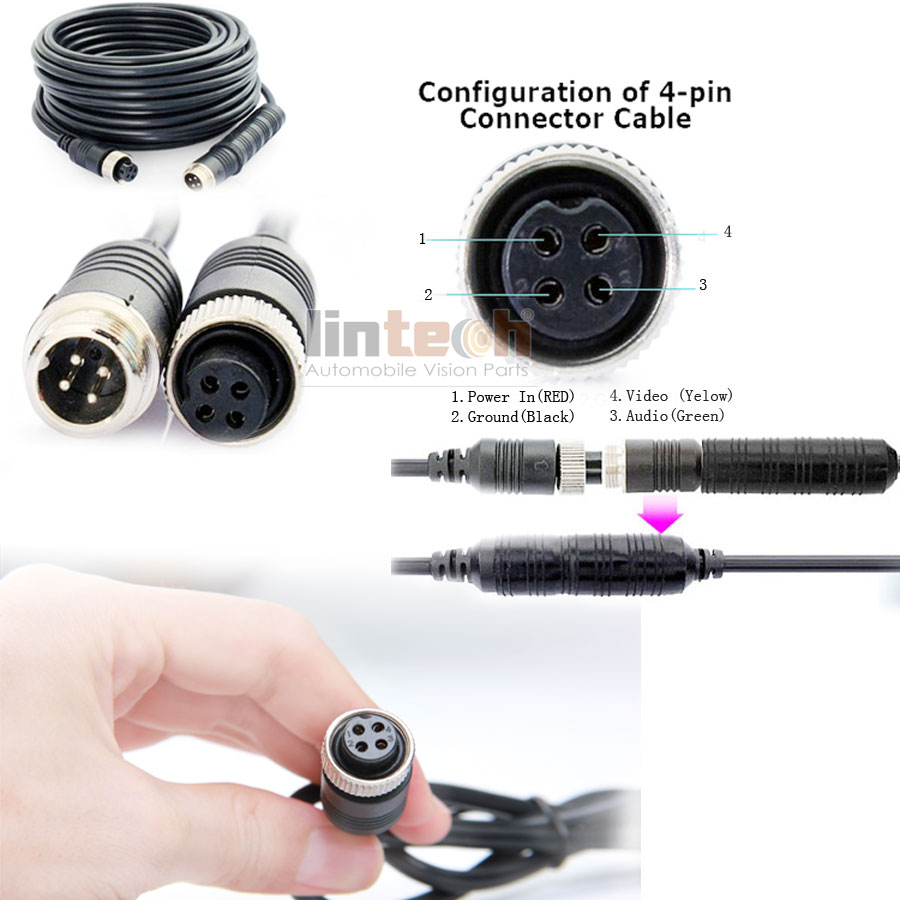

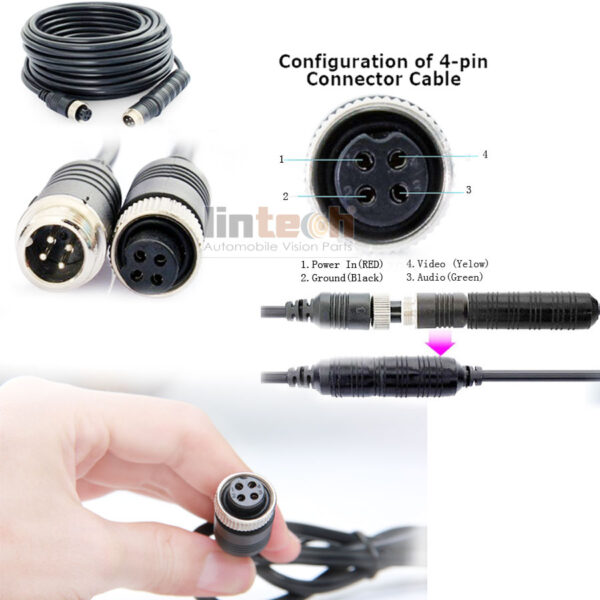

–4Pin DIN waterproof screw on connector

–Standard rear view camera

-The automatic day/night sensor and infrared LEDs to provide clear image in dull condition

(1)1/4″ Sharp/SONY CCD Color CCD sensor

(2)TV system : PAL/NTSC

(3)Resolution: 420 TV lines

(4)With 28 IR LED light ,night vision distance up to 10-15 meters

(5)Self-sensitization control the night vision function by the light sensor

(6)120 degree wide range angle view

(7)Operating Voltage: 9~12VDC

(8)Operating temperature: -20~ +70 degrees , RH95% Max.

(9)Storage temperature:  -40~ +80 degrees , RH95% Max.

(10)Alloy shell, Waterproof, silver/black color selectable

(11)IP Rating: IP69K

Data Sheet

Model No.:LM-070A-3LM-070A-3Q
Screen size:7 inches 2CHs Monitor7 inches 4CHs Quad Monitor
Brightness:400cd/m2400cd/m2
Contrast:500:1500:1
Viewing angle:U: 50/ D: 60, R/L: 70 DegreeU: 50/ D: 60, R/L: 70 Degree
Resolution:800 x R.G.B x 480 dots800 x R.G.B x 480 dots
Video input:2CHs video input4CHs video input, split display
Power supply:12~24VDC12~24VDC
Outer dimension:180mm x 121mm x 23mm180mm x 121mm x 23mm
Bracket: U-type bracket
(Sector type / Butterfly type optional)
U-type bracket
(Sector type / Butterfly type optional)
Features:Reversing guide lines - Adjustable + DistanceReversing guide lines - Adjustable + Distance
