7 inch Visual Reverse Parking Sensor with Camera, T-R4-B2

SPECIFICATIONS:

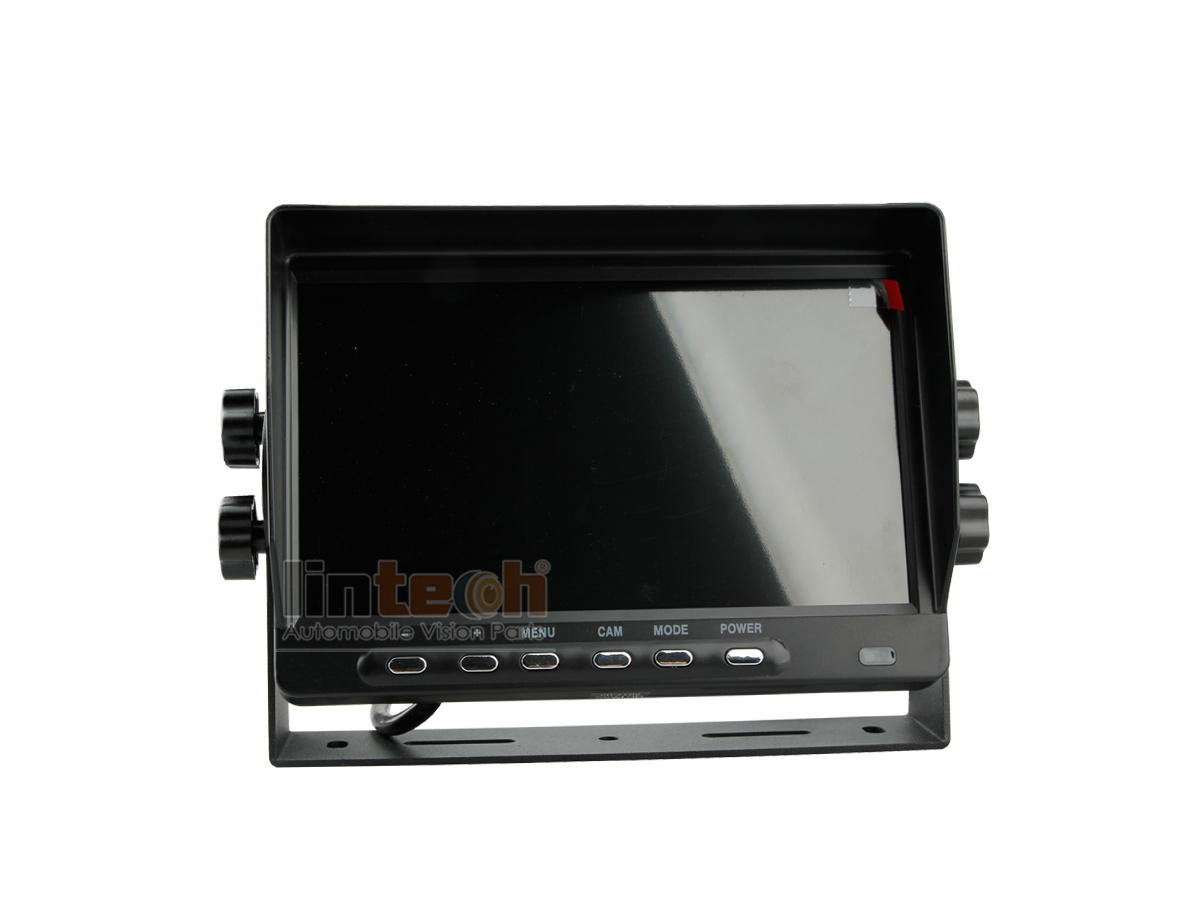

Monitor

  • Screen size: 7 inch digital panel (16:9)
  • Resolution: 800xRGBx480 Pixel
  • Power supply:DC12V~24V

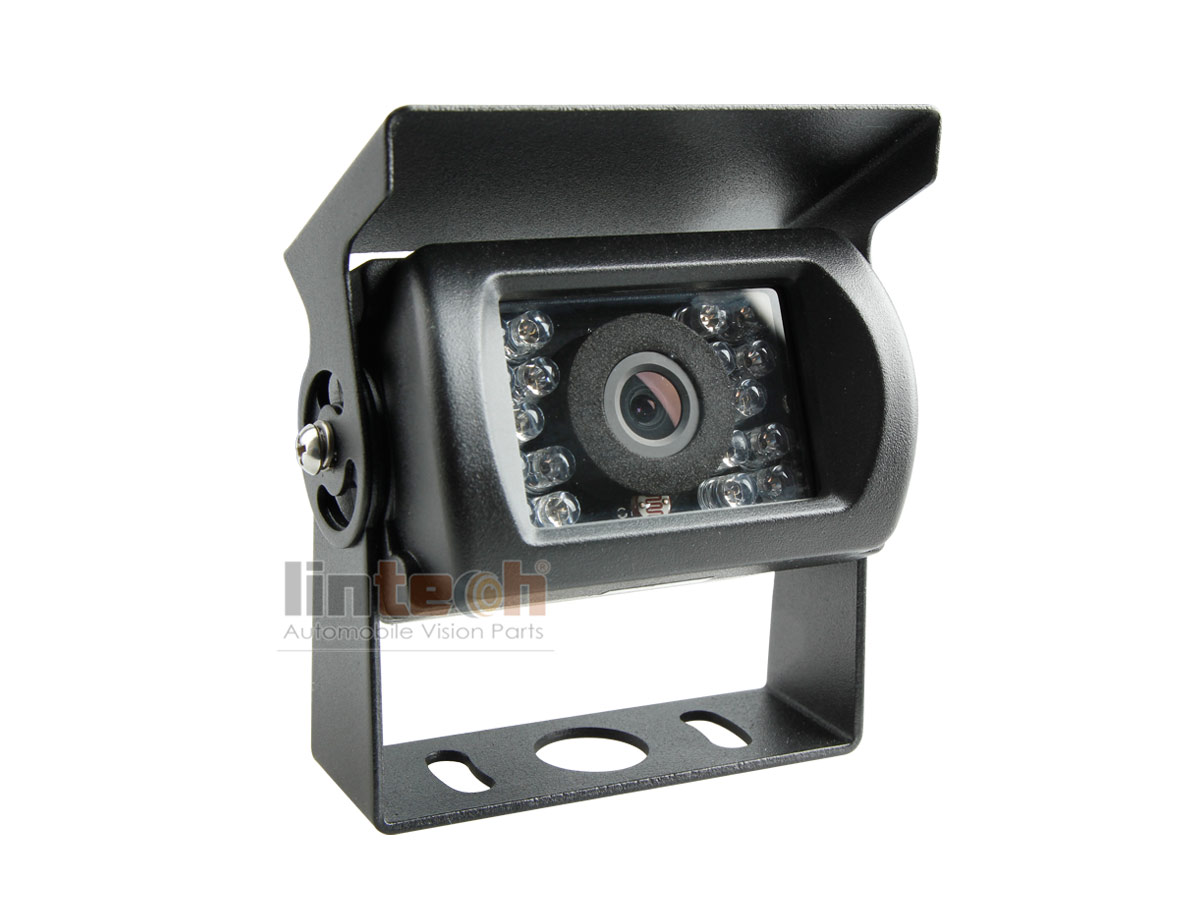

Camera

  • 1/4″ Sharp Color CCD sensor
  • Resolution: 420 TV lines
  • With 18 IR LED light ,night vision distance up to 10-15 meters
  • Self-sensitization control the night vision function by the light sensor
  • 120 degree wide range angle view
  • IP Rating: IP68
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Reverse Parking Sensor with Camera Supplier.

Parking Sensor System:

  • Van 4 probe reversing radar system, applicable to all the large vehicles;
  • When vehicle starts to reverse, system start working;
  • Sensor detection range: 0 m ~ 3.0 m (Special require: 5.0meter optional)
  • Speech at distance range: 0.3 meters to 3.0 meters;
  • Connector to Monitor, Host, Probe cable length : 15m, 3m (Customized)
  • Cable connection installation, prevent radio interference;
  • Lightning protection anti-interference boxes;
  • Bracket screws or punch probe (waterproof for thread form 4 probe);
  • 4 pins screw on extension cable, 15 meters;(other length customized);
  • Power input:12-32 v DC; Stand by : less than 1W
  • Operating frequency: 40 KHZ.
  • Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.
  • Size: length x width x height = 153mm x 99mm x47mm.
  • Low temperature – 40 ℃, high temperature of 80 ℃;

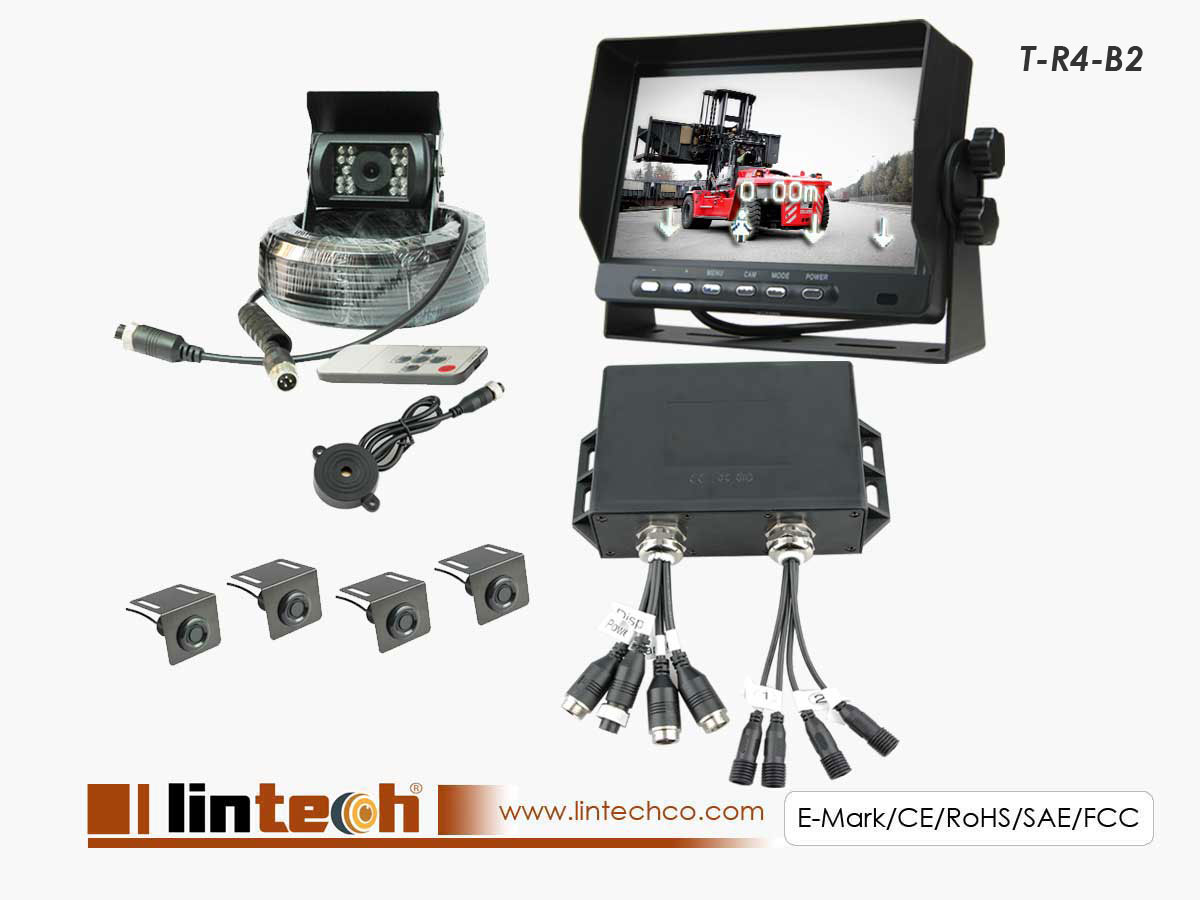

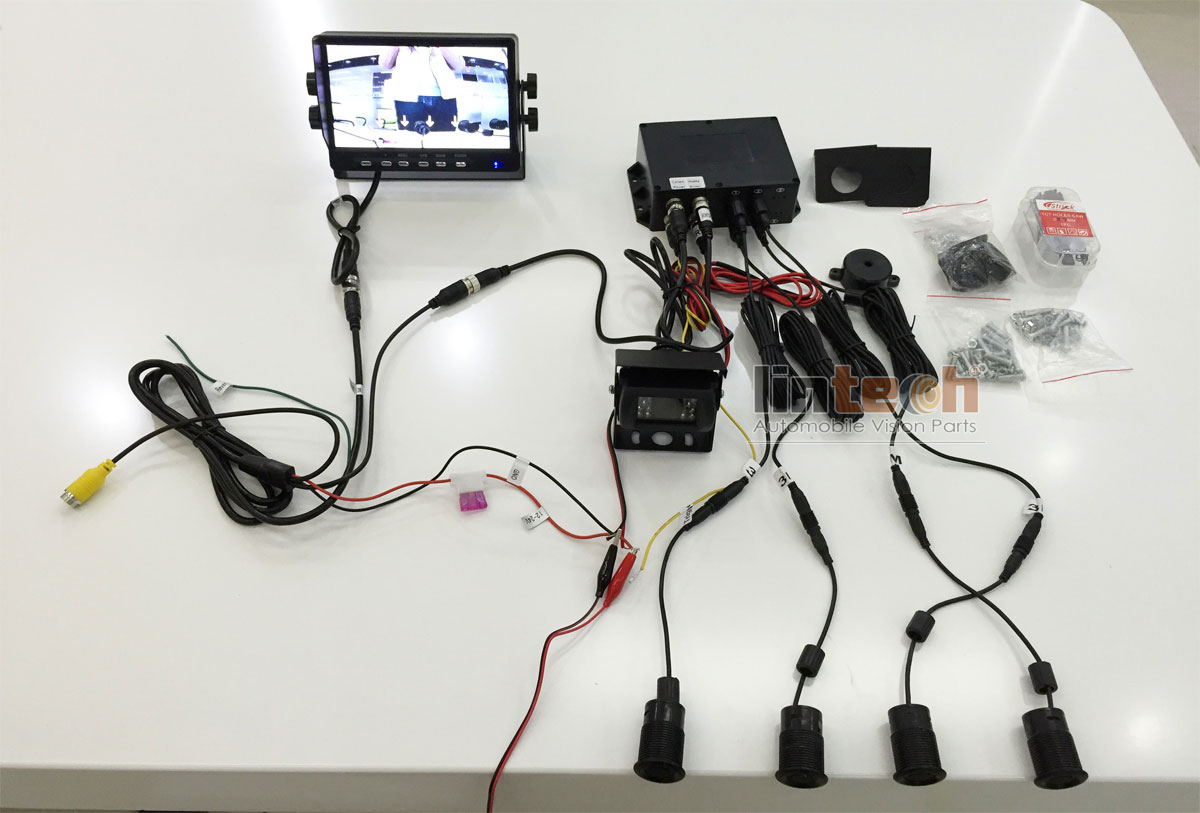

Package Contents:

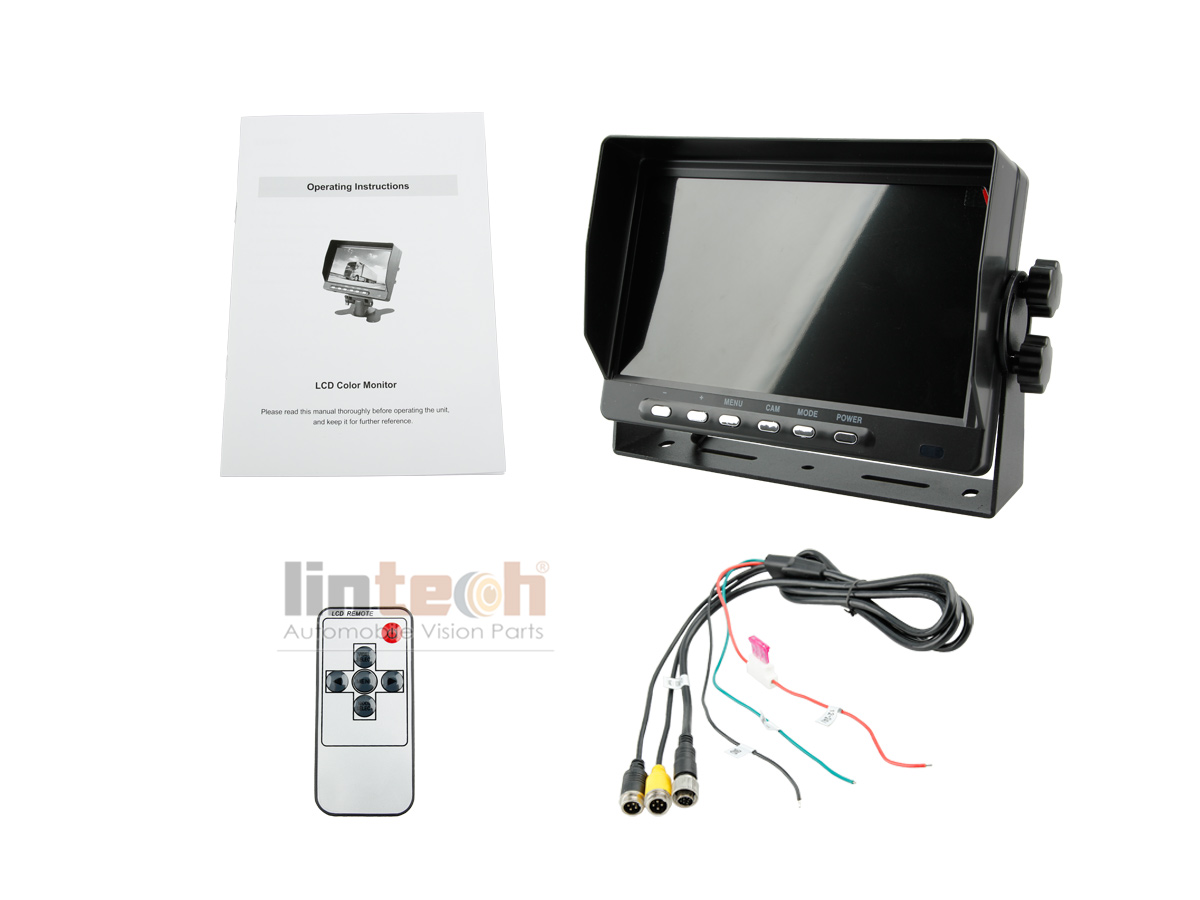

  • 1 x 7 inches LCD monitor
  • 1 x 1/4 inch Sharp CCD waterproof night vision camera
  • 1 x Main control box To adapt to the wide voltage, can work in 24 v and 12 v.
  • 1 x waterproof thread form 4 probe
  • 1 x15 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M )
