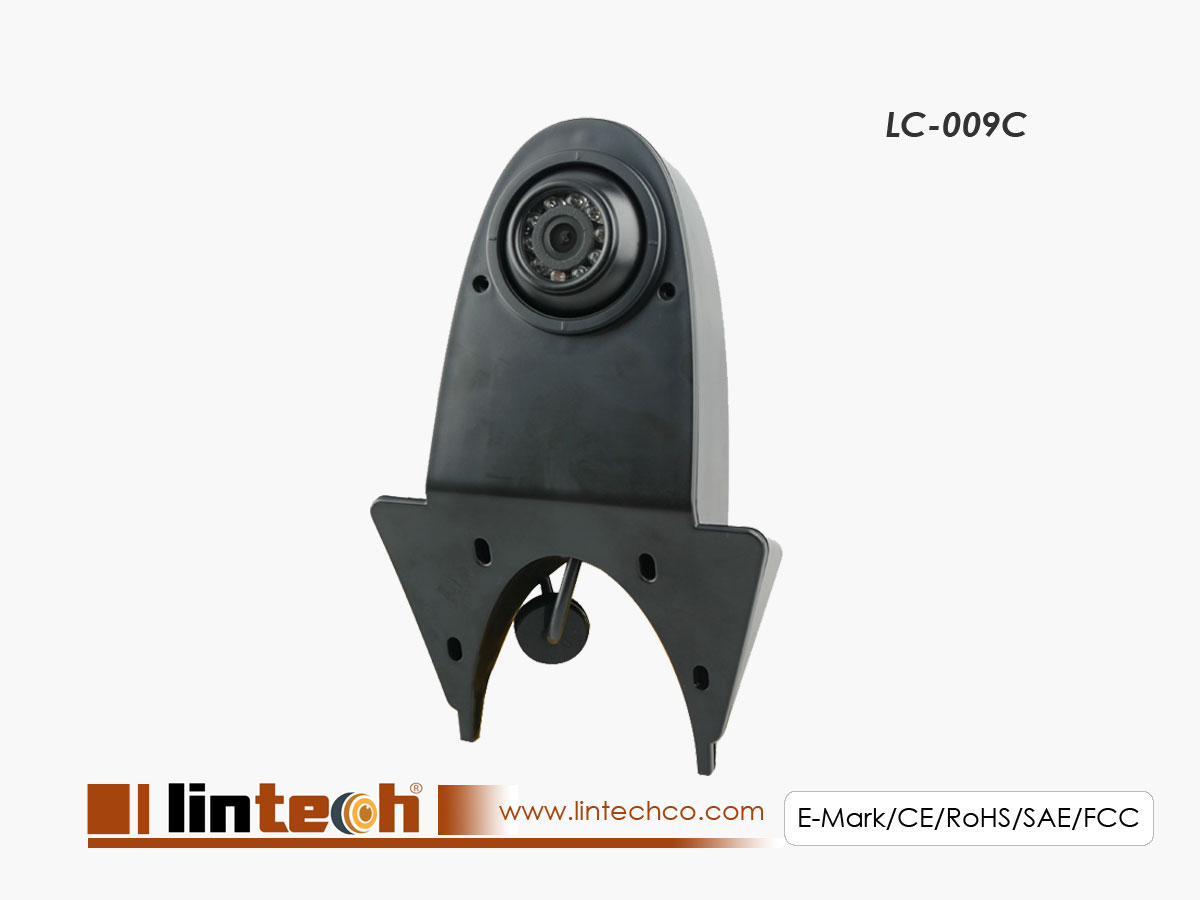

LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans

Model No.:LC-009C

  • For Mercedes Benz Sprinter / Universal Vans
  • Sensor: 1/4″ Sharp CCD Sensor 420TVL
  • Lens: 2.5 mm
  • View angle: 120°
  • IR LED: 9 pcs
  • Night vision distance: 5-7 m
  • Waterproof IP rating: IP68
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years
FacebookTwitterGoogle PlusPinterest

Descriptions

FEATURES:

-Suit for Mercedes Benz Sprinter / and other Universal Vans
-Aluminum ball body, easy adjust view angle
-With 9pcs IR LED, good performance at night
-Easy installed
-Different sensor chip optional for image quality and cost balance



SubjectStandard ParameterOptional Parameter
Image sensor1/4" SHARP CCD1/3" SONY CCD
ResolutionN:510×492 pixels
P: 500×582 pixels
N:976×494 pixels
P: 1020×508 pixels
Horizontal Resolution420TVL700TVL
TV SystemNTSC/PAL
Lens2.5mm2.8mm
View angle120 degree (90 Horizotal,75 Vertical)
Power supplier12VDC
Current consumption150mA150mA
Power consumption1.8W @ 12VDC1.8W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED 9 pcs (Night vision distance 5m)9 pcs (Night vision distance 7m)
Waterproof ratingIP68
Packing weight0.8KG

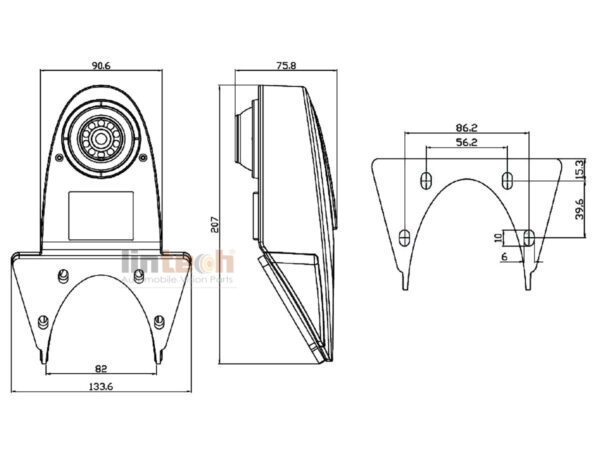

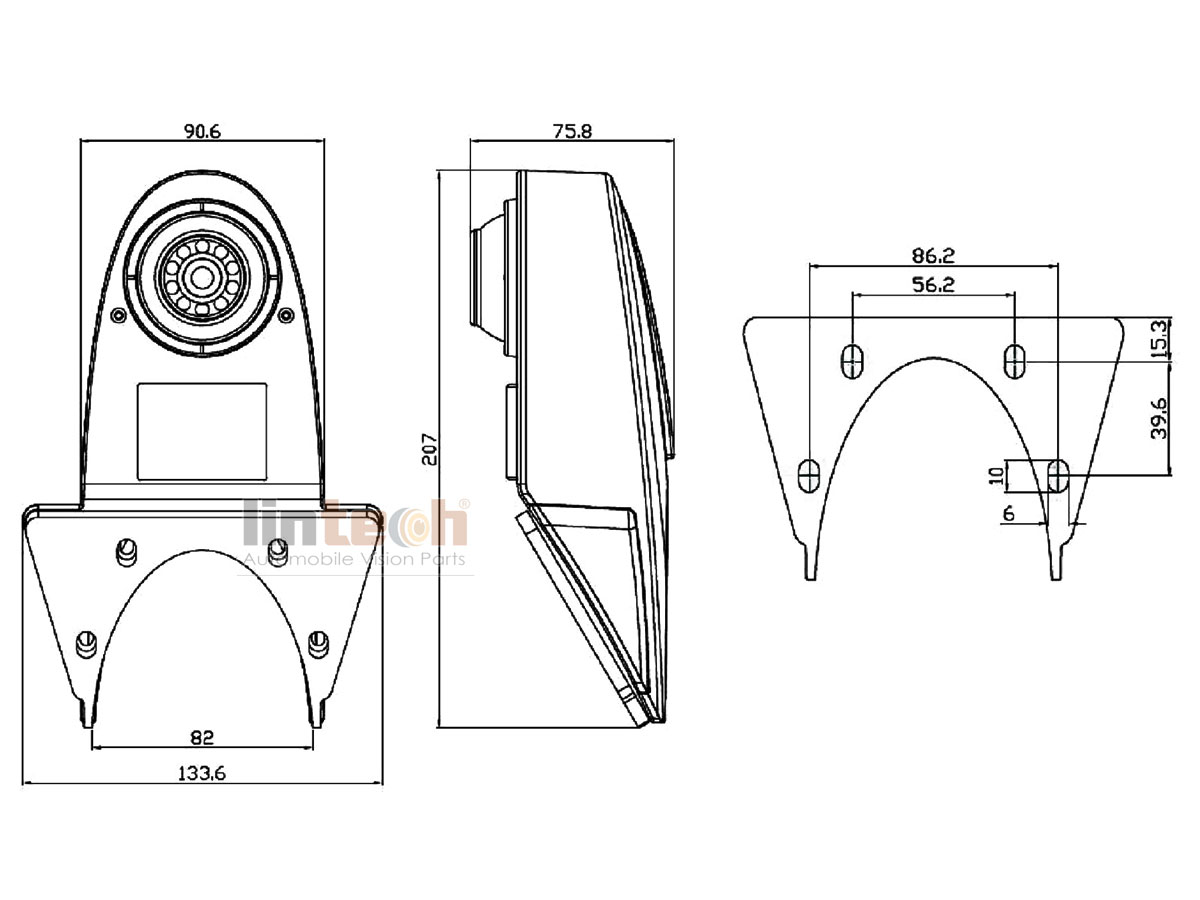

Dimension(WxHxD)207mmx133mmx76mm (MAX)
Operation temperature-20 ~ +70 C-degress

Data Sheet

Photos

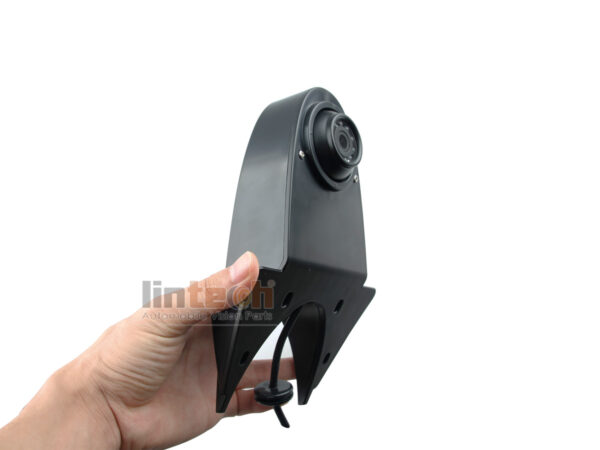

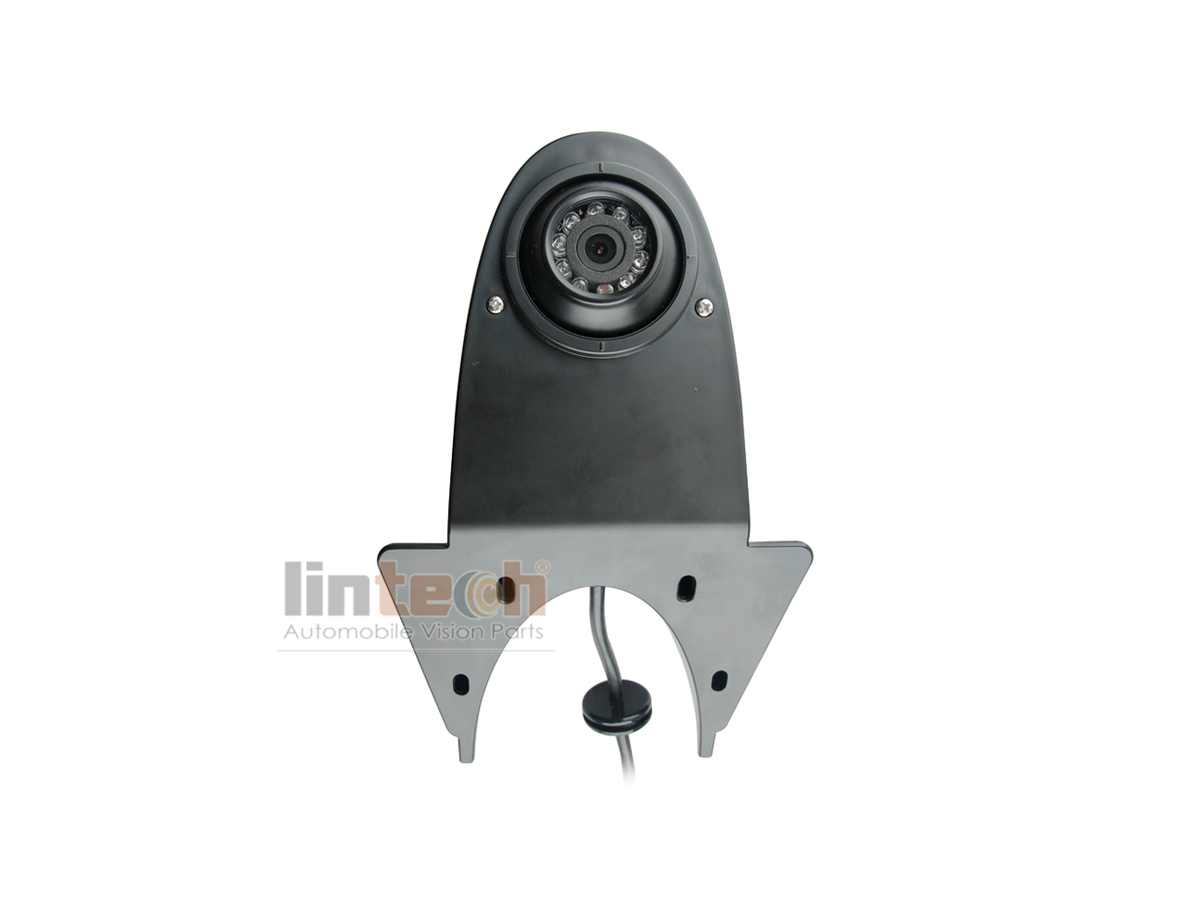

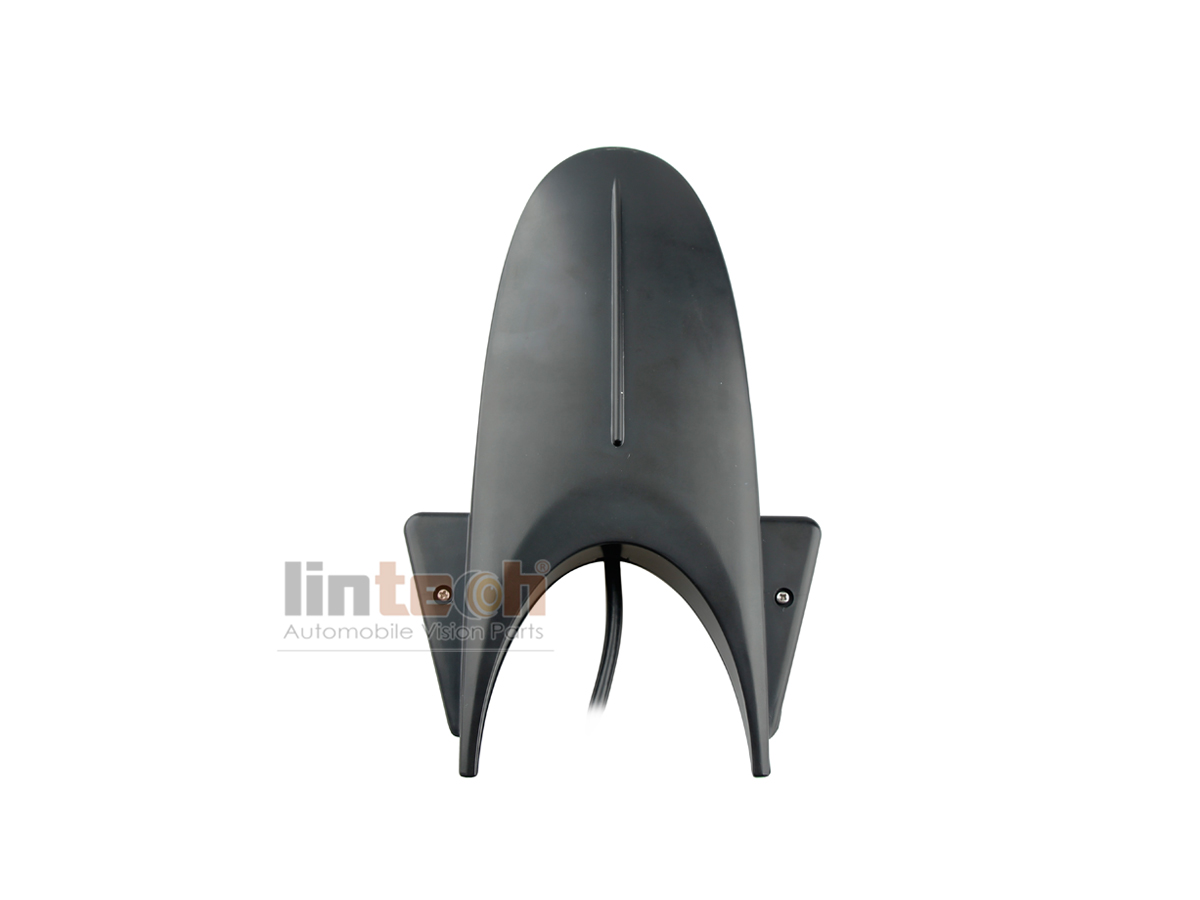

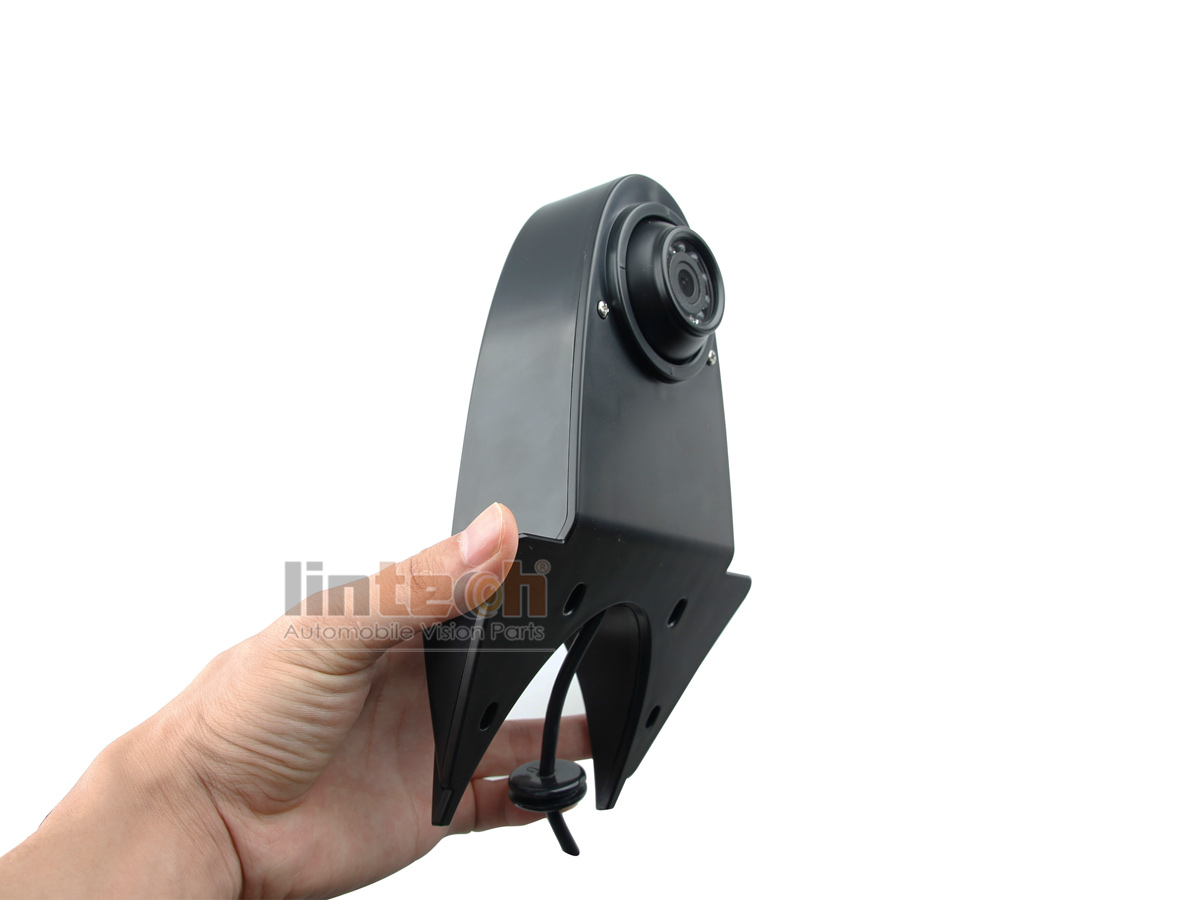

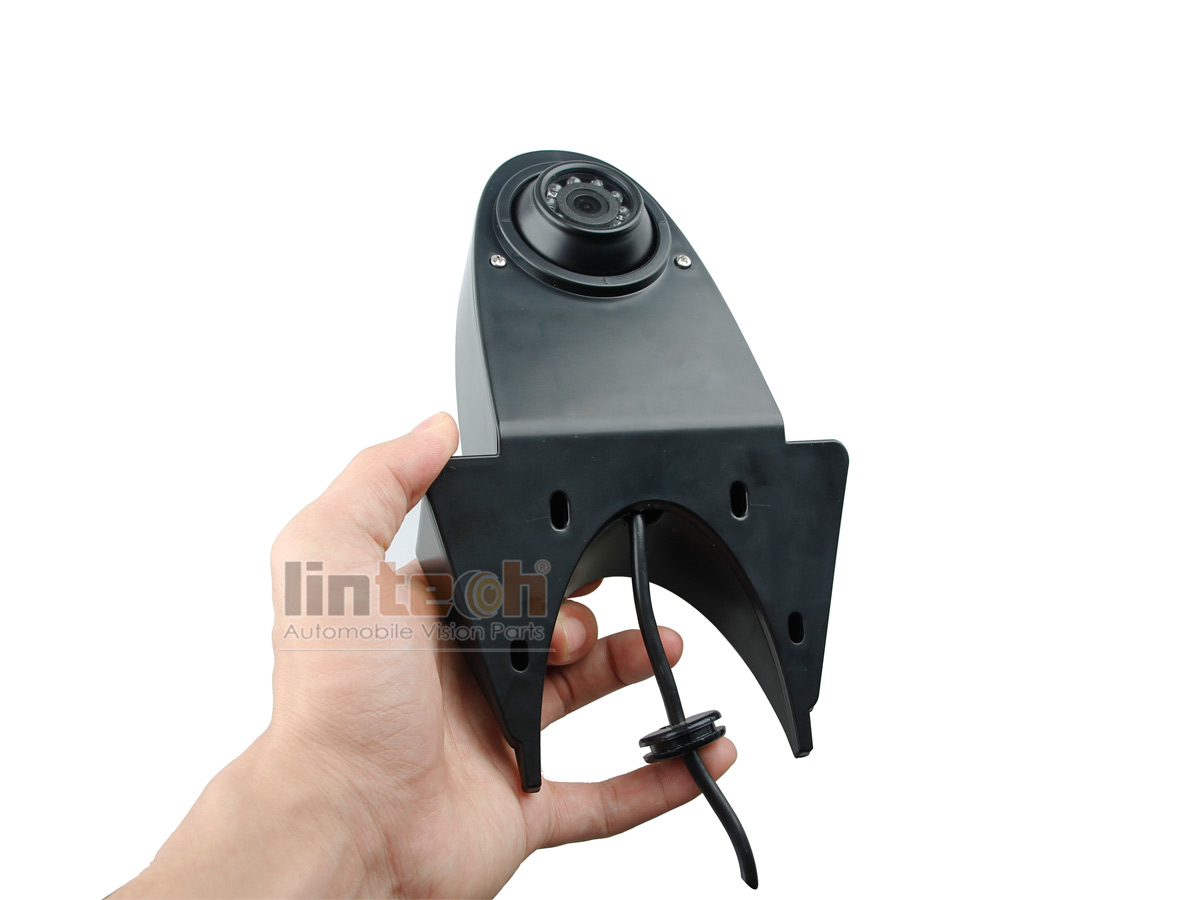

LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
LC-009C Waterproof RV Cam for Mercedes Benz Sprinter and Universal Vans
