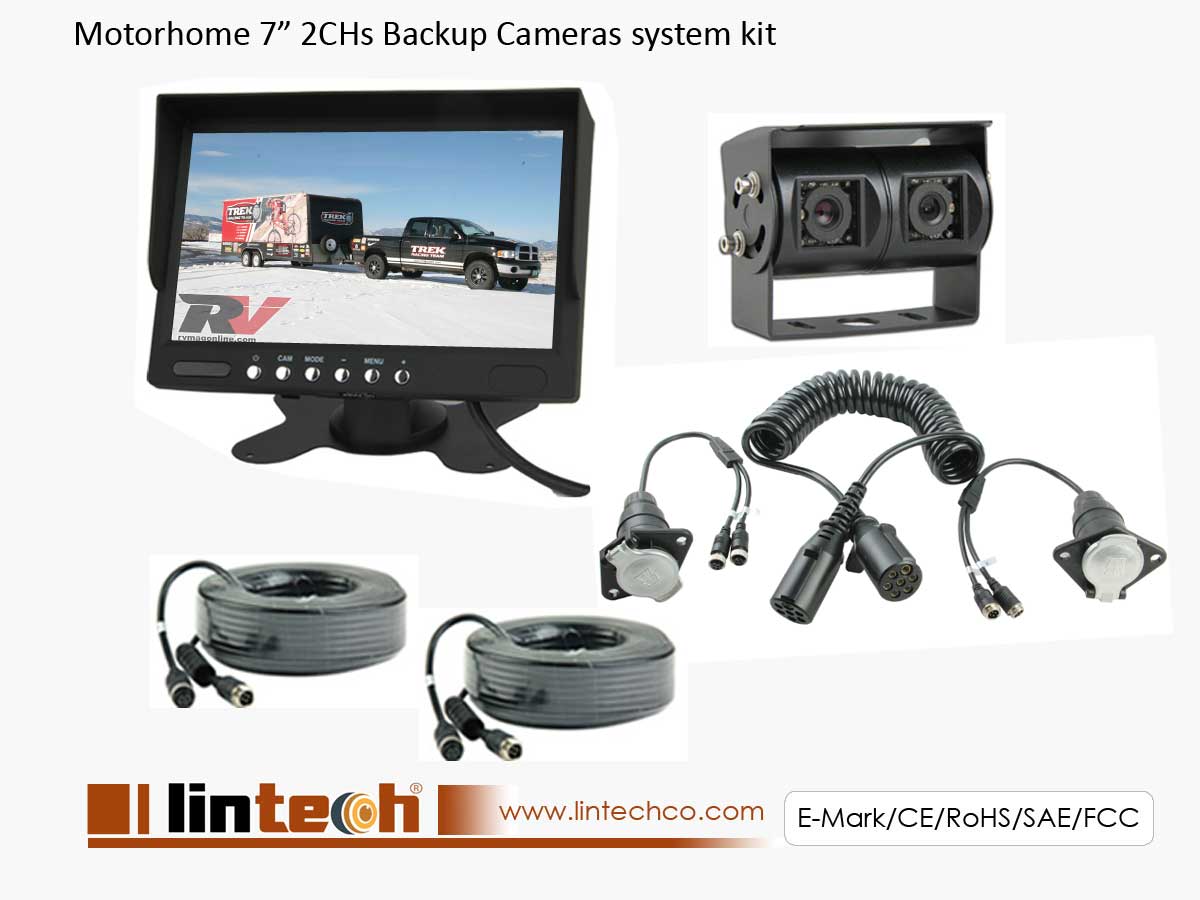

RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04

Model No.:LW-070A-5

  • Resolution:800*R.G.B*480 digital
  • Built in parking guide line
  • Operated power: DC 12V~24V
  • 2 Videos Input
  • Dual camera  view angle: 120°/45°
  • Night vision: 15pcs IR LED Each Lens
  • IP rating: IP68 (Waterproof)
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B RV Camera System Supplier.

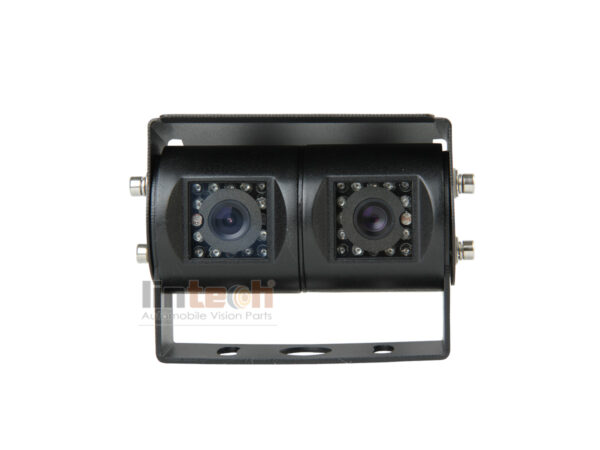

Dual lens camera has two separate camera units.  One for wide view and a second narrow view camera which replicates the view of a rear vision mirror.  The wide angle unit can be set to automatically activate when backing and the narrow unit can be used to check traffic behind vehicles that have no rear view mirror.

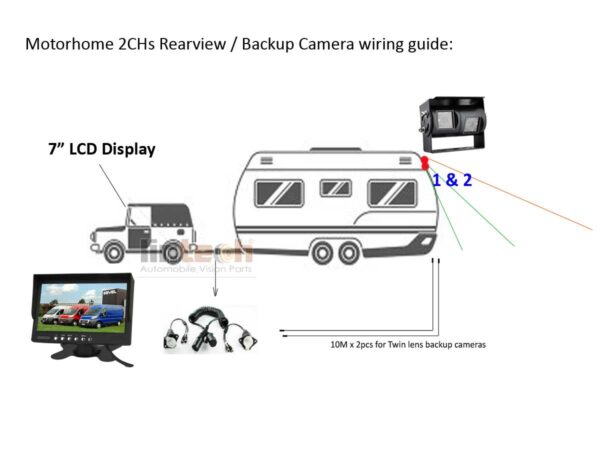

This trailer cable allows two cameras to be connected over a trailer hitch and then cabled back to a monitor.   This enables agricultural implements,  horse floats, fith wheelers and goose necks plus other large tuck trailer units to only require one coupler for two cameras.

The trailer cable is heavy duty grade cable with maximum extension of 3m, is fully waterproof and made of tough plastic with metal caps.   This coupler will carry power, video and audio for each camera.

Data Sheet

Photos

RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
RV Camera System with Dual Lens Camera for Backup and Rear View, LRV-04
