SD Card Version DVR Recorder System, DVR-F1

Model No.: DVR-F1

  • Supporting analog car camera, CIF, HD1 and D1 for selection, supporting 2 channels of D1+2 channels of CIF at the most
  • Supporting AHD 1080P/ 720P/920P car camera (Optional)
  • 4CHs video input, 1 channel video output
  • Frame Rate: PAL: 100 frames/s, up to 25 frames/s per channel / NTSC: 120 frames/s, up to 30 frames/s per channel
  • Supporting two SD cards for recording max 512G+512G
  • Supporting dual-stream mirror image video recording, SD card recording upon loss of hard disk
  • Alarm Input / Output: 6-channel ON/OFF signal alarm input, 1-channel on/off signal alarm output
  • Communication Ports: RS232/485, RJ45 10M/100M self-adaptable network interface
  • Input Voltage: DC: +8V ~ +36V
  • Dimension:147(W)*136(D)*42(H) mm small size
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Mobile DVR System Supplier.

DVR-F1 SD Card Mobile DVR is used to monitor and manage all kinds of vehicles, such as city bus, school bus, taxi, police car, truck, train and so on. It is introduced high-intergraded H.264 ASIC for excellent image quality. It can transmit video in real-time, playback video, manage vehicles remotely and analyze center data.

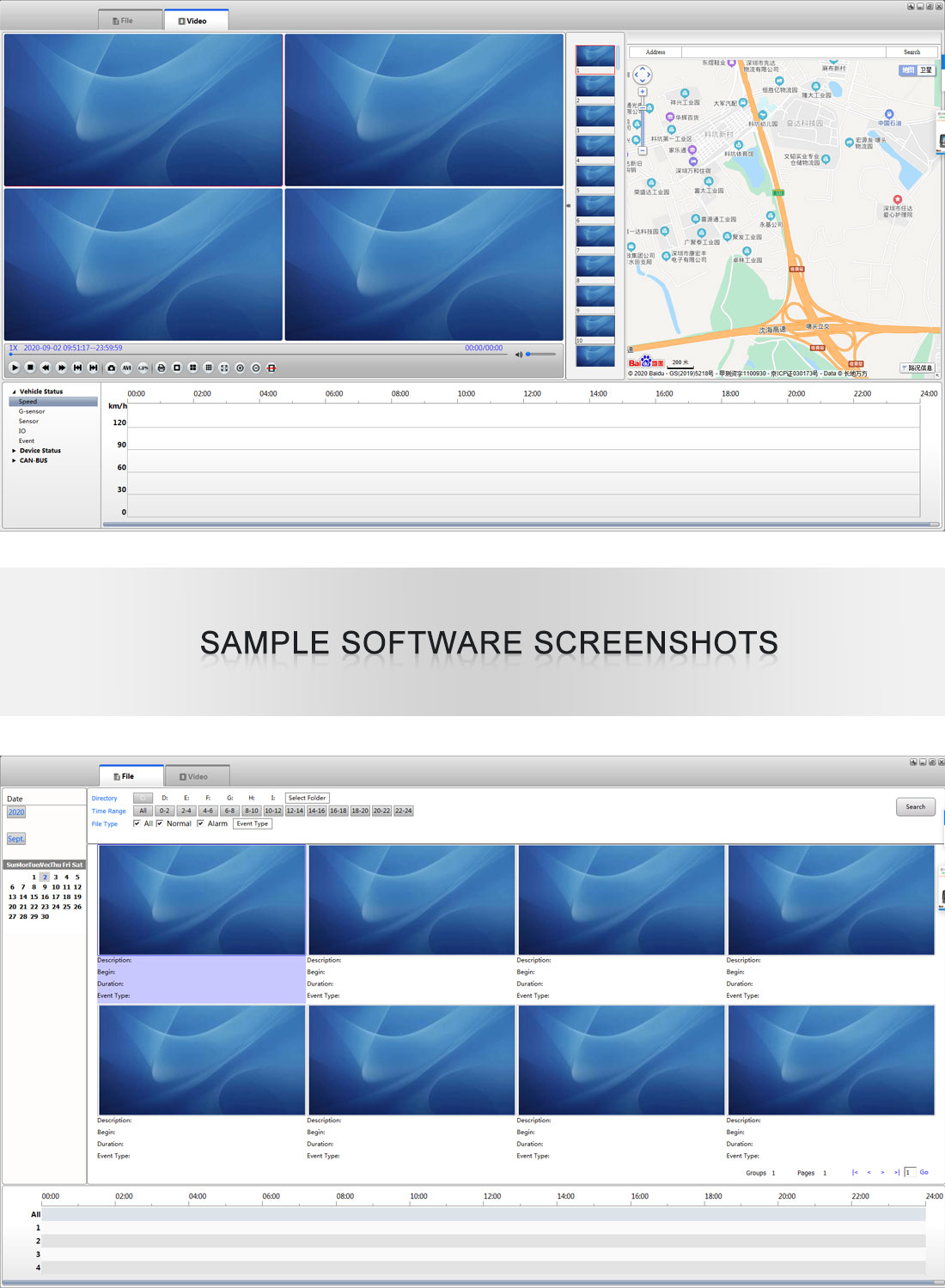

DVR-F1 SD Card Mobile DVR support PC client software and playback software will be provided for free,which can see the playback video with multi-channel. GPS data is tracked by Google map for analyzing ways that vehicle has gone.

Data Sheet

Photos

SD Card Version DVR Recorder System, DVR-F1
SD Card Version DVR Recorder System, DVR-F1
SD Card Version DVR Recorder System, DVR-F1
SD Card Version DVR Recorder System, DVR-F1
