Brake Lights Vehicle Reverse Camera Systems for IVECO Daily 2011~2014, LWC-05

Camera Features

  • Sensor: 1/3″ Sony CCD Sensor 580TVL
  • View angle: 170°
  • Night vision: 6pcs IR LED
  • Microphone: Yes
  • IP rating: IP68 (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years

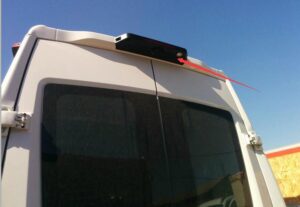

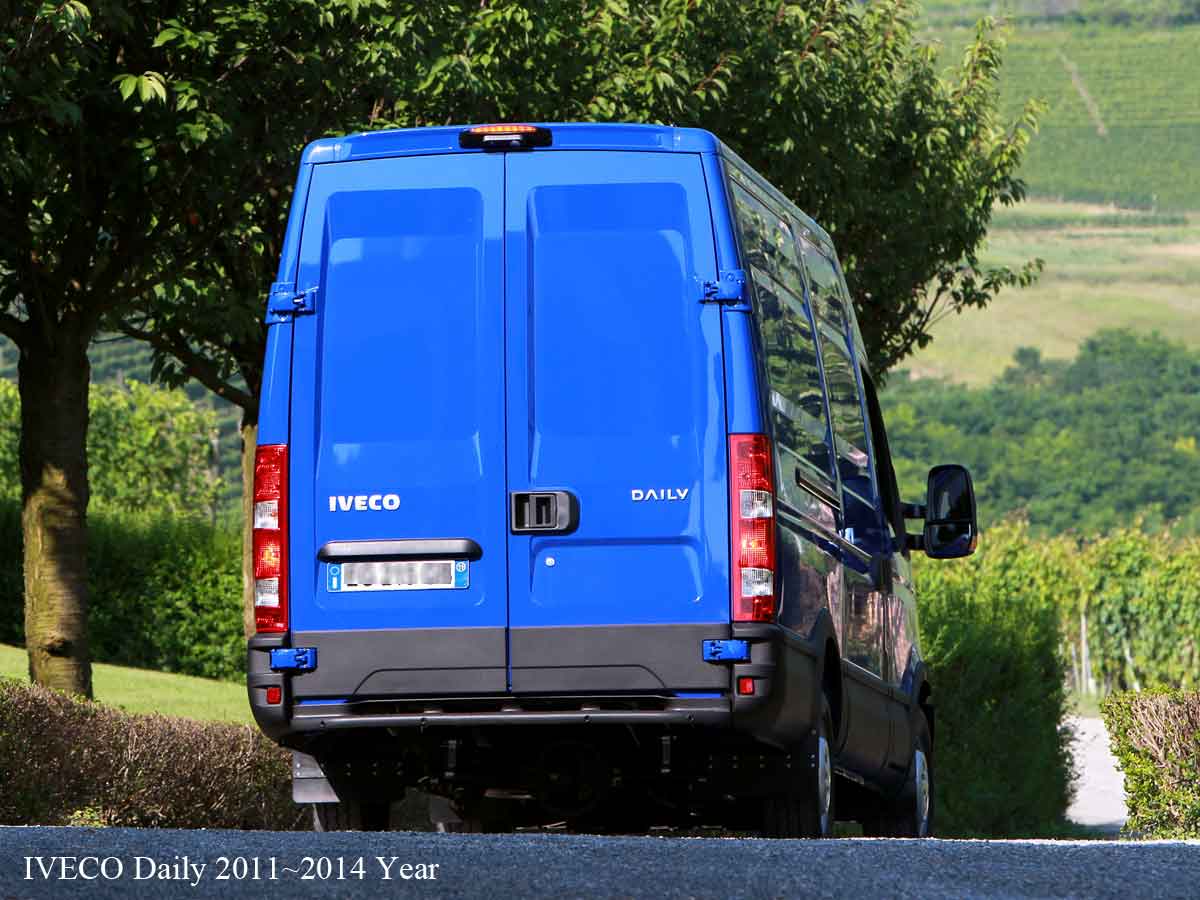

  • For IVECO Daily 2011~2014 Year (without brake light)
FacebookTwitterGoogle PlusPinterest

Descriptions

 LintechCo: Leading Chinese B2B Vehicle Reverse Camera Systems Supplier.

Camera Package Details:

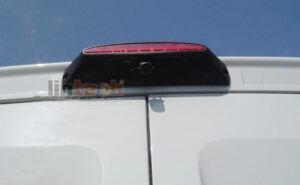

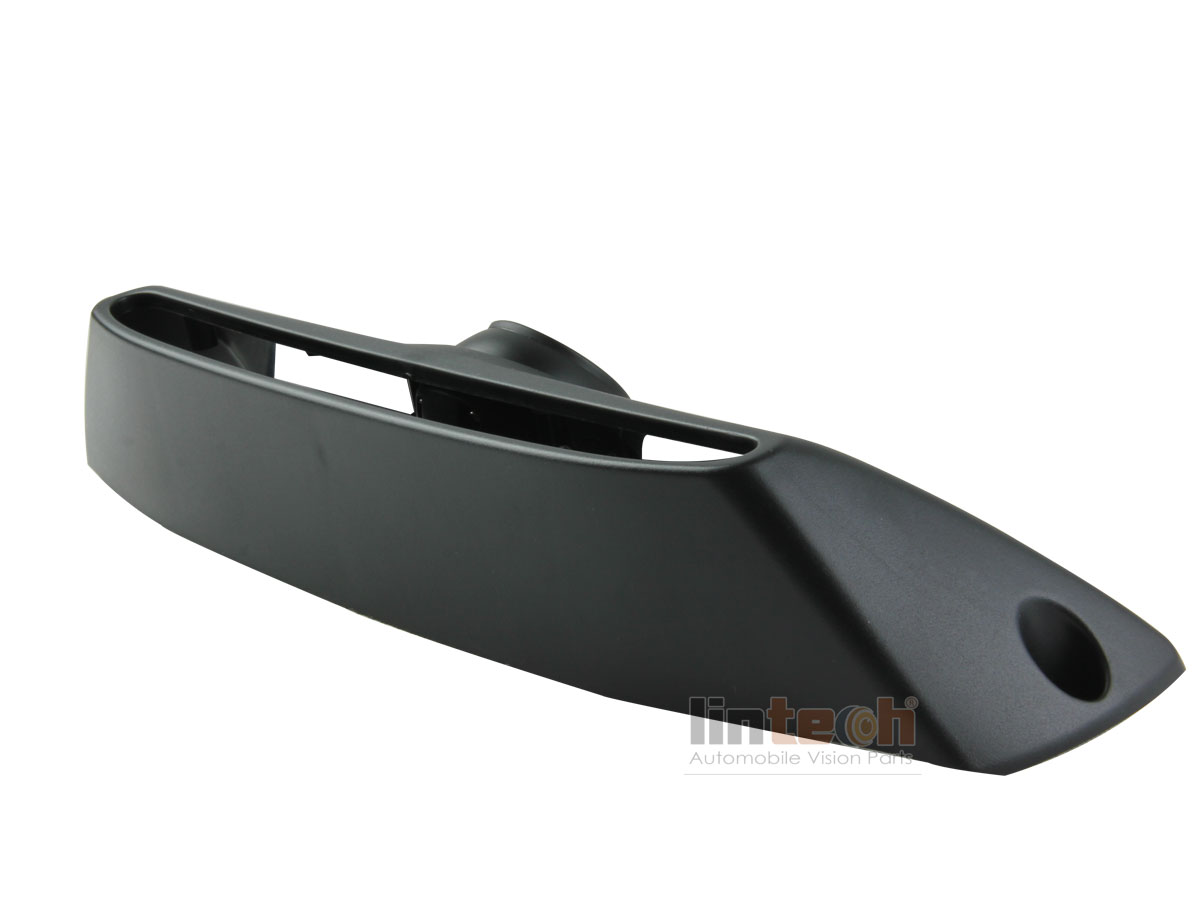

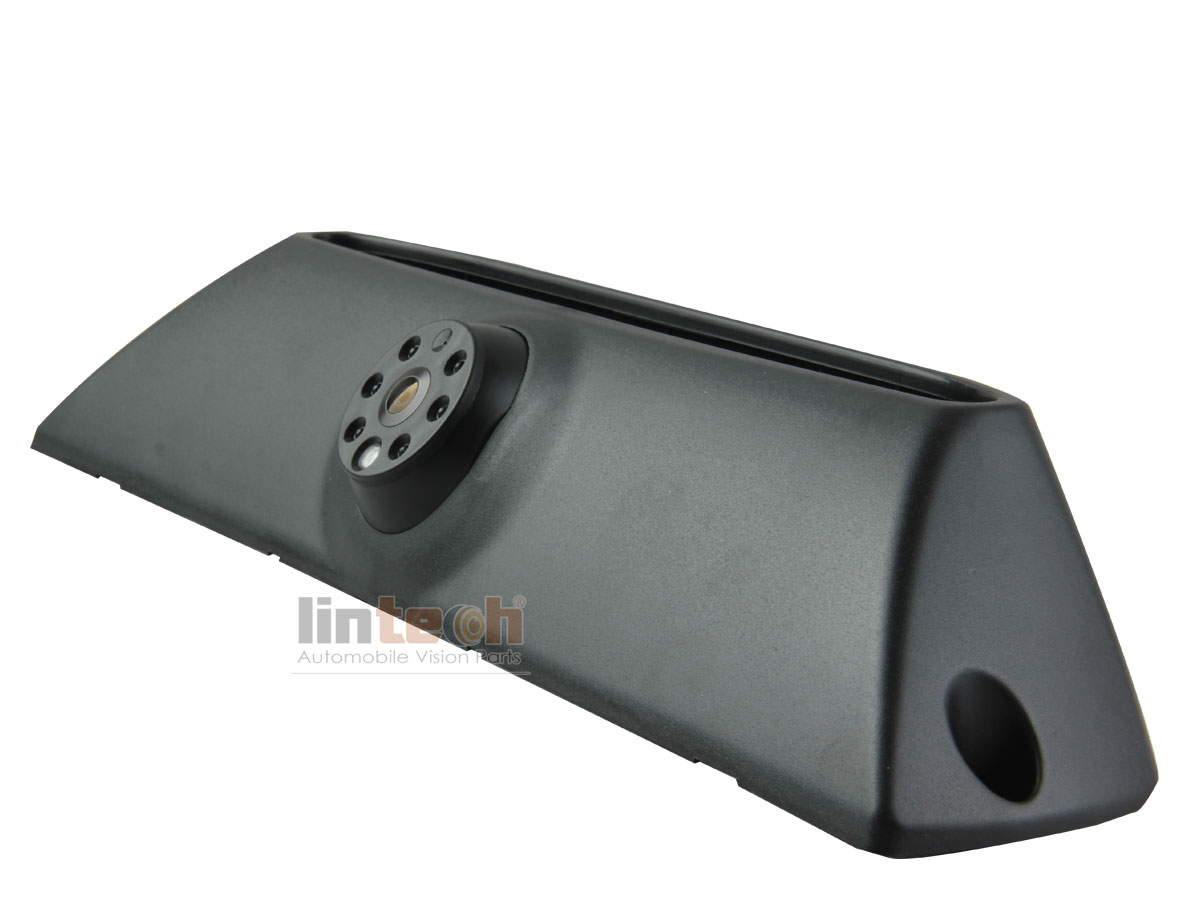

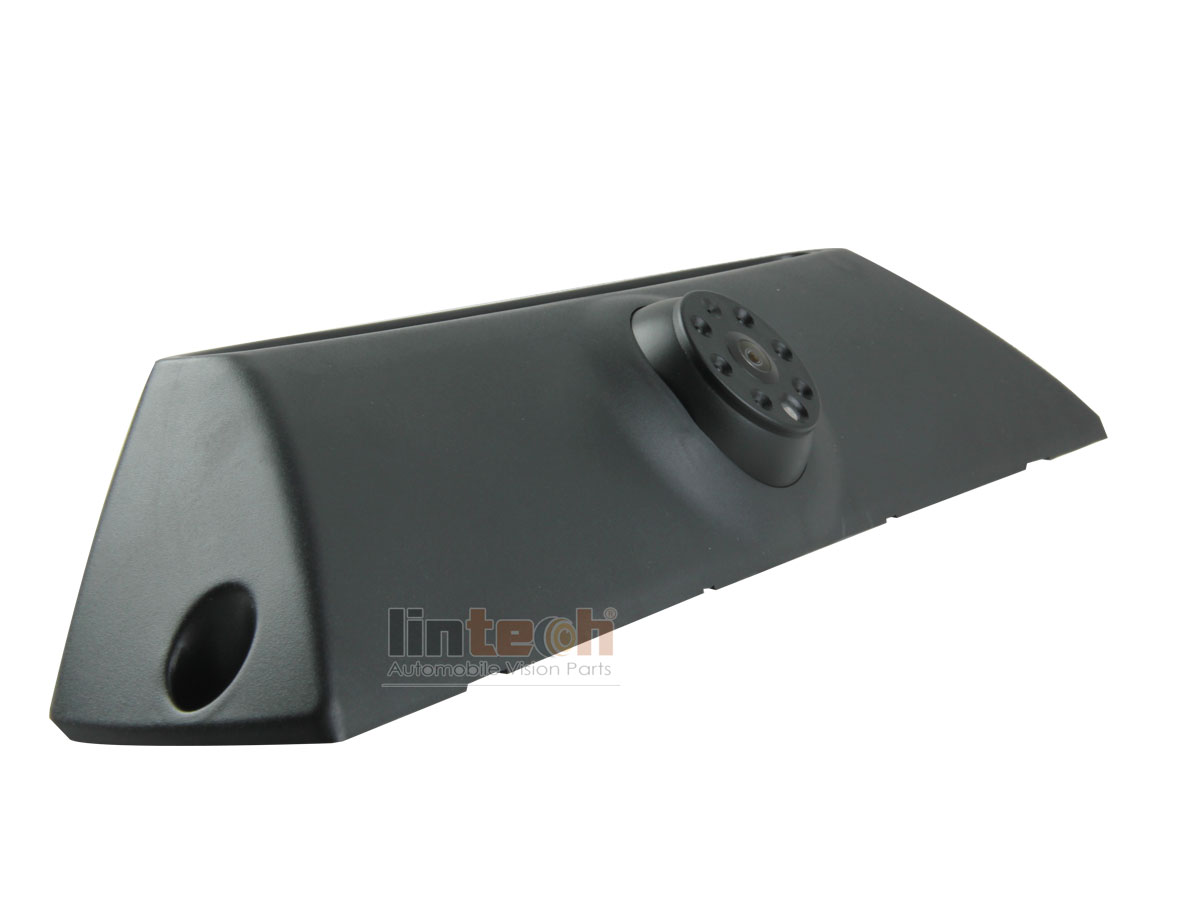

  • 1x Backup camera with brake lights housing case (not include the Red part.)

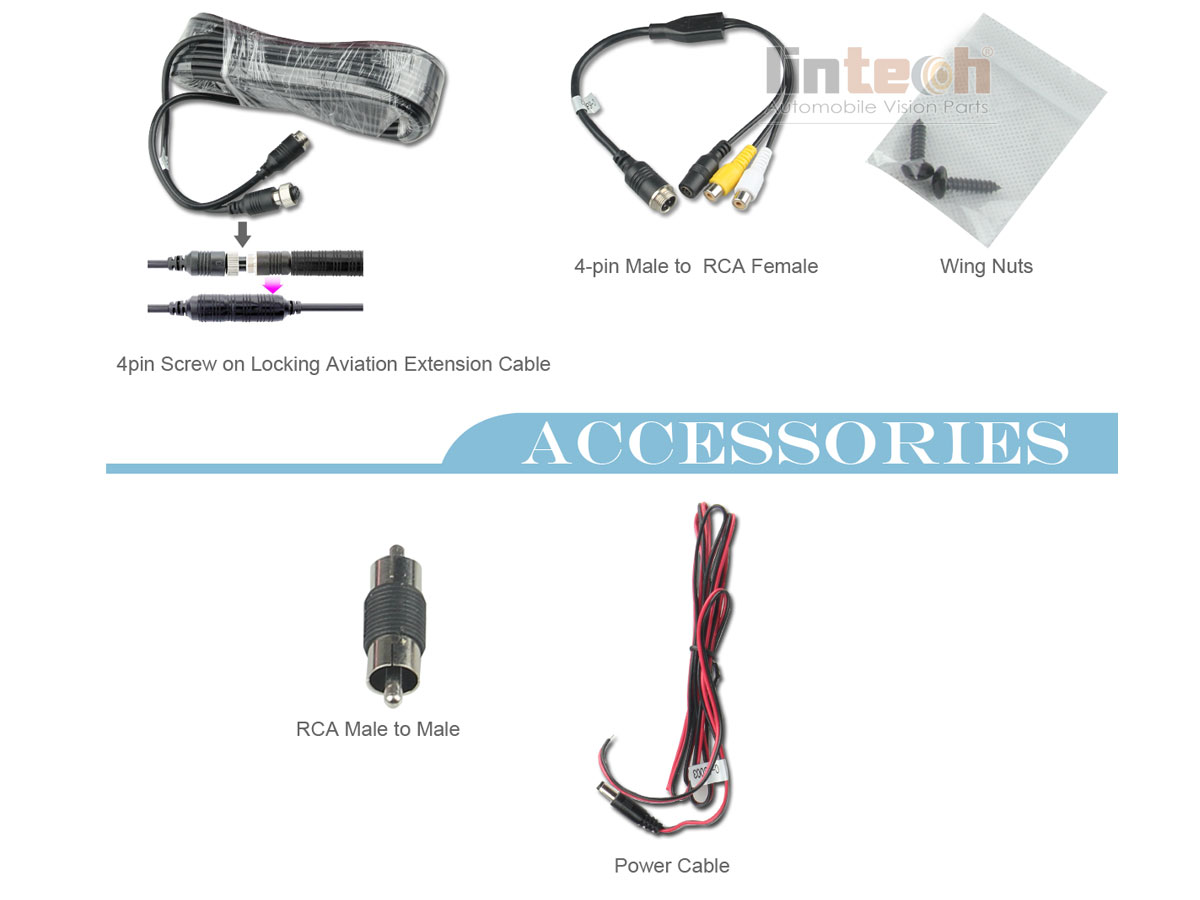

  • 1x Extension cable 10m
  • 1x RCA to 4-Pin connector cable
  • 1x Installation screws
  • 1x RCA male to male converter

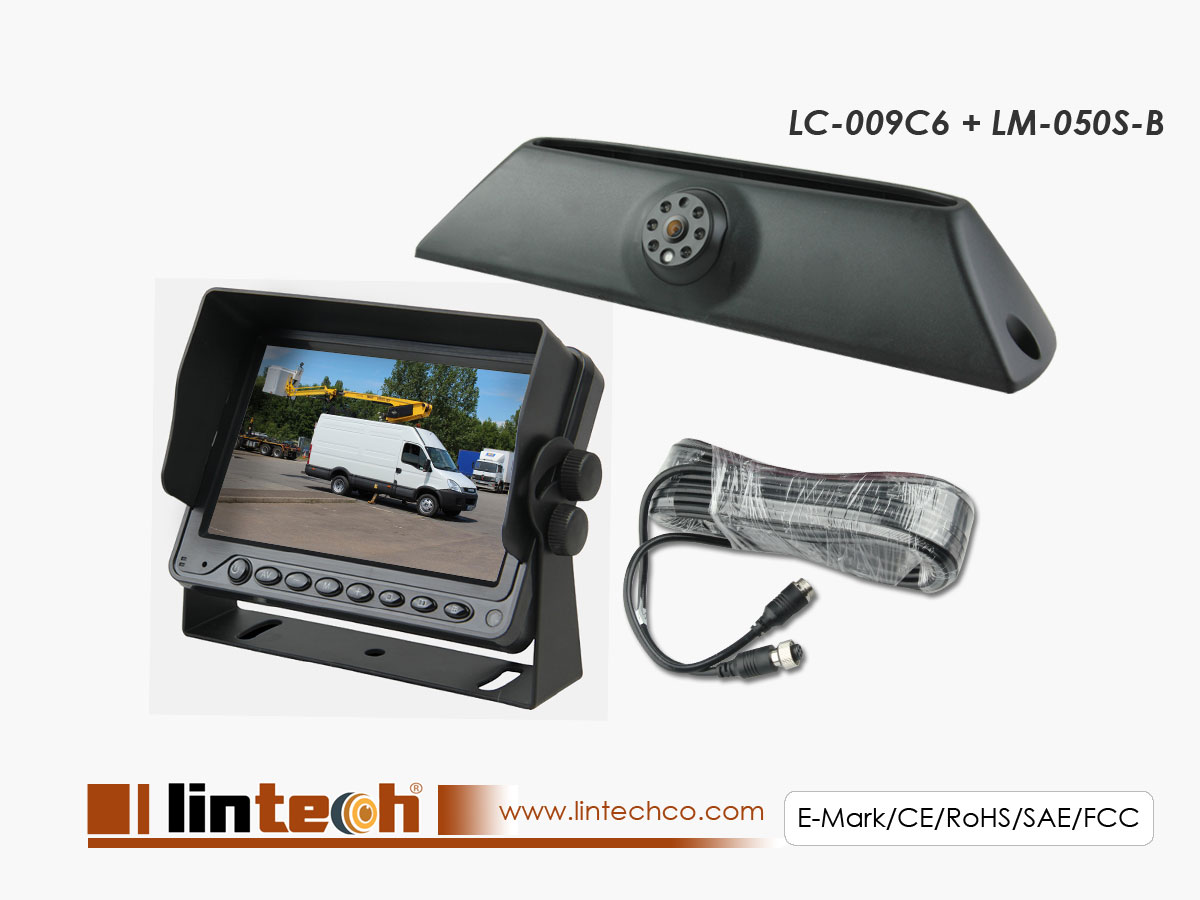

Monitor Package Details

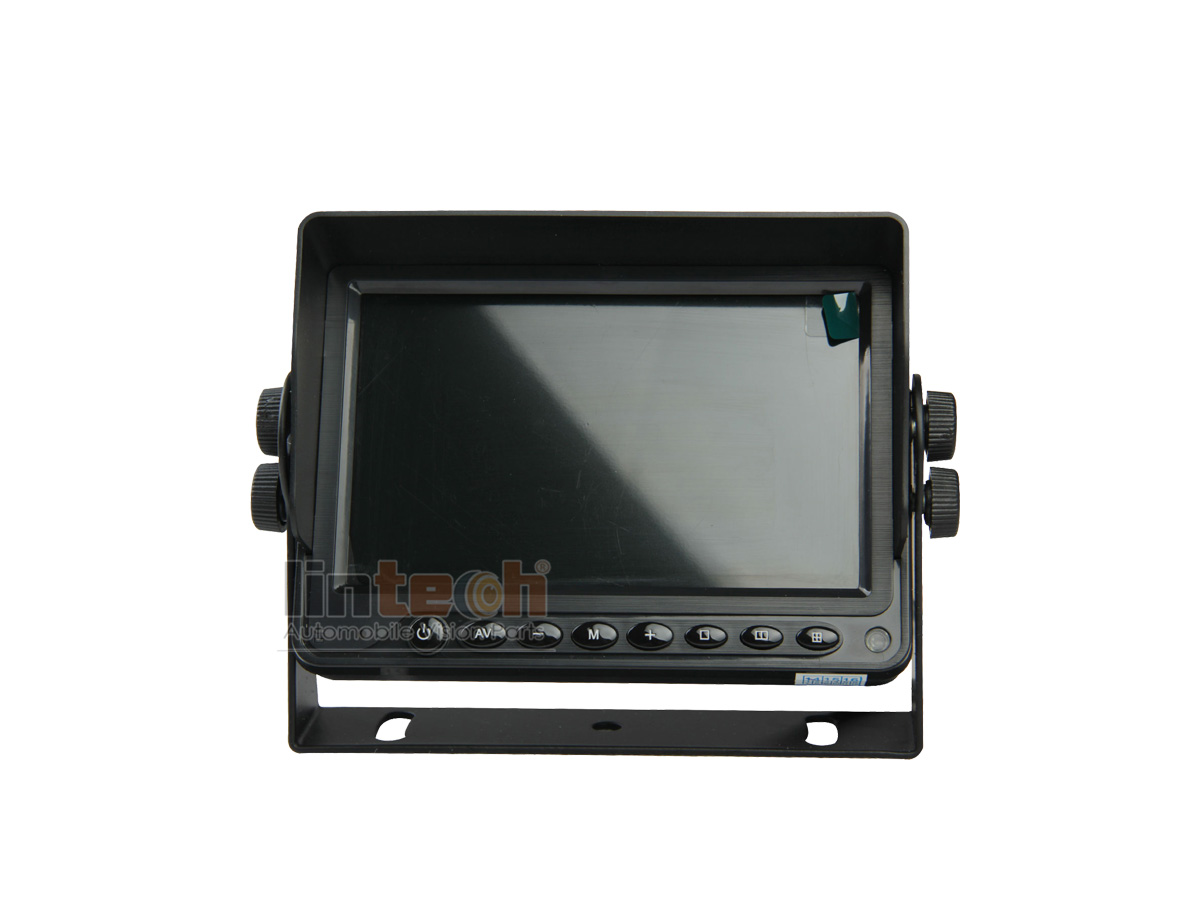

  • 1 x 5″ TFT LCD color monitor
  • 1 x  Screws for U bracket
  • 1 x Remote controller for monitr
  • 1 x Power cable for 3CHs monitor
    6.-Sunshade frame

SubjectStandard ParameterOptional Parameter
Image sensor1/3" SONY CCD1/3" CMOS PC1089
ResolutionN:752x494pixels
P:752x582pixels
N:752x494pixels P:752x582pixels
Horizontal Resolution580TVL420TVL
TV SystemNTSC/PAL
Lens1.7mm
View angle170 degree (105 Horizotal,85 Vertical)
Power supplier12VDC
Current consumption150mA130mA
Power consumption1.8W @ 12VDC1.5W @ 12VDC
Min illumination0 Lux (LED ON) Night Vision
IR LED7pcs (Night vision distance 5-7m)
Waterproof ratingIP68

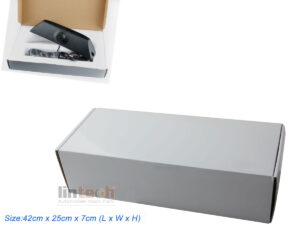

Packing Weight1.3kg
Dimension(WxHxD)343mmx71mmx80mm (MAX)
Operation temperature-20 ~ +70 C-degress

Data Sheet
