Multi-Camera Connection Solution for Truck & Trailer Monitoring Systems
Modern trucks, caravans, and commercial trailers often require multiple cameras to improve visibility and eliminate blind spots. However, connecting several cameras between the towing vehicle and trailer can be challenging due to constant movement, vibration, weather exposure, and frequent coupling operations.
The Heavy Duty 3 Channel Trailer Camera Coil Cable provides a reliable wired connection solution for multi-camera trailer monitoring systems.
Supporting up to three 4PIN camera channels, this rugged spiral cable allows drivers to connect rear-view cameras, side cameras, and additional monitoring cameras while maintaining stable video transmission in demanding vehicle environments.
Designed for semi-trailers, caravans, horse floats, RVs, and commercial vehicles.
Key Features

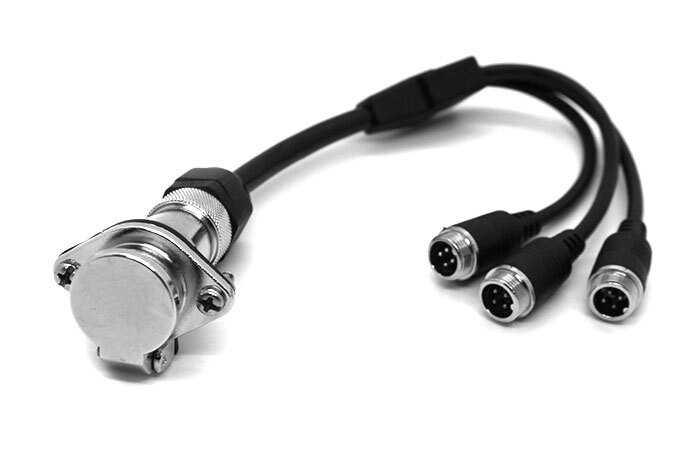

- 3-Channel Camera Connection Support – Supports up to three 4PIN vehicle cameras for multi-angle monitoring applications, including rear view, side view, and blind spot cameras.

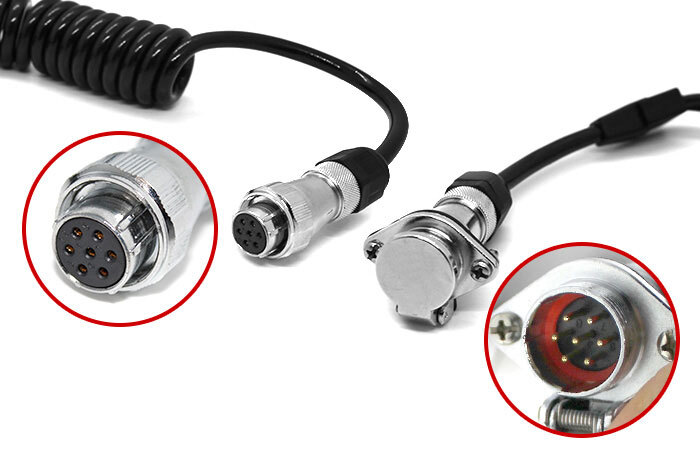

- Heavy-Duty Spiral Coil Cable Design – Flexible coiled structure provides excellent stretchability and recoil performance, reducing cable stress during turning, reversing, and daily vehicle operation.
- Industrial-Grade Shielded Cable Construction – Shielded wiring design helps reduce electromagnetic interference and ensures stable video transmission for vehicle camera systems.
- Durable Anti-Kink & Abrasion Resistance – Designed to withstand repeated bending, pulling, and mechanical movement without easily twisting or damaging the cable.

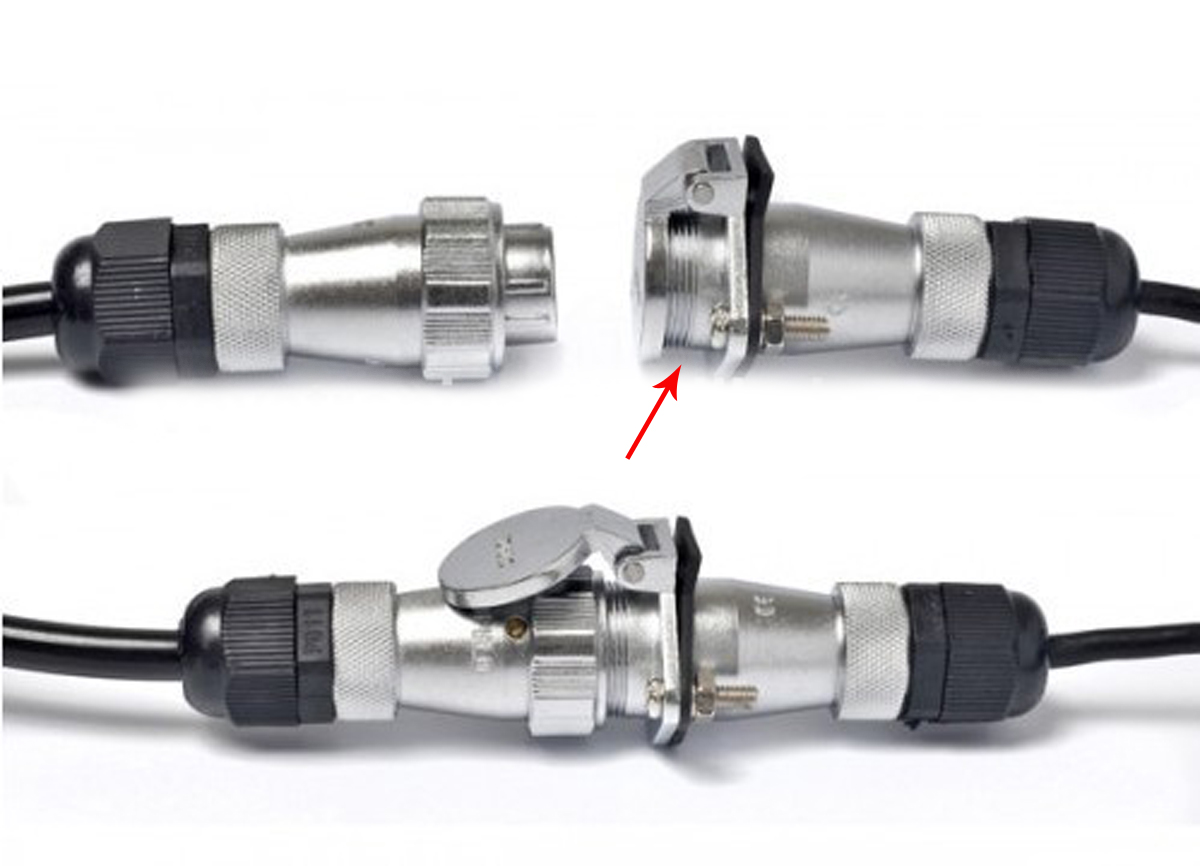

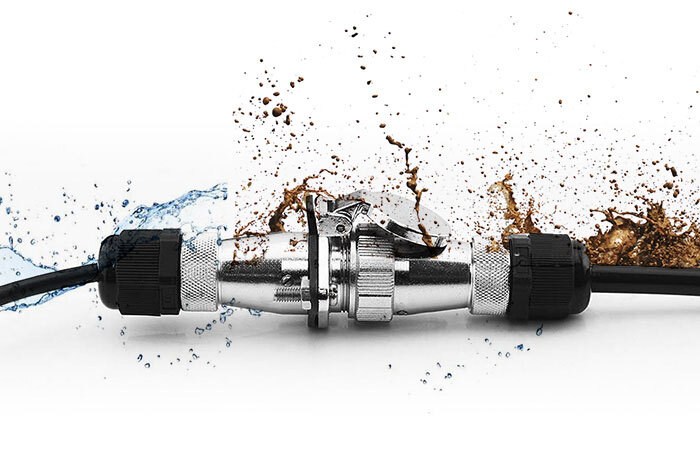

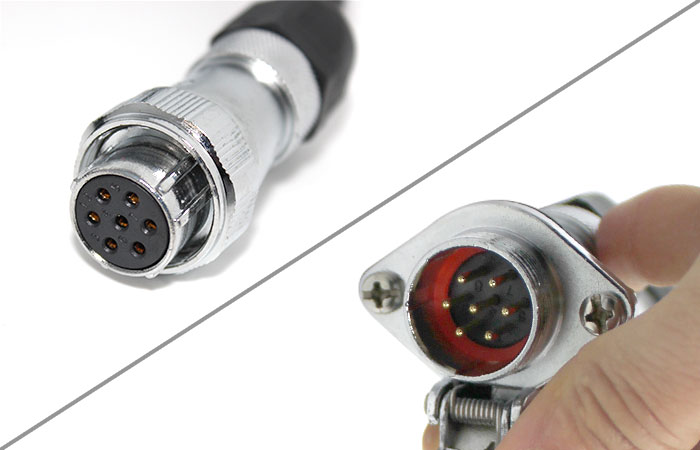

- Waterproof Metal Aviation Connectors – Rugged connectors provide secure locking and reliable performance against moisture, dust, vibration, and outdoor conditions.
- Stable Video & Power Transmission – Supports transmission of camera video signal, power, and optional audio depending on camera configuration.
- Designed for Truck & Trailer Applications – Ideal for vehicles requiring frequent trailer connection and disconnection.
- Quick Connect / Disconnect Design – Makes trailer installation, maintenance, and camera replacement easier.
- 12V / 24V Vehicle System Compatible – Suitable for a wide range of commercial and heavy-duty vehicle applications.
Typical Applications
- Semi-trailer camera monitoring systems
- Truck reversing camera systems
- Caravan / RV camera upgrades
- Horse float monitoring systems
- Delivery trailer safety systems
- Agricultural trailer cameras
- Heavy equipment transport vehicles

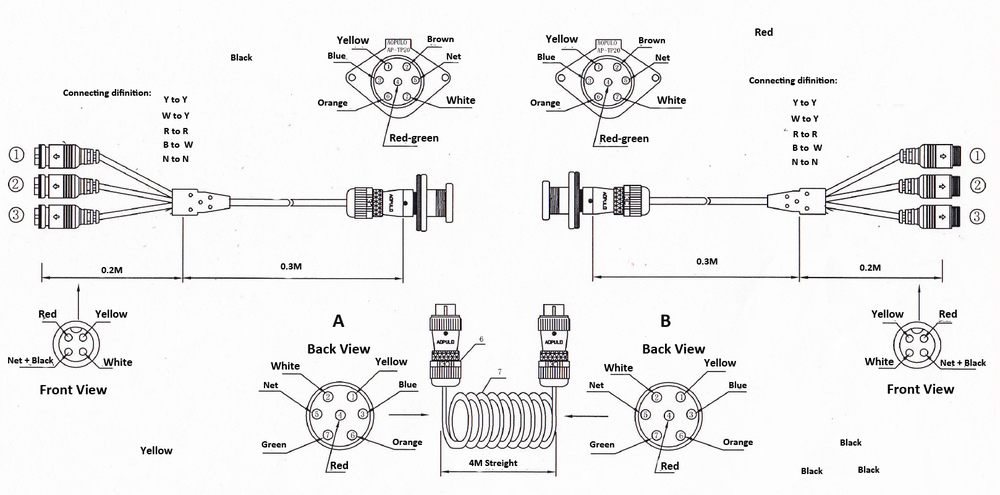

Recommended Camera Layout Examples
3-Camera Trailer Monitoring System:
Channel 1: Rear View Camera
→ Monitor reversing area and loading zone
Channel 2: Left / Right Side Camera
→ Reduce blind spots during turning
Channel 3: Additional Monitoring Camera
→ Trailer interior, cargo area, or extra safety view
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Heavy Duty Trailer Camera Coil Cable |
| Camera Channels | 3 Channels |
| Connector Type | 4PIN Waterproof Aviation Connector |
| Cable Structure | Spiral Coil Cable |
| Signal Transmission | Video + Power + Optional Audio |
| Cable Protection | Shielded / Heavy Duty Design |
| Application Voltage | 12V / 24V Vehicle Systems |
| Application | Truck, Trailer, Caravan, RV |
| Customization | Cable Length / Connector Pin Definition Available |
