How do we do to reduce camera IR light glare?

What is glare?

Glow is brought on by light jumping off of a reflective surface. When speaking about eyewear, individuals are most likely referring to lens glare or environmental glow. Lens glare is brought on by the representation of light off the surface of a lens. Whether it comes from a cam, telescope, binoculars, and even just glasses, all lenses have some degree of reflection with the lowest amount of representation being less than 0.1%. Eyeglass lenses without a glare-reducing coating commonly allow around 90% of light to pass through, relying on the lens product. The other 10% of the light shows off the surfaces of the lens. The glare triggered by this 10% reduces vision clarity, triggers individuals to see halos around fronts lights and also street lights at night, as well as creates bright, practically white representations on the lens itself.

What Cause Camera Night Vision Reflection Issues?

Several night time reflection problems that occur are caused by IR reflection. A lot of the IR reflection concerns are triggered by:

  • Shedding call between the foam gasket ring and dome cover.
  • Close-by barriers in the environment that mirror IR light.
  • Dirt, damp, damp on the plastic dome cover.
  • Possible inner damages to lens, which may need replacement.

One of the most serious situation of IR Representation is triggered by the foam gasket ring not being securely pressed versus the camera dome. This will certainly create a “halo” result.

Further more, in front of the camera lens, on the protect glass inner surface, to make an coating black layer is the goods solution for enhance the anti-glare prevent ability.

The finished assembly camera:

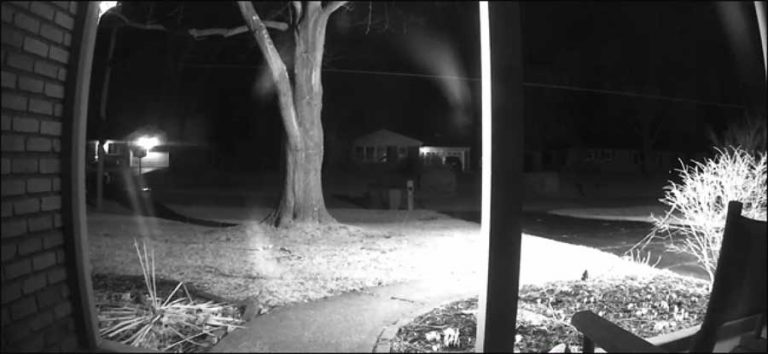

Neighboring objects and barriers are an additional feasible root cause of “Foggy” evening pictures. Figure 5 shows the effect of a little piece of cardboard positioned just 4 inches far from the side of the electronic camera. Even though not visible in the photo (the cardboard is beyond the video camera’s field of vision), the IR-reflection is substantial.

To avoid this situation:
– Prevent setting up the camera in greatly lite or light showing areas.
– Stay clear of setting up the video cameras in dilemmas.
– Usage wall place braces to counter the cams from wall surfaces and also close surface areas.
– Attempt to turn the cam as a lot away from history surface areas as possible.
– Make sure plants/vegetation are clear of the near Field of View.
– Plants fallen leaves are very reflective.


Dirty/moisture dome video cameras likewise create IR “bleeding” and bad night vision photo. Prevent touching the dome during the installment as well as attempt to keep the protective movie on the camera unit the very end.  Touching the glass front of camera len develops grease stains/spots on the bubble, which develop blur. These may not impact the daytime photo but will instantly be an issue with nighttime IR photos.

Always tidy the lens glass  with a soft cloth after installation. Generally, the glass get covered with dust/dirt, raindrops spots, and webs in time. This will create the image high quality to degrade over a period of time (“clouded problem”). Routine cleansing of the dome cover may be required to maintain a clear picture.

Furthermore, fastening the screws to make certain the camera is fully sealed. For moisture climate, you likewise can put desiccant packets to soak up water inside the cam. You ought to replace any type of desiccant packages at least as soon as each year. Due to the fact that they end up being much less reliable as
time passes.

4. Possible inner damages to lens, which may need replacement.

Inside camera, if the lens was loose or the CCD defect issue also may cause similar problem.
