THE BACKUP CAMERA INSTALLATION GUIDE FOR REFERENCE
Looking to do your very first backup camera installation? You have actually concerned the ideal place. This overview will certainly stroll you via the actions of investing in, preparation as well as prep work of your automobile, and also lastly, the installation itself.
Please Keep in mind: This short article is planned as a basic overview as well as intro to the procedure of backup camera installment. While we consist of details step-by-step directions with our items, be sure to follow the guidelines for your certain backup camera model.
The procedure is straightforward if you’re a little bit convenient, read through this guide, and also prepare. If you really feel awkward with the process lots of people can still conserve money purchasing a package and having a person more mechanically likely install it, as opposed to taking it to the dealership.
Tabulation:
1. The One Minute Description of Exactly How Backup Camera Sets Up Work
2. Backup Camera Installment Costs
3. Prepare For Rear Sight Camera Installation Success
4. Test Wiring Diagrams
5. Construct your devices and tools for camera installment
6. Sample Installments
7. Checking time
Every backup camera setup complies with about the exact same couple of steps:
-1.1 First choose which kind of backup camera you desire. There are many types of back-up cams you can pick from
relying on your backup camera mounting choices and also rearview electronic camera system power needs. You can choose between cordless model, or difficult wired models (even more trustworthy) that link to an auxiliary display. (We provide both wired as well as wireless systems).
We additionally have a large choice of top quality OEM substitute backup electronic cameras that will give an equivalent experience to your current video camera. There are also a variety of fancier DVR as well as incorporated safety devices you can pick from while you’re at it. Choices with a bigger feature set will certainly run you much more, however could conserve you thousands when managing insurance coverage. Much more notably they will certainly aid maintain you as well as your household safe.
-1.2 Next order your recommended backup camera, reviewed the instructions, prep your work area. For OEM like backup camera replacements you’re mosting likely to wish to be additional sure you have the right model.
Extensively talking, no matter what video camera system you pick you’ll have to then do the following:
— 1.2.1 Depending upon your picked format for checking out the video clip you’ll require to either:
—– 1.2.1.1 Mount your picked screen onto your dashboard or favored area within your taxi.
—– 1.2.1.2 Eliminate your current rearview mirror as well as mount the new unit you have actually chosen.
—– 1.2.1.3 Remove the panels needed to get to your cars and truck’s head unit so you can wire your camsuitably or mount your user interface module.
—– 1.2.1.4 Then you need to run the cords for either power, trigger cable, or video clip feed (relying on your arrangement & monitor) to the back of the vehicle.
—– 1.2.1.5 Afterwards you have to install as well as mount your backup camera in your picked location.
—– 1.2.1.6 From there you require to choose your perfect method to power your electronic camera, by either attaching to the reverse light power (most common but this offers the least climate resistance) or powering with a link in the cab.
If your electronic camera has bitten the dust you’re likely asking on your own: How much is it to include a backup camera? How much is it going to cost me to replace a backup camera?
The bright side is that with an installment like this, any kind of helpful individual will likely already have the majority of the required tools accessible, and we offer beneficial bonus in our sets like connections and also devices to pry parts off.
–<$ 100 for a basic backup camera. There are constantly cheaper choices out there, however they usually have weak cables as well as much less climate resistance.
–$ 100-200 for an universal license plate design backup camera or wifi made it possible for smartphone backup camera. These are common workhorse backup cameras that will certainly get the job done.
Relying on your wanted bells and whistles we likewise have a wonderful option of premium quality:
– Ford OEM Fit Third Brake Light Backup Cameras
– GM OEM Fit Brake Light Back-up Cameras
– Mercedes Sprinter OEM Fit Backup Cameras
– Dodge & Chrysler RAM OEM Fit backup Cameras
– Universal Backup Cameras
– Fleet Camera Back-up Cameras
– Narrow Angle Back Sight Asisstant Cameras
Regarding time goes, you ought to budget plan in between 1 to 4 hours to mount your backup camera. Your experience and the intricacy of your selected system actually establish for how long it’ll take. Undoubtedly you don’t intend to rush. Allow’s start so you can see how to prepare the installation.
Pay attention, this isn’t going to be as basic as it is to backup your cam roll. You’re mosting likely to need to consider just how you’ll course these cable televisions with your auto, as well as get your hands filthy. However having a good strategy is mosting likely to go a long way.
First, you require to make a decision where you’re going to wish to want to see this backup camera. Installing a display in your control panel or radio console is an entire various another tune, one of which we will deal with in a later overview.
For the objectives of this example, we’re going to think you have actually obtained a back view mirror set or one which you can mount in addition to your control panel or to your windshield. There are advantages and also disadvantages to both, so we will not support for either below. Nonetheless, we do recommend that if you have actually bought a set, use the display that includes it, as that will certainly make points much easier.
Next off, you have to ask: Are the given cable televisions enough time for my car? It’s much better to have too much after that insufficient, due to the fact that you can constantly cut it down or protected added cable. With insufficient cord, you could find yourself unfortunate right in the middle of a job. Make a rough measurement where you’re mosting likely to put the video camera back to your trunk/license plate location. That will approximately represent what you need, and see to it you have a few extra feet simply in case. Every one of which is to say, make sure you selected set will actually fit in your cars and truck, truck, or SUV. While we consist of lots of high quality cord in our packages, you can normally inform a low quality backup camera package by how much idea went into the port wires high quality.
Prior to you get started you’ll want read as well as reread the guidelines. Mounting an electronic camera should be pain-free if you recognize what you’re doing, as well as have acquainted yourself with the procedure.
And also keeping that, you ought to prepare to begin your installment. Next, we’ll proceed to how to install the backup camera.

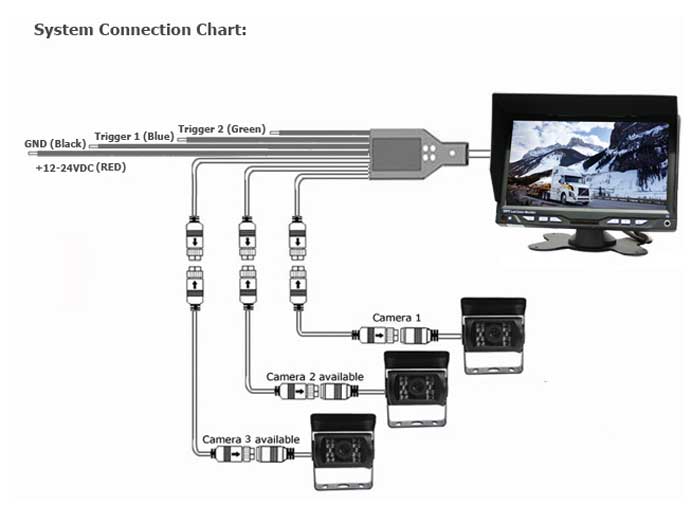

Below is an instance of what most backup camera installments appear like when making use of displays:
Below is an instance of what most backup camera installments look like when using rearview mirror screens:
Below is an example of what most backup camera setups look like when making use of OEM fit elements.
For your devices, you’ll require a power hand drill, an appropriate bit for drilling openings to feed cable, fishing devices can be helpful, and the right size rubber grommet (a cyndrical tube of rubber that will shield the cables from being harmed by the sharp metal edge of the hole you’re going to drill) & connections can maintain points safeguard.
Your backup camera will likely include the necessary wires (generally cam as well as display female/male RCA cables with connectors for video clip, power line, ground wires, and also possibly a trigger wire). If not, you’ll possibly need to acquire these, and also many can be discovered at a hardware or A/V shop. Finally, a crimper or cord stripper will certainly be useful to carry hand.
Ever before car and also video camera set will be a bit different yet normally talking you ought to be covered if you have the following tools accessible:
– Hand drill with drill bits for piercing steel (more effective broadband bits covered with titanium oxide).
– Torx collection.
– Wrench Set.
– Security Goggles.
– Flashlights.
– Standard cable stripper/crimper.
– Torx socket set.
– Razor knife.
– Outlet or nut runner set.
– Trim elimination device or small plastic putty knife.
– Soldering iron and also solder (optional).
– Shrink tube (optional).
Ultimately, if your kit didn’t included one, you’ll need to purchase a display, yet it helps to find out the following action before doing so.
We’ll consist of a basic walk-through of an install below, yet you can also check out a few of our details item overviews for installation listed below.
We have total installation overviews for our items below:.
Mount Example for a Backup Camera with a Monitor.
Your backup camera is most likely going to be mounted simply above or on your permit plate. We’ll start there.
Below’s what to do:.
– Get rid of the indoor panel of your trunk. This is most likely hard plastic or rubber, and you need to be able to make use of a think tool like a flathead screwdriver to pry it off. This won’t break anything, and it will certainly offer you a good take a look at all the cable televisions necessary. The majority of points can be finagled out, if you’re breaking plastic you’re getting too hostile during the set up.
– Eliminate your license plate.
– Making certain you’re not mosting likely to reduce any existing cables, drill a hole from the outside side of your trunk that will certainly be big enough to run the needed cable televisions via. You’ll add your license plate back later on, but it’s a good suggestion to make sure that if you’re mosting likely to be mounting the video camera over home plate that you won’t be obstructing your license plate number.
– Put the rubber grommet you got previously. Currently you prepare to begin running and attaching cords.

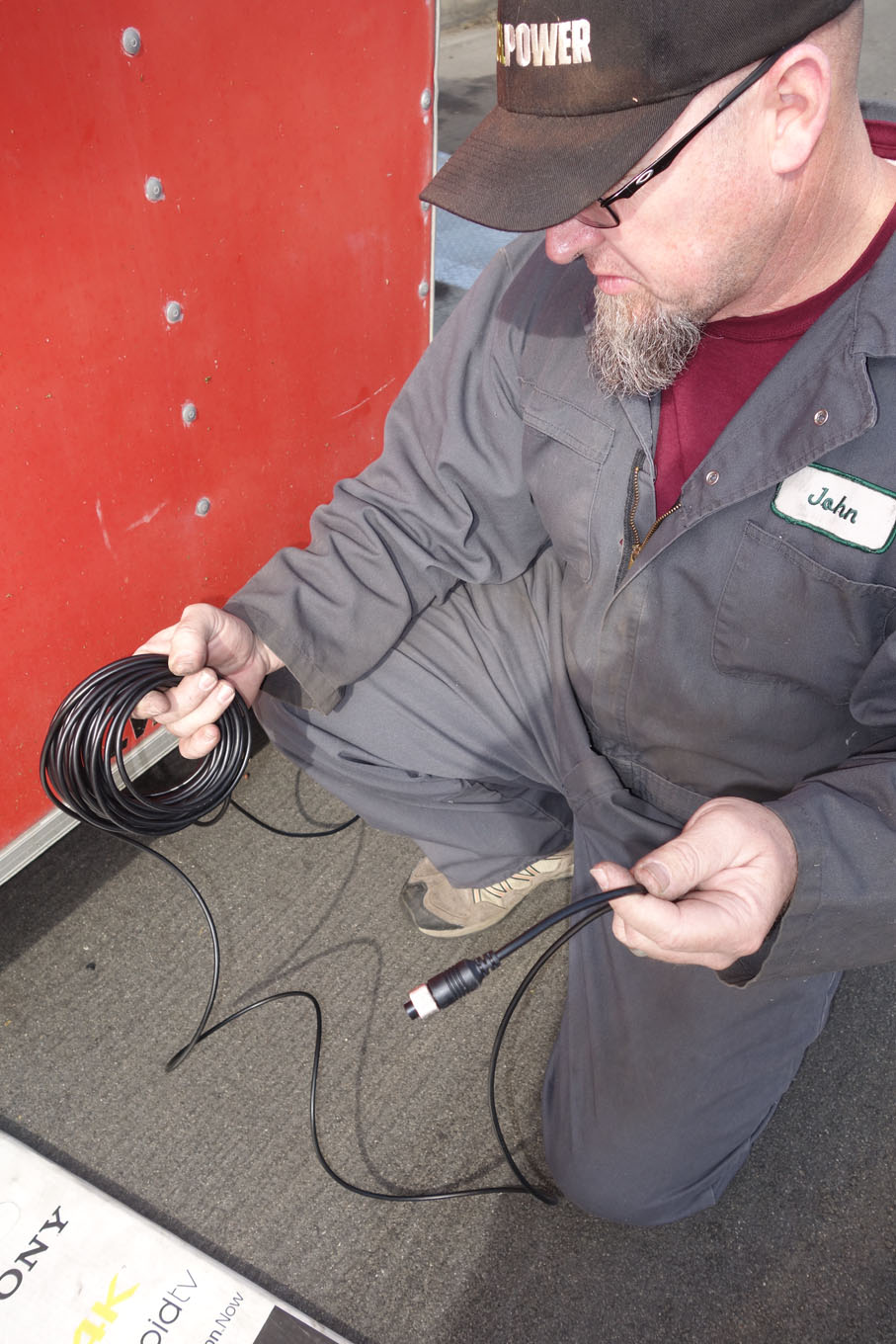

Running And Linking Cables.
Below’s where we begin to find out how to power a backup camera. Let’s go!
– Run the camera and also power line with the hole right into the interior of your auto.
– Find the reverse light cables for your cars and truck. This is a challenging action, as well as you want to see to it that you do a good task. This is exactly how to attach a backup camera to the reverse light. See to it to double check your proprietors manual to guarantee you have actually found the ideal one.
– Strip the favorable as well as adverse wires on your reverse lights (make certain your auto is powered off prior to you do this).
Making use of a tiny screwdriver, divide some of the strands of the removed wire, as well as splice in the power line for your backup camera to them. Normally you can do this by knotting the wires with each other. See to it positive is linked to positive and also adverse is connected to unfavorable. Once you have actually done this, cover every little thing in electrical tape.
– Link the RCA wire to the cam’s cord, and also run it all from the trunk to the circuit box location at the front of the car. This is generally situated to the bottom left of the steering wheel. You can hide the cable beneath the ceiling panels of your car if you intend to peel them back, or if you uncommitted regarding looks, simply attach it to the ceiling of your auto.
Mount The Monitor.
– Next action is placing your monitor. It may be one that installs to your rearview mirror, or one that mounts to your control panel. In either occasion, complying with the placing directions that include the device is your best option. If all else fails, this backup camera setup guide can be extremely valuable.
– Attach the RCA cable to the RCA outcome on the screen. You might additionally need to run a trigger cable as much as your screen, or even power it with the same resource as the backup camera. (Again designs will vary.).
– If the screen needs it, you’ll likely need to install a fuse tap, which will permit you to connect the bare electrical wiring of your display to the power of your circuit box. See the guide linked over permanently guidelines on just how to do this.

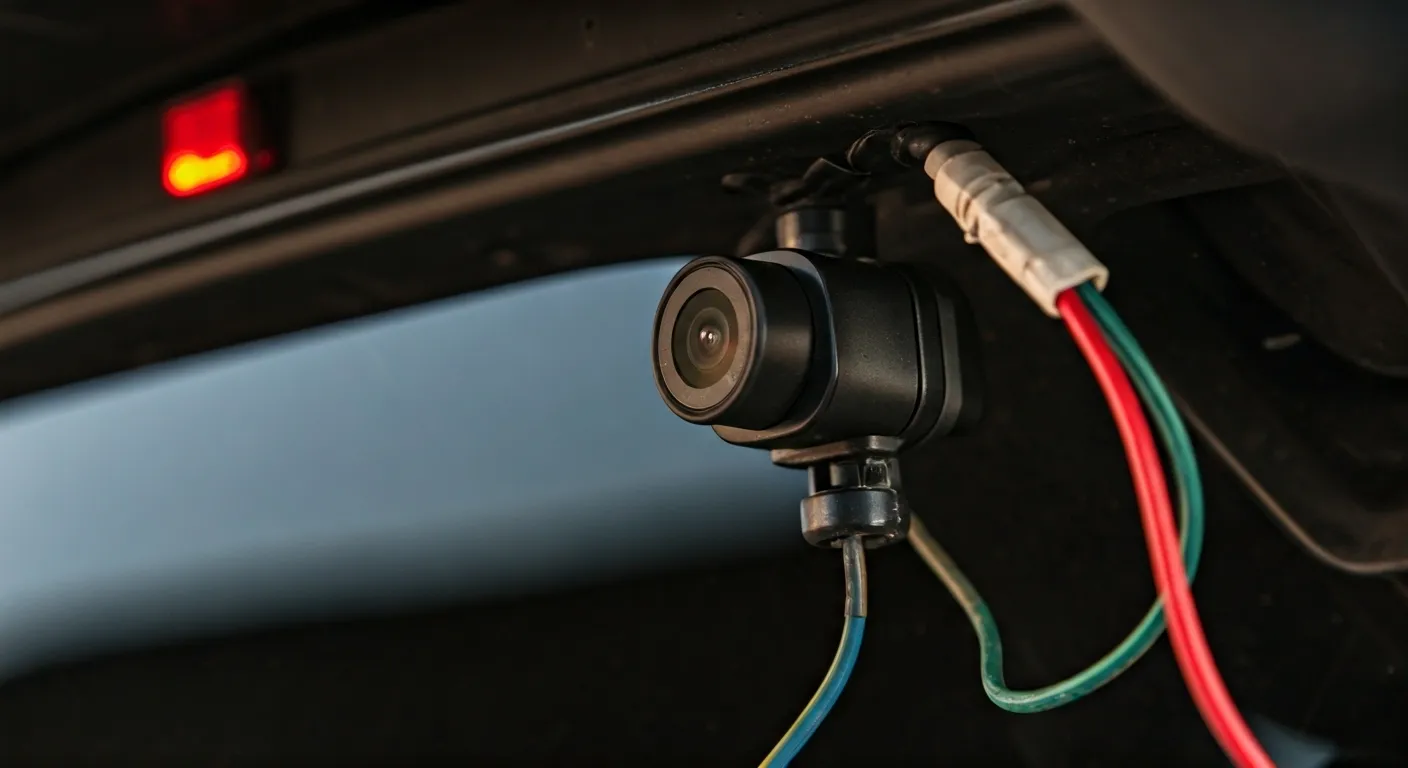

Mount The Video camera.

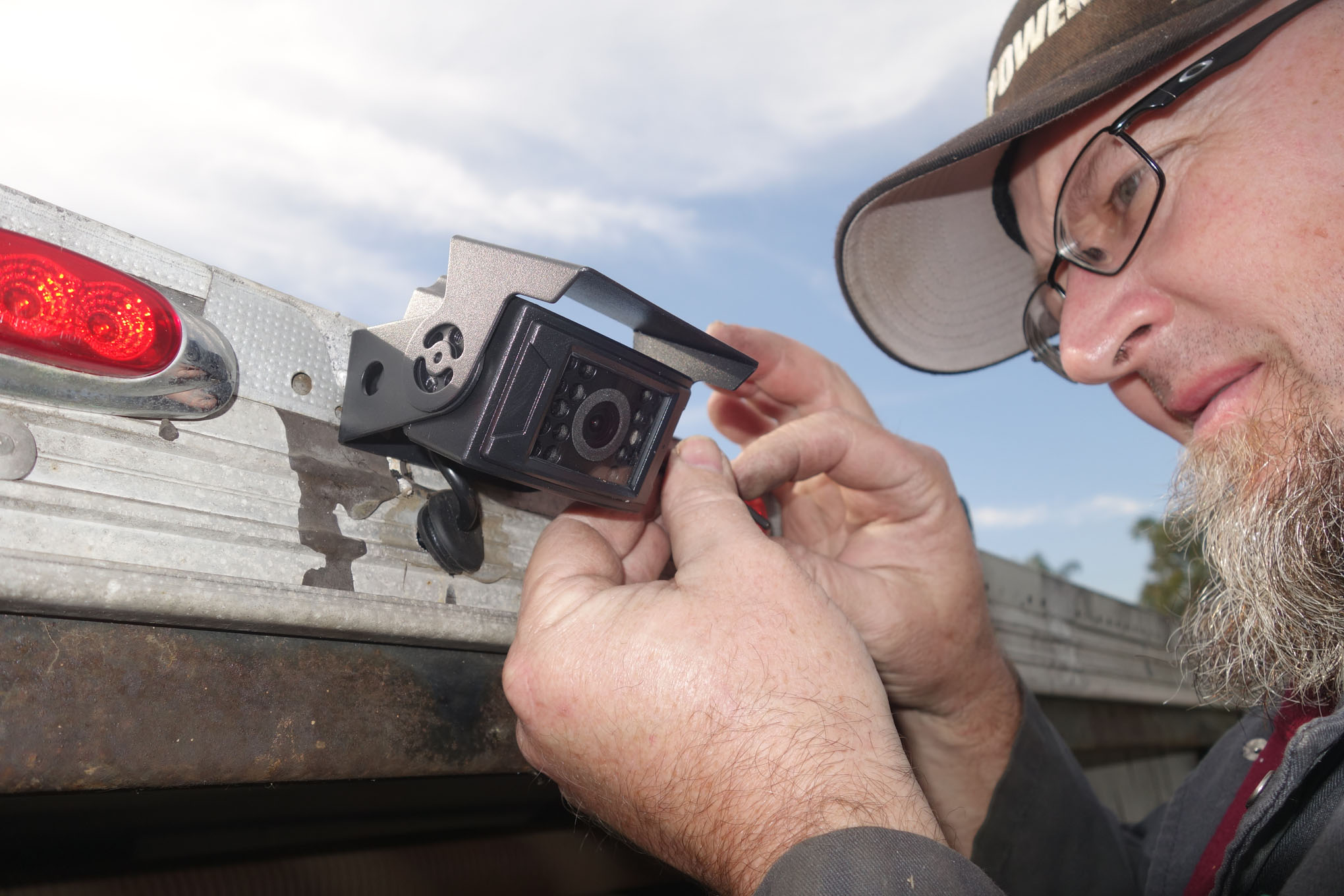

Obtain excited, since we get on the house stretch. All you require to do now is mount the electronic camera itself to the rear of your license plate or trunk, connect the proper cords (RCA and also power) and you ought to be ready to go!
The following install video may help in your operation:

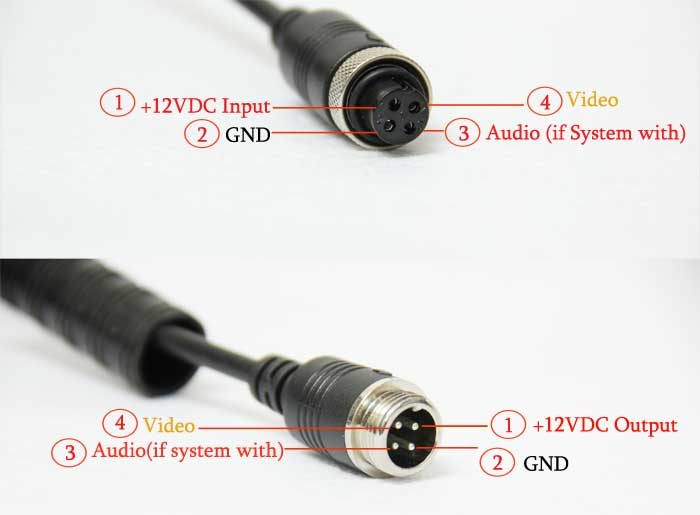

For whole system (camera+monitor+cable) install, use M12 4pins connector seems easier to install the system, main issue is to find the cable wiring way. To power it become quite simple, just power/reverse signal in cab fuse box. Camera power directly get from monitor.
Time for the dry run. Before you reassemble everything in your vehicle, run some various setups of driving conditions to see to it that the electronic camera is operating effectively. Place your car in reverse to examination as well as ensure that the camera is powering on when it is meant to, as well as likewise evaluate your brakes to see to it you really did not wire the cam right into the wrong cable television (you do not desire it coming on every time you pump the brakes).
If you come across any type of concerns you might wish to reference several of our standard support overviews like:.
– Repairing a backup camera that’s not working.
– Troubleshooting a fuzzy backup camera.
– Fixing a clouded backup camera.
If you’re experiencing issues, double check the handbook and also remember that many problems in environments like this originated from negative wire entwines, poor links not connecting off extra power cables.
Start there, and remain to troubleshoot till you have an operating backup camera!
Doing the job right!
If reading this guide makes you want to set up an electronic camera of your own, surf our items, or get in touch with us for additional information.
