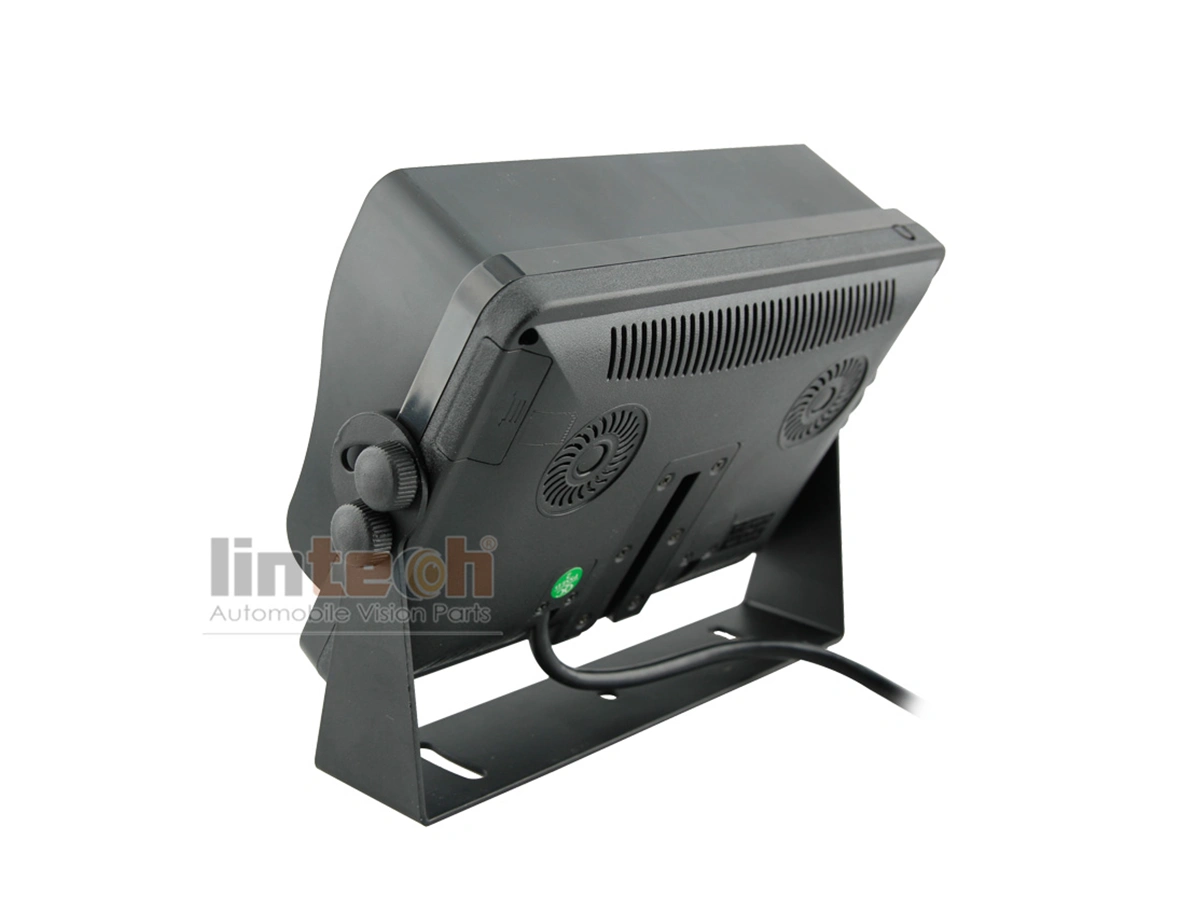

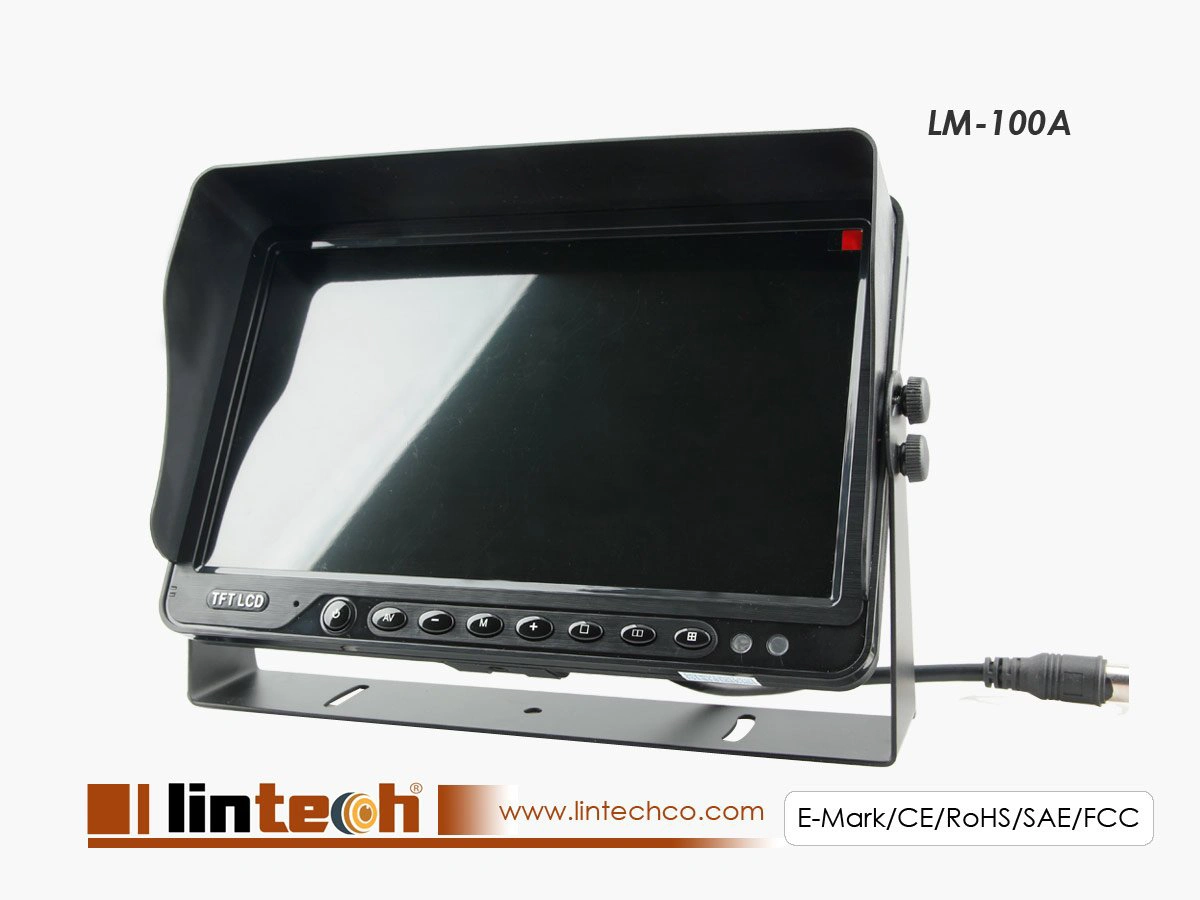

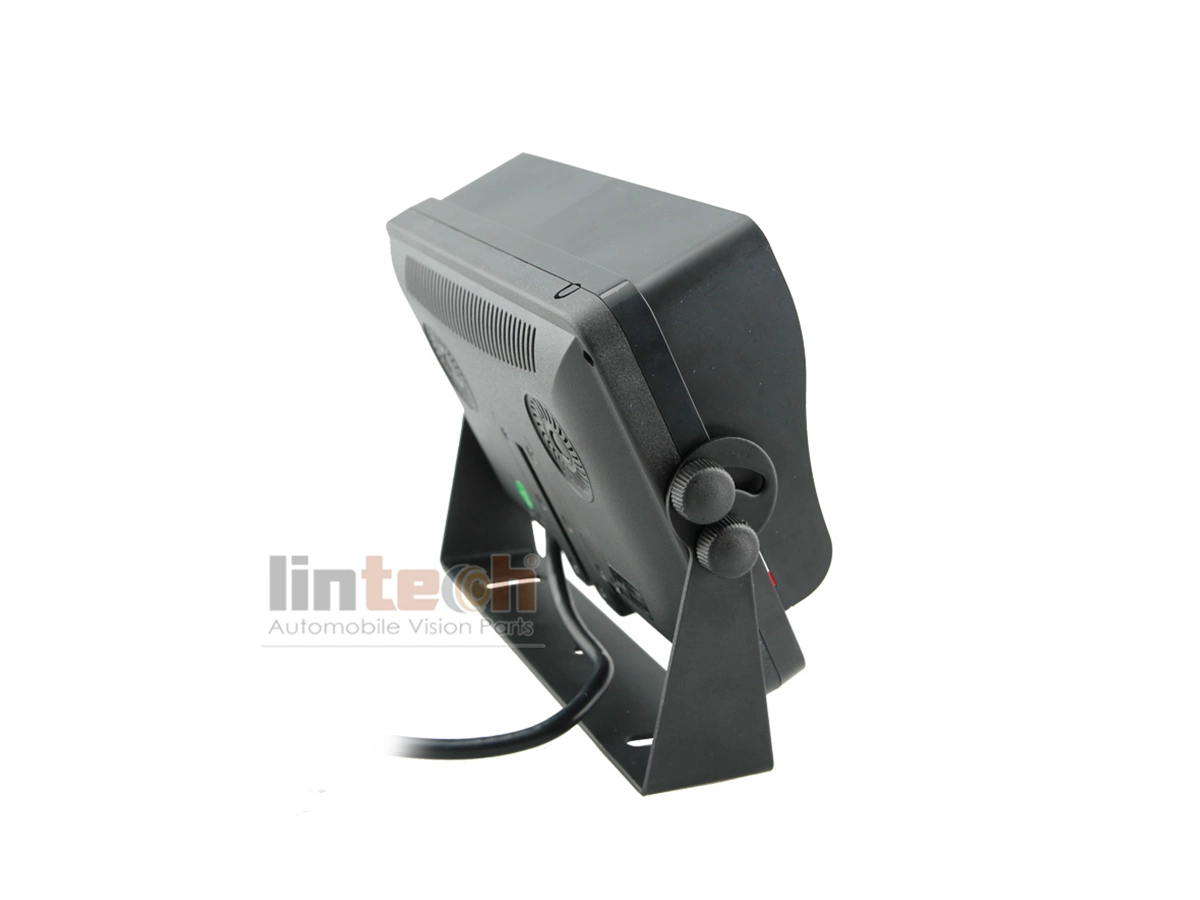

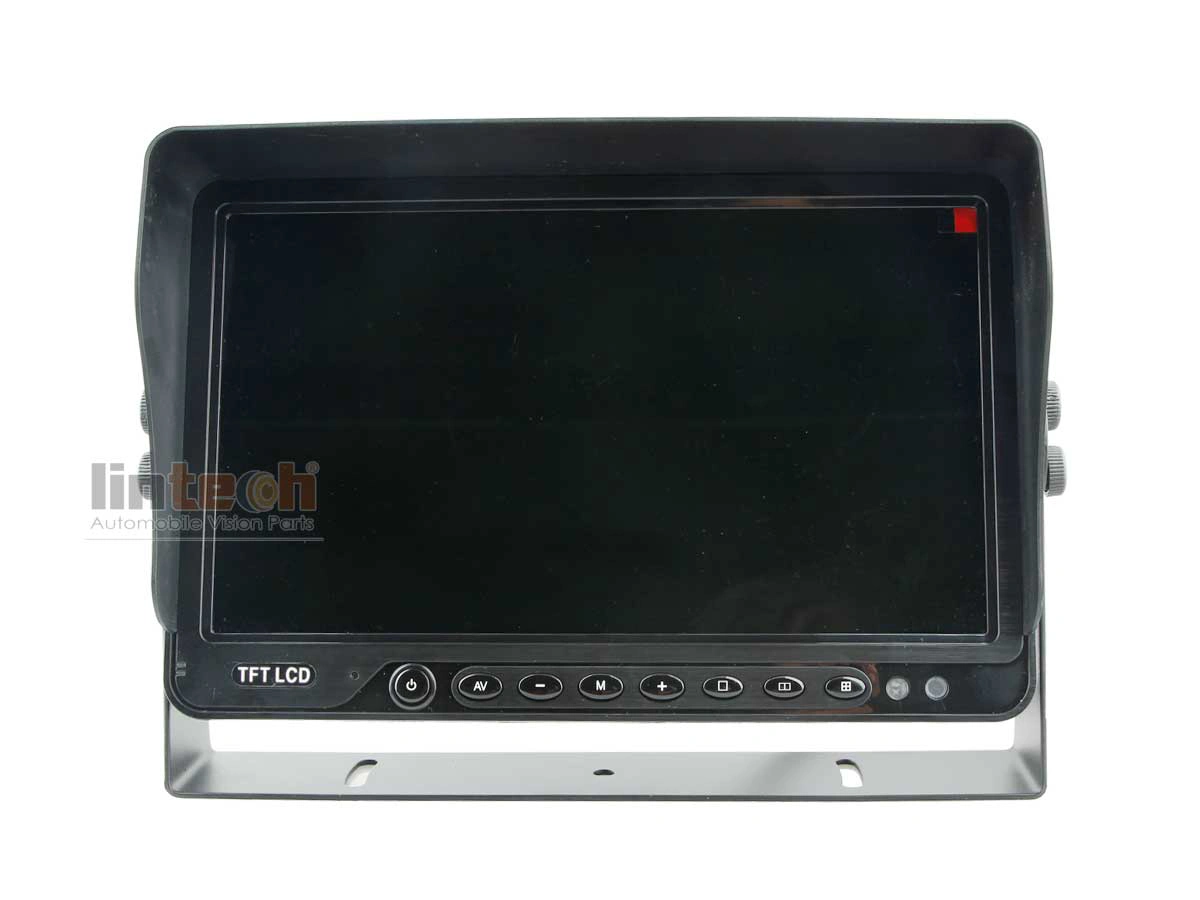

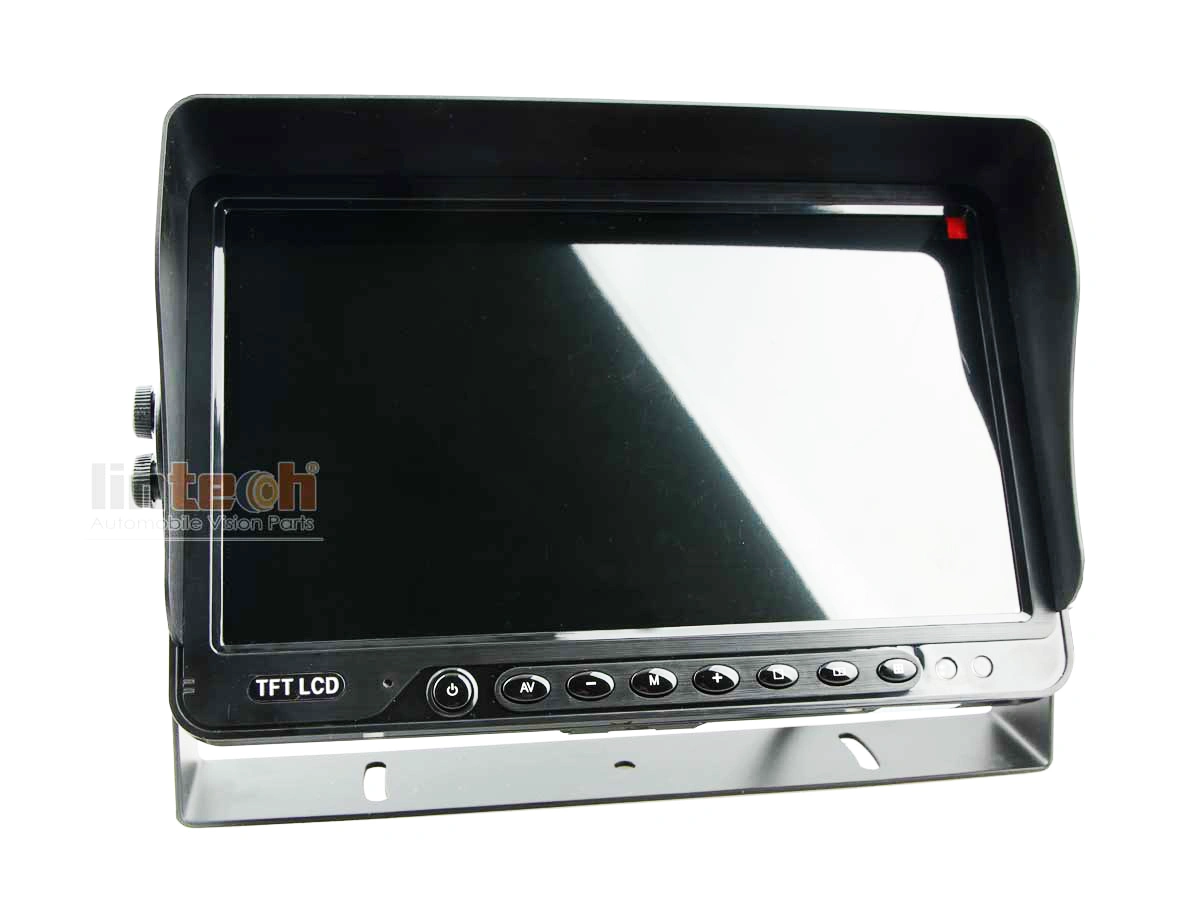

10.1 inches Large Screen LCD Monitor for Buses/Trucks
Support 4 CVBS cameras inputs
Remote control.
Multi languages available: English, Chinese, German, French, Japanese, Spanish , Italian, Russian, Dutch
Reverse cursor with on-off mode switch available
Support automatic brightness adjustment
Automatic scan available, with the scan time selectable between 1-15s
4 trigger lines input, trigger delay can be adjusted freely.
Multiple video formats available to cameras: PAL / NTSC
| Items | 2CHs Version | 4CHs Version |
| Resolution | 1024 x 3(RGB) x 600 | 1024 x 3(RGB) x 600 |
| Video Input | 2CHs | 4 CHs |
| Audio Input | 1CH in V2(Optional) | 1CH in V2(Optional) |
| Loudspeaker | 0.8W | 1W |
| Trigger | 1 Trigger wire | 4 trigger wire |
| Brightness | 600 cd/m² | 600 cd/m² |
| Contrast | 500:1 | 500:1 |
| Operating Temp. & Humidity | -20ºC ~ 70℃, RH 90%MAX | -20ºC ~ 70℃, RH 90%MAX |
| Viewing Angle | U: 85/ D: 85, R/L: 85/85 | U: 85/ D: 85, R/L: 85/85 |
| Mirror Function | Yes | Yes |
| Dimension | 267mm (W) × 159.5mm (H) × 30mm (T). | |
| Split Screen | No | Yes |
| Power Supply | 10V-32V | 10V-32V |
| Power Consumption | less than 8W(without cameras) | less than10W(without cameras) |
