KY10 24GHz Radar Pedestrian Detection System
In industrial environments, forklift accidents often happen due to limited visibility, blind spots, and poor working conditions. Traditional camera systems may have limitations in environments with dust, darkness, rain, or strong light.
The KY10 24GHz Radar Pedestrian Detection System provides a reliable safety solution by using radar technology to detect objects entering the configured warning zone around industrial vehicles.
Designed for forklifts, loaders, construction machinery, and other low-speed vehicles, KY10 helps operators identify potential hazards during reversing and low-speed operation through combined visual and audible warnings.

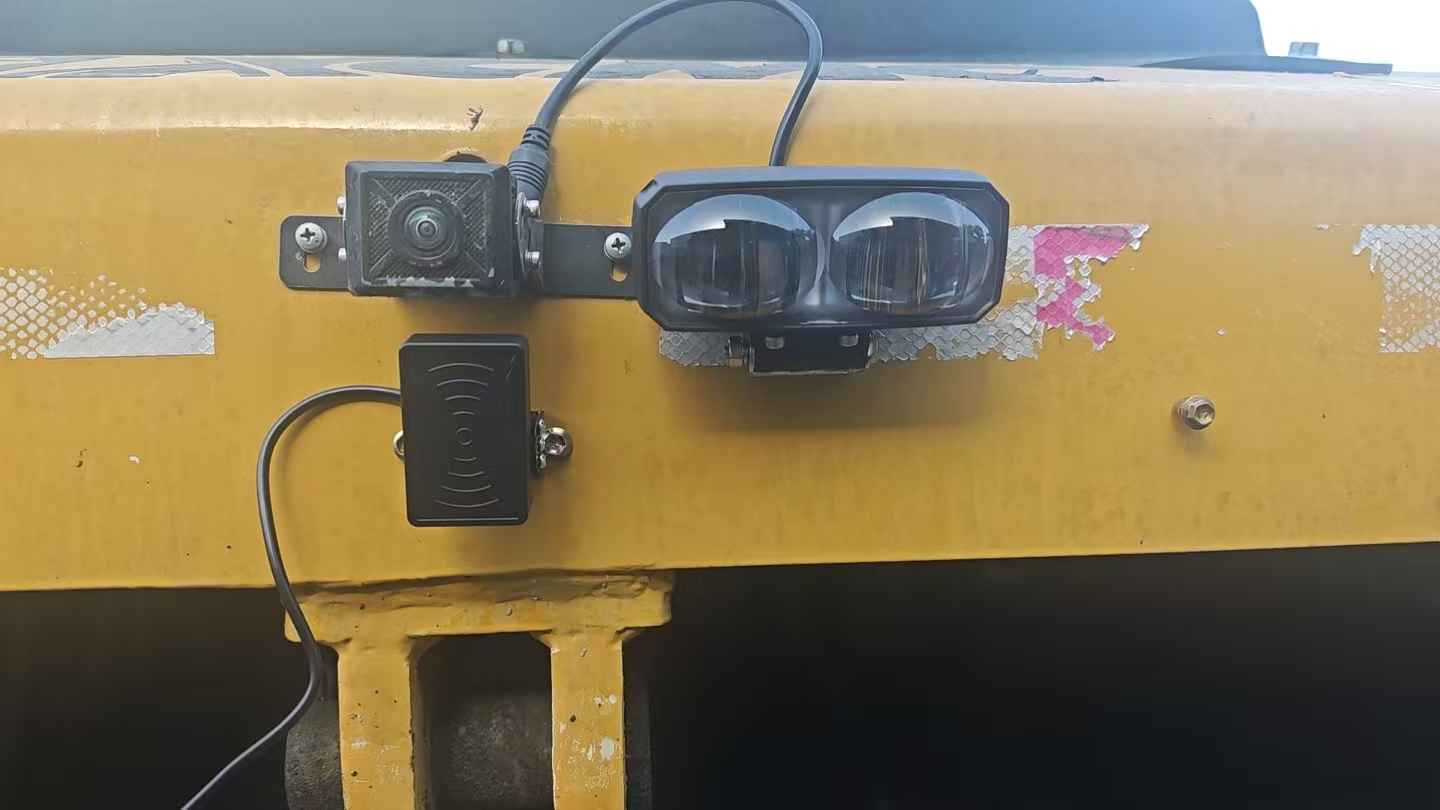

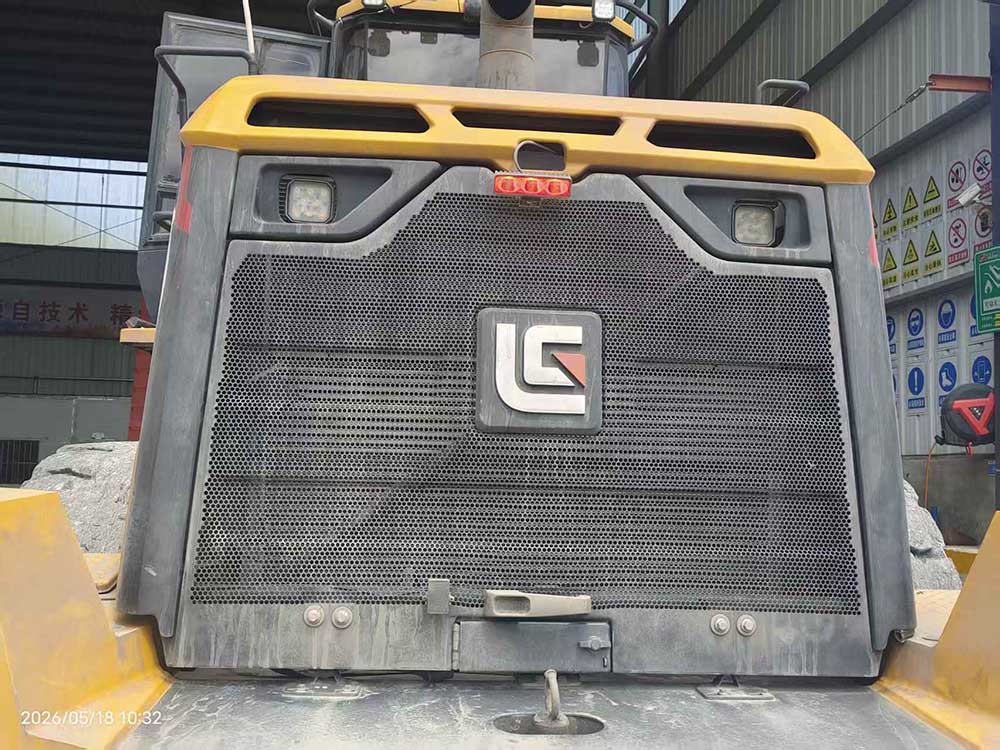

The detection area can be customized according to different vehicle sizes and installation positions. Multiple radar sensors can be installed on the rear, left, and right sides of the vehicle to reduce blind spots and provide wider coverage.
How KY10 Works
The radar sensors continuously monitor the surrounding detection zones.
When a pedestrian or obstacle enters the warning area:
- Radar detects the object within the configured zone.
- The system activates LED warning lights.
- The audible alarm alerts the operator.
- The driver can take action to avoid potential accidents.

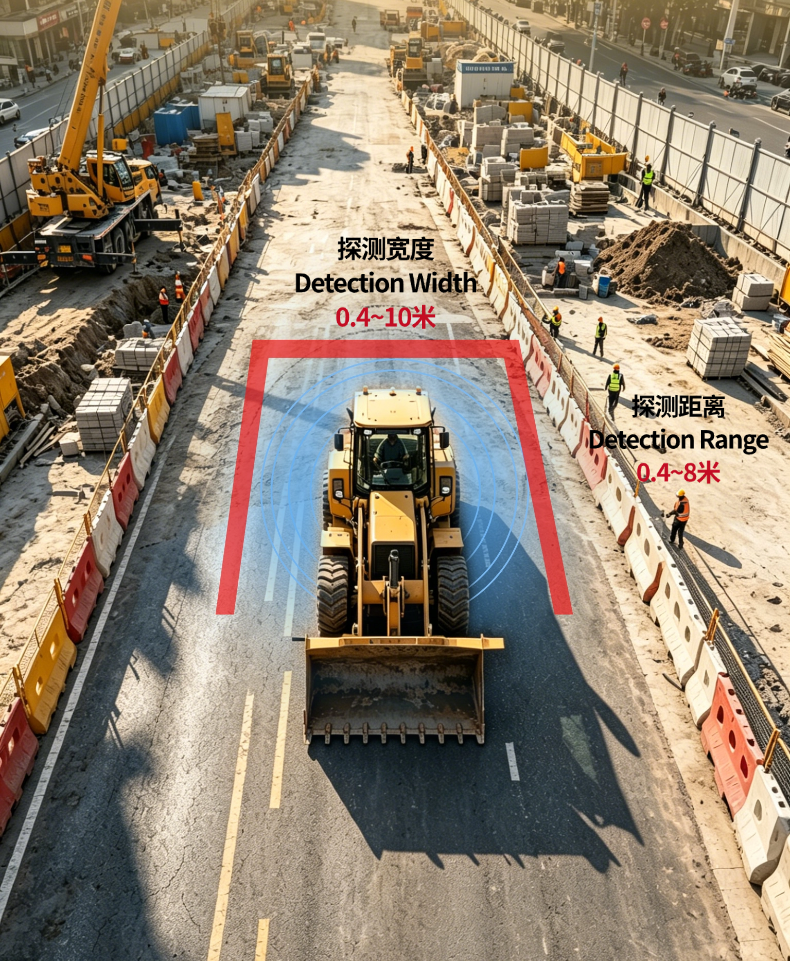

The detection distance and width can be adjusted according to different vehicle applications and working environments.
Key Features / Product Highlights
Reliable Radar Detection
24GHz radar technology provides stable detection performance in challenging environments including dust, darkness, rain, and poor visibility.
Adjustable Detection Area
Detection distance and width can be customized according to different vehicle sizes and installation requirements.
Blind Spot Protection
Multi-radar installation helps cover rear and side blind areas around forklifts and industrial vehicles.
Visual & Audible Warning
Combined LED warning lights and audible alarms provide clear alerts for operators.
Flexible Installation Options

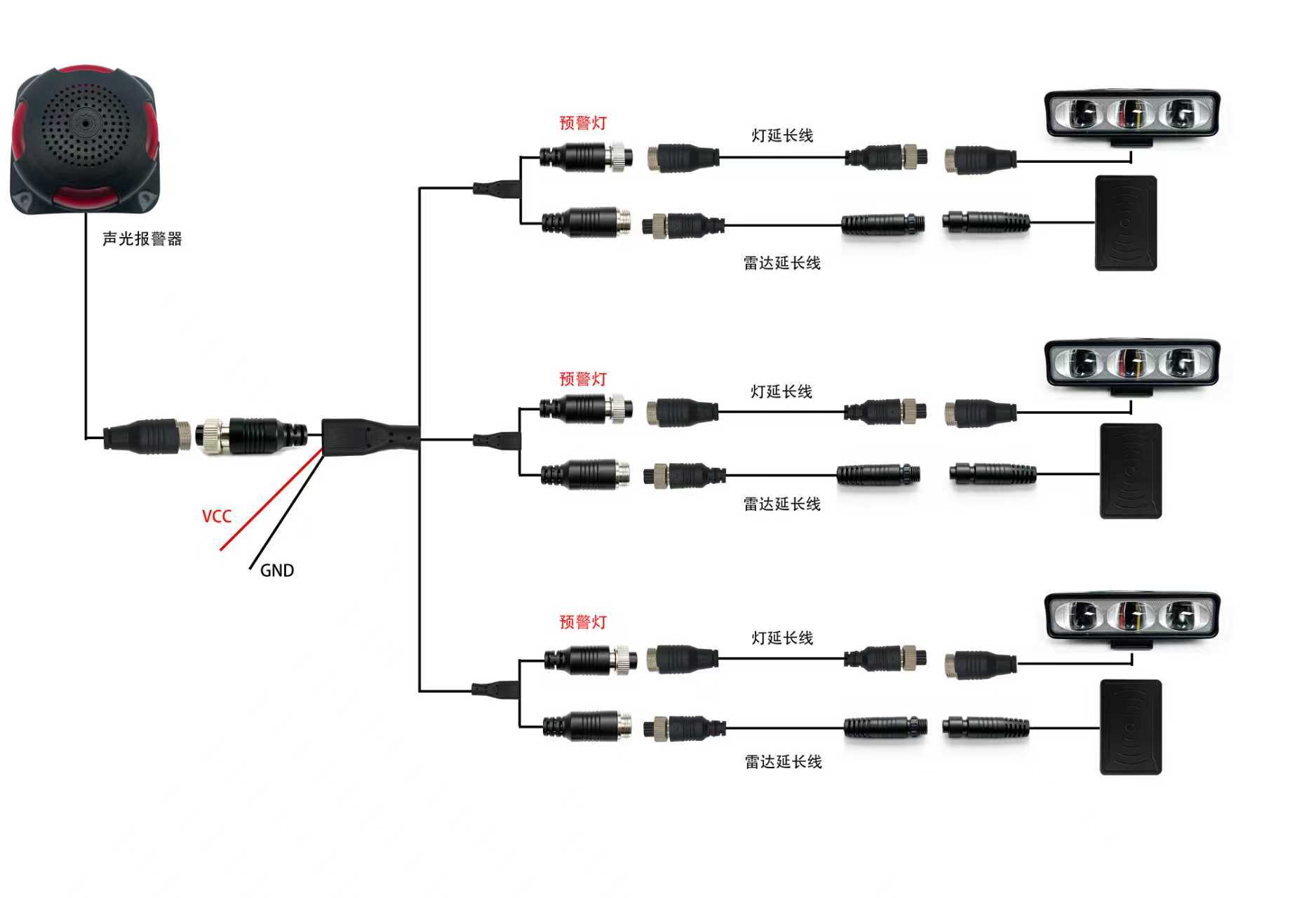

Supports single radar or multi-radar configurations for different applications.
Built for Industrial Vehicles
Suitable for harsh working environments including warehouses, construction sites, factories, and mining areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Radar Frequency | 24GHz |
| Detection Distance | 0.4–8m adjustable |
| Detection Width | 0.4–10m adjustable |
| Power Supply | 9–24V DC |
| Operating Temperature | -20°C to +60°C |
| Detection Configuration | Single radar / Multi-radar |
| Warning Output | LED light + Audible alarm |
| Application | Forklift, loader, construction machinery, industrial vehicles |
Application
Suitable for:
- Forklifts
- Warehouse vehicles
- Electric forklifts
- Construction machinery
- Wheel loaders
- Mining vehicles
- Industrial transport vehicles
- Low-speed heavy equipment

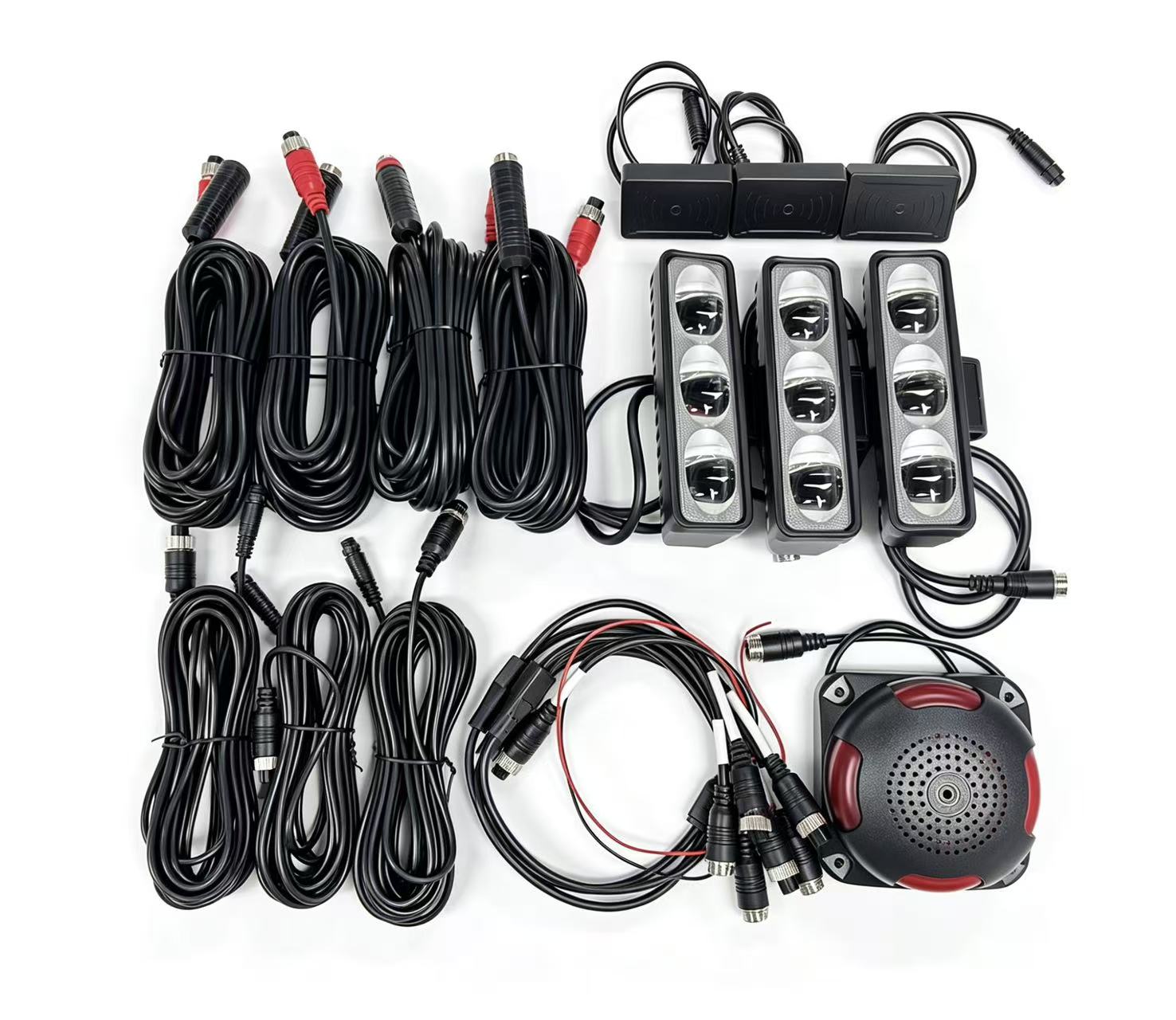

Package Includes

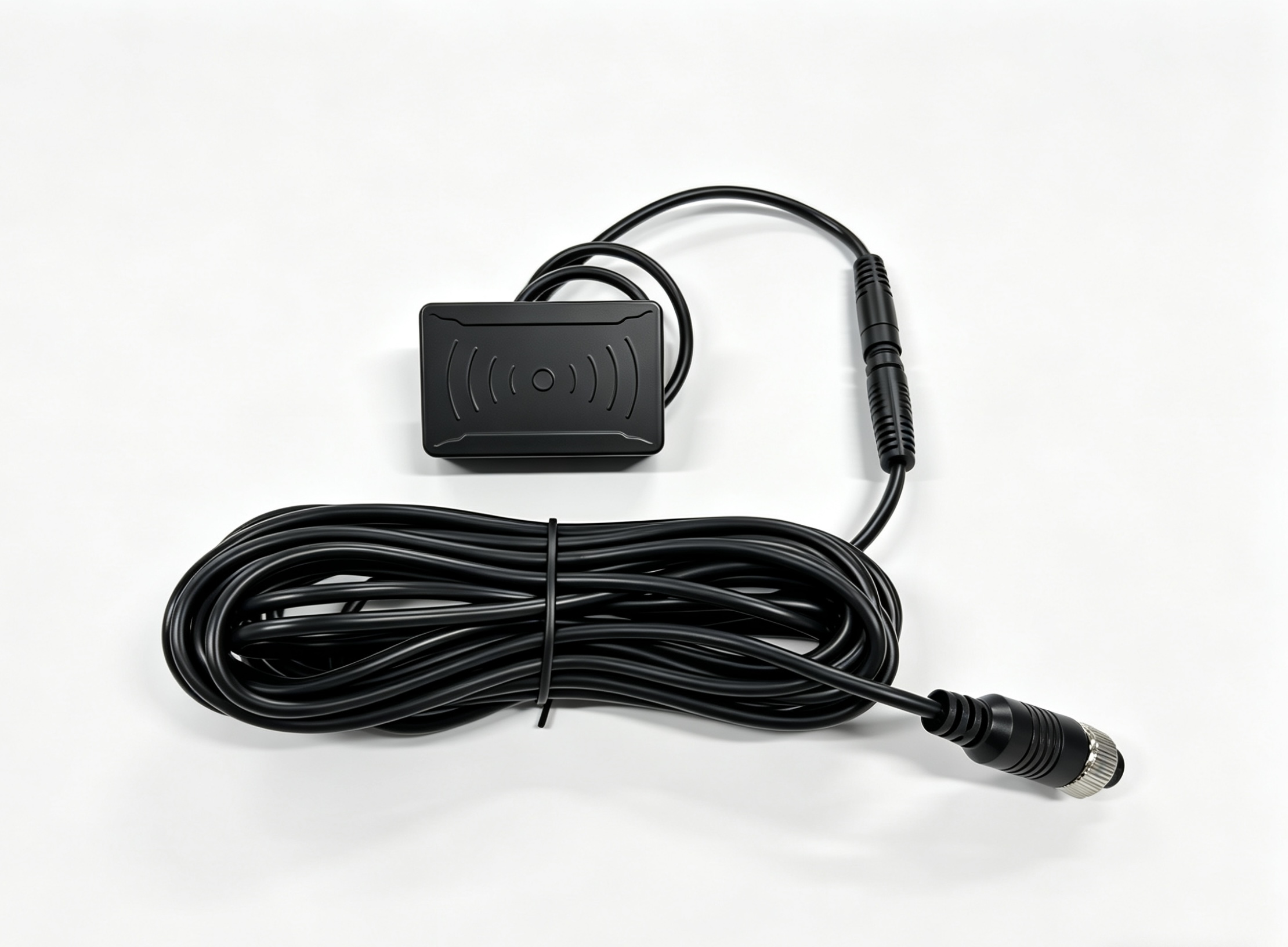

- 24GHz Radar Sensor × 3

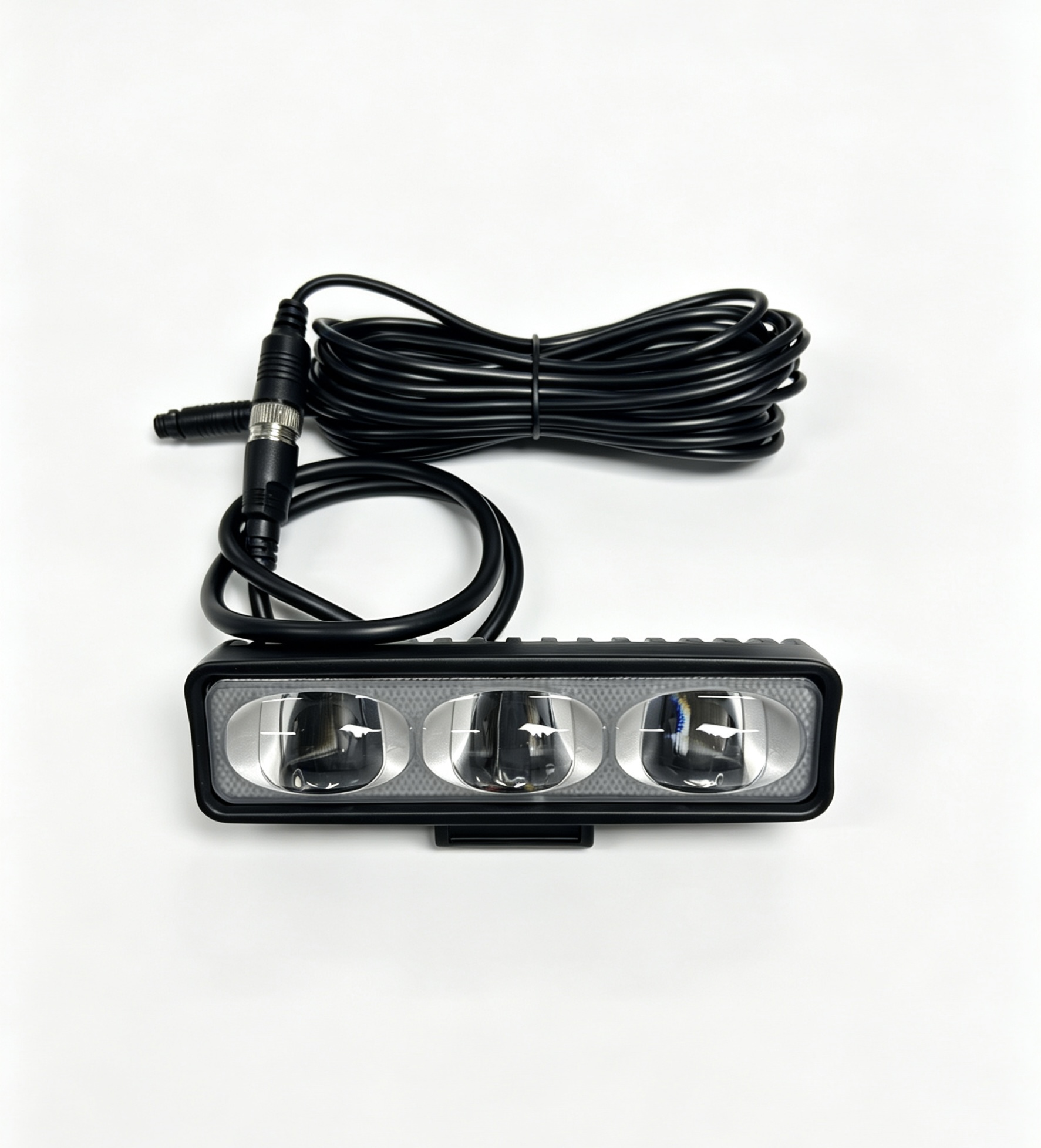

- LED Warning Light Bar × 3
- Audible & Visual Alarm Unit × 1

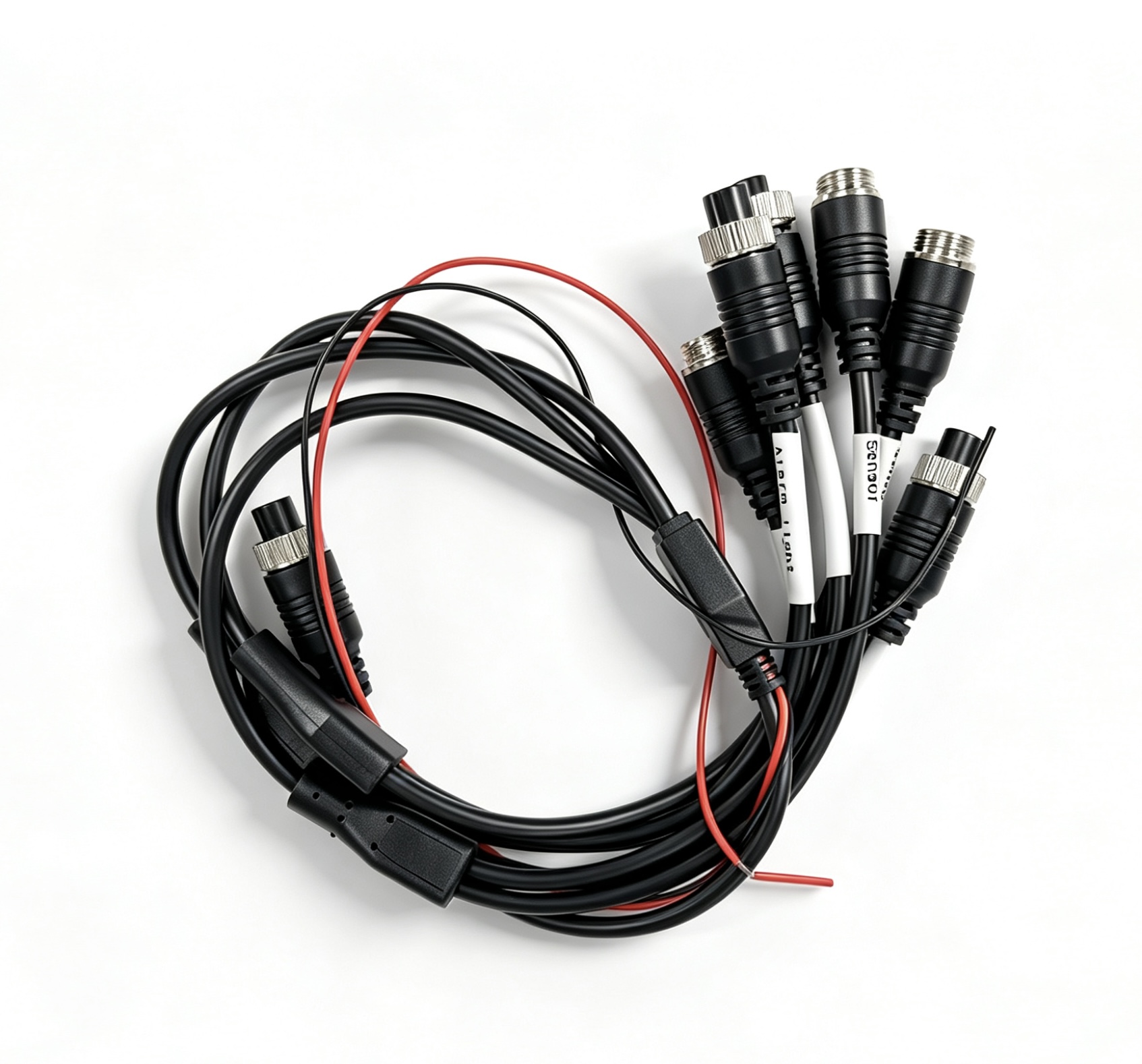

- Connection Harnesses
- Installation Accessories
(Configuration can be customized according to project requirements.)
