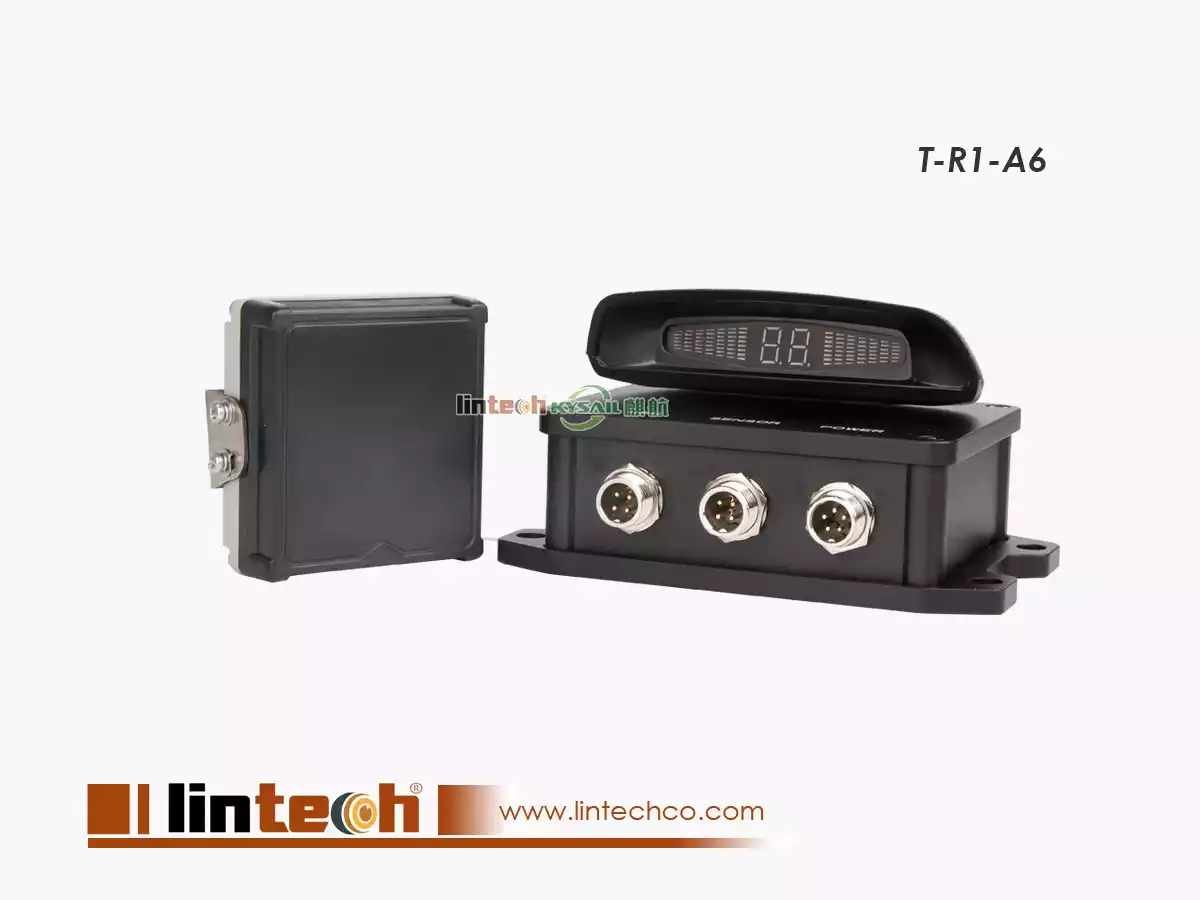

Product introduceModel No.: T-R1-A6
With automotive 77GHz mmWave Sensors , this system is designed to large vehicle BSD and backup assistant purpose that detect objects in zones obscured from the operator’s view. The millimeter wave radar sensor detect stationary as well as moving objects in a desired coverage area as long as the vehicle is backup moving. The system is ideal for on-road and off-highway commercial vehicles, forklifts and other industrial vehicles.
Features:
- –2 in 1 : Side blind spot warning + Parking sensor detection system
- -New 77GHz millimeter wave radar technology.
- -Sensitive detect people in the detect zone.
- -Detect range length at 0.4-40m, width at 2-10m, detect zone adjustable by software/tools.
- -Prevent vehicle damage due to backing accidents.

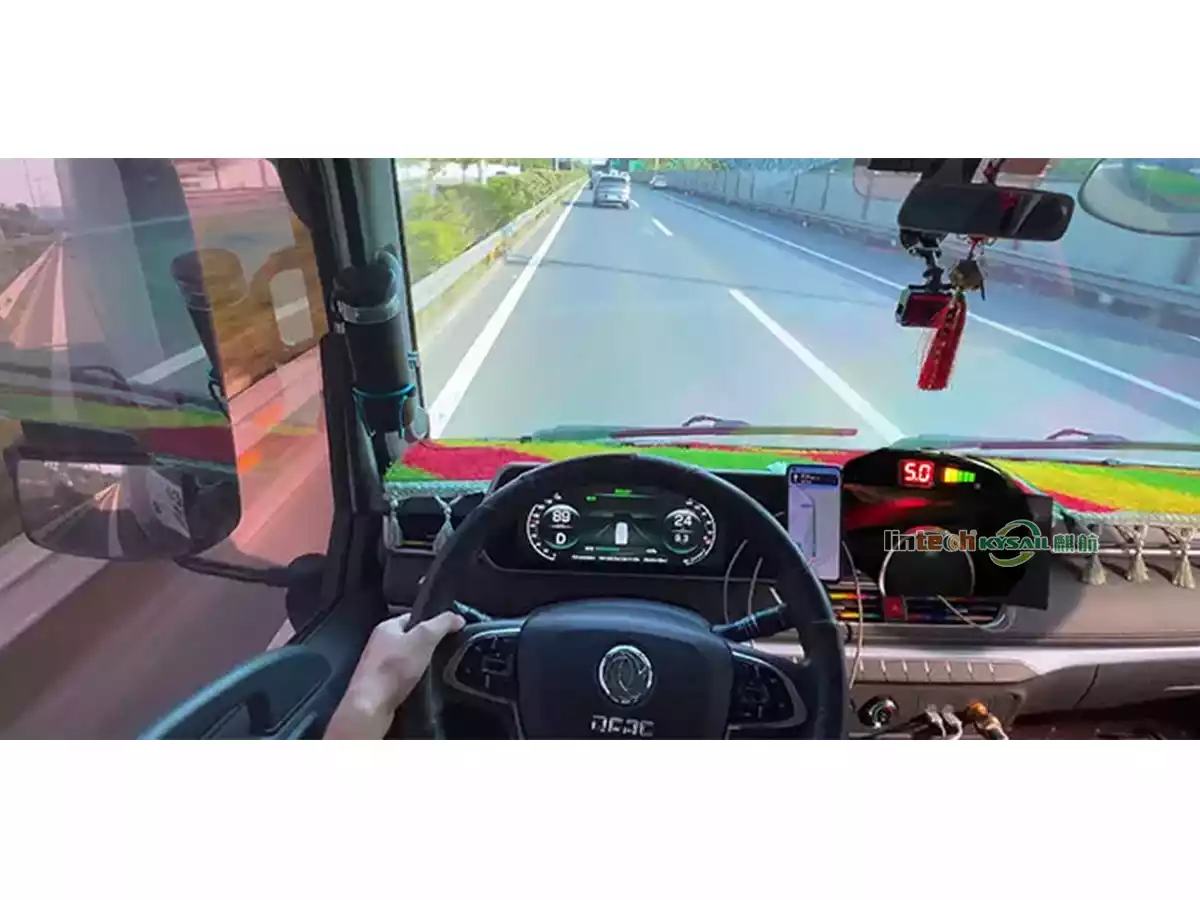

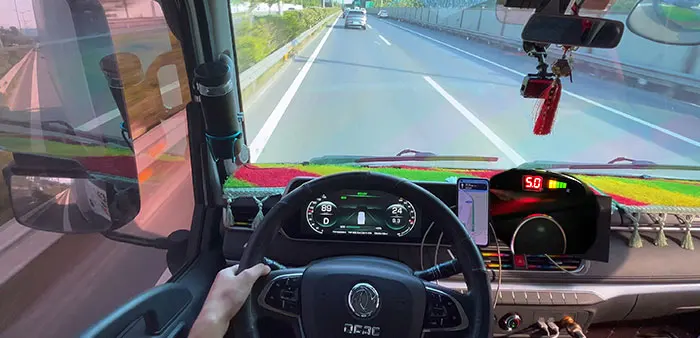

- -In-Cab LED Display Unit.
- -Audible tones that increase in rate as objects become closer.
- -Rugged Design, shockproof and waterproof housing.
- -Millimeter wave radar technology itself is very weather resistant.
- -Fast of detection.

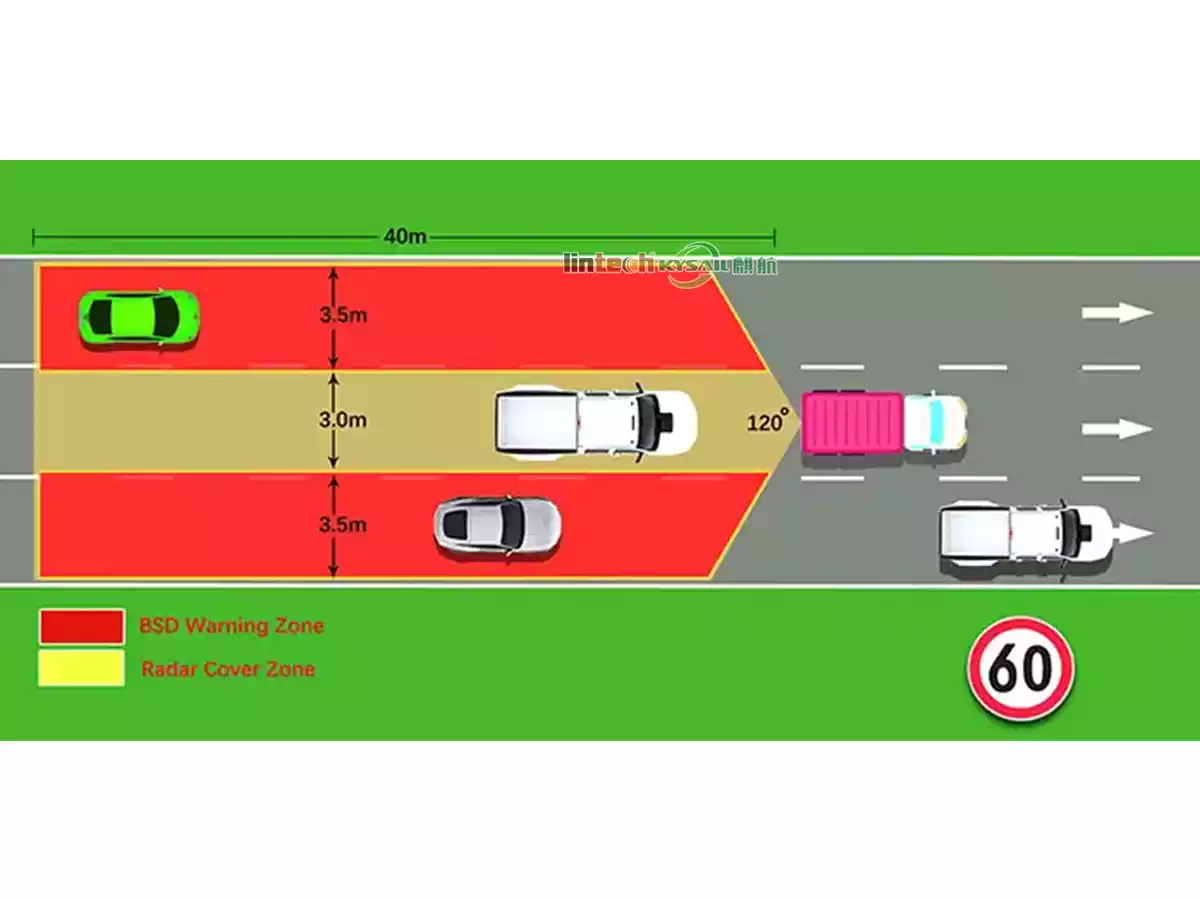

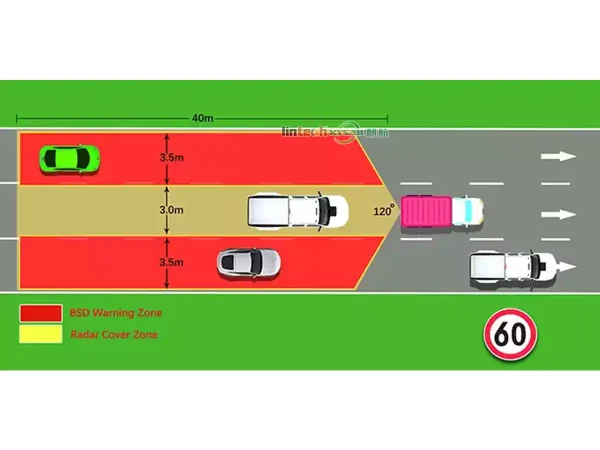

Main Function1: BSD Warnning

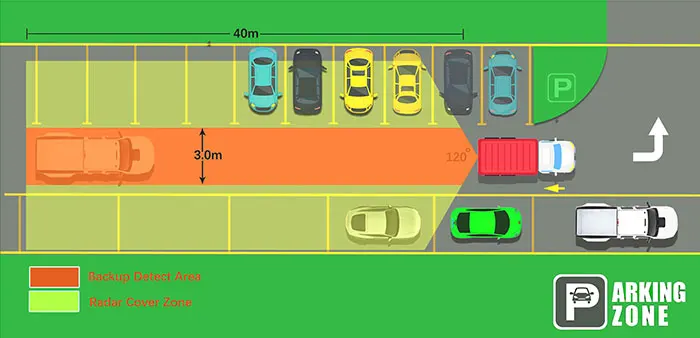

Main Function 2: Backup distance display and sounds warnning
77GHz Millimeter Wave Radar Sensor data sheet A60-2
| ITEMS | TECHNICAL DATA |
|---|---|
| Working voltage | 8-36VDC |
| Transceiver channels | 2TX / 4RX |
| Pitch beam width | +/- 10° |
| Horizontal beam width | +/-60° |
| Distance resolution | 0.18m |
| Speed resolution | 0.25m/s |
| Speed range | +/- 180KM/H |
| Ranging accuracy | Better than 0.18m |
| Speed measurement accuracy | 0.1m/s |
| Angle measurement accuracy | 0.1° |
| Detect distance | 0.5-30M |
| Firmware Upgrade | CAN/UART |
| Data Calibration | CAN/UART |
| Working temperature | -40~85℃ |
| Power consumption | less than 2W |
| Waterproof rating | IP67 |
| Working band | 77-81GHz |
| Refresh rate | 20Hz |
| Communication interface | CAN |

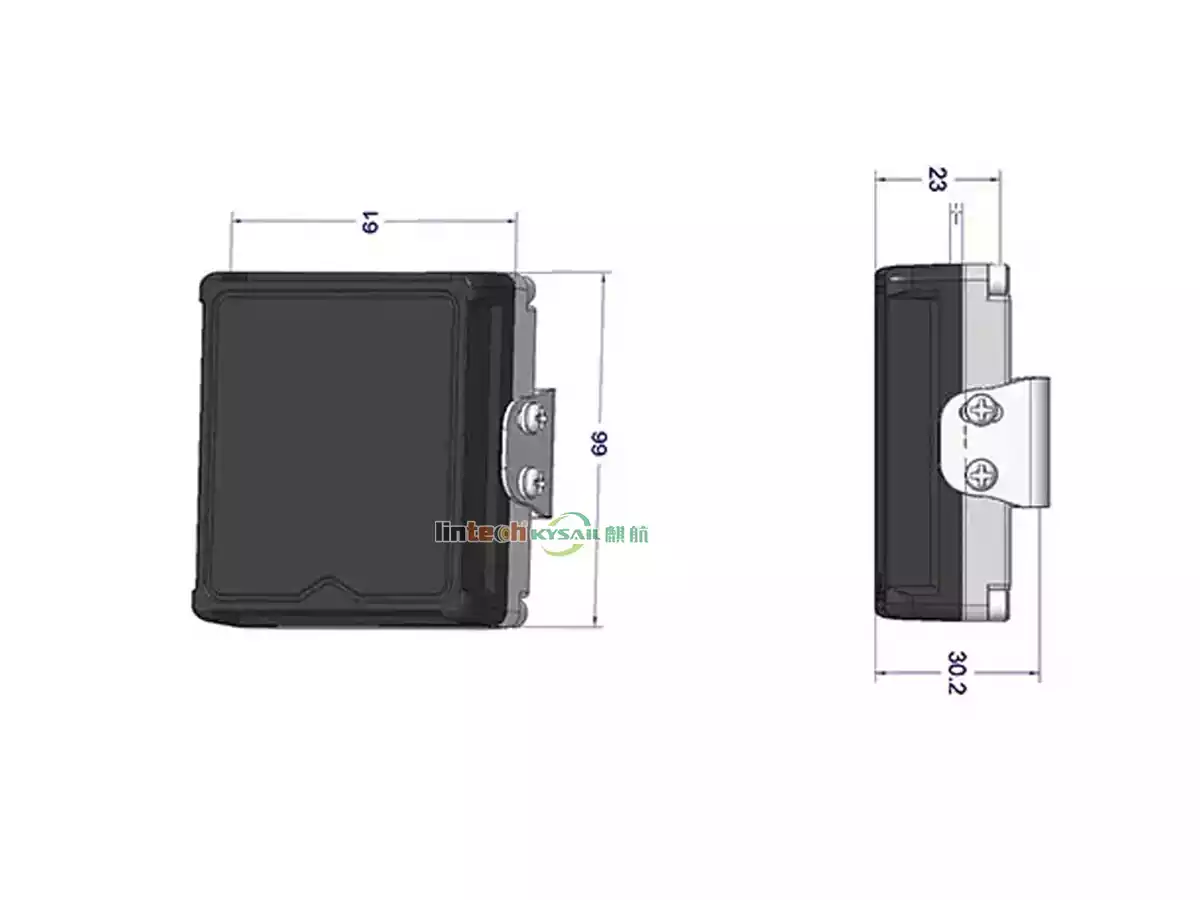

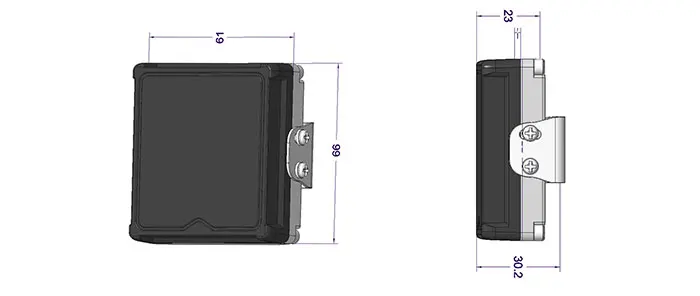

| Size | 66mm x 61mm x 23mm |
| Weight | 133g |
