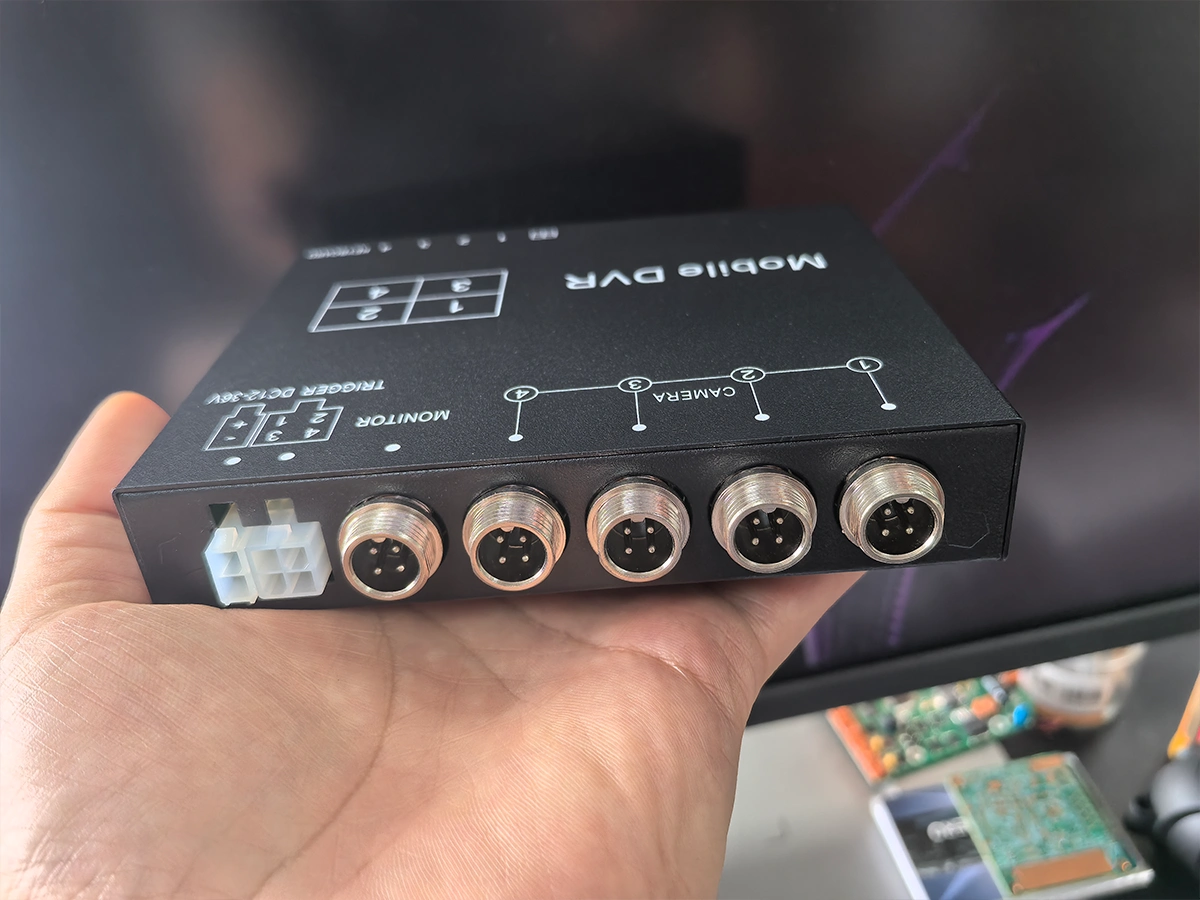

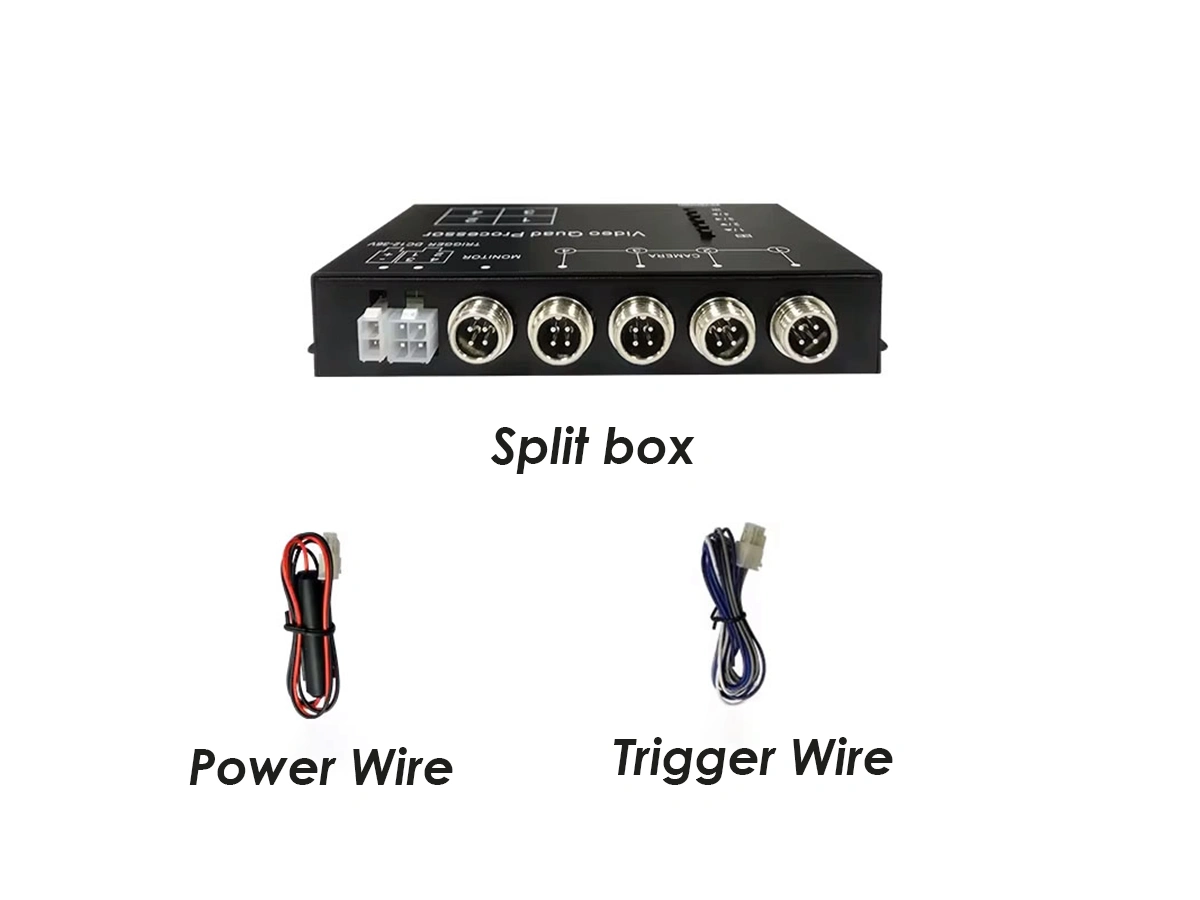

8-36V 4Pin Car Video Splitter 4 Channel Car Camera Control Box Quad Multiplexer

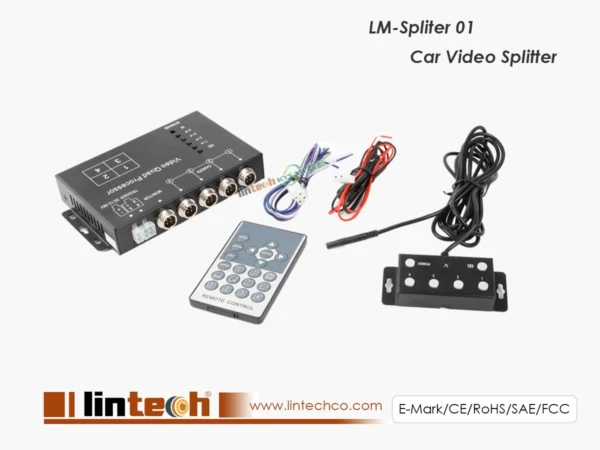

Model No.: LM-Spliter 01



  • Video Quad Processor (no recording)
  • Support 4 Camera input, split function
  • 1CH AHD/CVBS video output
  • AHD/CVBS signal optional
  • 1080P/720P
  • Button Control, Remoted control, Extend Ke control
  • 8-32VDC



4CHS Car video Spliter, Vehicle Video Hub, Video Spliter, Video Quad Processor (no recording)



【Wide Application】 Rearview camera control box is suitable for school buses, buses, tank trucks, engineering vehicles, large trucks, boats, coaches, yachts, etc.
【4 Channel Video Splitter】 The vehicle video splitter supports 4 channels of audio input, and supports 1 audio output, you can choose the display mode.
【Safe and Reliable】 The video splitter, DC12V 24V wide voltage input, has multiple protections, overload protection, short circuit protection and reverse connection protection.



Main Parameters



Main Chip:Averlogic 37204
Operating mode:Host button,Remote IR control /K6 control box(Optional);
Language:Simplified Chinese, English,
OSD :Support for superimposed display of time, date, channel characters, etc.;
Type of Connector:Exclusive Aviation connector
Video Format:PAL/NTSC(Camera input format is the same as video output)
Video Input:4Ch NTSC or PAL format CVBS signal input (not compatible with two types of mixed input display)
Video Output:1 CH CVBS video output

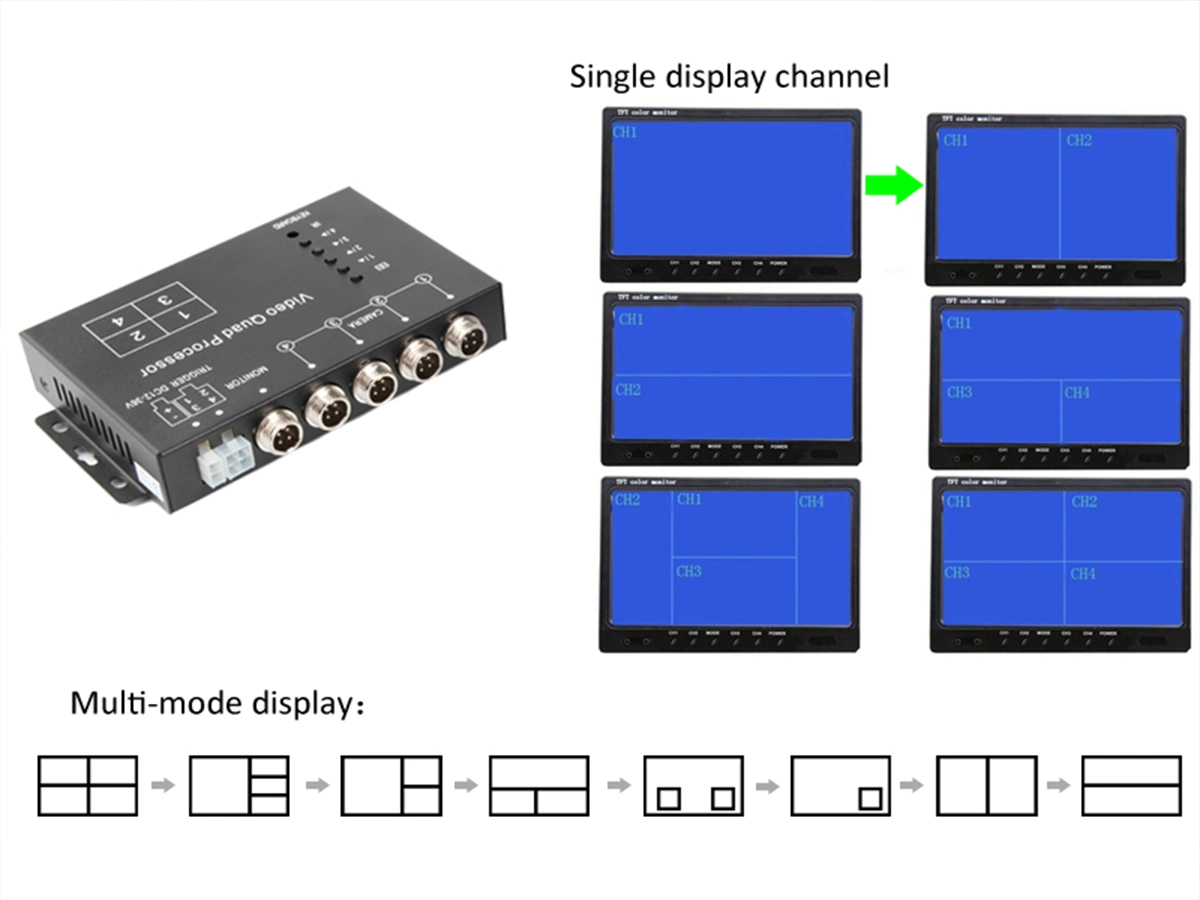

Display Mode:9 different multi-screen display mode, with power-off memory function, memory 8 modes as boot interface, support single-screen full-screen display of each channel (full-screen single-screen does not support power-off memory);
Resolution :720*576/50HZ,720*480/60HZ
Power Management:Adaptive wide voltage input with reverse short circuit protection;
Voltage:8V-36V
Power :2W
Temperature:-30°C~+70°C
Size:110*80*25mm
Video Recording:Not Support
Support automatic trigger function
Various display mode , custom service is available
Support left and right mirror adjustment (V-mirror), up and down flip adjustment (H-mirror)
Support car original central control navigation screen
Wide voltage 8-36V input , suitable for all kinds of vehicles
