LR-001 77GHz Blind Spot Monitoring System
Advanced Radar-Based Blind Spot Detection System for Safer Driving
Changing lanes or overtaking can become dangerous when vehicles, motorcycles, or other objects enter the driver’s blind spot area.
The LR-001 Blind Spot Monitoring System uses advanced 77GHz millimeter-wave radar technology to continuously monitor the areas beside and behind the vehicle. When a potential danger is detected, the system provides visual and audible warnings to help drivers make safer decisions.
Compared with traditional camera-based solutions, radar technology works reliably in challenging environments including darkness, rain, fog, and dust, providing stable detection performance in all-weather driving conditions.
Key Features
✅ 77GHz Millimeter-Wave Radar Detection
- Advanced radar sensor technology provides accurate object detection and distance measurement.
- Less affected by weather, lighting conditions, and environmental interference compared with camera-only systems.
- Suitable for long-term outdoor vehicle applications.

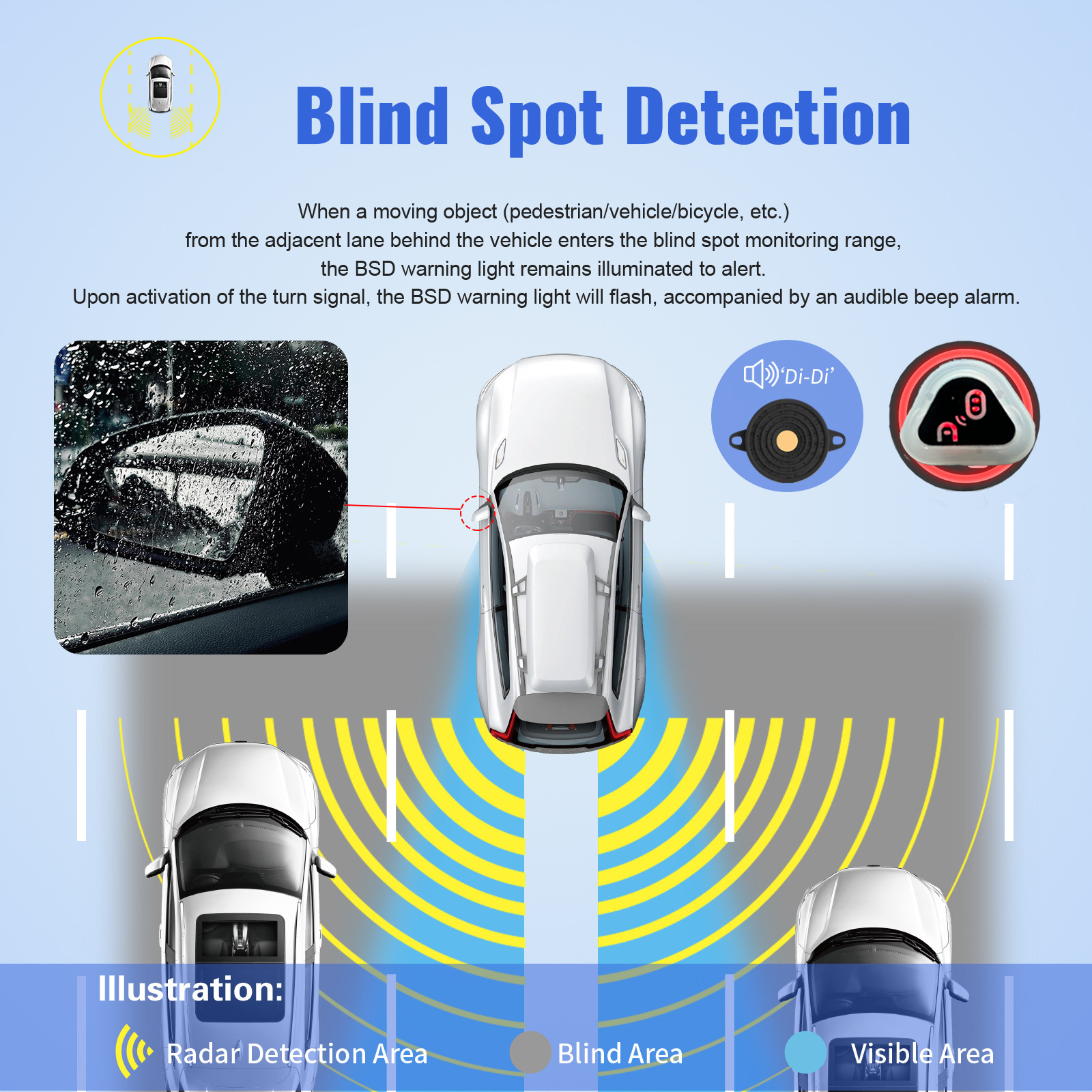

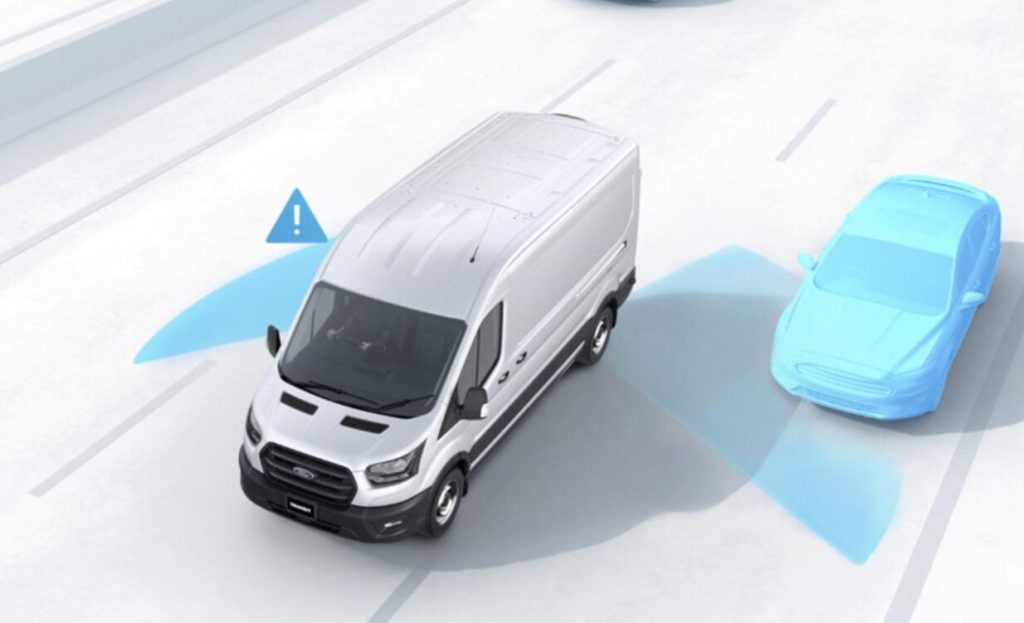

✅ Blind Spot Detection (BSD)

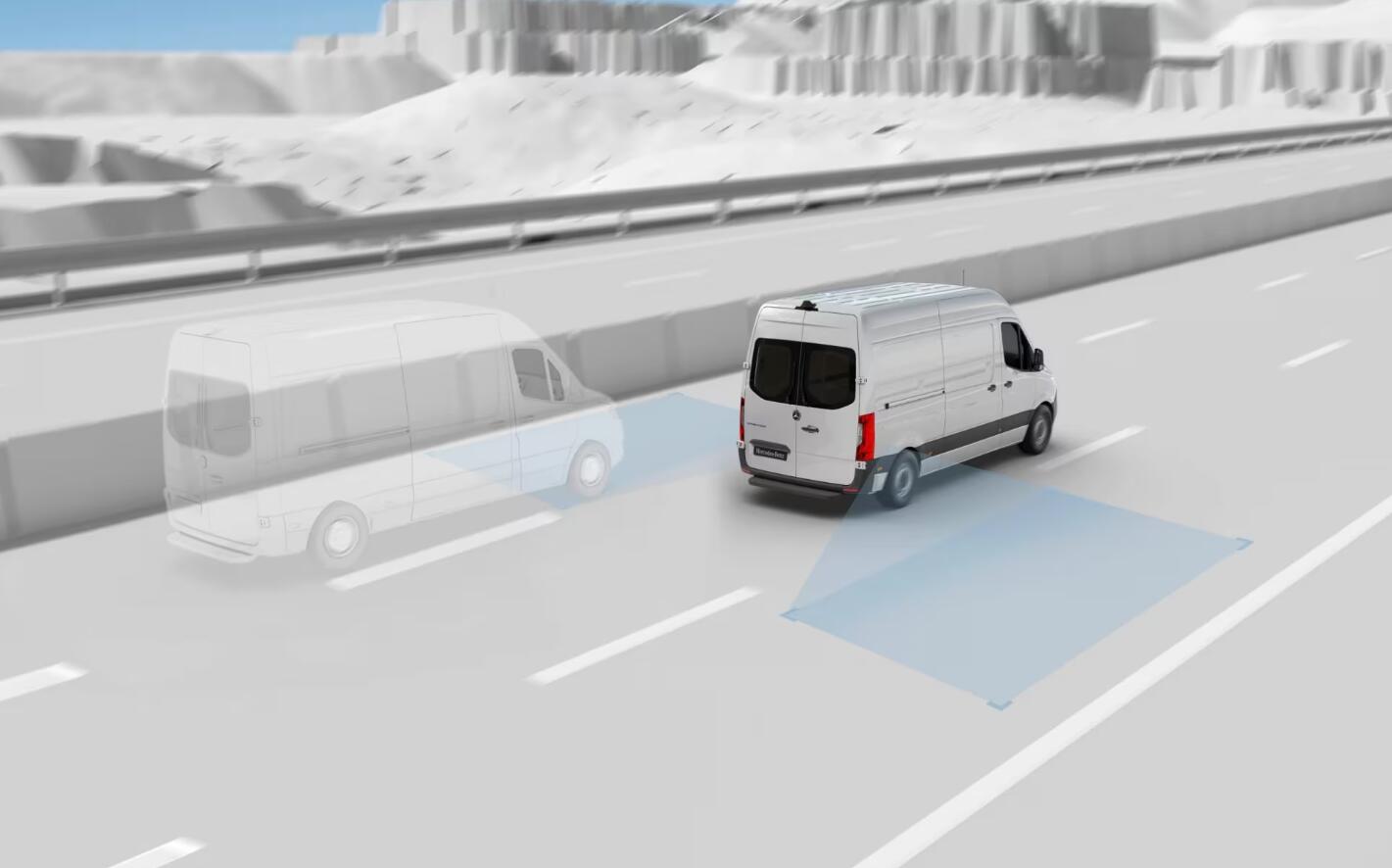

- Monitors vehicles and moving objects entering the blind spot area.
- Provides early warning before dangerous lane changes occur.
- Helps reduce accidents caused by poor visibility around the vehicle.

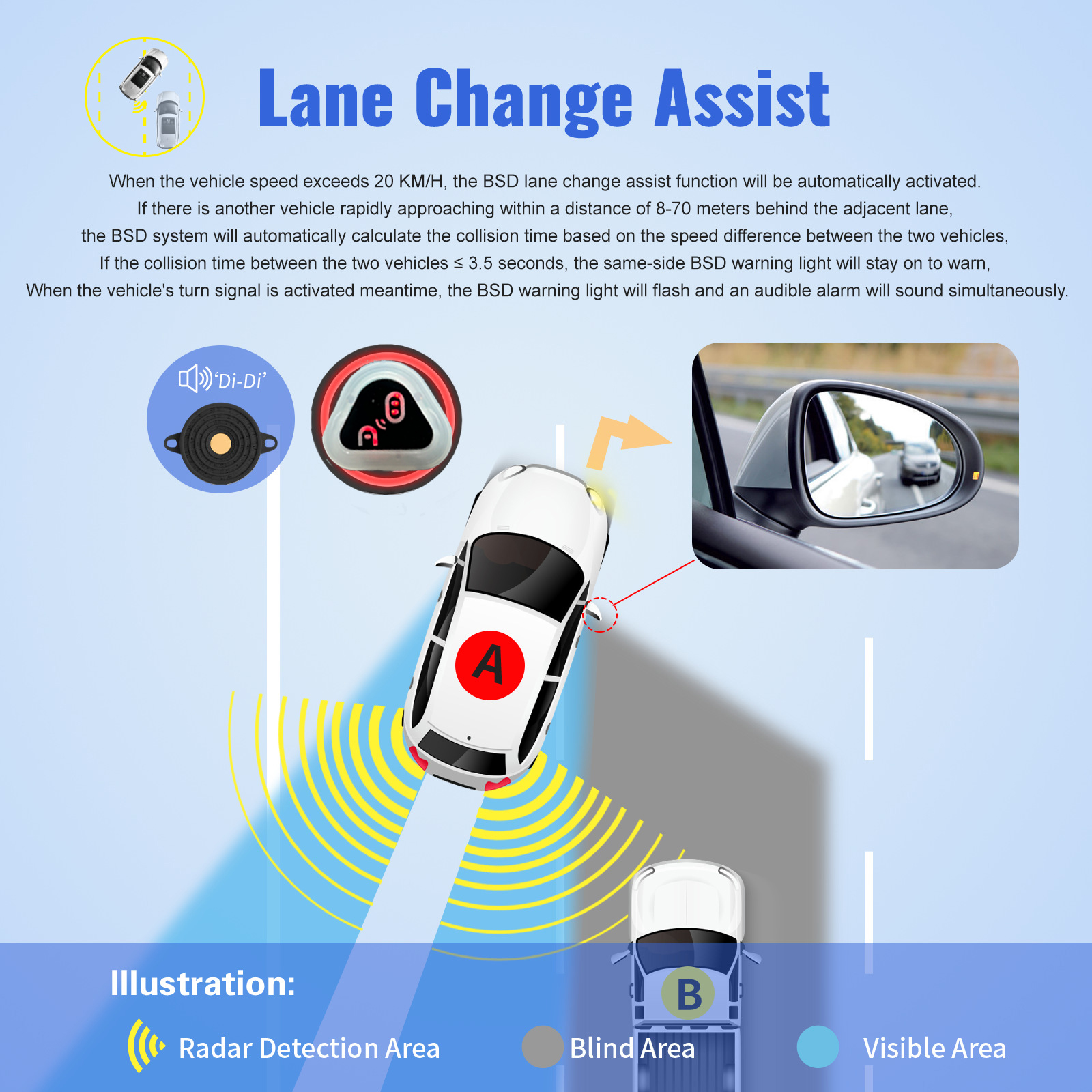

✅ Lane Change Assistance (LCA)
- Detects approaching vehicles from adjacent lanes.
- Provides additional warning when the driver activates the turn signal.
- Helps drivers make safer overtaking and lane-changing decisions.
✅ Rear Collision Warning (RCW)
- Monitors fast-approaching vehicles from the rear.
- Provides warning alerts when a potential rear collision risk is detected.
- Improves driver awareness during highway and urban driving.

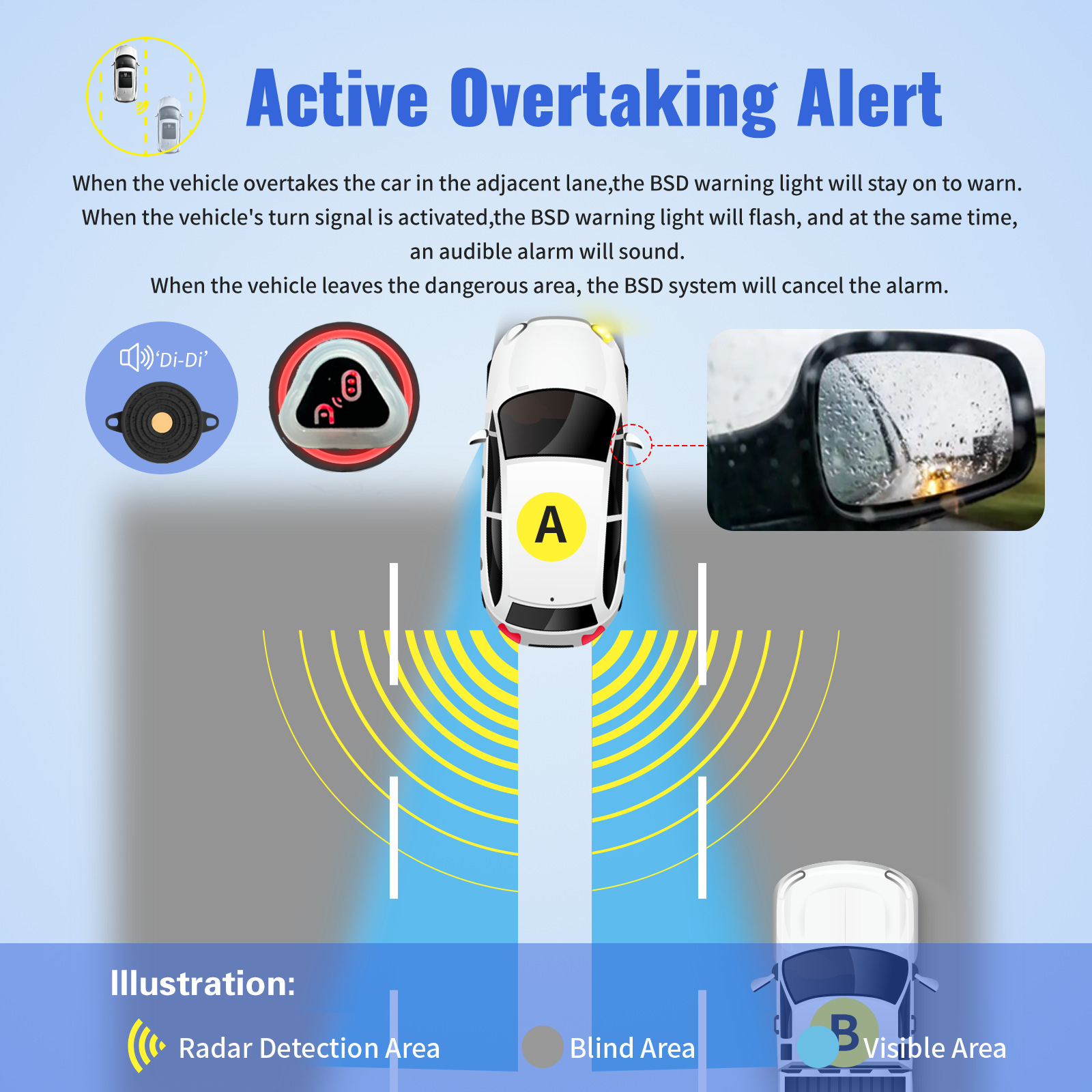

✅ Two-Level Warning System
The LR-001 provides intelligent warning strategies:
Level 1 Warning

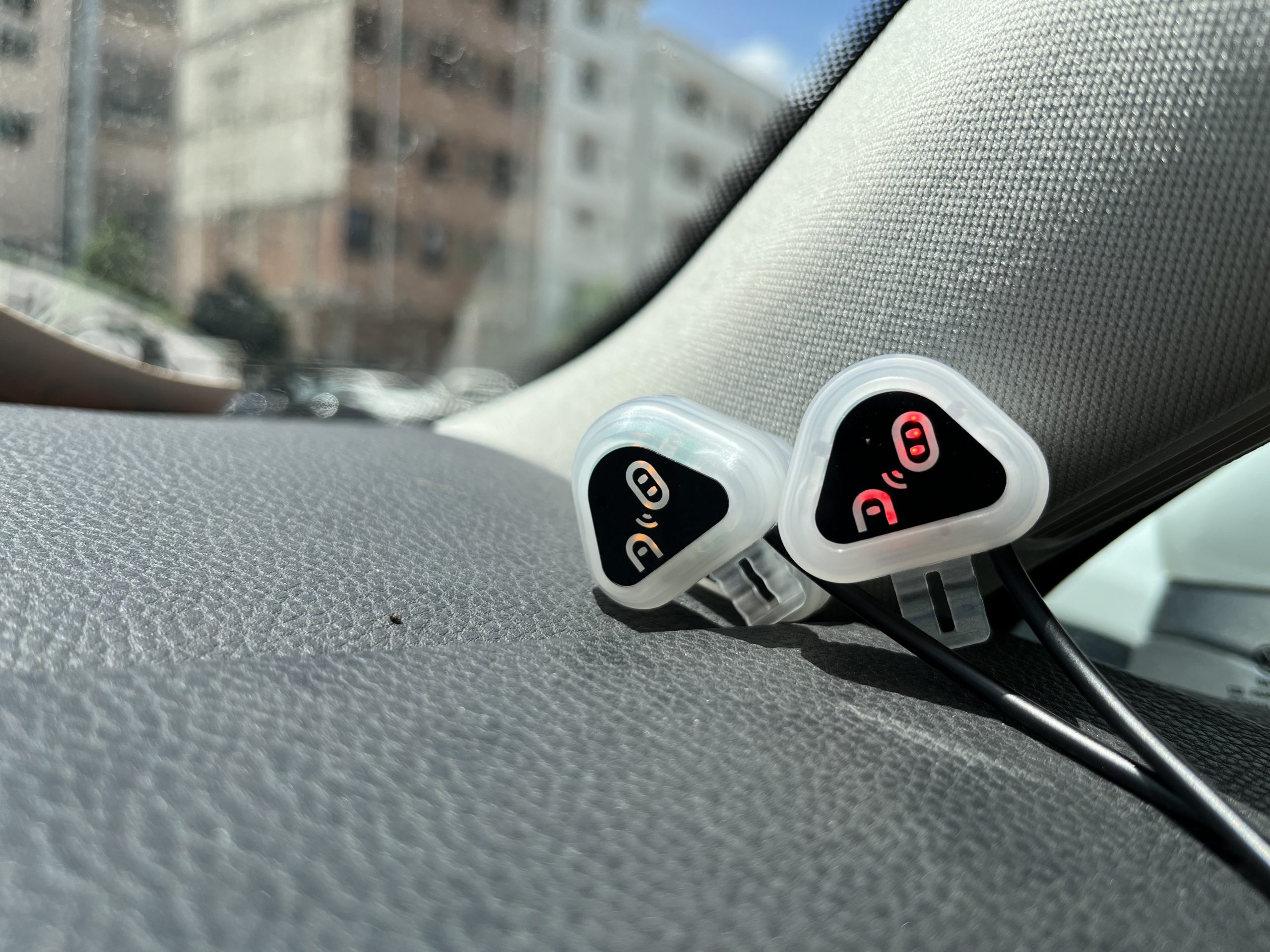

- LED indicator remains illuminated when an object enters the detection area.
Level 2 Warning
- LED indicator flashes and buzzer activates when the driver intends to change lanes or turn.
✅ Wide Detection Range
- Detection distance: Up to 50 meters
- Wide radar coverage helps monitor surrounding traffic conditions.
- Capable of detecting multiple moving targets simultaneously.
✅ All-Weather Operation
Radar technology allows stable operation under:
- Night driving
- Heavy rain
- Foggy conditions
- Dusty environments
Ideal for commercial vehicles and professional fleet applications.
✅ Easy Retrofit Installation

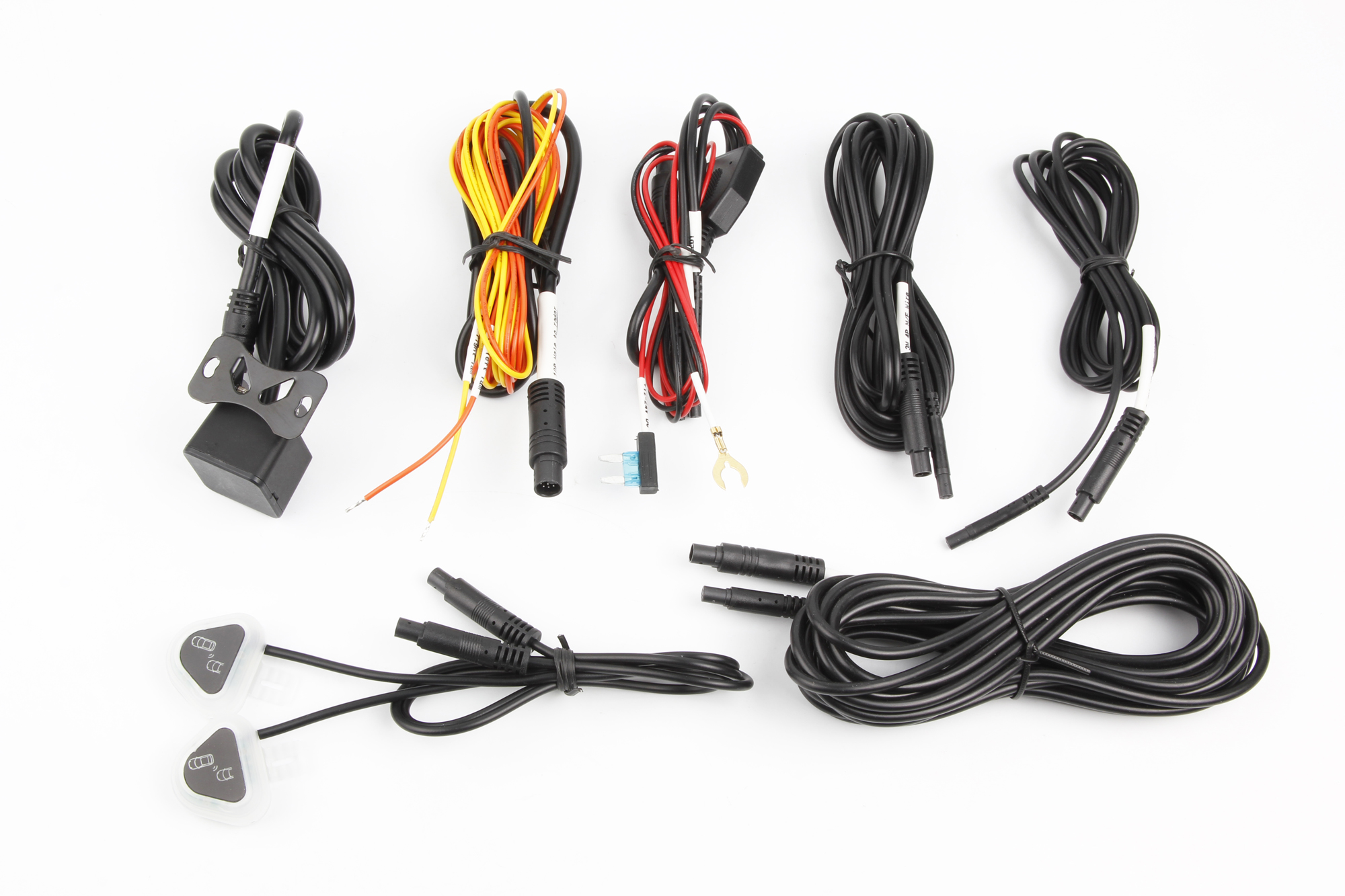

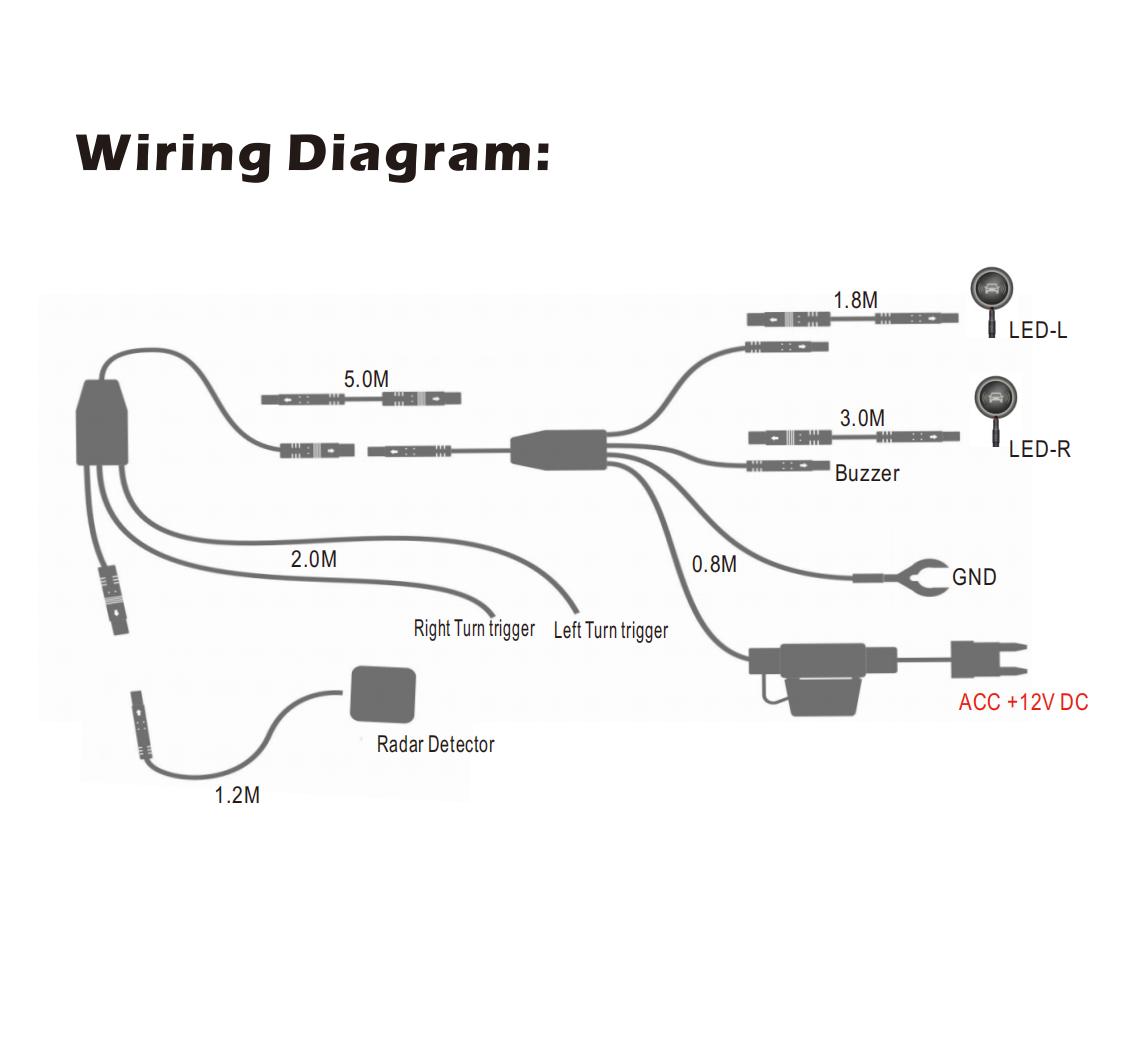

The complete LR-001 kit includes:
- 77GHz Radar Sensor
- LED Warning Indicators
- Buzzer Alarm
- Control Box
- Wiring Harness
- Mounting Accessories
Designed for aftermarket installation without requiring vehicle ECU modification.
Typical Applications
LR-001 is suitable for:
- Passenger vehicles
- SUVs
- Vans
- Pickup trucks
- Commercial fleets
- Delivery vehicles
- Motorhomes
- Special-purpose vehicles
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | LR-001 |
| Radar Frequency | 77GHz |
| Operating Voltage | 10V – 36V DC |
| Power Consumption | < 3W |
| Detection Distance | Up to 50m |
| Waterproof Rating | IP67 |
| Operating Temperature | -40℃ ~ +85℃ |
| Distance Resolution | 0.5m |
| Detection Accuracy | ≤0.2m |
| Horizontal Detection Angle | Up to 150° |

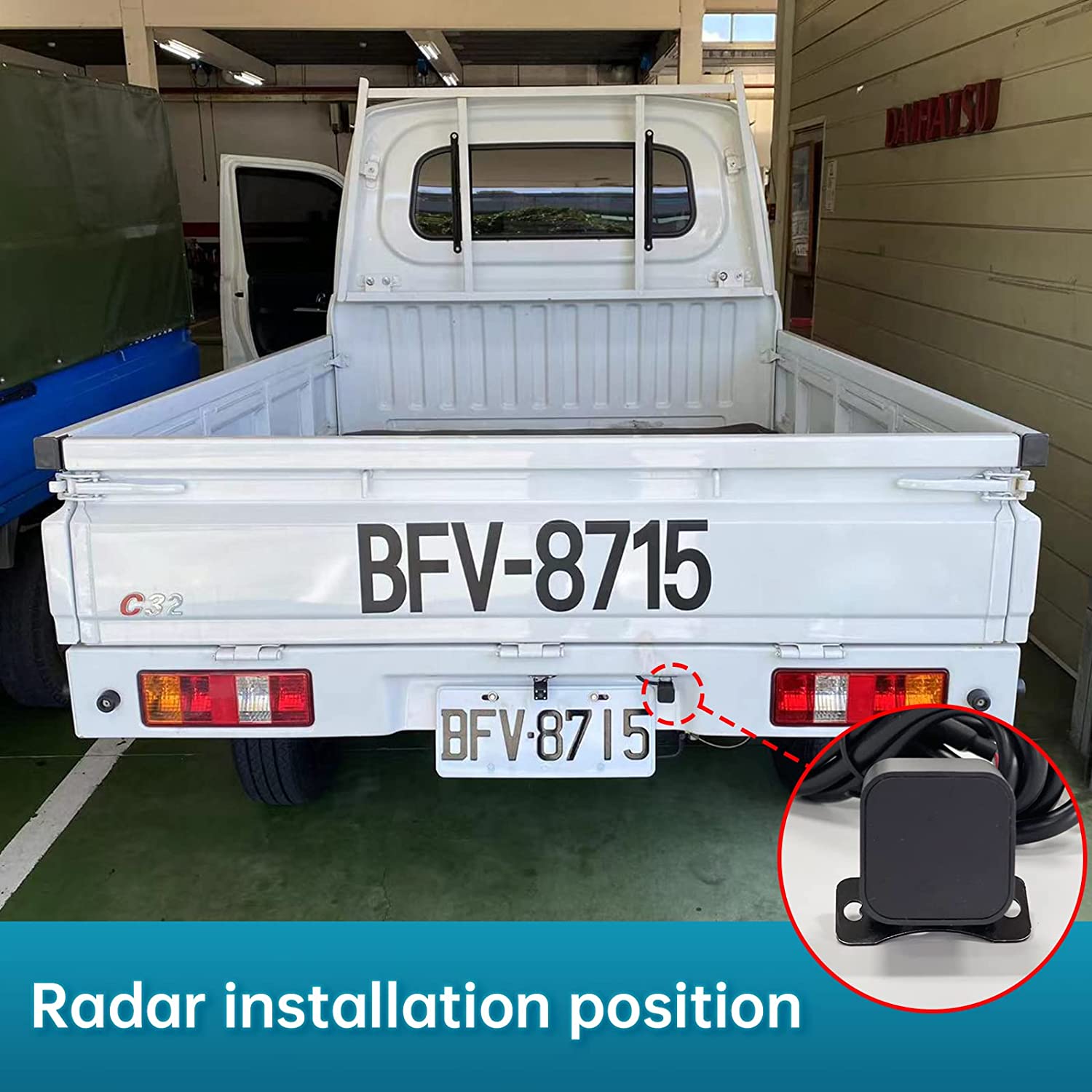

| Installation Position | Rear bumper / vehicle side area |
Product Package
| Component | Quantity |
|---|---|
| 77GHz Radar Sensor | 1 / 2 pcs (Optional) |
| LED Warning Indicator | 2 pcs |
| Control Box | 1 pc |
| Buzzer Alarm | 1 pc |
| Wiring Harness | 1 set |
| Mounting Bracket | 1 set |
| Accessories | Included |
Why Choose LR-001?
Traditional mirrors cannot eliminate blind spots completely, especially for:
- Fast lane changes
- Highway overtaking
- Dense traffic environments
- Large vehicle blind zones
The LR-001 provides an additional layer of safety by actively monitoring surrounding vehicles and alerting drivers before dangerous situations occur.
A compact radar sensor can significantly improve driving confidence and reduce collision risks.
