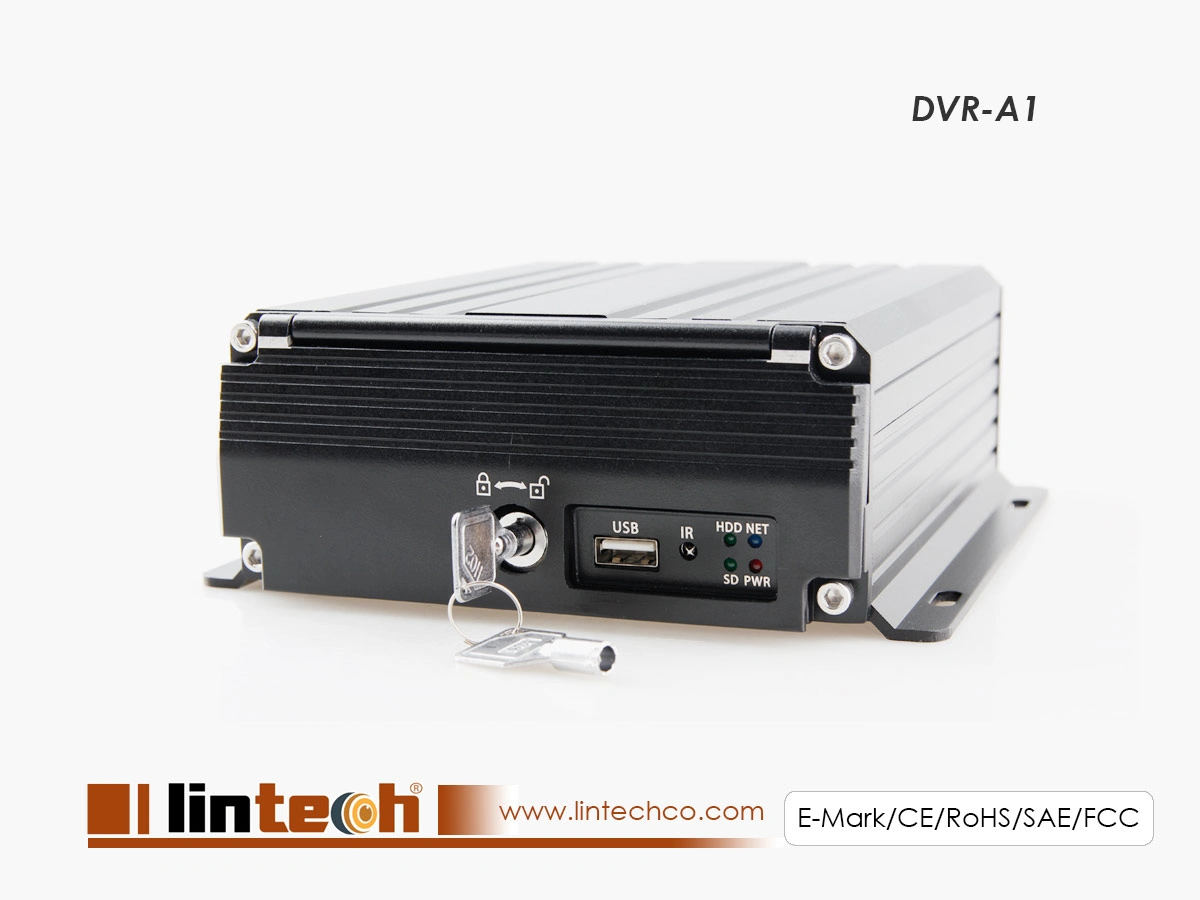

Model No.: DVR-A1

  • Supporting analog car camera, CIF, HD1 and D1 for selection, supporting 2 channels of D1+2 channels of CIF at the most
  • Supporting AHD 1080P/720P/920P car camera (Optional)
  • 4CHs video input, 1 channel video output
  • Frame Rate: PAL: 100 frames/s, up to 25 frames/s per channel / NTSC: 120 frames/s, up to 30 frames/s per channel

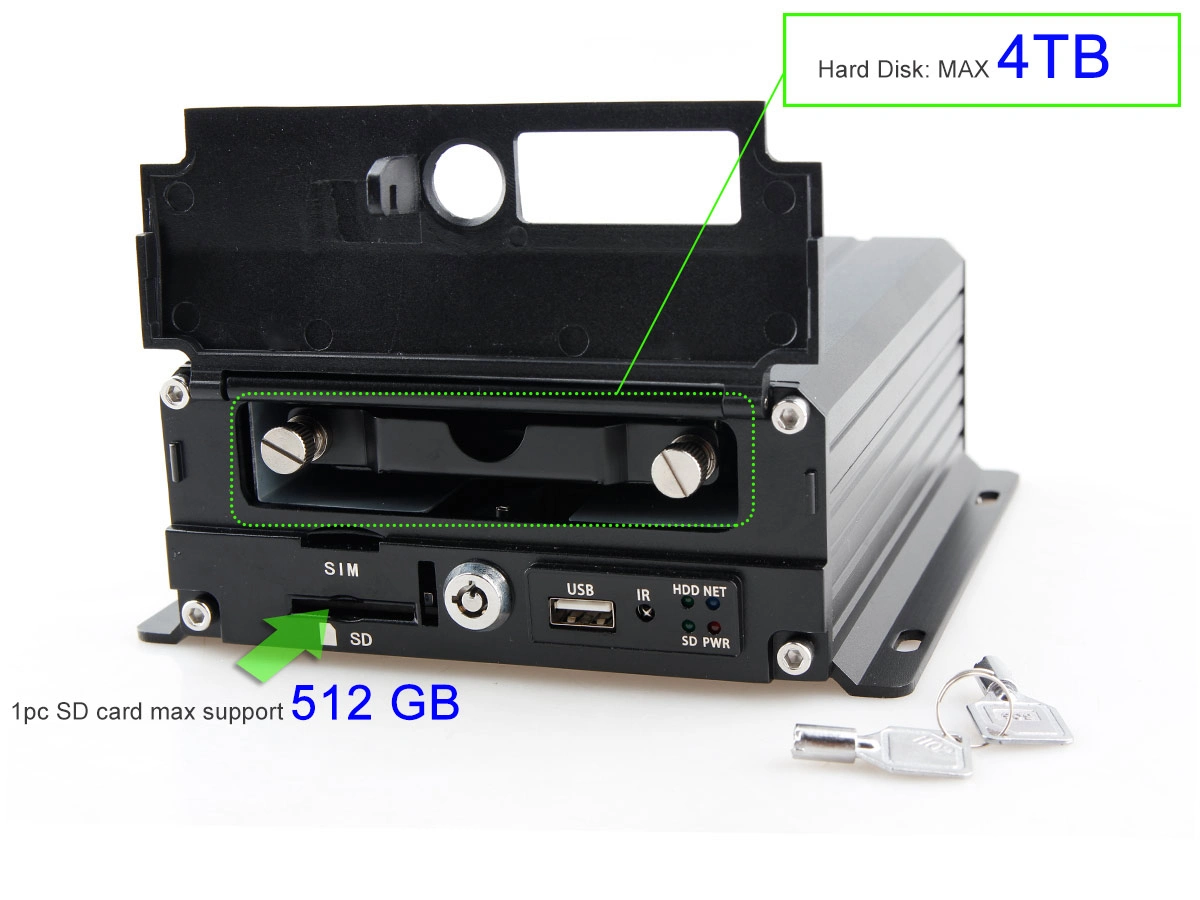

  • Supporting one 4TB hard disk and one 512G SD card for recording
  • Supporting dual-stream mirror image video recording, SD card recording upon loss of hard disk

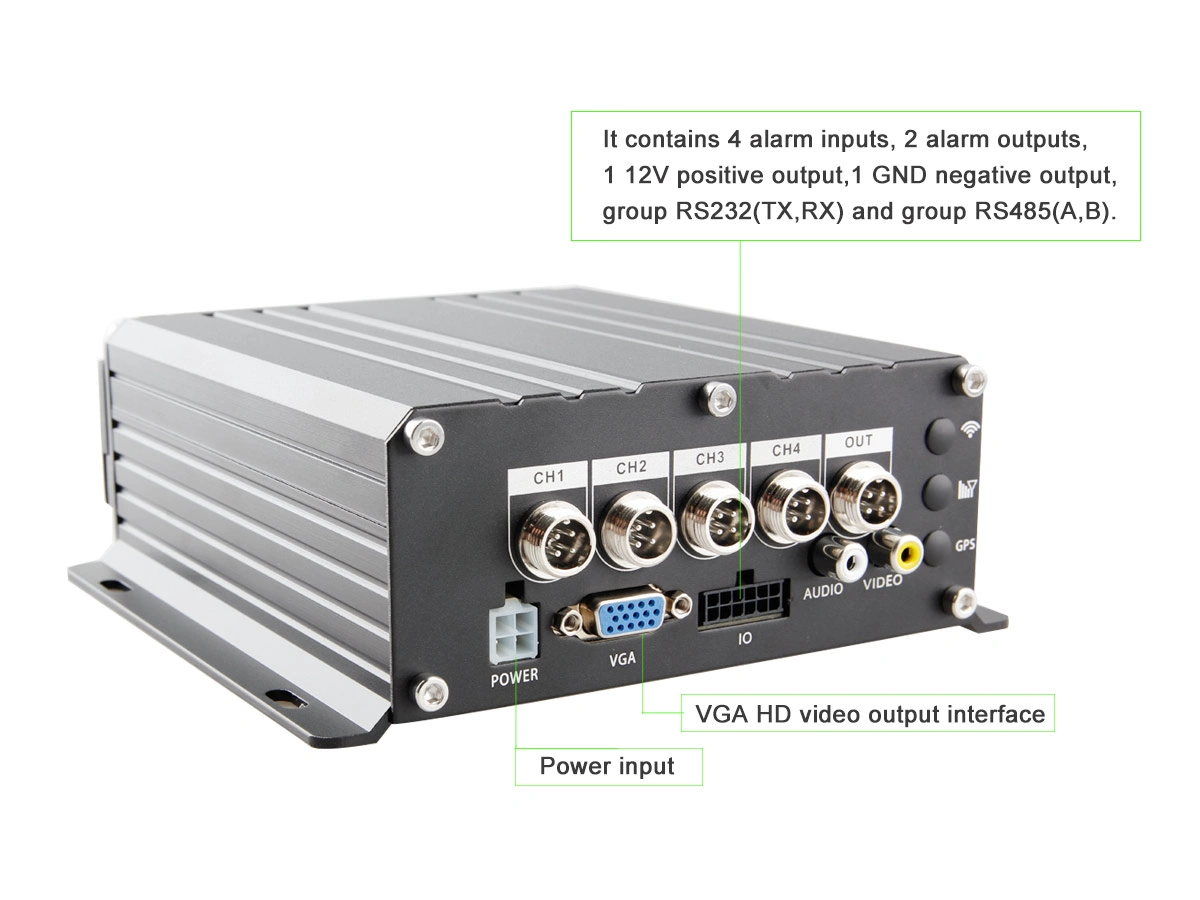

  • Alarm Input / Output: 6-channel ON/OFF signal alarm input, 1-channel on/off signal alarm output
  • Communication Ports: RS232/485, RJ45 10M/100M self-adaptable network interface
  • G-Sensor Embedded, 3G / 4G, Wi-Fi, GPS (Optional)
  • Input Voltage: DC: +8V ~ +36V
  • Dimension:168(w)*166(D)*60(H) mm
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Mobile DVR for Vehicles Supplier.

Features:

-H.264 video code compression, dual stream output;
-ADPCM audio compression format, 4-channel audio input, 1-channel audio output.
-Power-off protection in emergency, adopting special UPS technology which ensures the device to work for 3-5 seconds after the external power supply is cut, thus ensure complete video data and avoid file damage;
-Real-time local recording, multiple formats for selection, supporting full screen of single channel or multi-window stitching upon accidents;
-Switch signal interface, 6-channel alarm input, 1-channel alarm output;
-PTZ control;
-Multiple recording modes: record upon startup, timed recording and triggered recording;

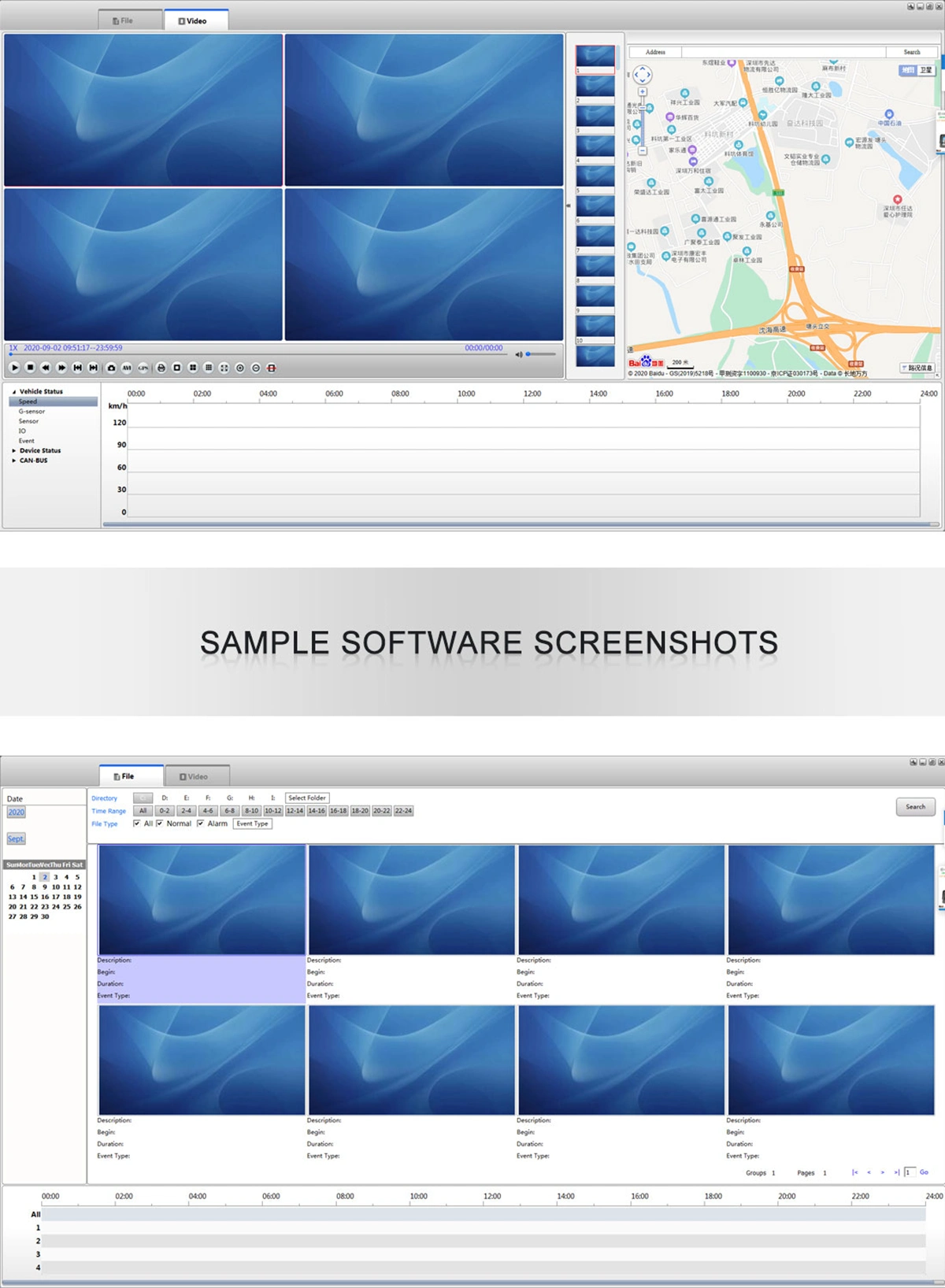

-Universal video file formats: applying ASF format, which can be played with the universal software VLC or the supplied playback software, supporting 1-channel or 4-channel synchronous playback;

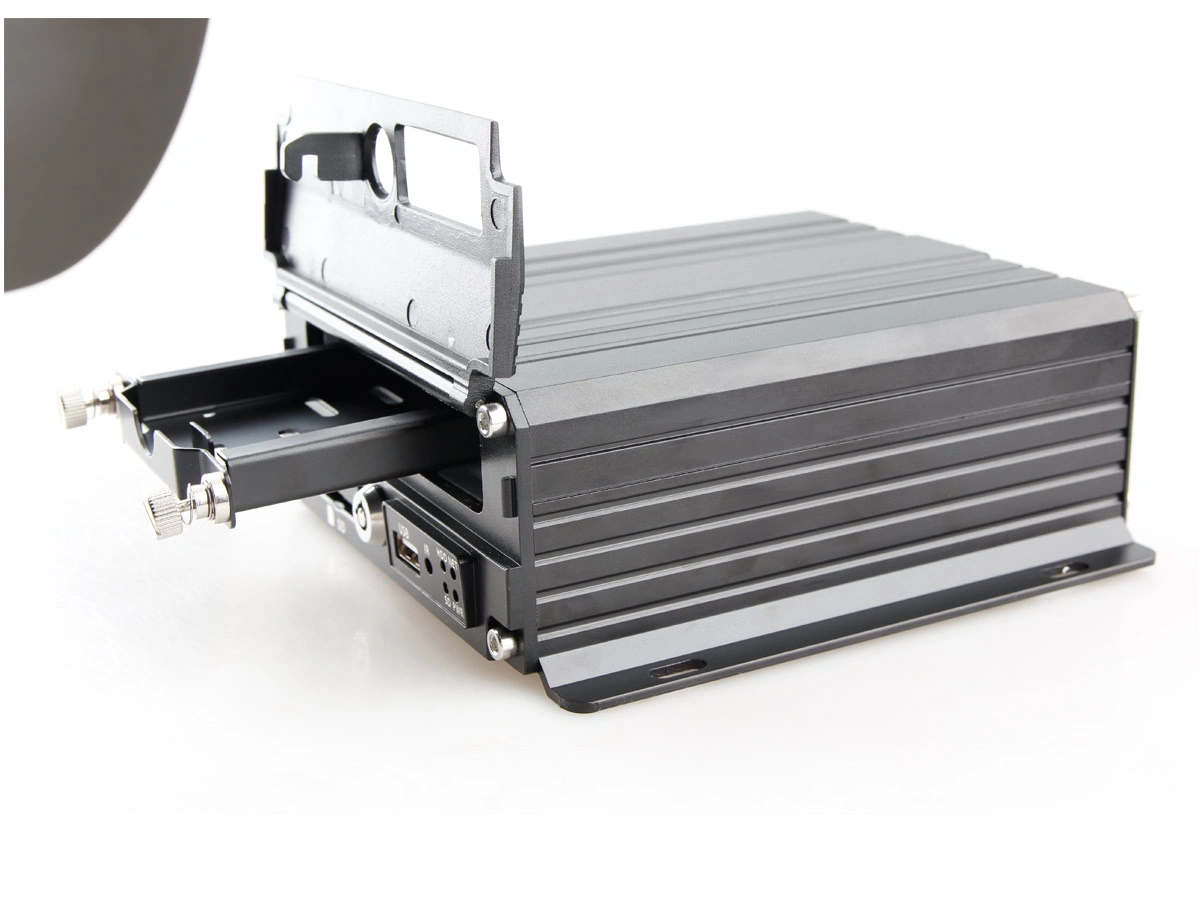

-Data storage, supporting a 4TB” hard drive and 1 SD card with the capacity up to 512GB; supporting dual-stream mirror image video recording, SD card recording upon loss of hard drive, supporting hard drive heating, applying drawer-type hard drive box;
-Wide voltage design, 8-36V DC wide voltage input, suitable for various vehicles; DC 5V/0.5A, 12V/2A output; 6A supporting PTZ.

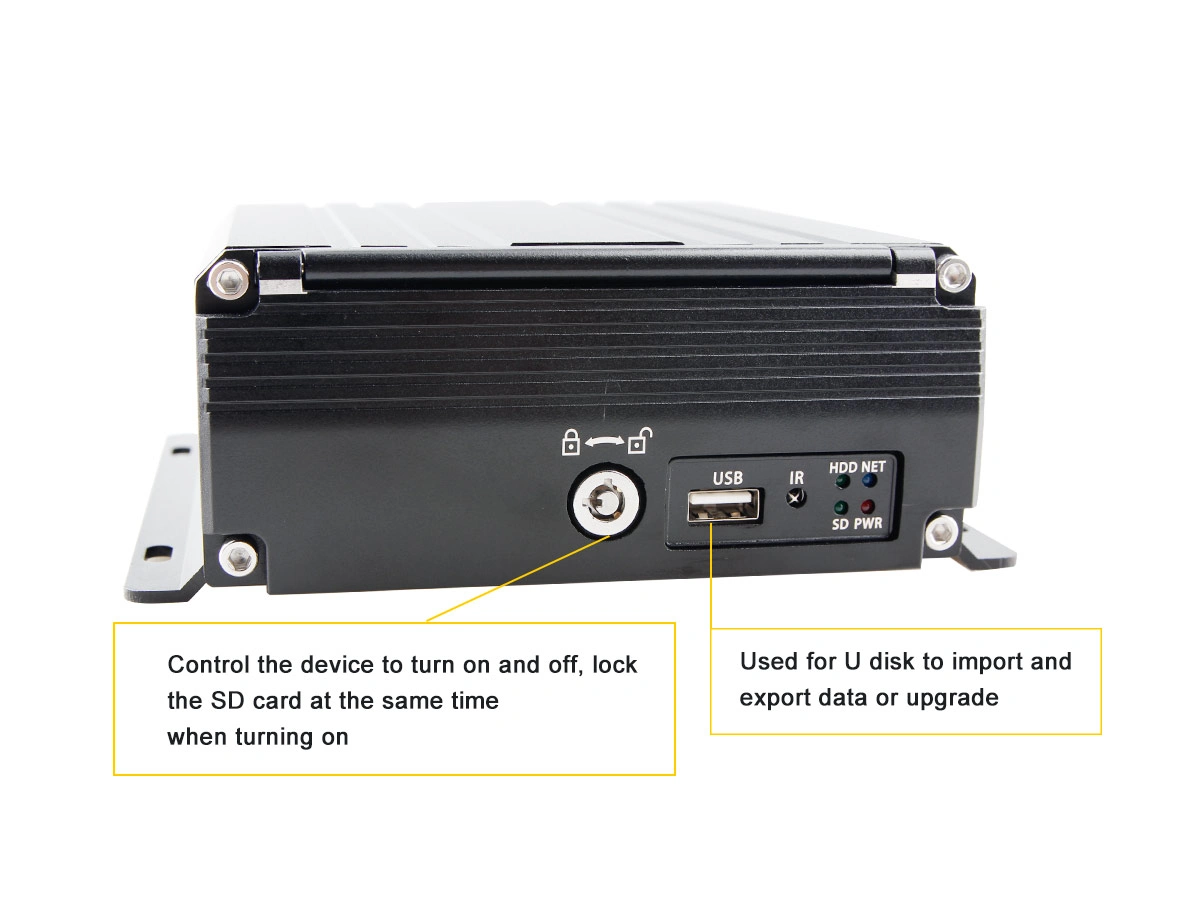

-Rapid startup, capable of entering normal working mode within 25 seconds after startup; supporting on/off with key switch, timed on/off and delayed on/off, etc.;
-Optional functions:
3G wireless transmission;
Wi-Fi wireless transmission;
GPS, G-sensor acceleration sensor, with precise time correction;
IP calling;
Dialing;

Data Sheet

Photos

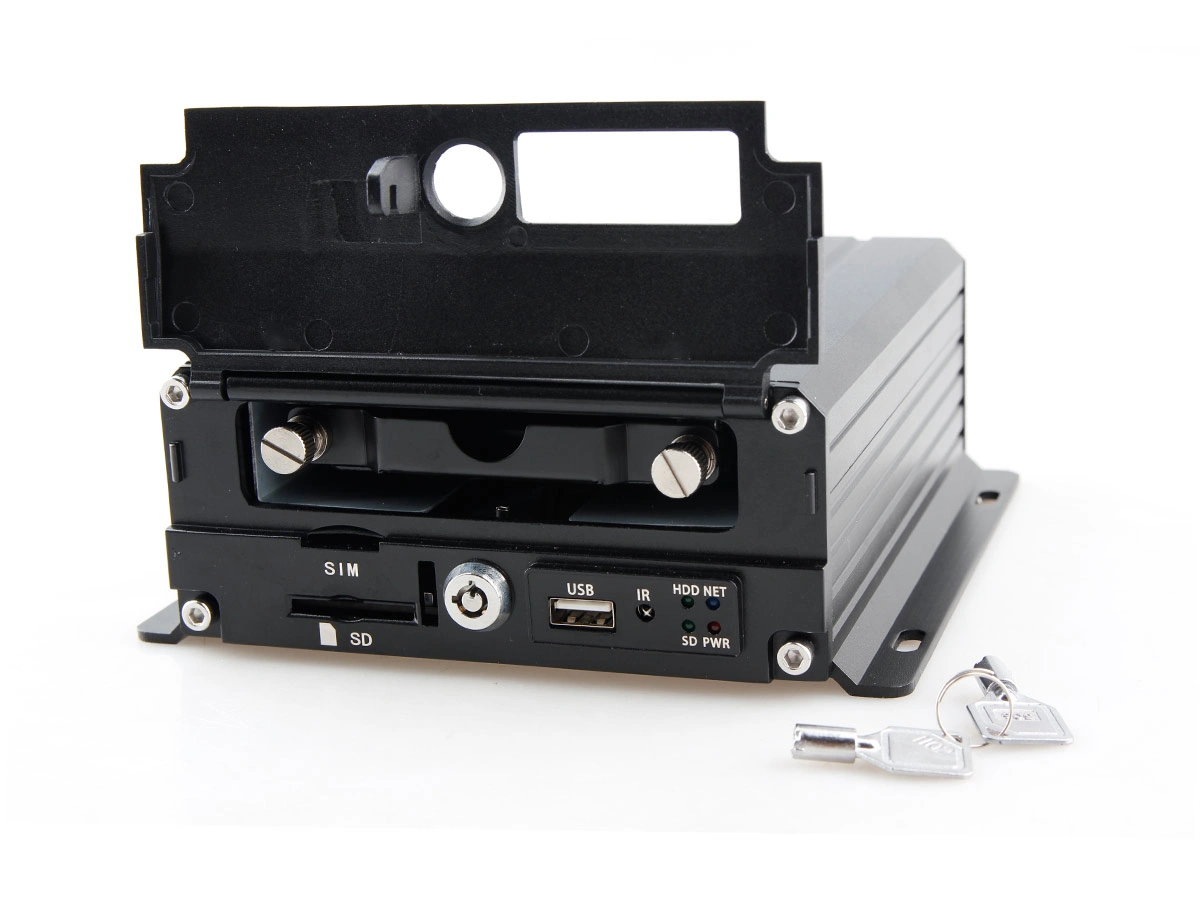

AHD HDD and SD Card Mobile DVR for Vehicles, DVR-A1
AHD HDD and SD Card Mobile DVR for Vehicles, DVR-A1
AHD HDD and SD Card Mobile DVR for Vehicles, DVR-A1
AHD HDD and SD Card Mobile DVR for Vehicles, DVR-A1
AHD HDD and SD Card Mobile DVR for Vehicles, DVR-A1
