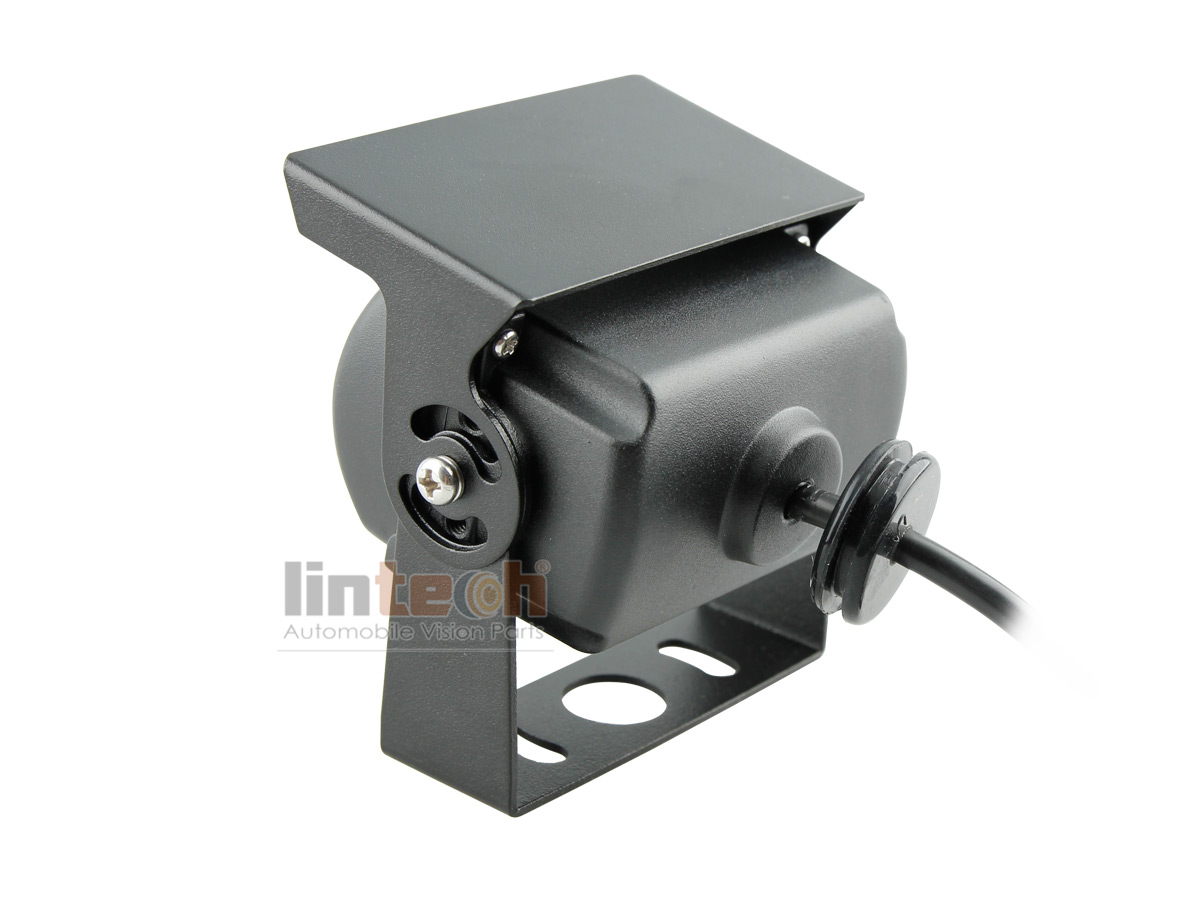

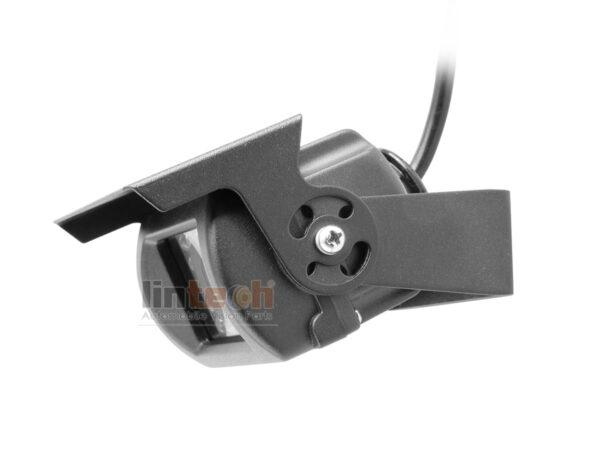

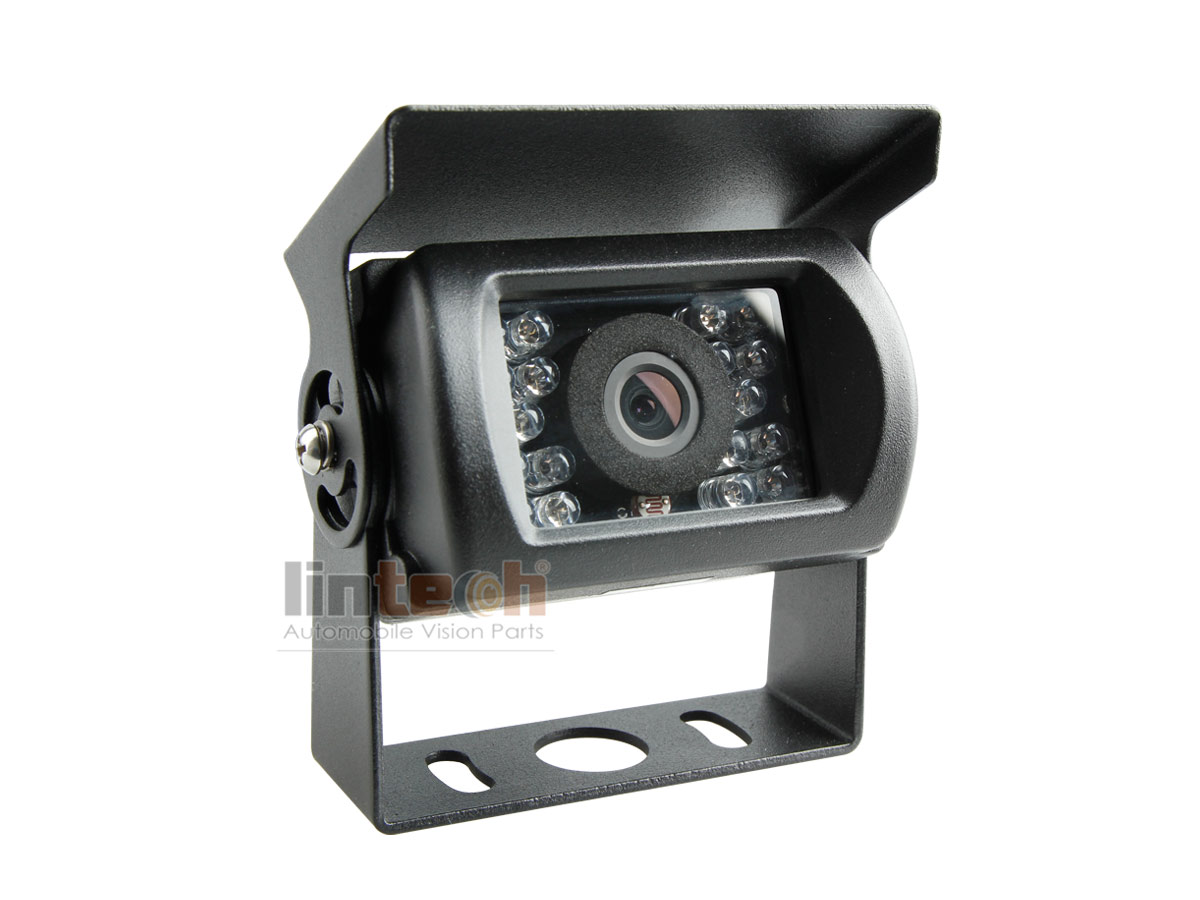

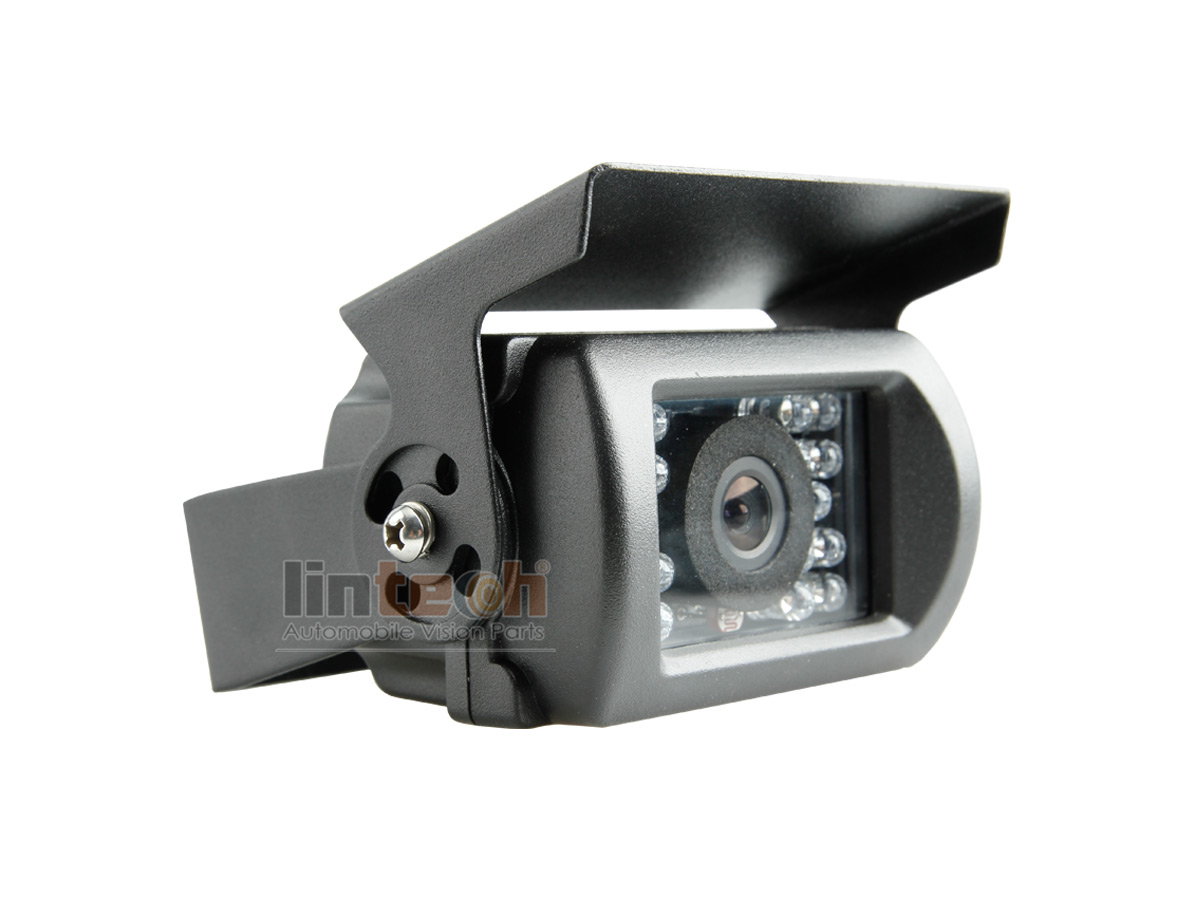

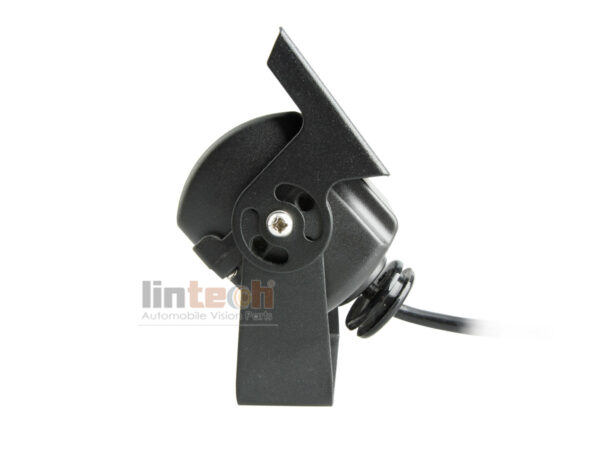

Heavy Duty Reversing Camera Classic Model IP69K Camera

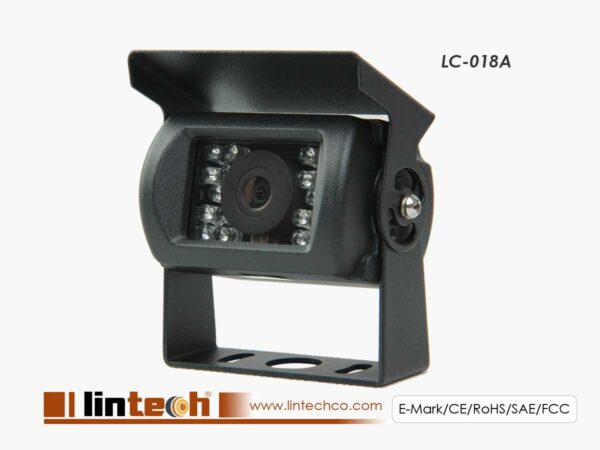

Model No.:LC-018A

  • Rear-facing camera
  • Protected to IP68
  • Built in Microphone
  • 18 infrared LEDs
  • L 84 x W 76 x H 70mm, 0.360Kg
  • 1/2.8” Sony AHD1080P CMOS IMX307 Image sensor
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years

Backup Camera Datasheets Download

Category:

Lintech’s heavy-duty 12/24V reversing cameras deliver exceptional image clarity, vibrant color contrast, and impressive sharpness. Equipped with 18 individual infrared (IR) LEDs, these cameras provide clear visuals even in low-light environments, making them ideal for nighttime use. Housed in a sturdy, waterproof, and mud-resistant metal casing, they are designed for durability and longevity, featuring a 4-pin waterproof connector for reliable operation.

With options for 1080P and 720P resolutions, our rear-facing cameras ensure full high-definition (FHD) picture and video quality. Leveraging cutting-edge technology, these cameras capture crystal-clear footage, even in challenging lighting conditions.

FEATURES:

-Wide view angle up to 105 degree Horizontal

-Optional built-in Microphone

-18pcs Built-in Infra-red night vision IR LEDs

-Heavy duty and strong full alloy housing IP69K

-Optional Mirror/normal view switch

-Optional Heating function for extremely cold condition



Subject Standard Parameter Optional Parameter
Image sensor 1/4″ SHARP / SONY CCD 1/3″ CMOS Sensor AHD 720P/ 1080P
Resolution N:510×492 pixels
P: 500×582 pixels
1280*720 pixels / 1920*1082 pixels
Horizontal Resolution 420~700TVL 700TVL
TV System NTSC/PAL NTSC/PAL
Lens 2.5-2.8mm 2.5-2.8mm
View angle 120 degree (100 Horizotal,75 Vertical) 120 degree (100 Horizotal,75 Vertical)
Power supplier 12VDC  (24v optional) 12VDC  (24v optional)
Current consumption 150mA 150mA
Power consumption 1.8W @ 12VDC 1.8W @ 12VDC
Min illumination 0 Lux (LED ON) Night Vision 0 Lux (LED ON) Night Vision
IR LED 18 pcs (Night vision distance 7m) 18 pcs (Night vision distance 7m)
Waterproof rating IP69K IP69K
Packing weigth 0.5KG 0.5KG
Dimension(WxHxD) 92mm x 71mm x 68mm (MAX) 92mm x 71mm x 68mm (MAX)
Operation temperature -20 ~ +70 C-degress -20 ~ +70 C-degress



Tips: Video at 720P available.
