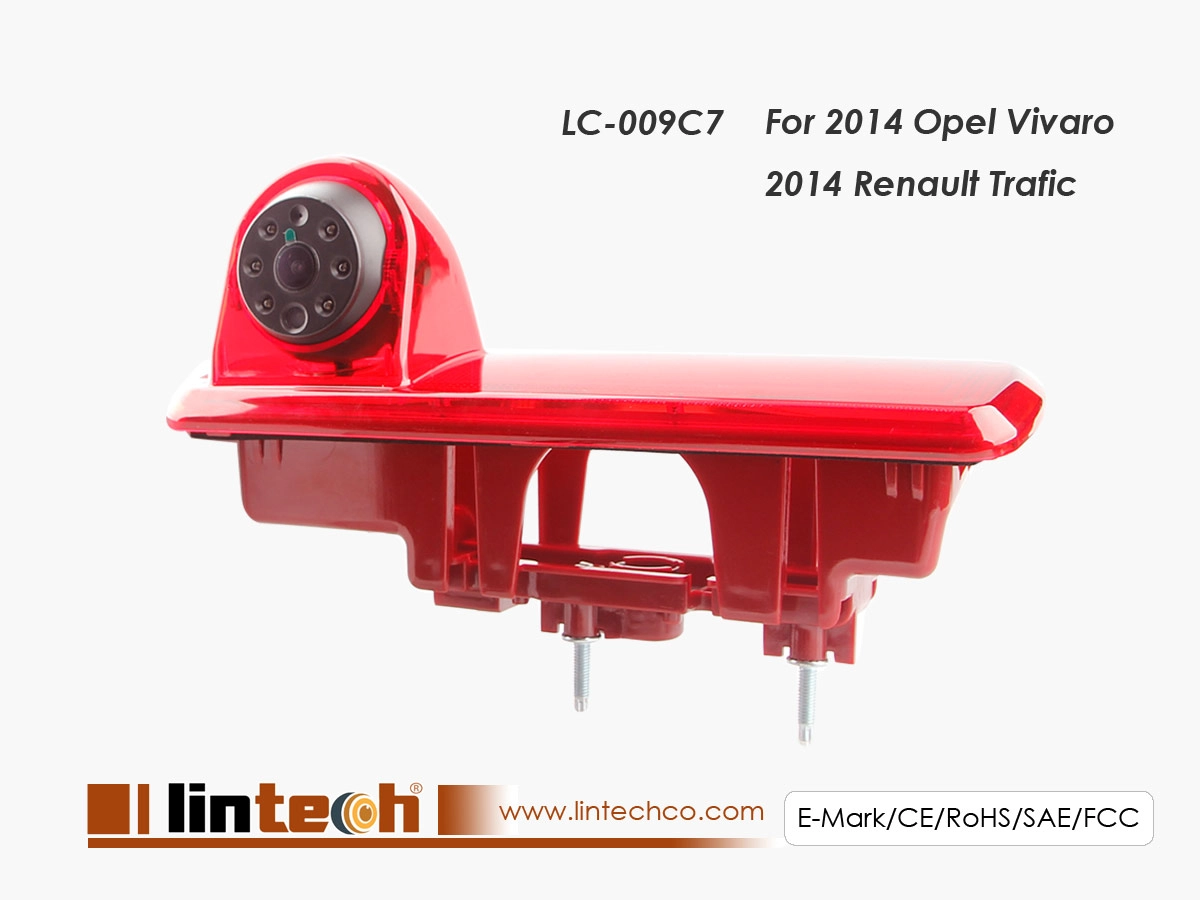

User Manual DownloadCar Parking Camera: for Opel Vivaro Renault Trafic 2014, LC-009C7

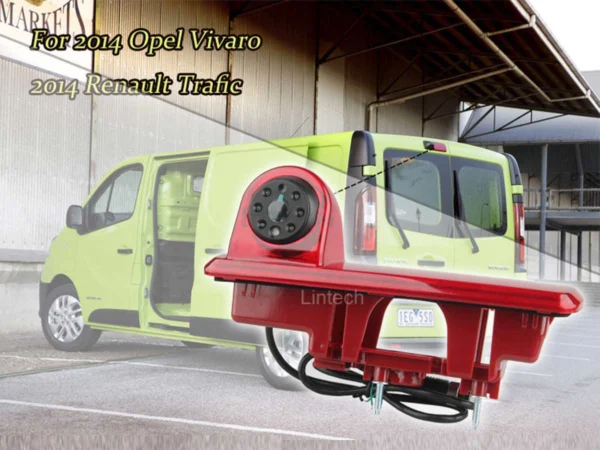

Special designed for Opel Vivaro and Renault Trafic 2014 year vans
1:1 Original dimensions
Wide view angle up to 170 degree
SONY CCD / CMOS 3089 Sensors optional

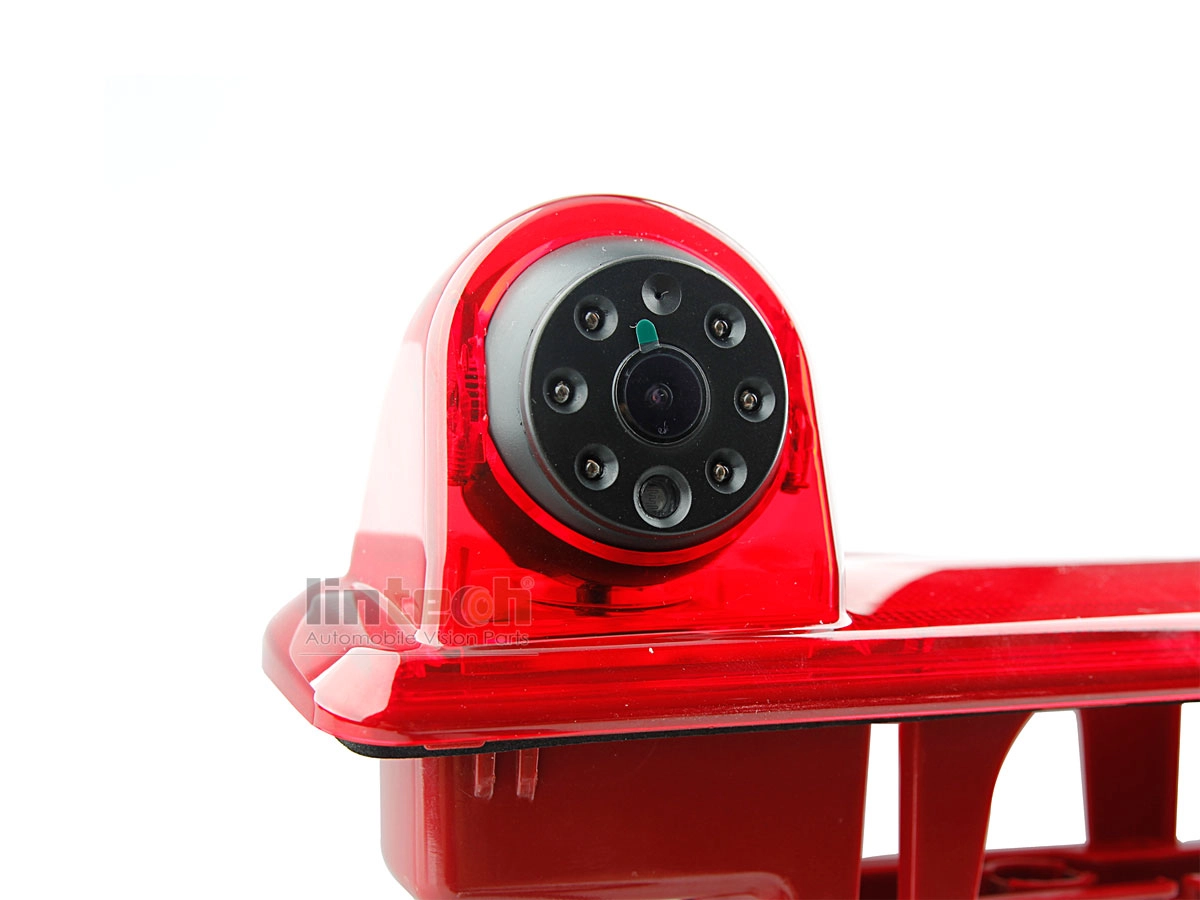

6pcs Built-in Infra-red night vision IR LEDs
Microphone: Optional
Mirror/ Normal image switch function optional (CMOS sensor)
Parking guide lines optional ( CMOS sensor)
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/3″ SONY CCD | 1/3″ CMOS PC1089 |
| Resolution | N:752x494pixels P:752x582pixels |
N:752x494pixels
P:752x582pixels |
| Horizontal Resolution | 580TVL | 420TVL |
| TV System | NTSC/PAL | |
| Lens | 1.7mm | |
| View angle | 170 degree (105 Horizontal,85 Vertical) |
|
| Power supplier | 12VDC | |
| Current consumption | 150mA | 130mA |
| Power consumption | 1.8W @ 12VDC | 1.5W @ 12VDC |
| Min illumination | 0 Lux (LED ON) Night Vision |
|
| IR LED | 7pcs (Night vision 5-7m) |
|
| Waterproof rating | IP68 | |
| Net Weight | 250g | |

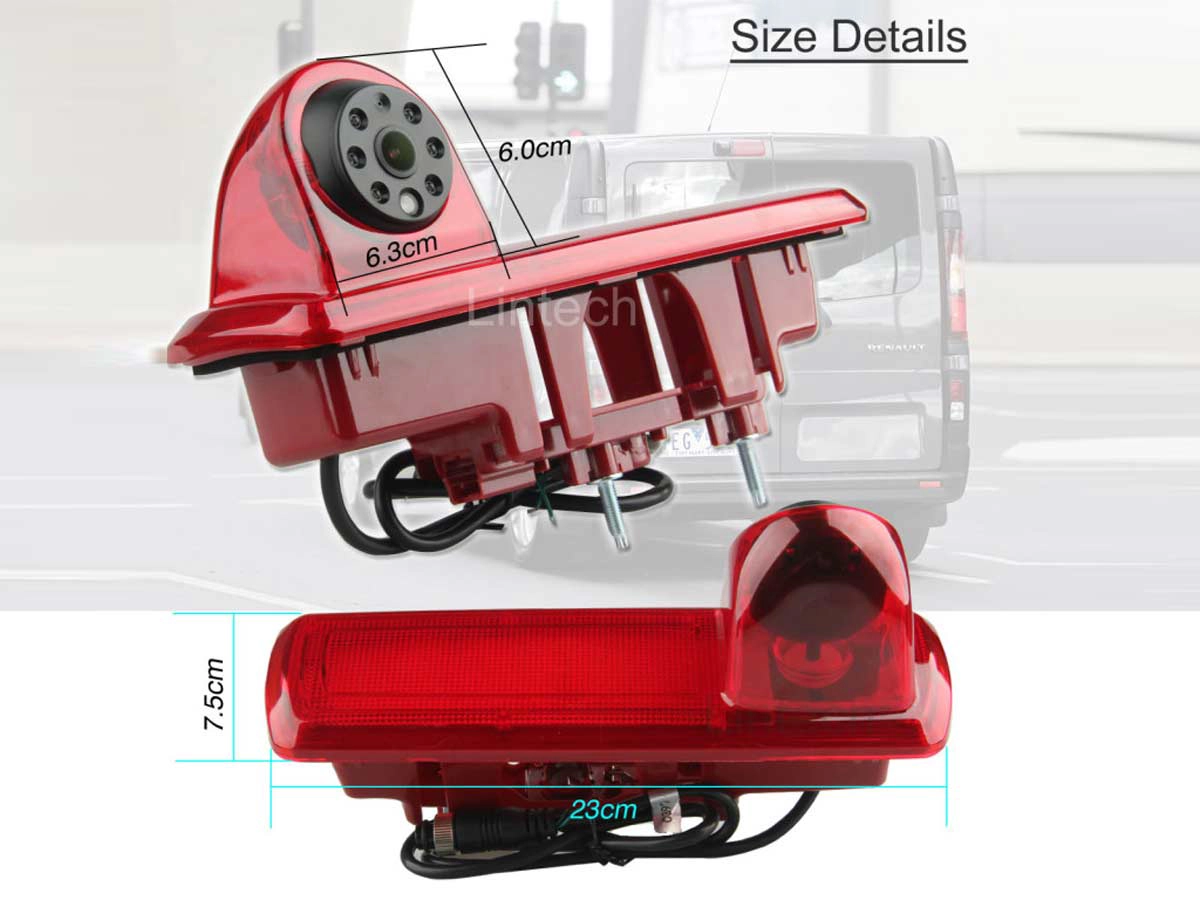

| Dimension(WxHxD) | 230mmx165mmx80mm | |
| Operation temperature | -20 ~ +70 C-degress |
.
