Model No.:LC-009C5-3

  • Sensor: 1/3″ Sony CCD Sensor 580TVL
  • View angle: 170°
  • Night vision: 6pcs IR LED
  • Microphone: Yes
  • IP rating: IP68 (Waterproof)
  • Voltage: 12V (+/- 10%)/ 1,5 Watt
  • Certificates: CE/FCC/E-mark
  • Warranty: 1-3 Years
  • For NV Passenger 2009-2014 year and Cargo Van
FacebookTwitterGoogle PlusPinterest

Descriptions

LintechCo: Leading Chinese B2B Stop Light Cameras Supplier.

Break light Reversing Camera for NV Passenger 2009-2014 year and Cargo Van

Package Details:

  • 1x Brake lights Camera
  • 1x Extension cable 10m
  • 1x RCA to 4-Pin connector cable
  • 1x Installation screws
  • 1x RCA male to male converter
SubjectStandard ParameterOptional Parameter
Image sensor1/3" SONY CCD1/3" CMOS PC3089
ResolutionN: 752x494pixels
P: 752x582pixels
N: 728x488pixels
P: 720x480pixels
Horizontal Resolution580TVL420TVL
Lens1.7mm
View angle170 degree (105 Horizotal,85 Vertical)
Min illumination0 Lux (LED ON) Night Vision
IR LED7pcs (Night vision distance 5-7m)
TV SystemNTSC/PAL
Power supplier12VDC
Current consumption150mA130mA
Power consumption1.8W @ 12VDC1.5W @ 12VDC
Waterproof ratingIP68
Packing Weight1.3kg
Dimension(WxHxD)387.5mmx136.5mmx59.5mm (MAX)
Operation temperature-20 ~ +70 C-degress

Data Sheet

Photos

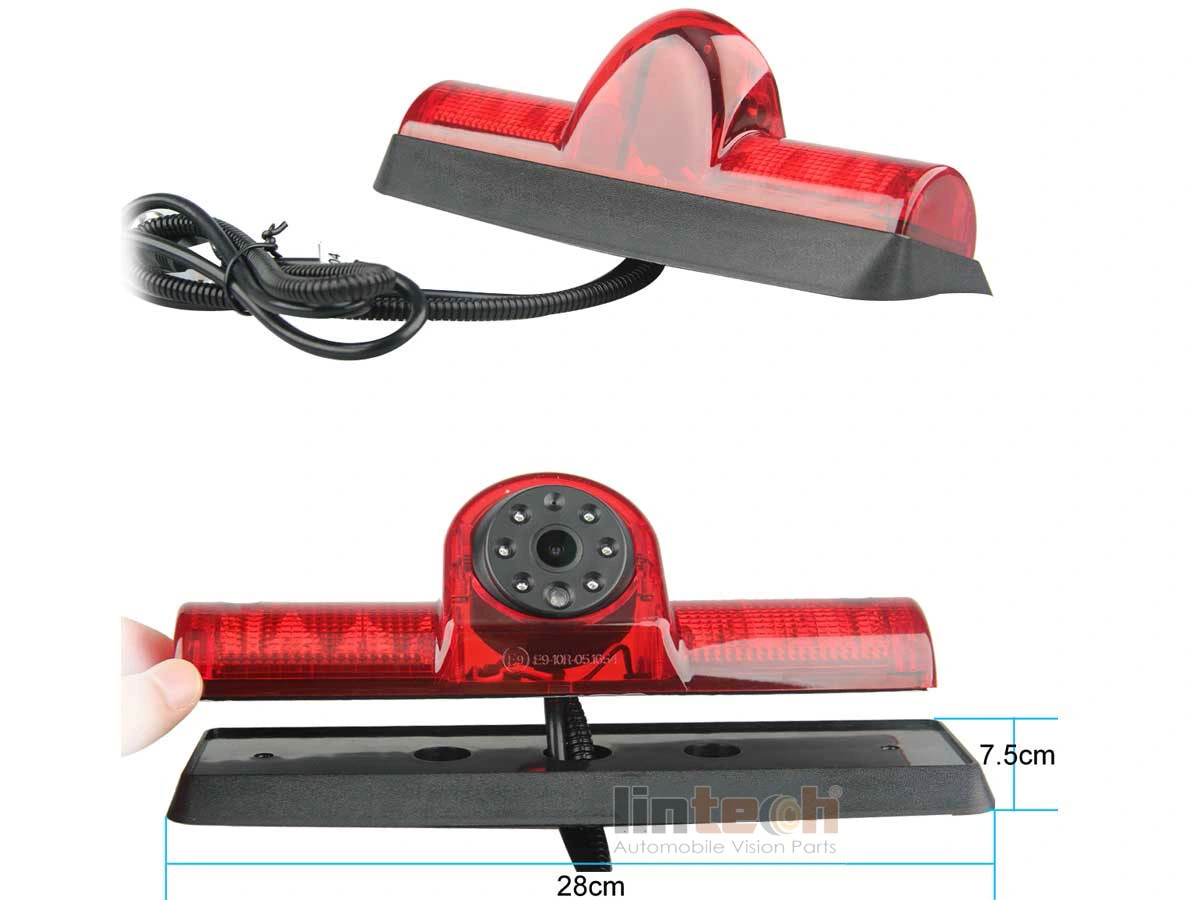

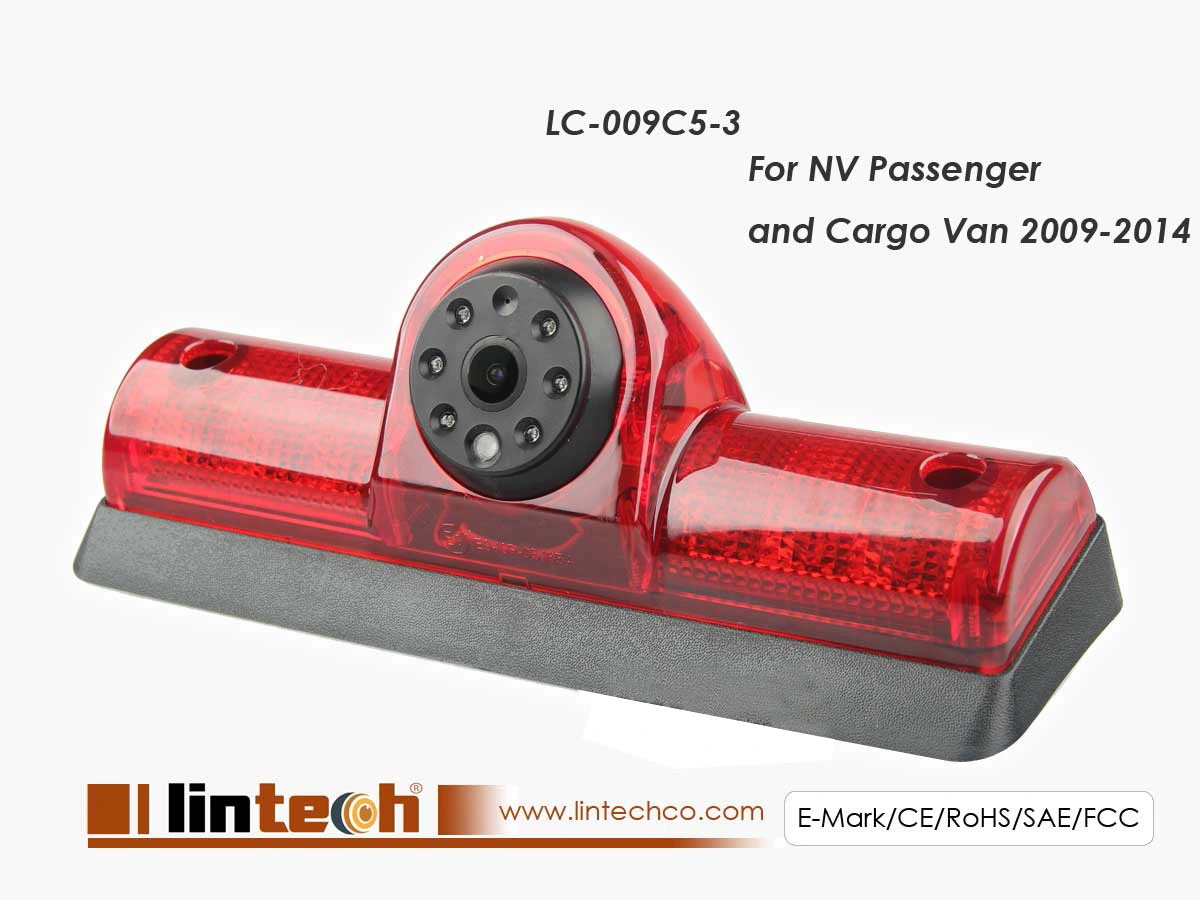

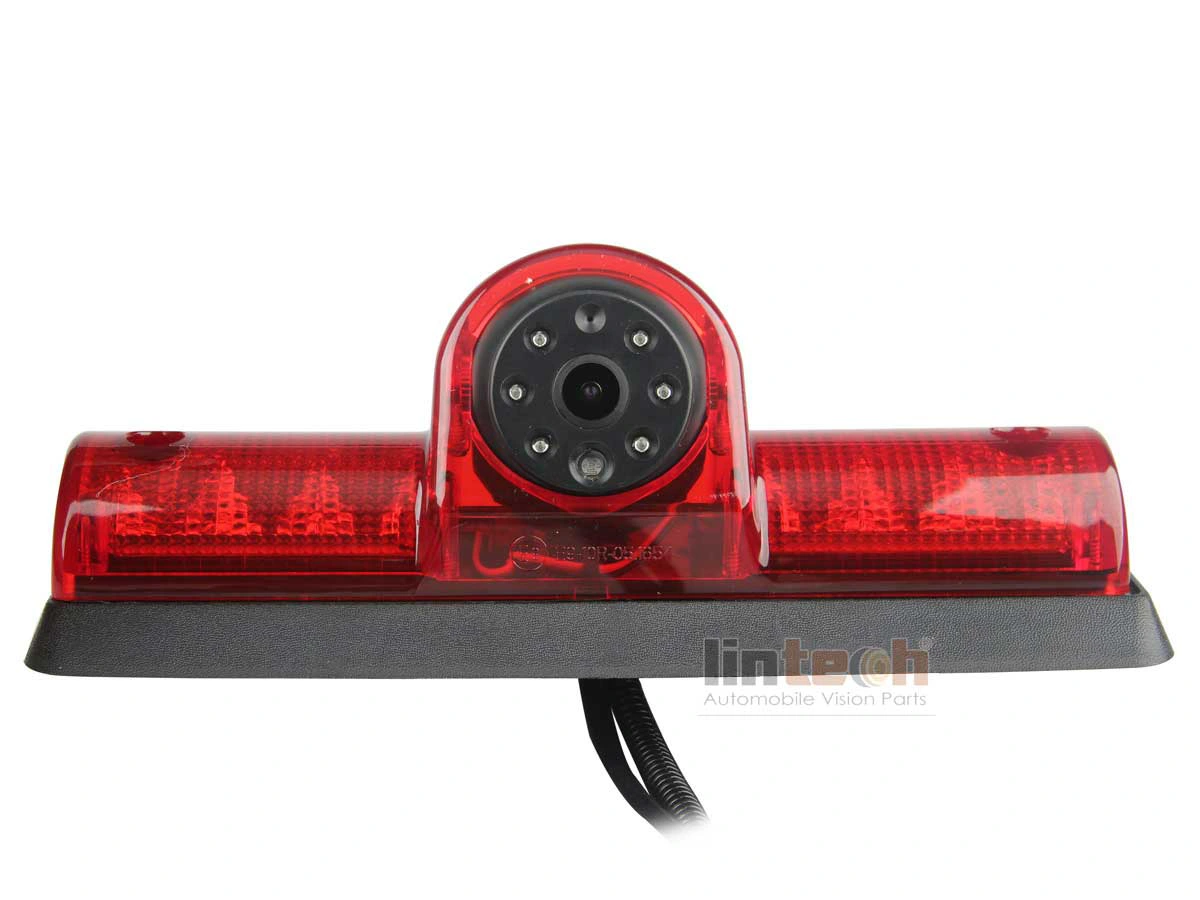

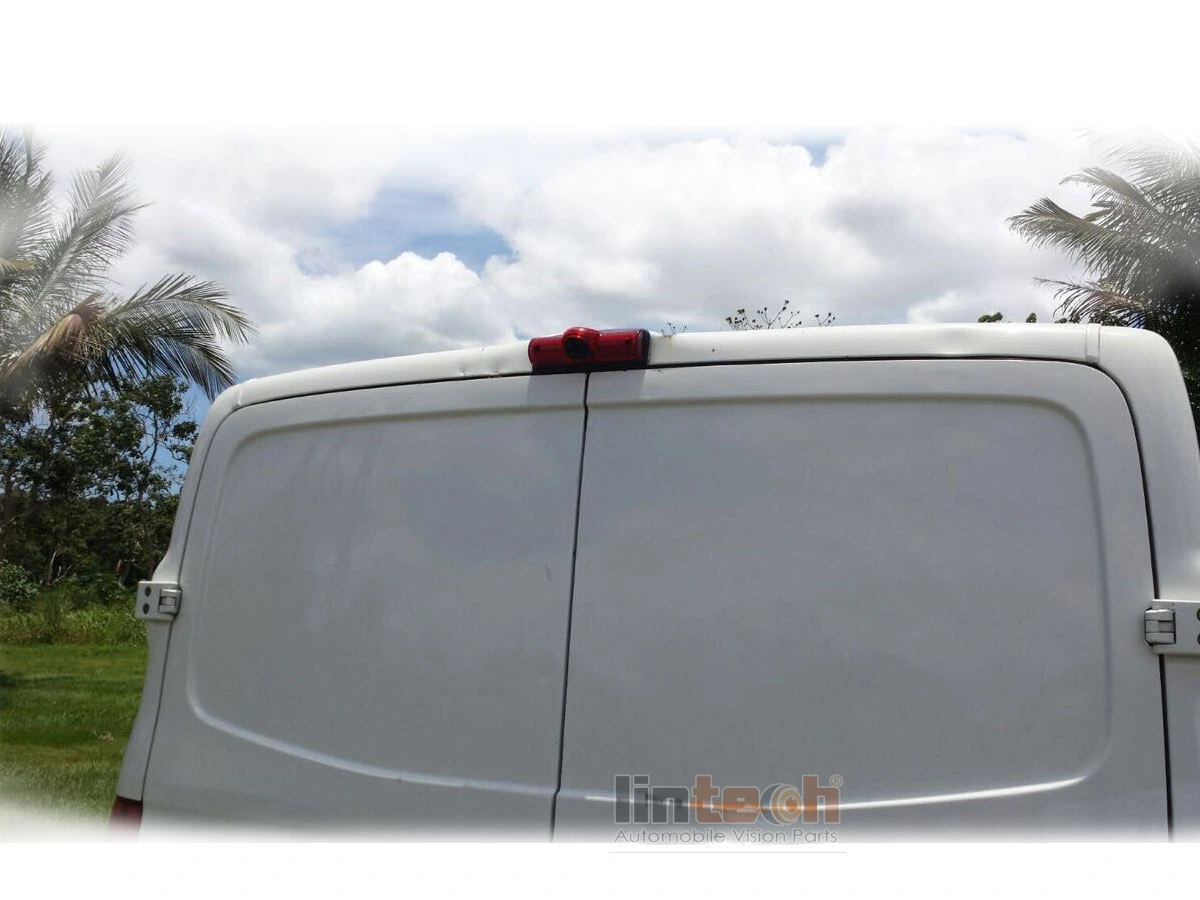

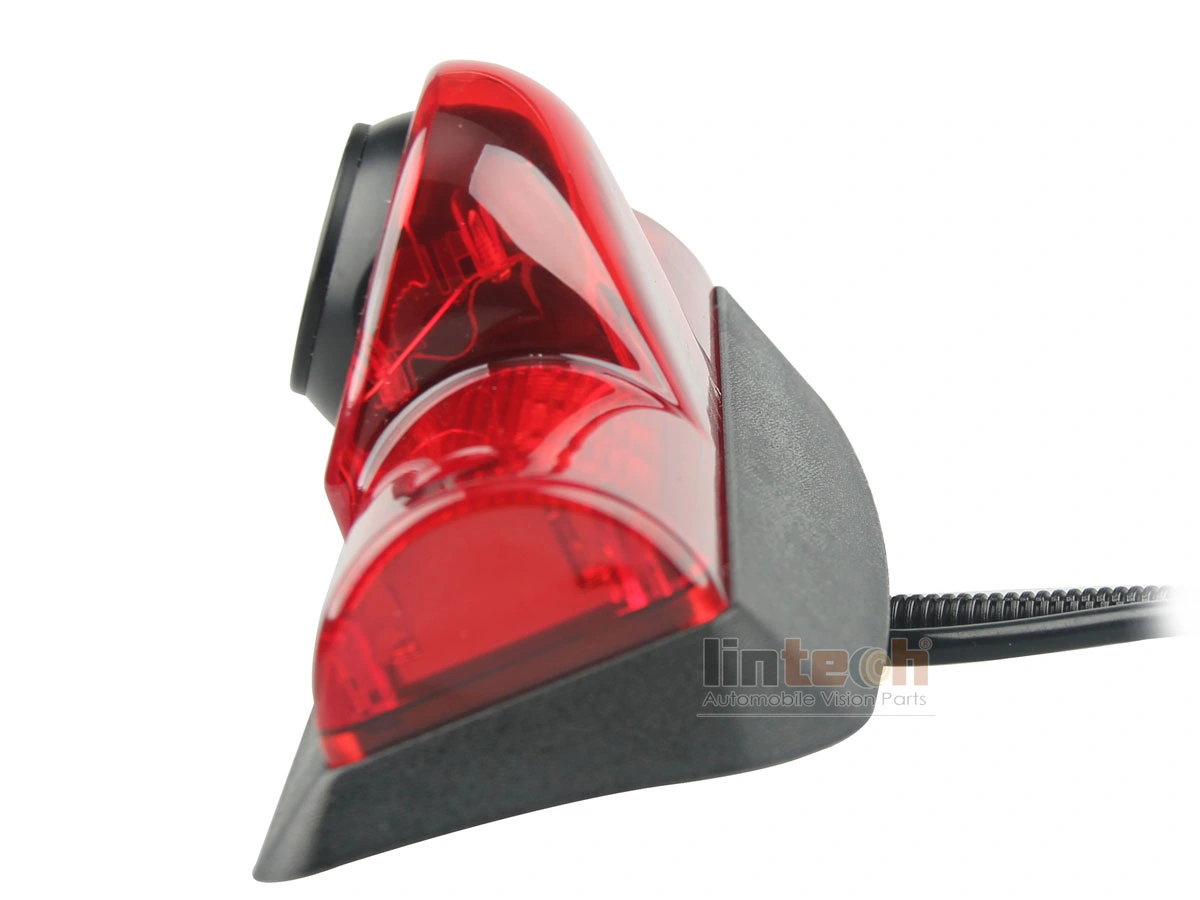

Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
Stop Light Cameras for NV Passenger Van, LC-009C5-3
