Detecting Sensors Operation mode:
A: When vehicle put to R-gear to reversing, all 8pcs sensors are activated for reversing aid safety.
B. When driving on the road, the 4 rear sensors are dormant, but the side sensors are activated. If any car or person pass by at the blind area, alarm sound will warnning the driver be careful ( Don’t swich the lane this moment!!!).

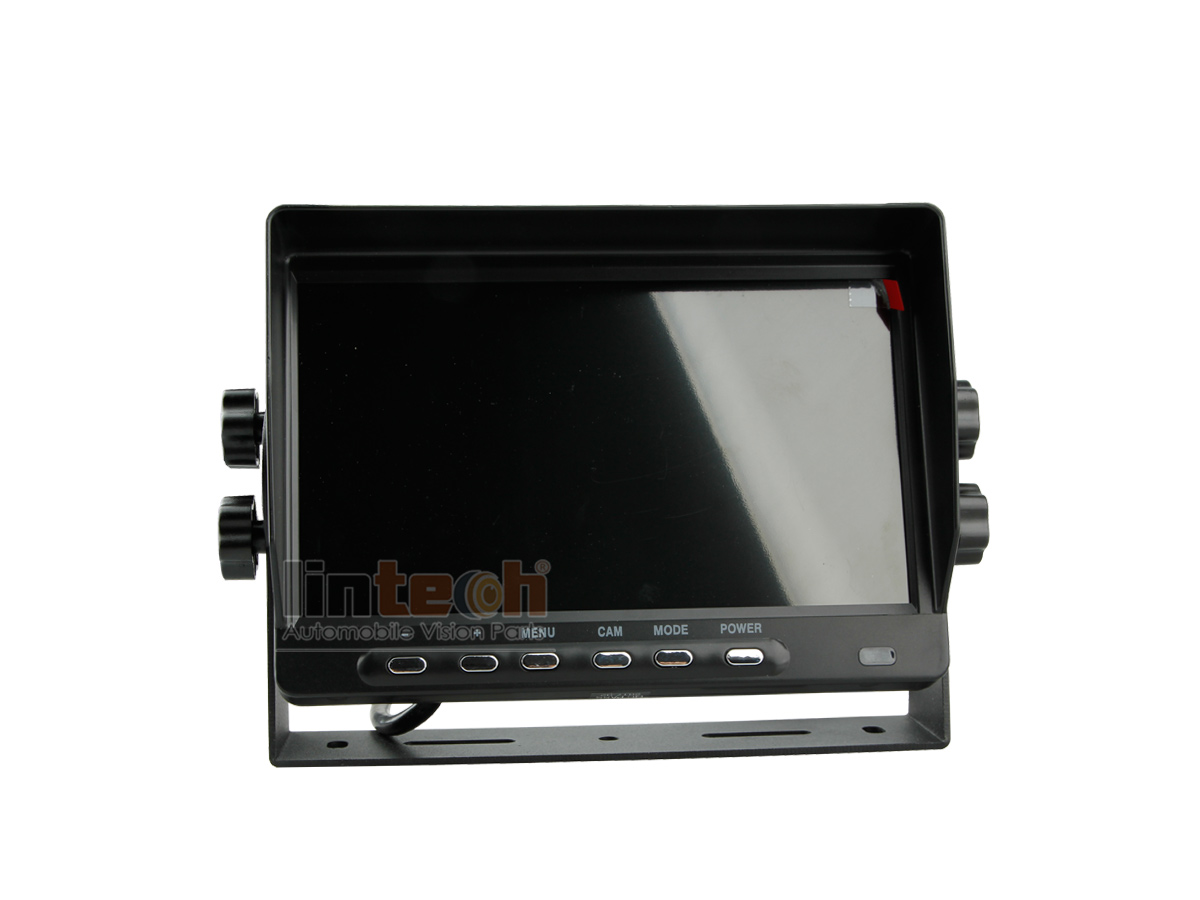

Monitor LM-070A-3 Specification:
| Screen size | 7 inches new TFT-LCD panel |
| type | Stand-alone monitor (16:9) display |
| Display Resolution | 800 R.G.B x480 dots & 480(V) x 240(H) Optional |
| System | PAL/NTSC auto switching |
| Video input | 2 Channels input/ 4CHs/ quad monitor optional |
| Power supply | 12~24VDC |
| Power consumption | less than 7W |
| Image | Up/down, Left/right functions |
| Loudspeaker | Optional |
| Remote control | Yes |
| Operating temperature | -10 ~ +65degrees |
| Storage temperature | -40 ~ +65degrees |
| Without signal | Video signal disappear, display blue screen |
| Languages | English, Dutch, French, Spanish, Russian, German, Italian |
| Suitable for | Camera/DVD/VCD player |
| trigger cable | Yes |
| Reverse guide lines | Yes, Adjustable according to Cameras fixed position |
| Warranty | 18 months |

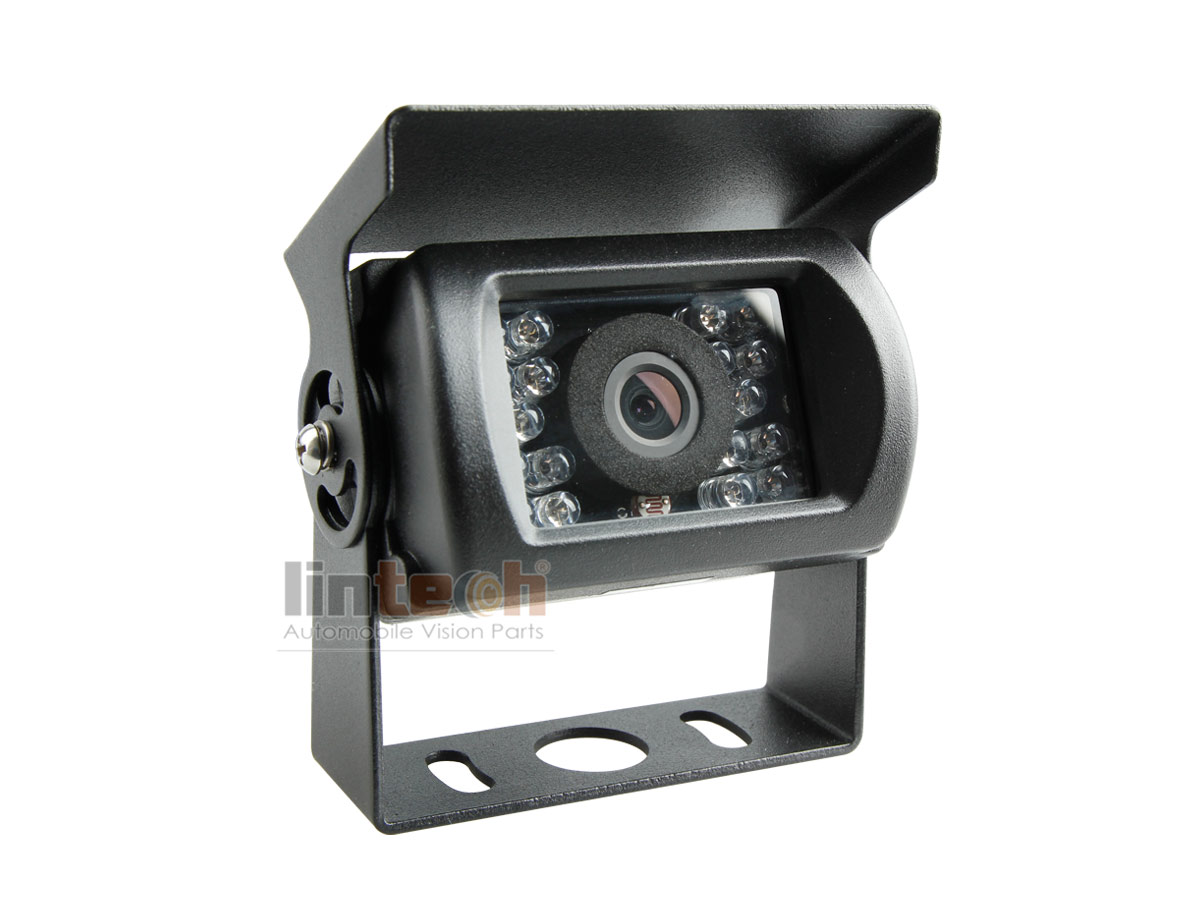

Rearview camera LC-018A specification:
| (1)1/4″ Sharp / SONY Color CCD sensor |
| (2)TV system : PAL/NTSC |
| (3)Resolution: 420 TV lines |
| (4)With 18 IR LED light ,night vision distance up to 10-15 meters |
| (5)Self-sensitization control the night vision function by the light sensor |
| (6)120 degree wide range angle view |
| (7)Operating Voltage: 9~12VDC |
| (8)Operating temperature: -20~ +70 degrees , RH95% Max. |
| (9)Storage temperature: -40~ +80 degrees , RH95% Max. |
| (10)Alloy shell, Waterproof, silver/black color selectable |
| (11)IP Rating: IP68 |

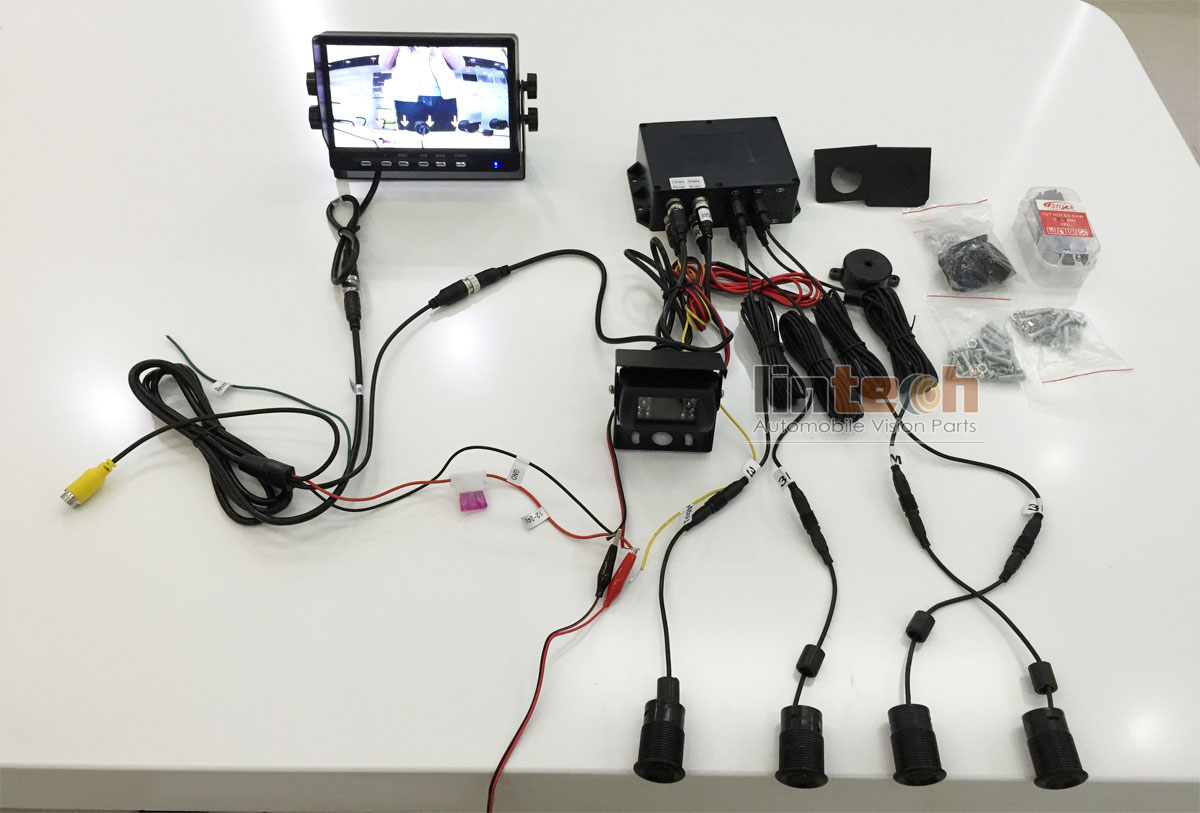

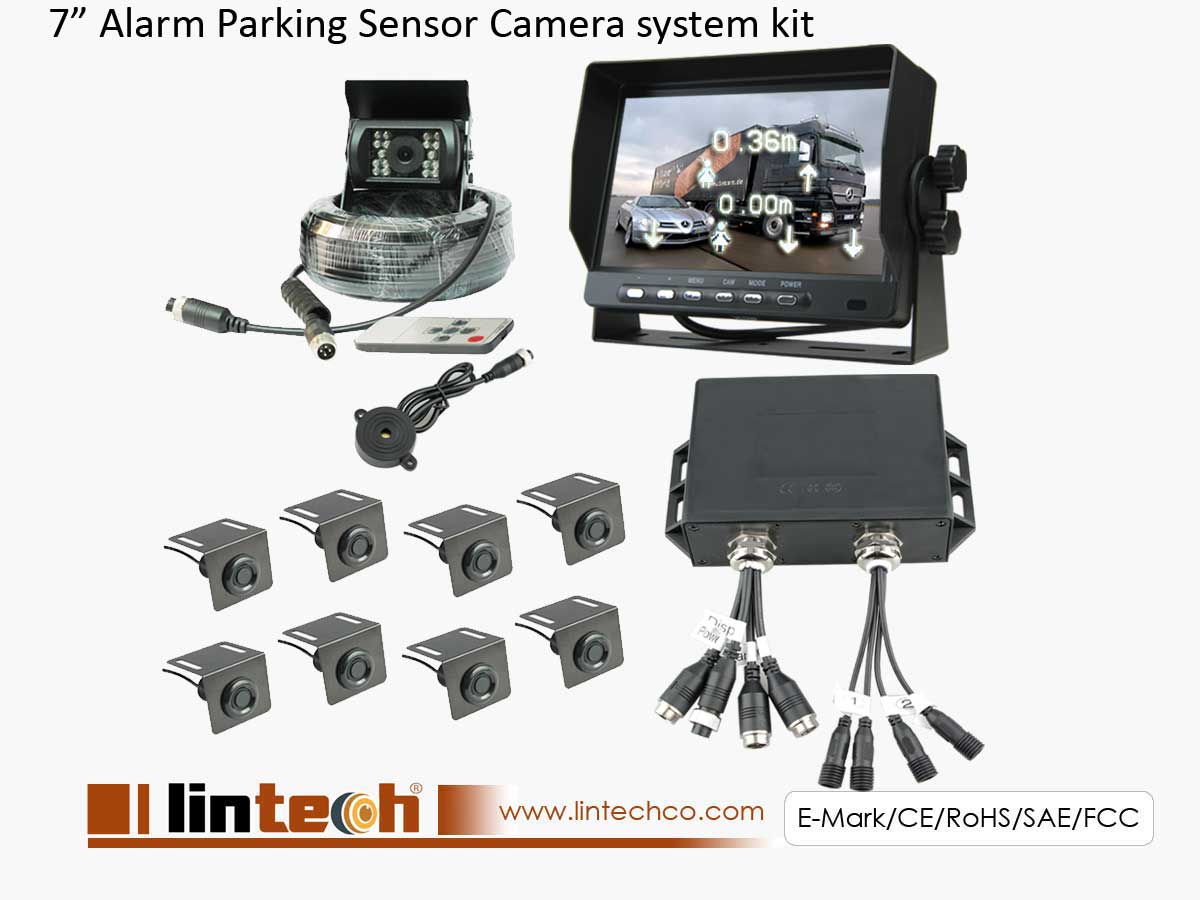

Parking Sensor System Spec:

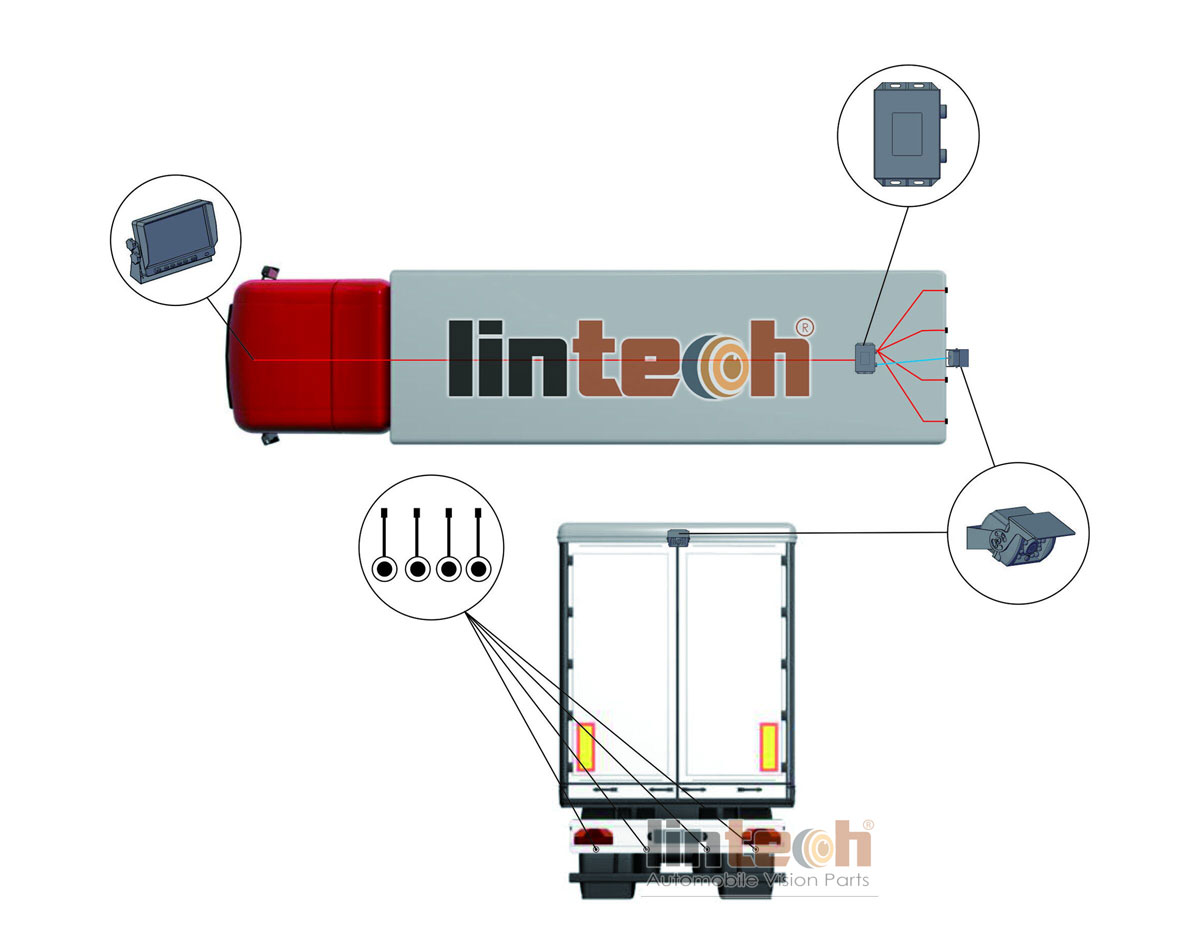

1) 8 probe reversing + Front (Side) Sensor Detecting system, applicable to all the large vehicles;
2) Sensor detection range: 0 m ~ 5.0 m
3) Connector to Monitor, Host, Probe cable length : 15m, 3m (Customized)
4) Cable connection installation, prevent radio interference;
5) Main box with Waterproof designed Special for Heavy duty Trucks, Mining, large vehicles;
6) Bracket screws or punch probe (waterproof for thread form 4 probe);

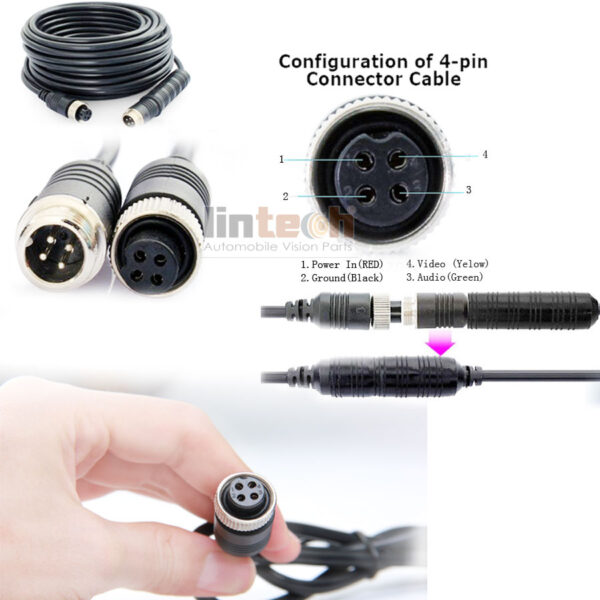

7) 4 pins screw on extension cable, 15 meters;(other length customized);
8) Power input:12-32 v DC; Stand by : less than 1W
9) Operating frequency: 40 KHZ.
10) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.
11) Size: length x width x height = 153mm x 99mm x47mm.
12) Low temperature – 40 ℃, high temperature of 80 ℃;
