LintechCo: Leading Chinese B2B Mobile DVR Camera Systems Supplier.

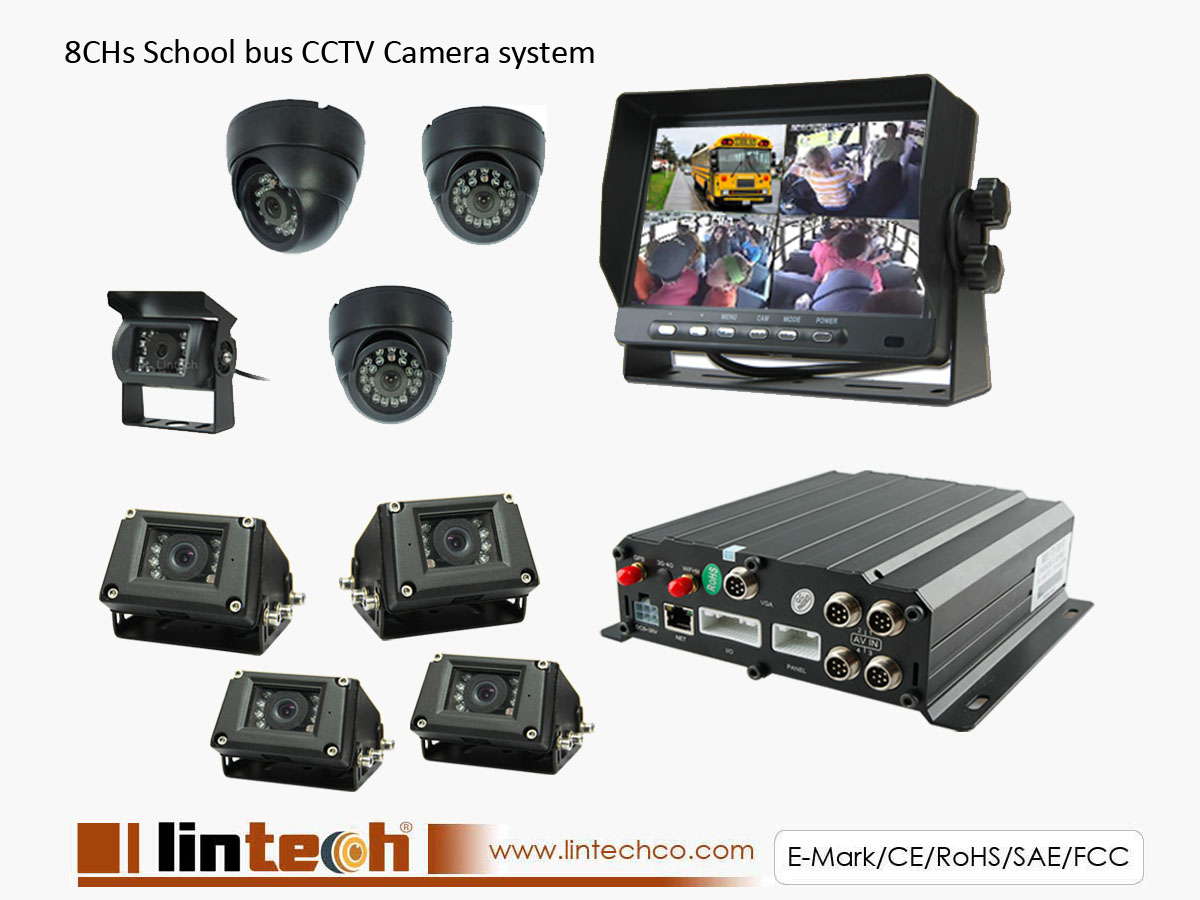

8CHs MDVR CCTV Security Camera System for School Bus with Free Client Software

School bus Camera Systems for Surveillance Security and Monitoring

1-8 Cameras 2TB HDD / 256GB SD Card + 3G/4G LIVE Monitoring

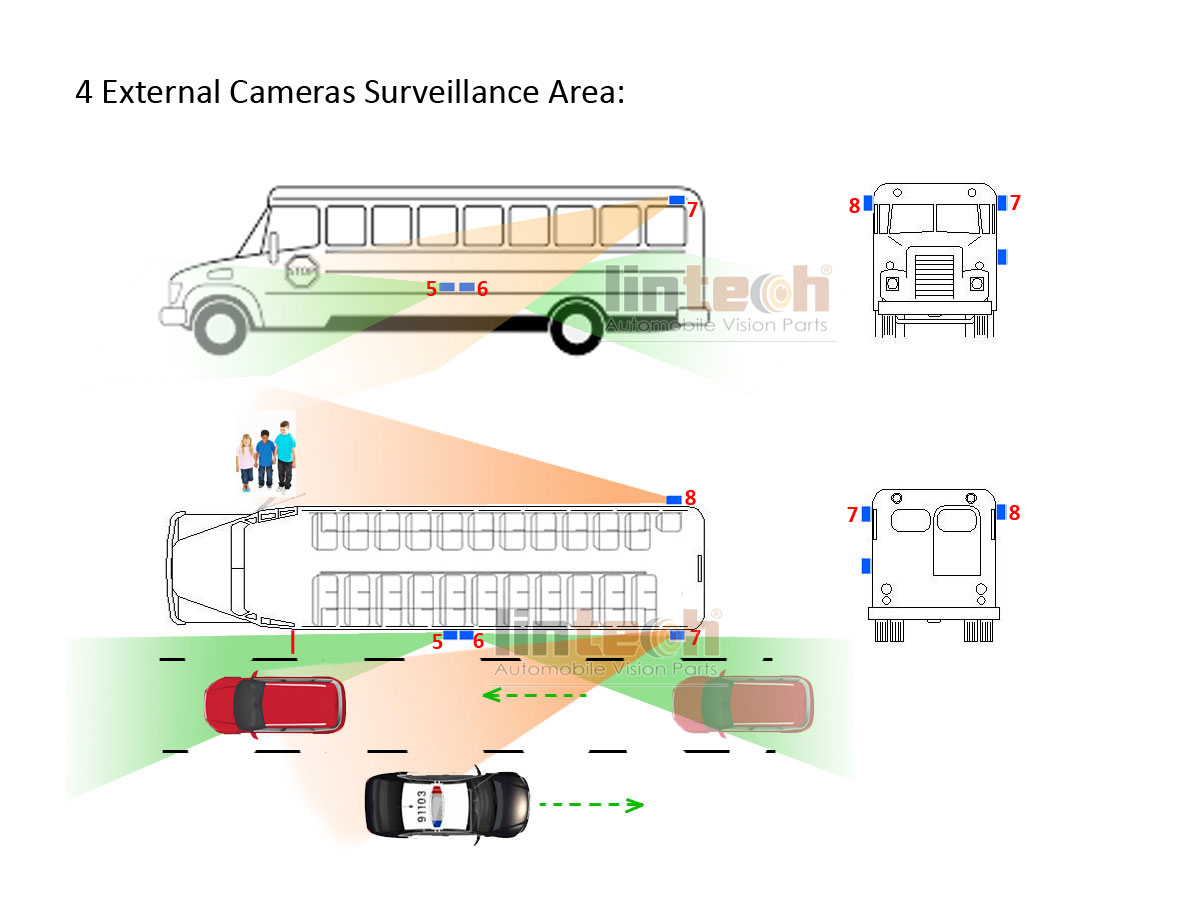

4-External- School bus Cameras-installation

960P/720P MDVR DVR-A8 Main Features:
-CMSV6 Client Platform;
-3G 4G/WIFI for video files download (Optional);
-Video files can & alarm log can be downloaded remotely;
-4CHs/8CHs input AHD D1/720P/960P record optional;
-SD Card 128GB & HDD(maximun 2TB) for main recording
-USB mouse operation
-USB2.0 high speed for video files’ backup
-PC and mobile(Android and iPhone) client remote Live monitoring:
-Integrated with G-sensor,support motion detection

-Via 2x RS232,2x RS485 interface, can be integrated with oil sensor/TPMS/Fatigue driving/Passenger counting system;
-Working temperature -40~85C;
-Size: 158(W) x198(H) x65(D) mm,Weight: 1850g

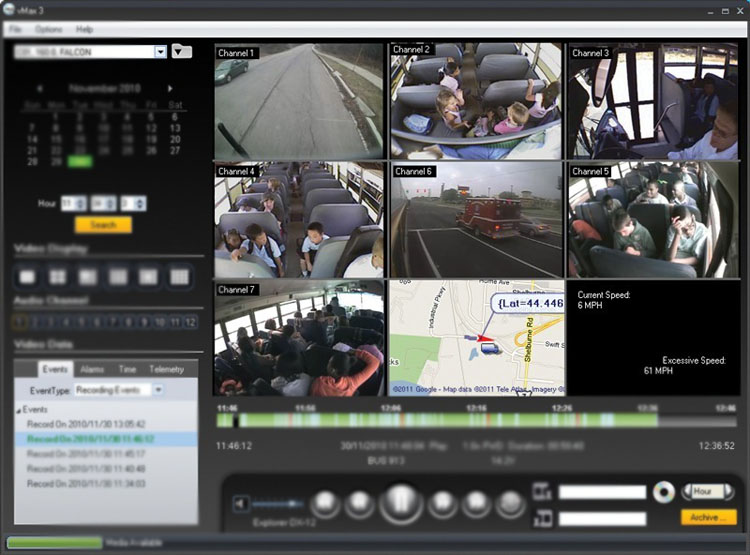

DVR-A8-view-playback-softwareschool-bus-internal-camera-installation

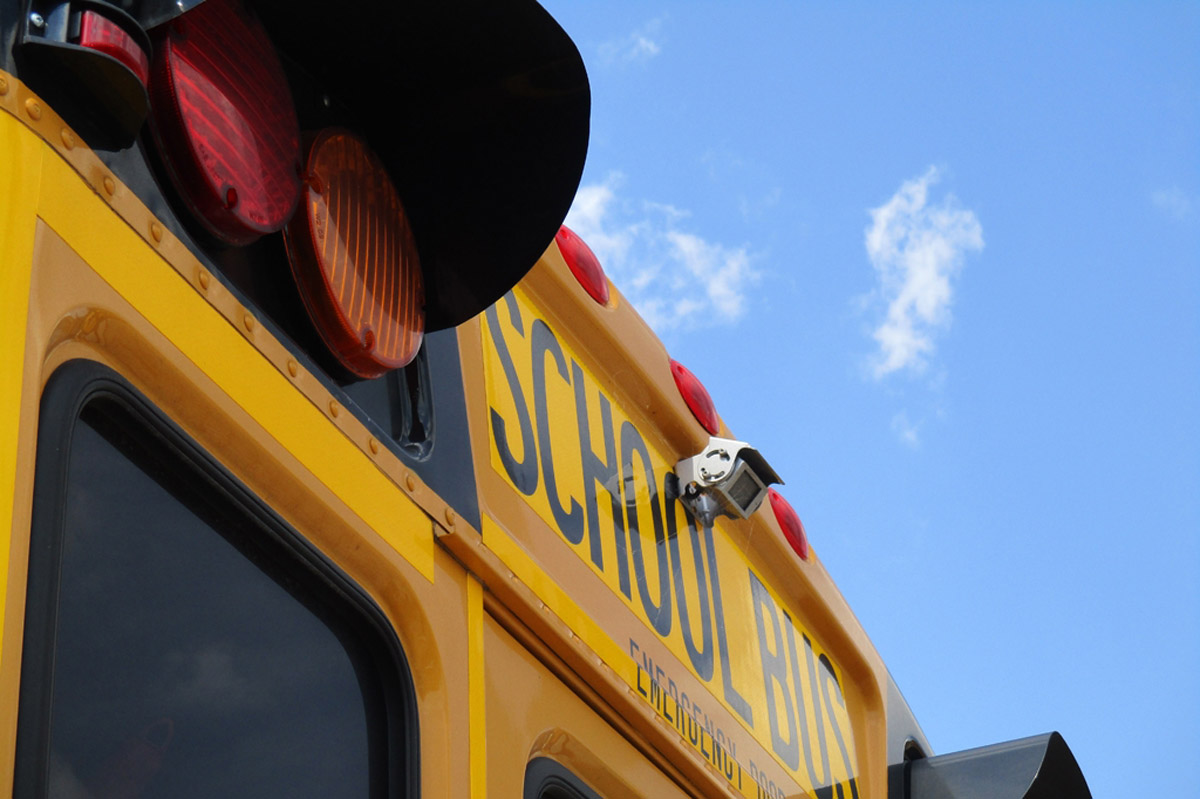

school-bus-safety-CCTV-Backup-camera

School bus CCTV Camera system to protect your children

The DVR-A8 is an 8-channel cameras student transportation bus video surveillance camera system for school buses with a higher level of Video Evidence Security virtually eliminating the possibility video files will be viewed by outside parties or on unauthorized video players. The DVR-A8 mobile vehicle surveillance DVR has built in support for up to 2TB memory storage for either HDD or SD Card.

Student video surveillance camera system for school buses offers Built in GPS providing; vehicle speed and free On Screen Mapping during playback. In addition the DVR-A8 has a built in Wi-Fi Wireless module with external Wi-Fi antenna for increased range, as well as Automated Data File Download CMS software included with the system at no cost.

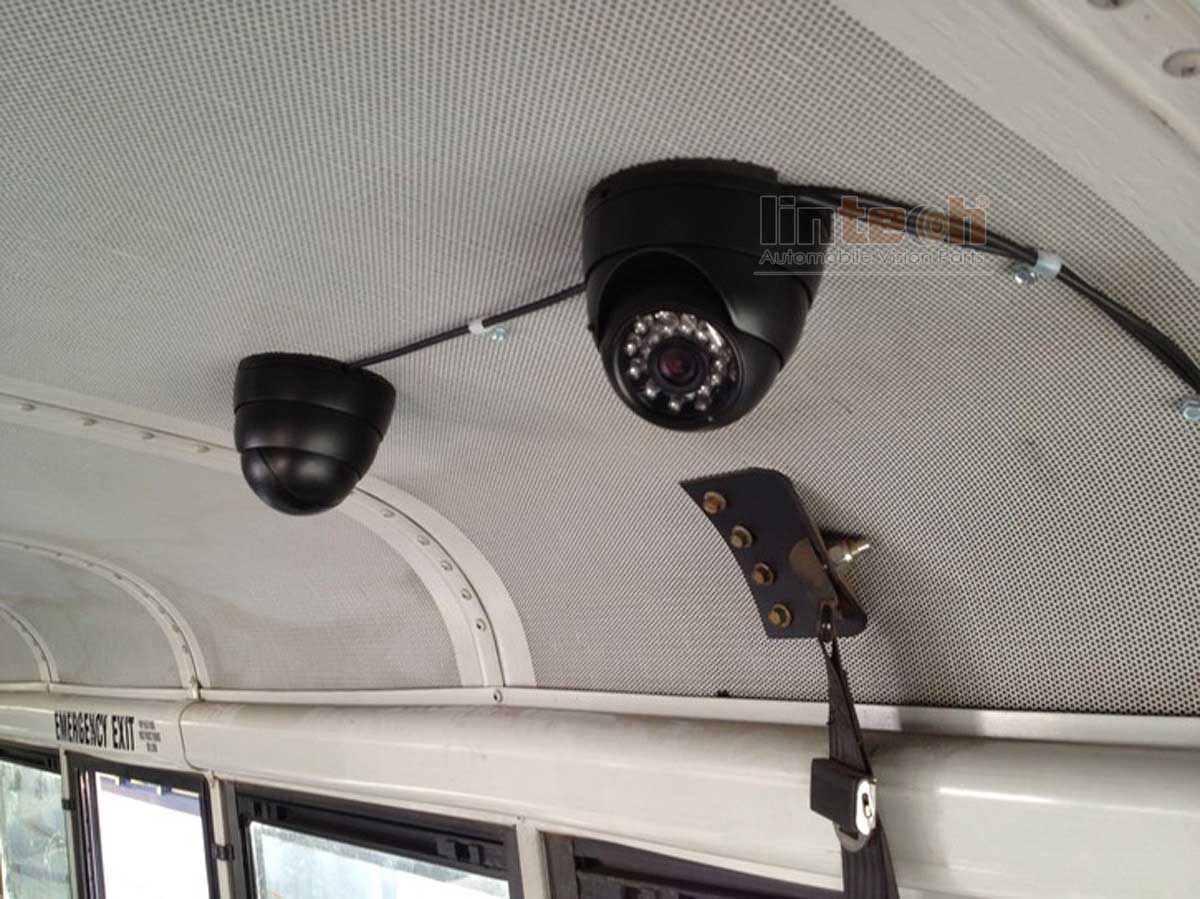

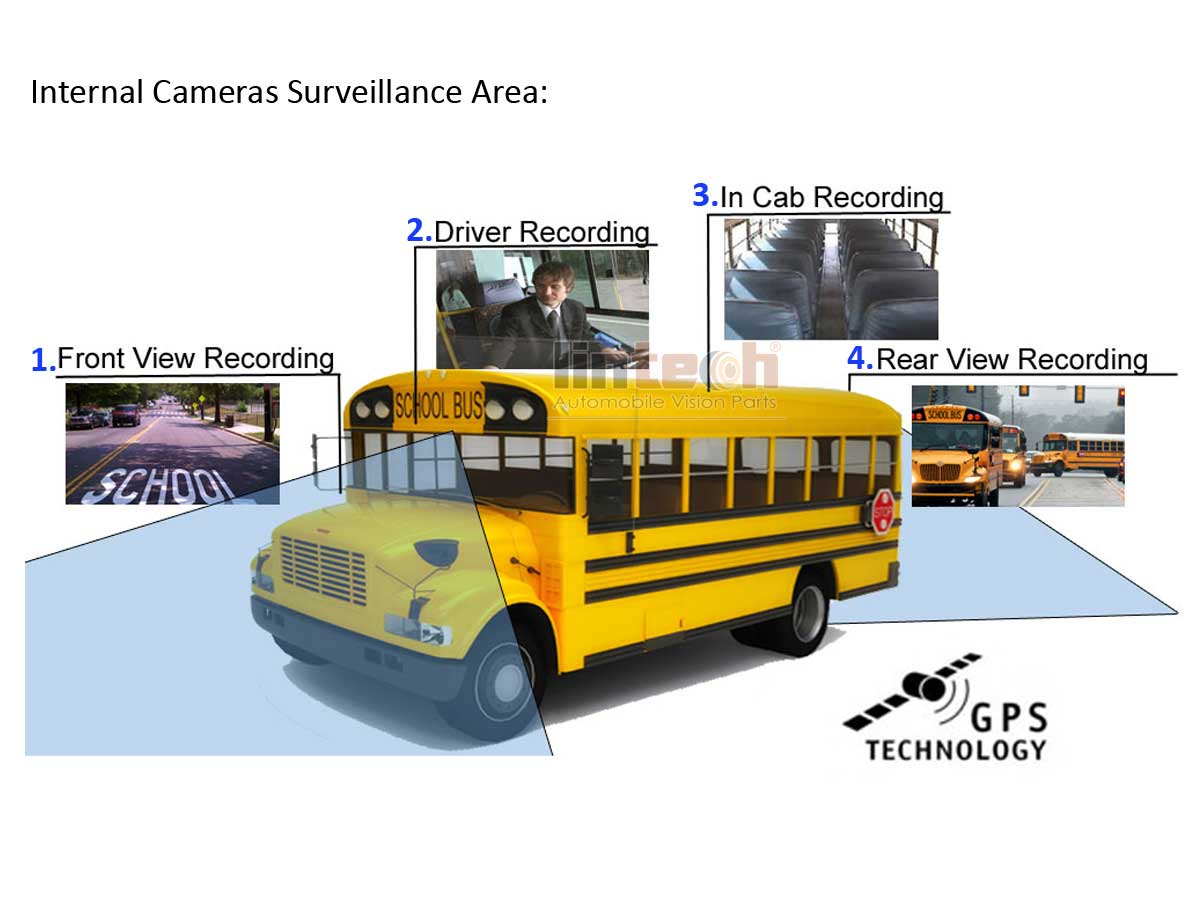

About cameras installation, normally 4 cameras internal including Front view of windscreen, driver position and front door, dome cameras on the roof of the bus to see students on seats.

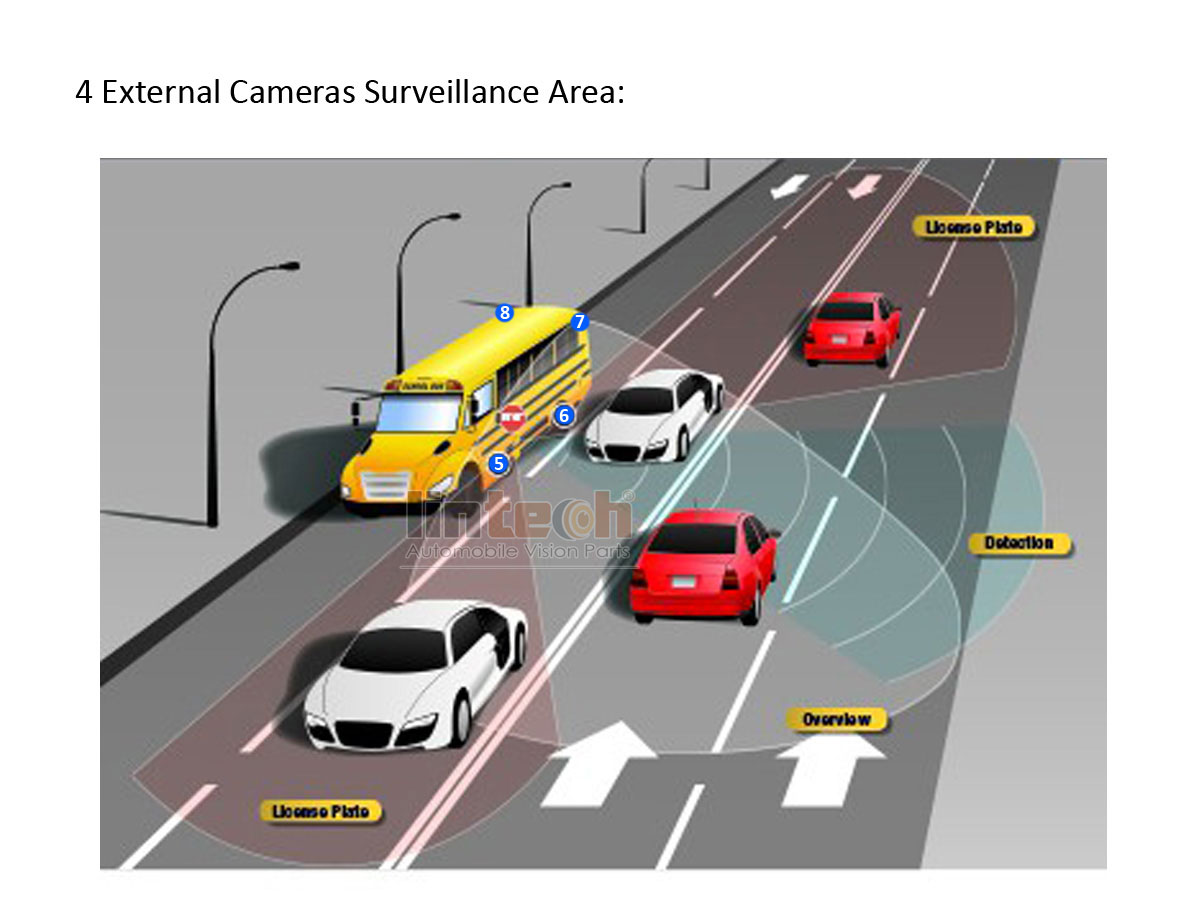

4 external cameras to recording videos around the school bus, to collect and save the video of the traffic accident.



Your any question will be replied within 24 hours.

Data Sheet

DVR Main Features:

-CMSV6 Client Platform;
-Supports 3G 4G/WIFI for video files download (Optional);
-Video files can & alarm log can be downloaded remotely;
-4ch/8ch AHD D1/720P/960P/1080P optional;
-Supports SD Card 128GB & HDD(maximun 2TB) for main recording;
-Supports USB mouse operation;
-Supports USB2.0 high speed for video files’ backup;
-Support PC and mobile(Android and iPhone) client remote monitoring‍;
-Integrated with G-sensor,support motion detection;
-Via 2x RS232,2x RS485 interface, can be integrated with oil sensor/TPMS/Fatigue driving/Passenger counting system;
-Working temperature -40~85C;
-Size: 158(W) x198(H) x65(D) mm, Weight: 1850g



SPECIFICATIONS



ItemIntroduction
Operating systemLinux (2.6)
Video compression formatH.264 main profile. DSP high-performance processor
OSDSupport GPS, time, date, vehicle ID etc. in video
GUIOSD interfaceUSB mouse/remote control
VideoandvideosystemVideo input1~8CH CVBS video input, 1.0Vp-p, 75Ω
Video output1CH SD CVBS video output, 1.0Vp-p, 75Ω
PreviewSupport 1CH and 4CH
ResolutionCIF,HD1,D1,720P,960P,1080P optional
Video qualityQuality 1~4 optional, quality1 is highest, quality4 is lowest
Recording RatePAL: 100f/s , CCIR625 line,50 fields

NTSC: 120f/s, CCIR525 line,60 fields

CIF: 256Kbps ~ 1.5Mbps, quality 1~4 optional

HD1: 600Kbps ~ 2.5Mbps, quality 1~4 optional

D1: 800Kbps ~ 3Mbps, quality 1~4 optional

960H: 500Kbps ~ 4Mbps, 8 levels recording rate optional

720P: 800Kbps ~ 6Mbps, 8 levels recording rate optional

VideostreamingISO14496-10 standard
Recording modeAutomatic recording, timer recording, alarm recording
AudioAudio input4CH input
Audio output1CH output
Compression formatG.726, Rate 5KB/s
AlarmAlarm input6CH alarm input(Level input)
Alarm video file begins to be saved for 10 seconds before alarm, and the time of alarm video file can be set from 30 to 1000 seconds.
Alarm output1CH alarm output(Relayoutput)
Communication interfaceRS232,RJ45 10M/100M adaptivenetwork interface
GPS ,G-sensorSupport built-in G-sensor and GPS
Video storageSD card /Hard drive256GB & 2TB HDD
Firmware upgradeRemote upgrade/SD card/ hard drive upgrade
Fileformat/systemFAT32
Video playbackVideo searchSearch video files according to recording time, recording mode (alarm, normal) and video storage device etc.
PlaybackMaximum support 4CH/8CH simultaneous playback, and analyzevehicle information, support fast forward, rewind, play and pause
Support 2/4/8/16 times fast forward and rewind
PowerPower management1, Key start/shutdowm DVR: Start/shutdowm DVR according to vehicle key signal, it can also be set to delay shutdown.

2, Timer start/shutdowm DVR.

InputvoltageDC:+8V ~ +36V
Outputvoltage+12V*2A;+5V*0.5A
Power-downprotectionUPS technology can save complete video files and ensure those files are not damaged when power-down suddenly.
PowerconsumptionNormal operation<10W; Standby<0.5W
Work environmentTemperature-40°C ~ +80°C
Humidity20% to 80%
Security managementPasswordaccessUser password and administrator password



Photos

8CHs Mobile DVR Camera Systems for School Bus with Free Client Software, LSB-05
