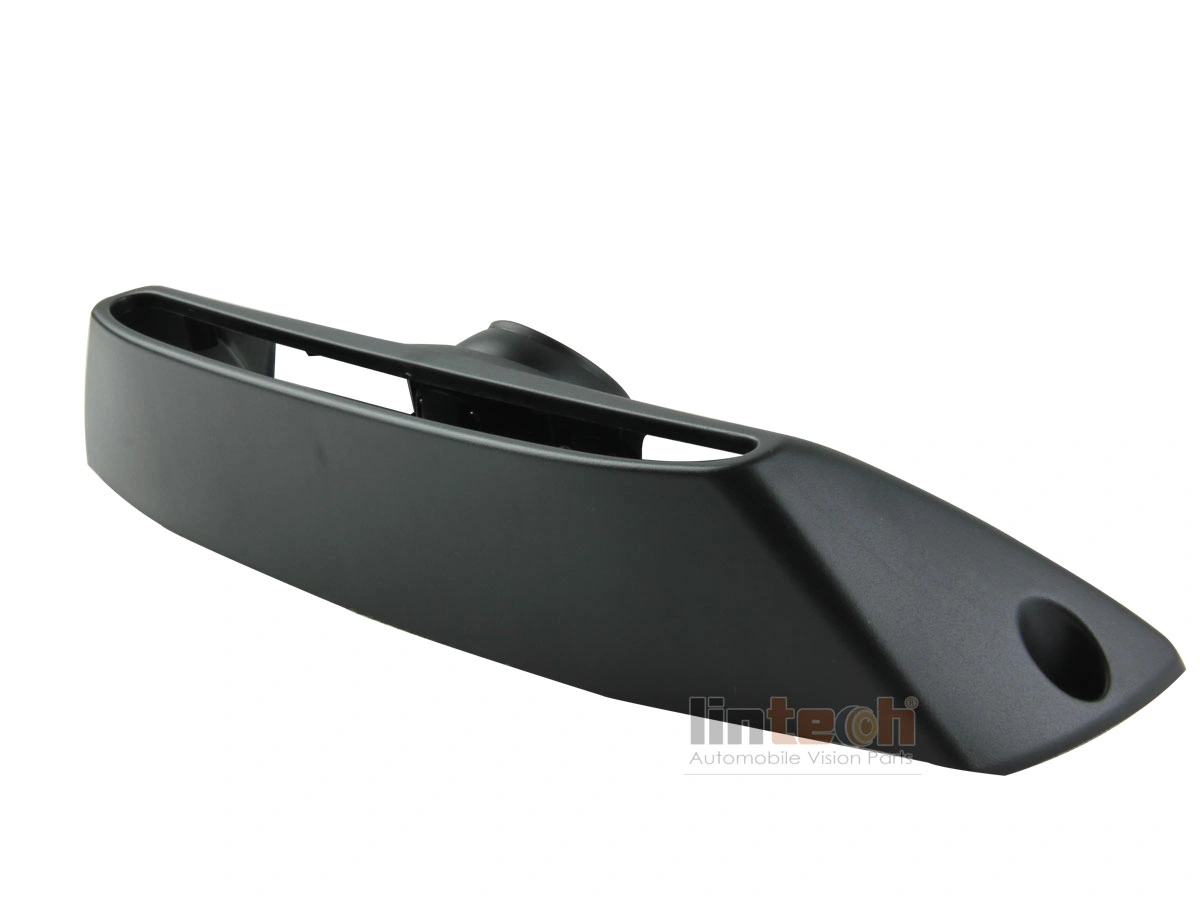

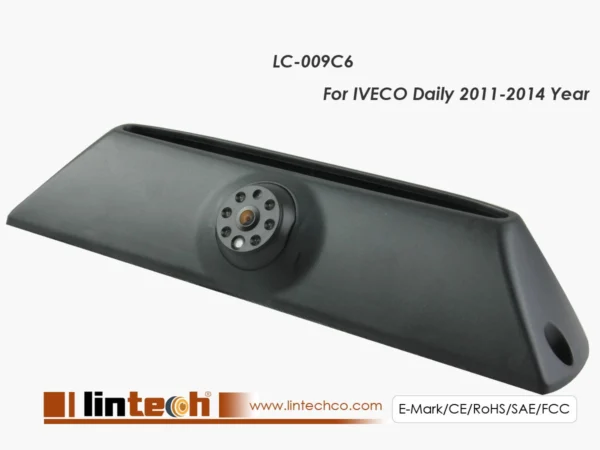

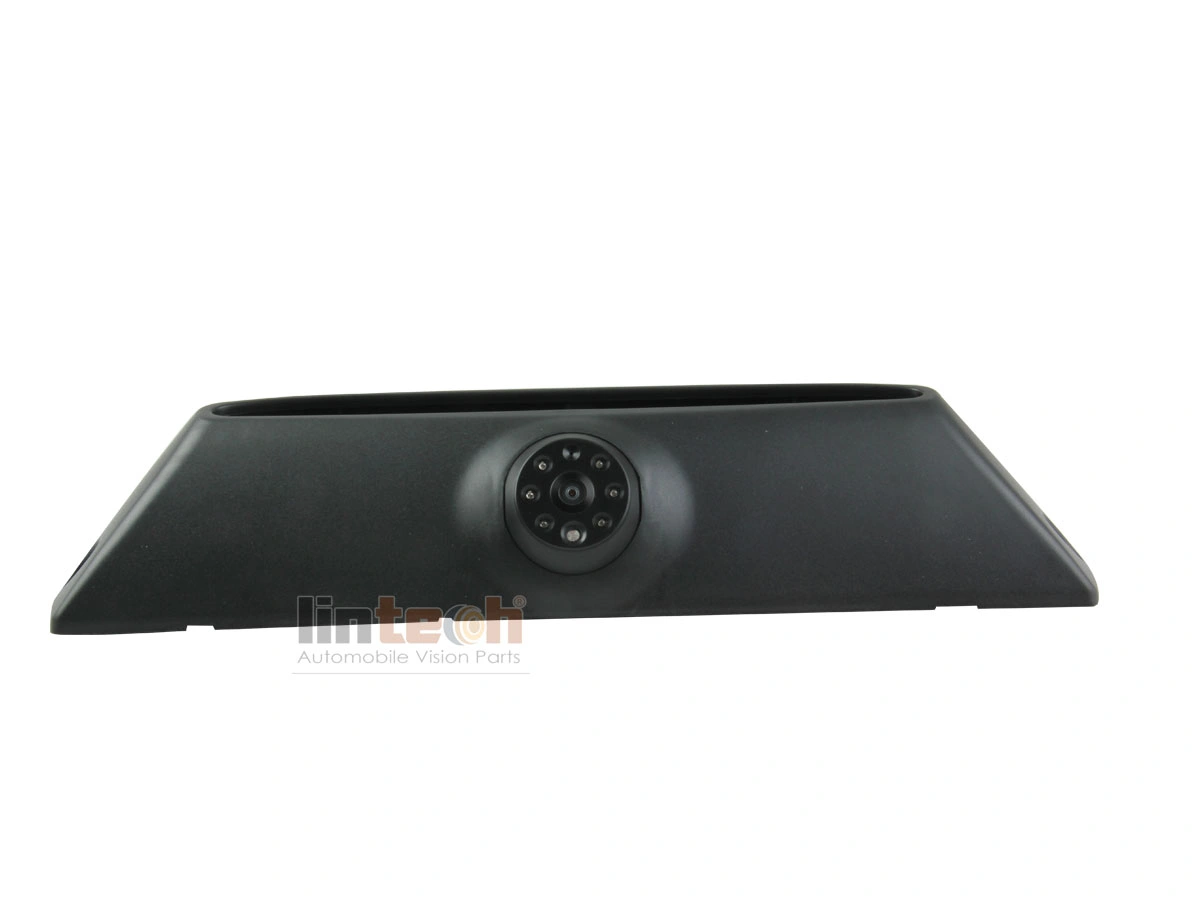

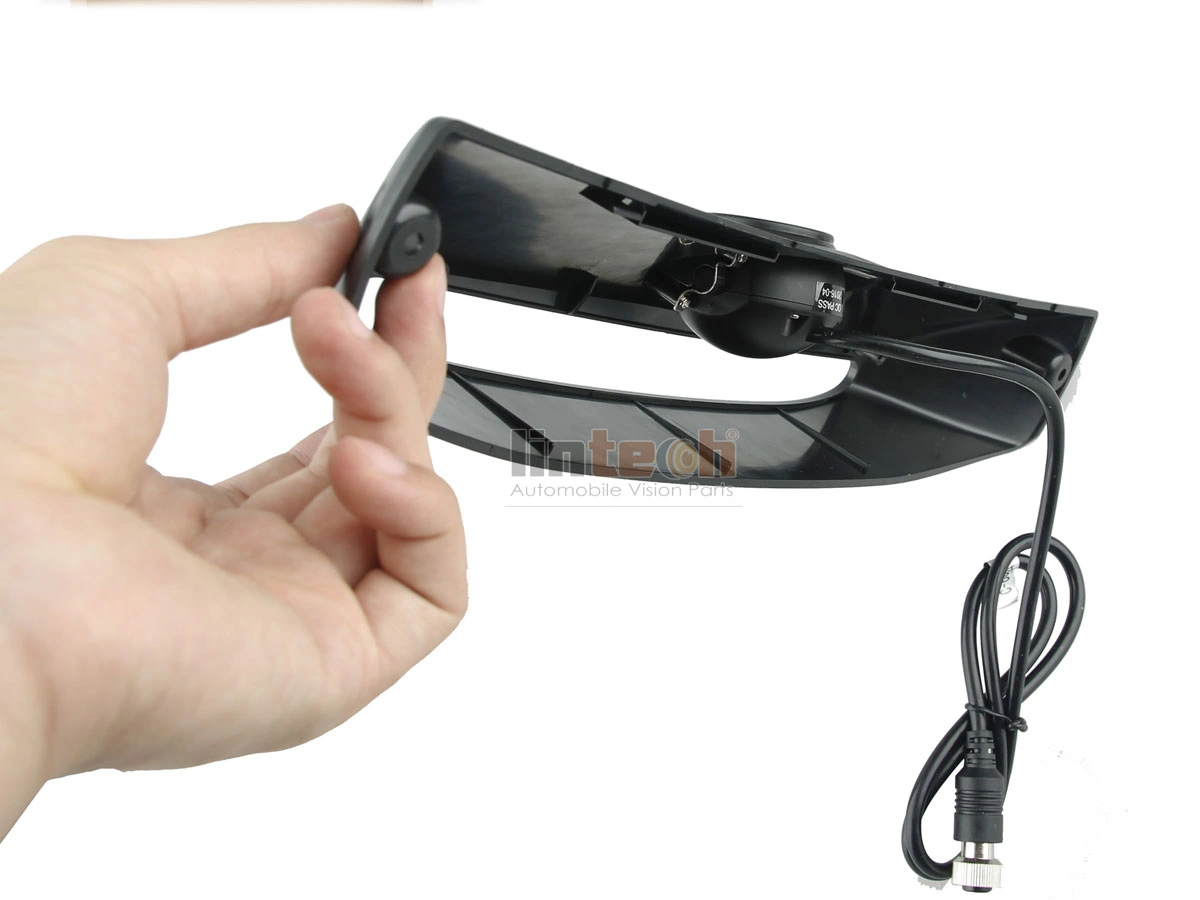

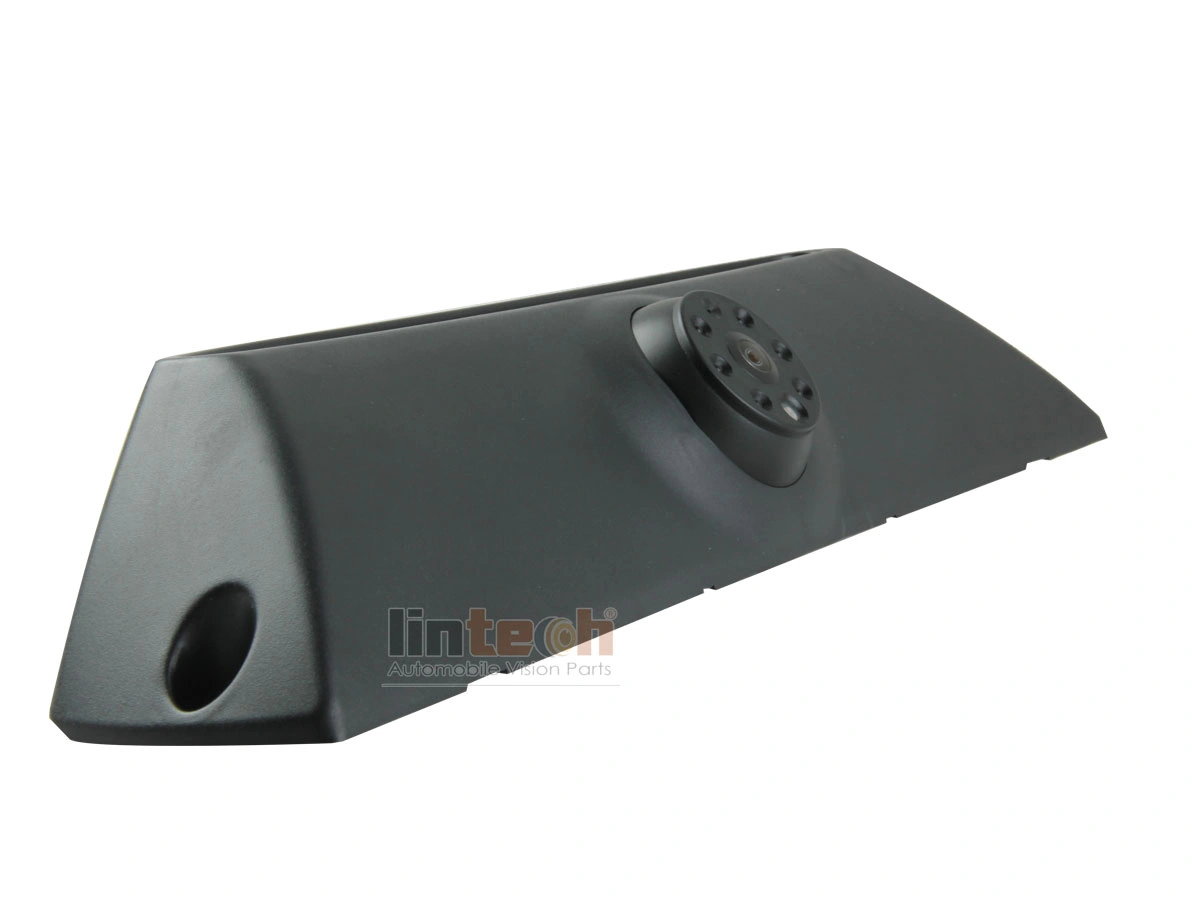

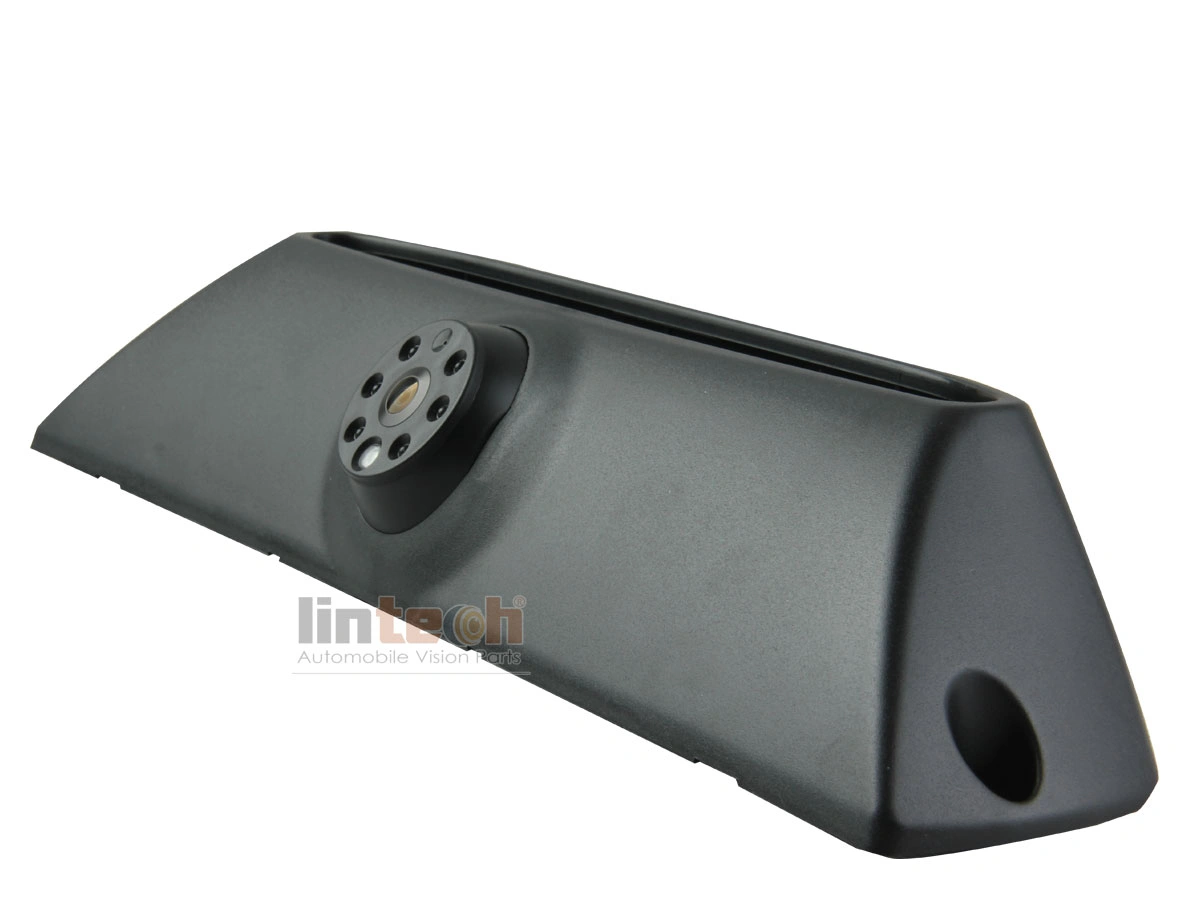

User Manual DownloadBrake Light Parking Camera for IVECO Daily 2011-2014
Special designed for IVECO Daily 2011~2014
1:1 Original dimensions (without lamps)
Wide view angle up to 170 degree
SONY CCD / CMOS 3089 Sensors optional
6pcs Built-in Infra-red night vision IR LEDs
Microphone: Optional
Mirror/ Normal image switch function optional (CMOS sensor)
Parking guide lines optional ( CMOS sensor)
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/3″ SONY CCD | 1/3″ CMOS PC1089 |
| Resolution | N:752x494pixels P:752x582pixels |
N:752x494pixels
P:752x582pixels |
| Horizontal Resolution | 580TVL | 420TVL |
| TV System | NTSC/PAL | |
| Lens | 1.7mm | |
| View angle | 170 degree (105 Horizotal,85 Vertical) | |
| Power supplier | 12VDC | |
| Current consumption | 150mA | 130mA |
| Power consumption | 1.8W @ 12VDC | 1.5W @ 12VDC |
| Min illumination | 0 Lux (LED ON) Night Vision | |
| IR LED | 7pcs (Night vision distance 5-7m) | |
| Waterproof rating | IP68 | |
| Packing Weight | 1.3kg | |
| Dimension(WxHxD) | 343mmx71mmx80mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress |
