Model No.:LM-070A-2

  • Resolution:800*R.G.B*480 digital
  • Built in parking guide line
  • Operated power: DC 12V~24V
  • 2 Videos Input
  • Camera  view angle: 120°
  • Night vision: 9pcs IR LED
  • IP rating: IP68 (Waterproof)
FacebookTwitterGoogle PlusPinterest

Descriptions

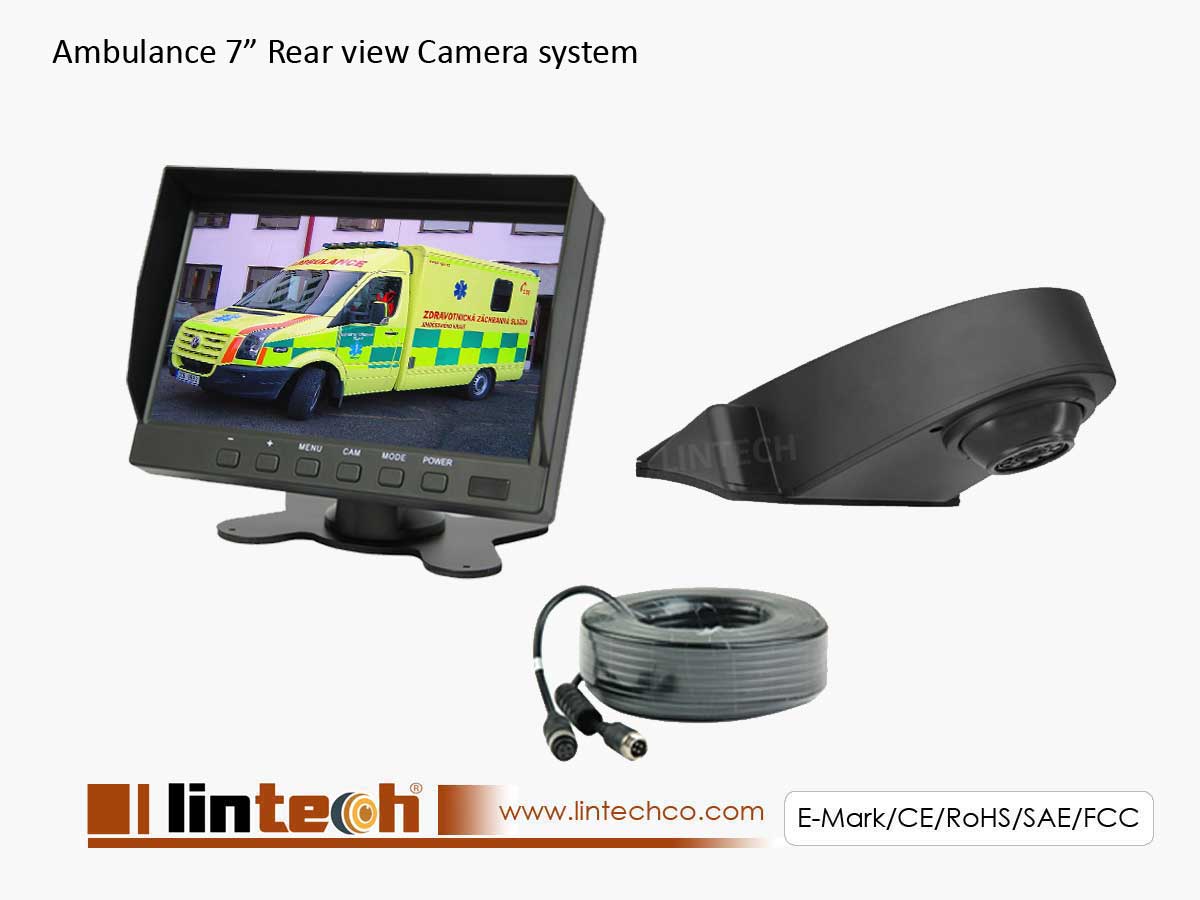

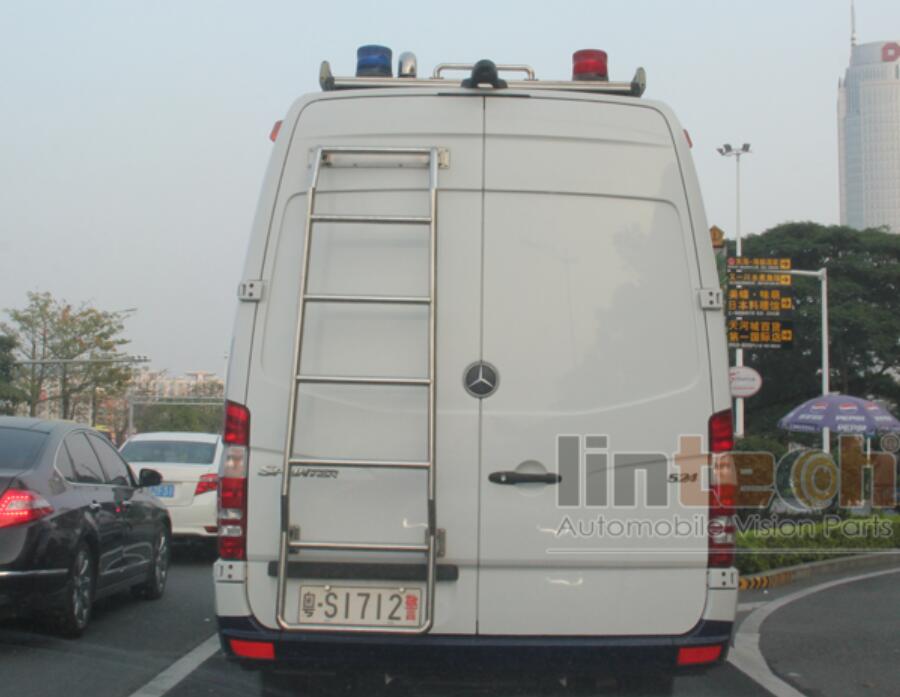

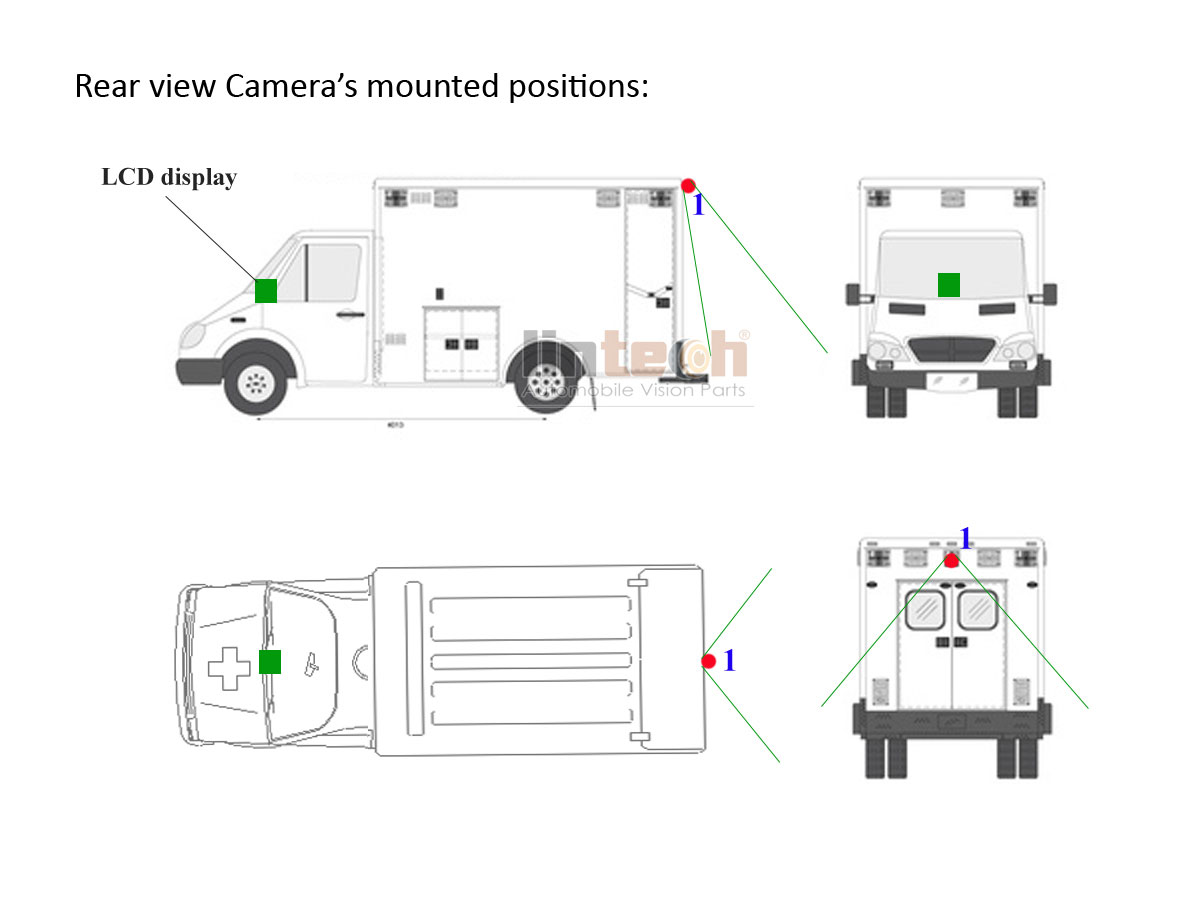

This color rear view camera suitable for most kind of vans roof mounting. Such as Mercedes Benz Sprinter, Fiat ducato, Ford Transit etc.

The camera is complete including video extension RCA cable kit which allows easy plug and play installation, nor 4-Pin aviation connector power supply from monitor directly. The camera is water proof and shock tested to IP68 certification level. High Resolution AHD1080P,720P / CMOS / CCD lenses and chipsets optional.


SPECIFICATIONS of Monitor / camera:

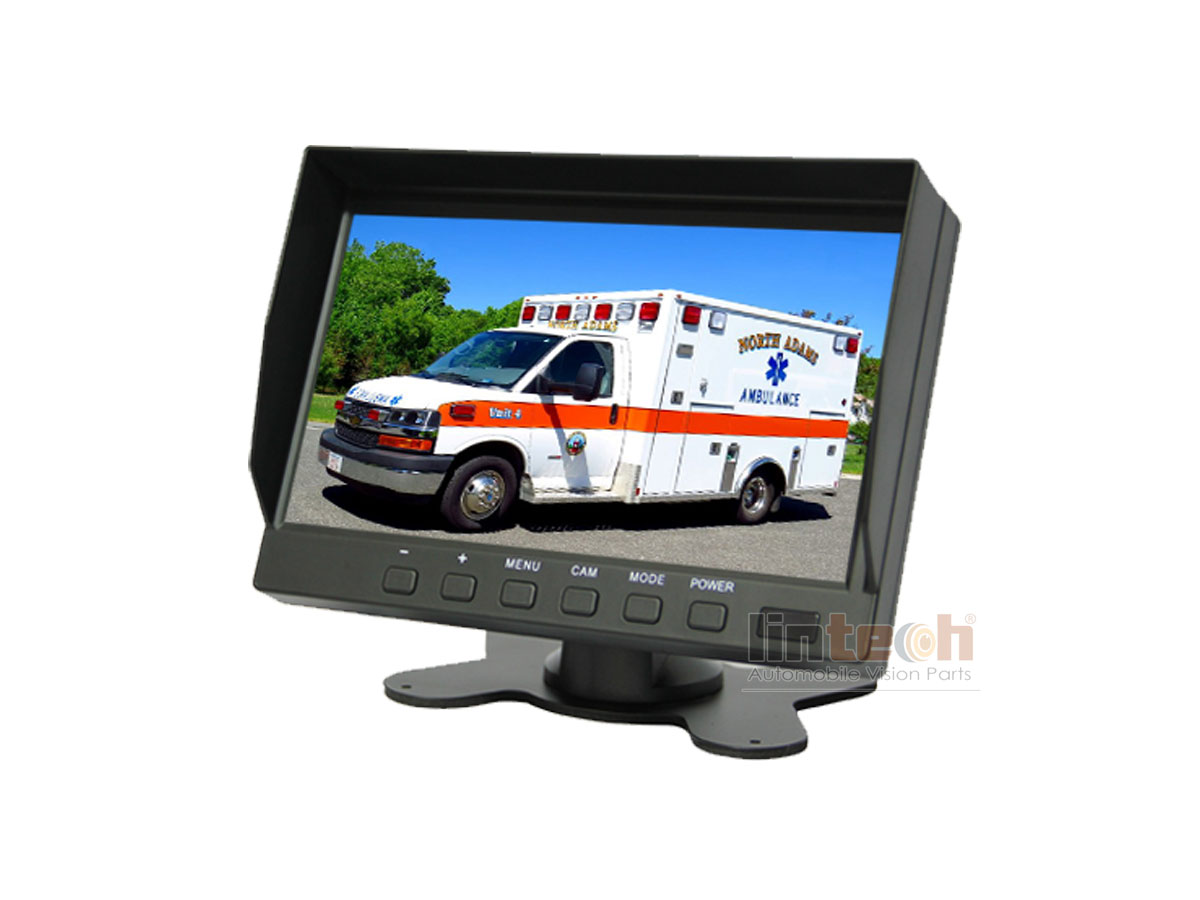

Monitor LM-070A-2:

–2CHs / 4CHs Resolution 800 x 400 R.G.B digital screen
— Top-rated monitor for trucks buses vehicle
— Full function with remote
— Heavy duty and strong housing / bracket for
— Trucks Quad function 4CHs split version is available
— With sun visor for better view in strong light condition
— Reversing guide lines:  Red – Yellow – Green  with regerence distance (adjustable according to camera’s installed position).

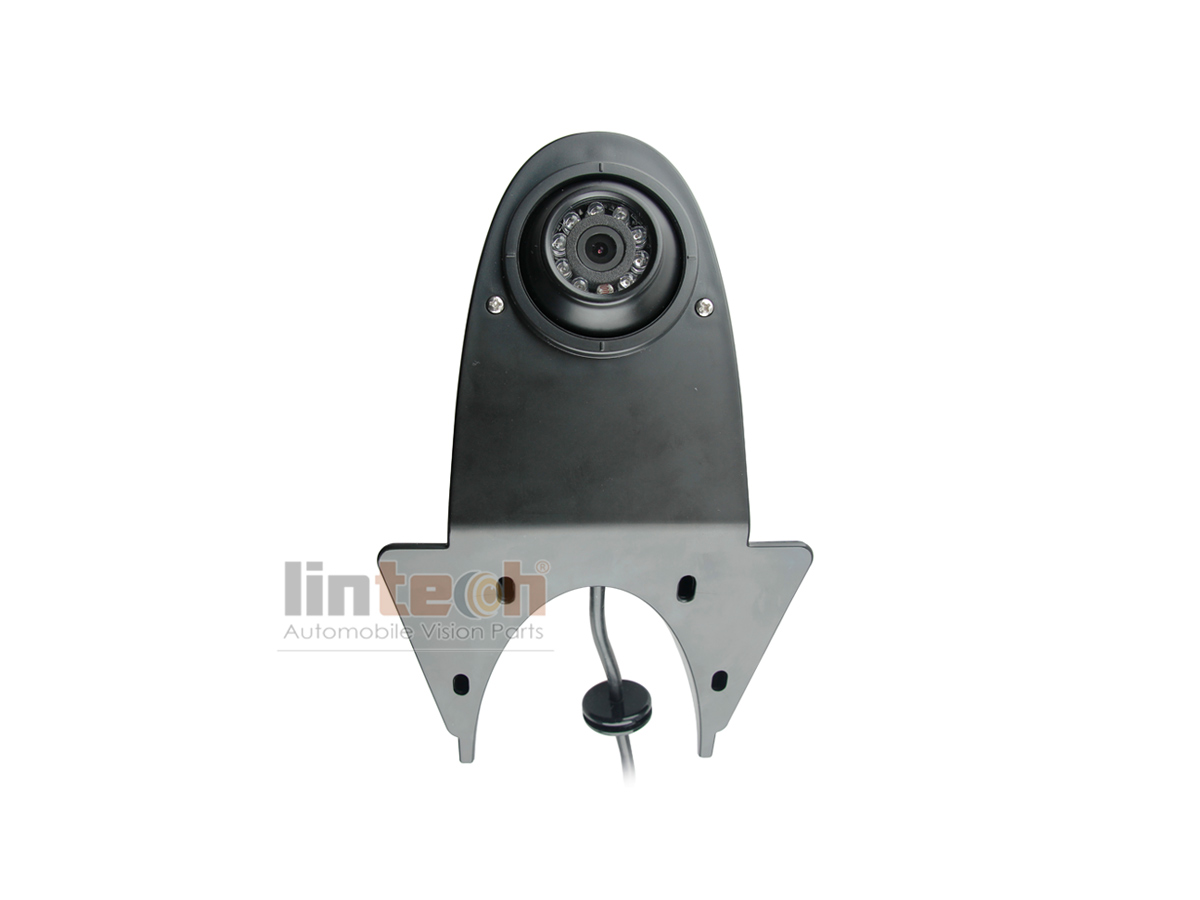

 Specification of Cameras :

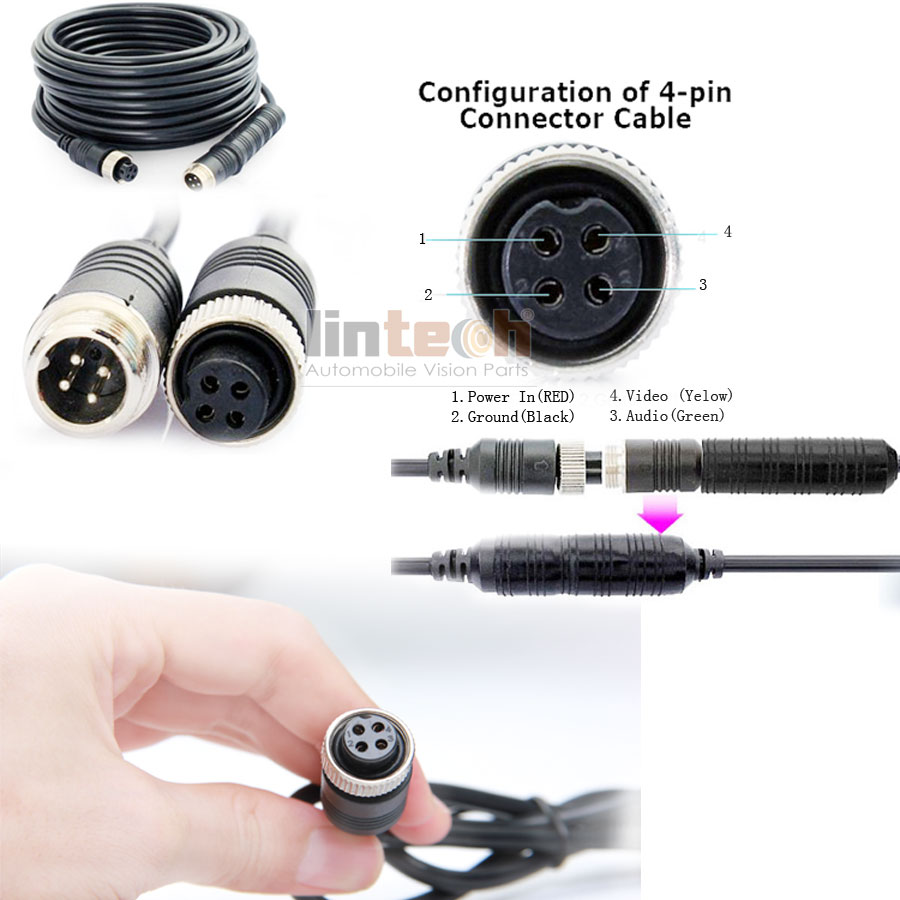

–4Pin DIN waterproof screw on connector
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition

(1)1/4″ Sharp/SONY CCD Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 420 TV lines
(4)With 9 IR LED light ,night vision distance up to 5-7 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature:  -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP68
