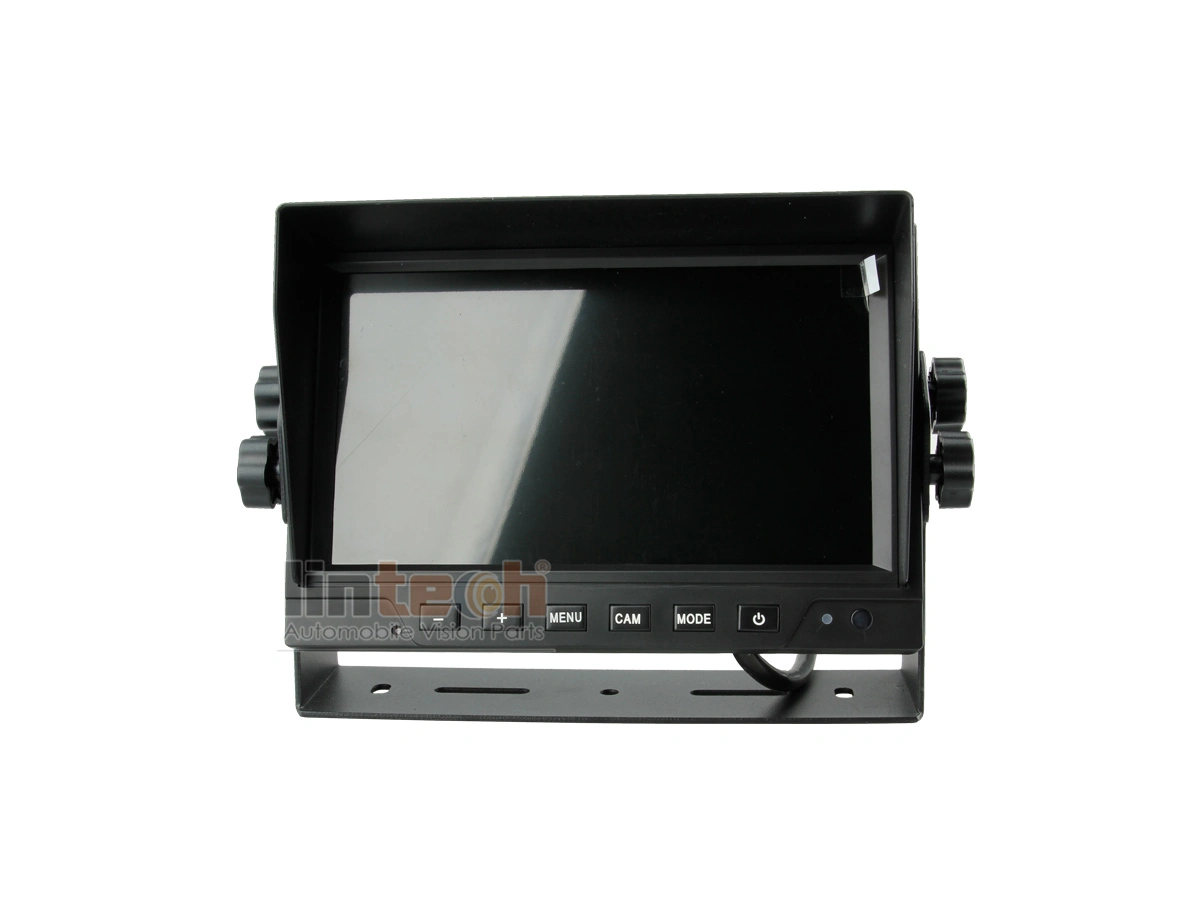

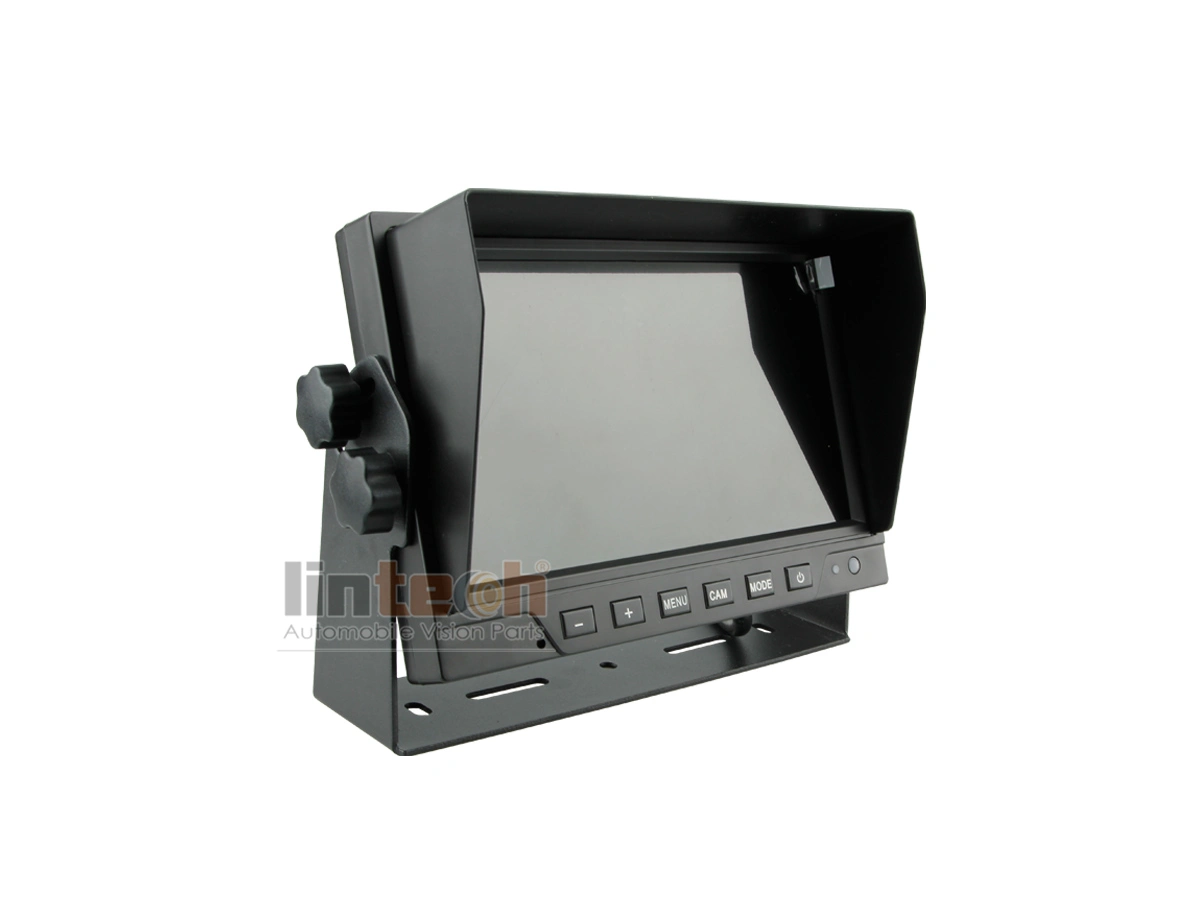

7 inches Split Screen Monitor

Model No.:LM-070C2



  • Blue backlight for button
  • Resolution:800*R.G.B*480 Pixels
  • Built in parking guide line
  • Color system: PAL/NTSC (auto switch)
  • Operated power: DC 12V~24V
  • 2 or 4 Videos Input
  • E-Mark/CE/RoHs/FCC



Category:
Split LCD Monitor, Quad Monitor, Heavy Duty Monitor



This LM-070C2 series monitor has more compact size, thinner body.

Can be 2CHs or 4CHs Version

CVBS or AHD optional.

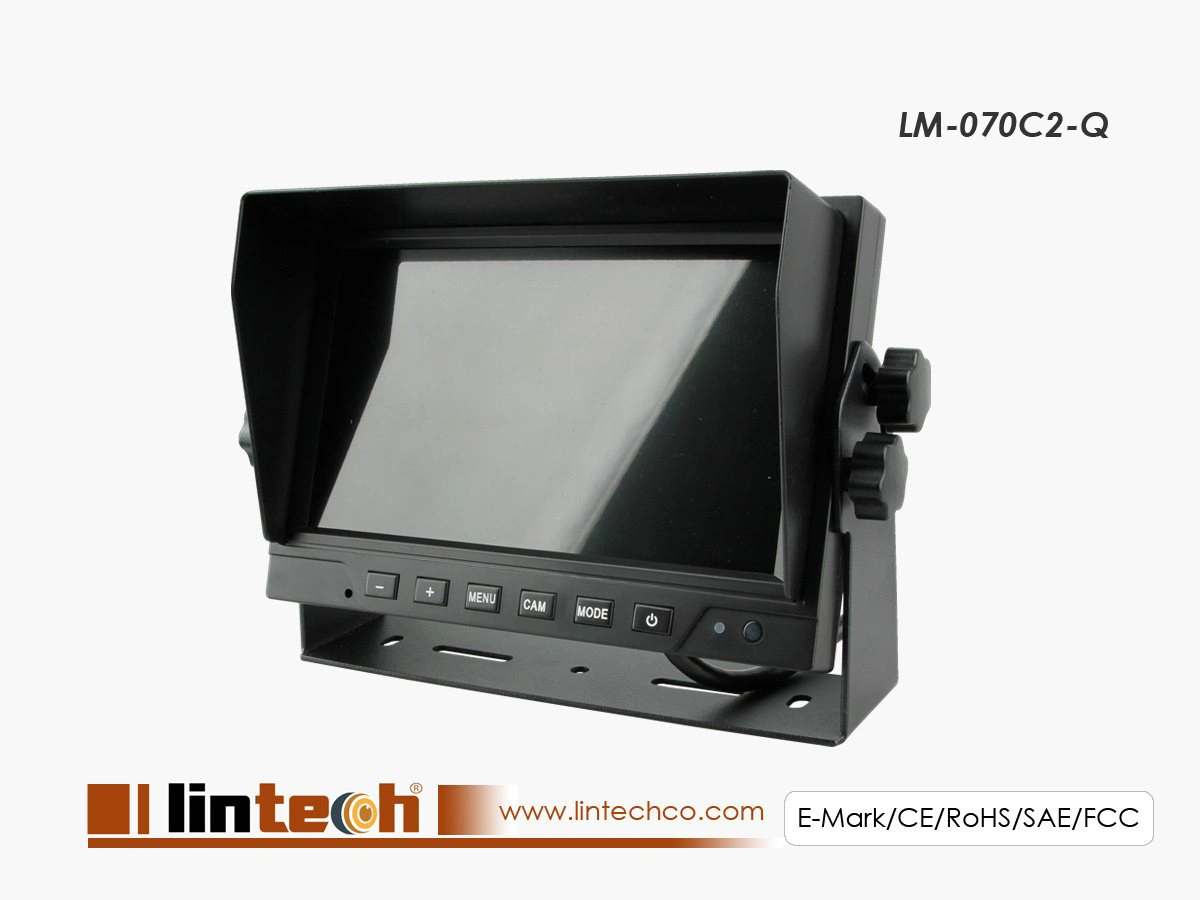

Subjects LM-070C2 LM-070C2-Q
Screen size: 7 inches
Waterproof rating IP30
Screen size ratio 16 : 9
Resolution: 800 x R.G.B x 480 dots
Brightness: 400cd/m2
Contrast: 500 : 1
Viewing angle: U: 50/ D: 60, R/L: 70 Degree
TV system NTSC / PAL
Video input: 2CHs video input 4CHs video input, split display
Display mode Switch, interval Split, triple, dual, single
Mirroring support Horizontal/Vertical 180 degree turned
(mirror function)
Parking guide line Adjust when camera finished install
Reference distance unit Feet/Meter
Video delay display 1-20 second (after triggered)
Menu language English, French, Russian, Spanish, Portuguese, Italian, German
Pannel light source LED
Button backlight Yes (Touch botton)

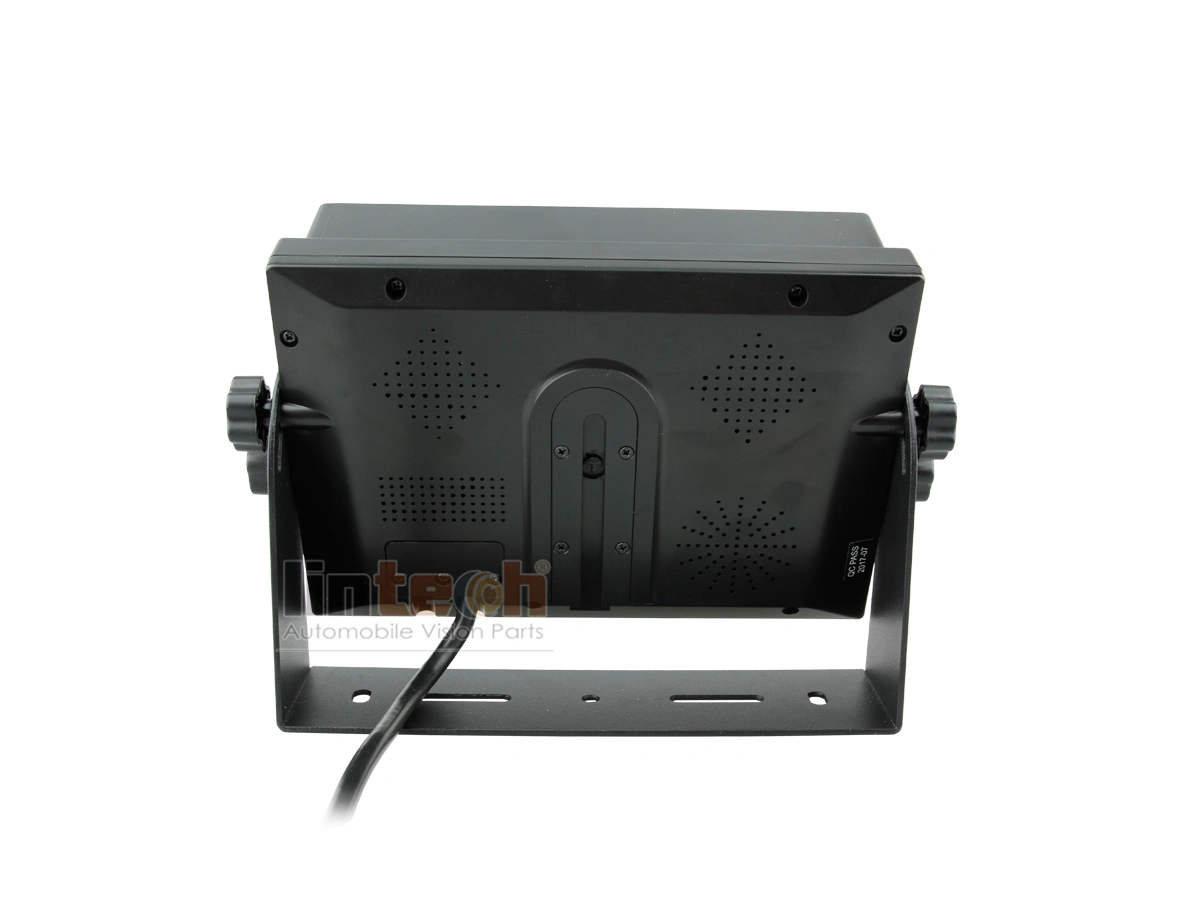

Connector type M12 4pins male connector / RCA Female
Power supply: 12~24VDC
Output voltage 12VDC
Power consumption Less than 7W
Bracket: U-type bracket

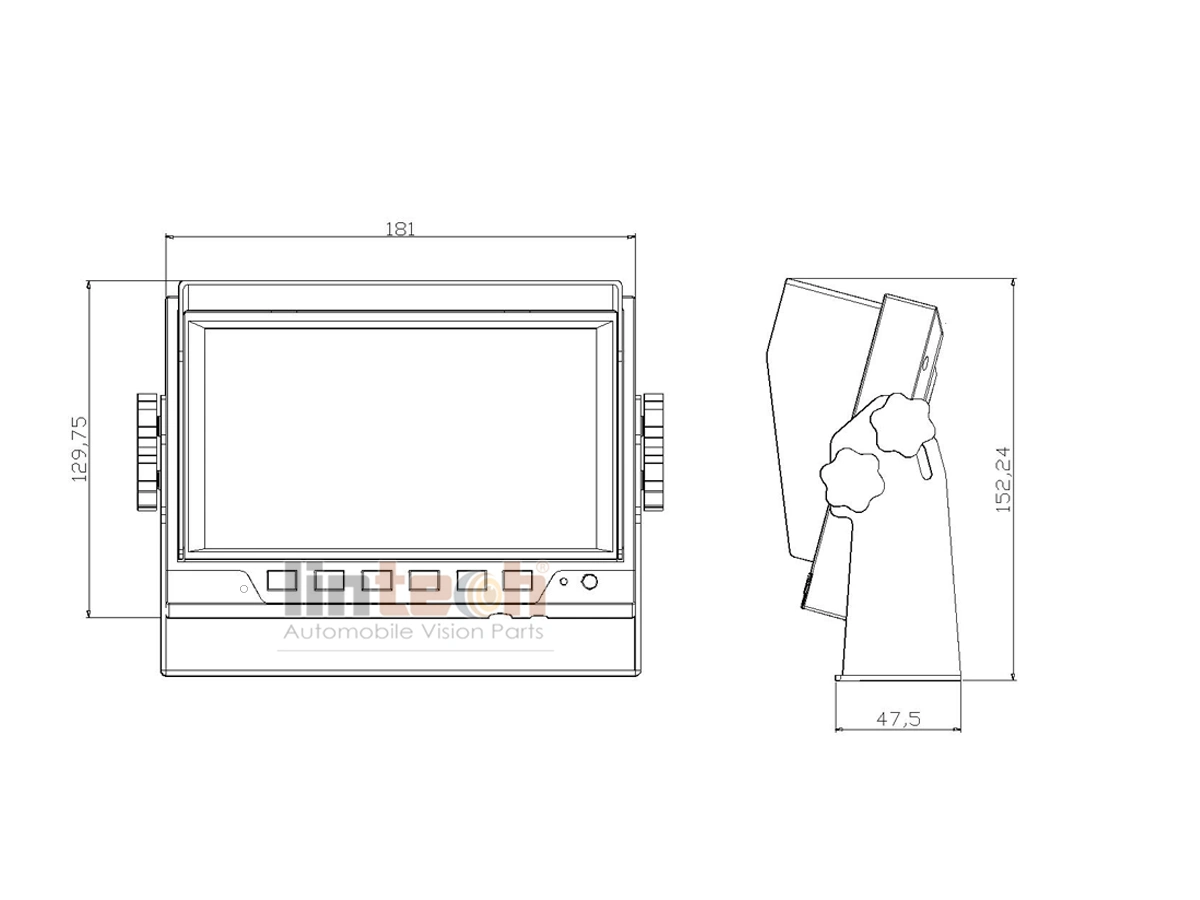

Outer dimension: 223mm x 163mm x 55mm (Max)
Net weight 300g 350g
