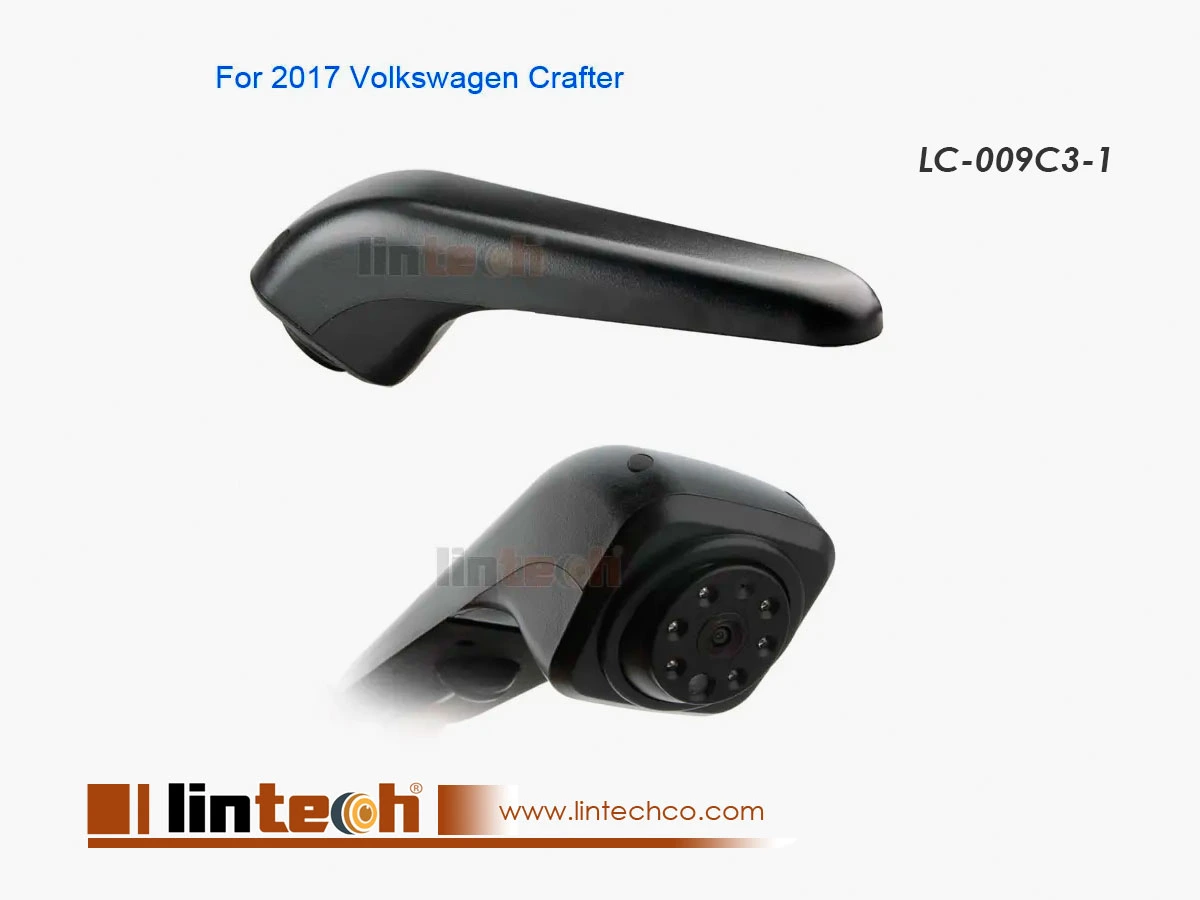

Specifications of VW Crafter Camera:
| Type | CRAFTER van brake light camera | ||
| Sensor | 1/3” APTINA CMOS | 1/3 CMOS 3089 | |
| Resolution: | N:976×494 pixels P: 976×596 pixels | 720(H) x 480(V) | |
| TV line | 700 | 600 | |
| Lens: | 2.6mm | 2.6mm | |
| Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | |
| IR led: | 6pcs | 6pcs | |
| Night Vision distance: | 35ft | 35ft | |
| Waterproof | IP68 | IP68 | |
| View angle: | 160° | 160° | |
| Power voltage: | 12V | 12V | |
| Operation Temp.: | -20°C~+70°C | -20°C~+70 | |
Note:

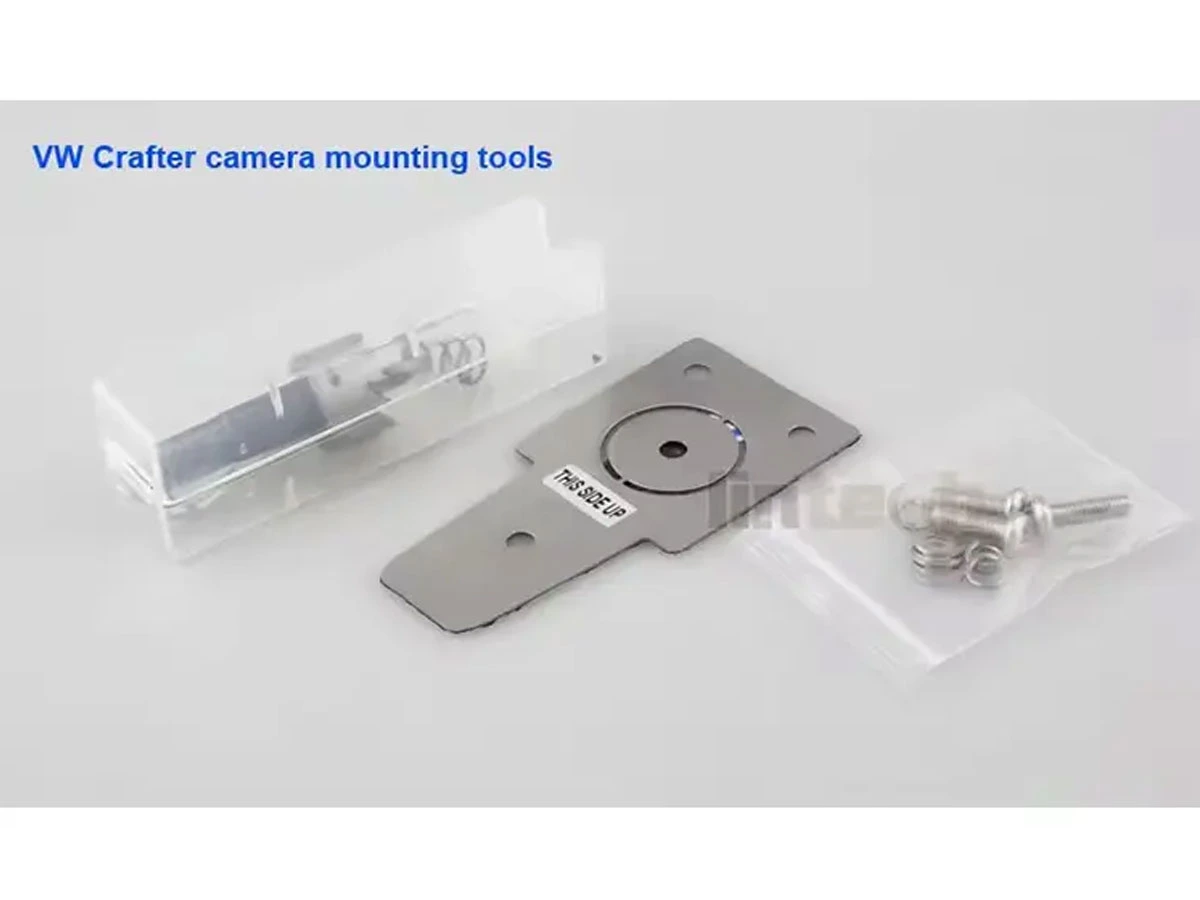

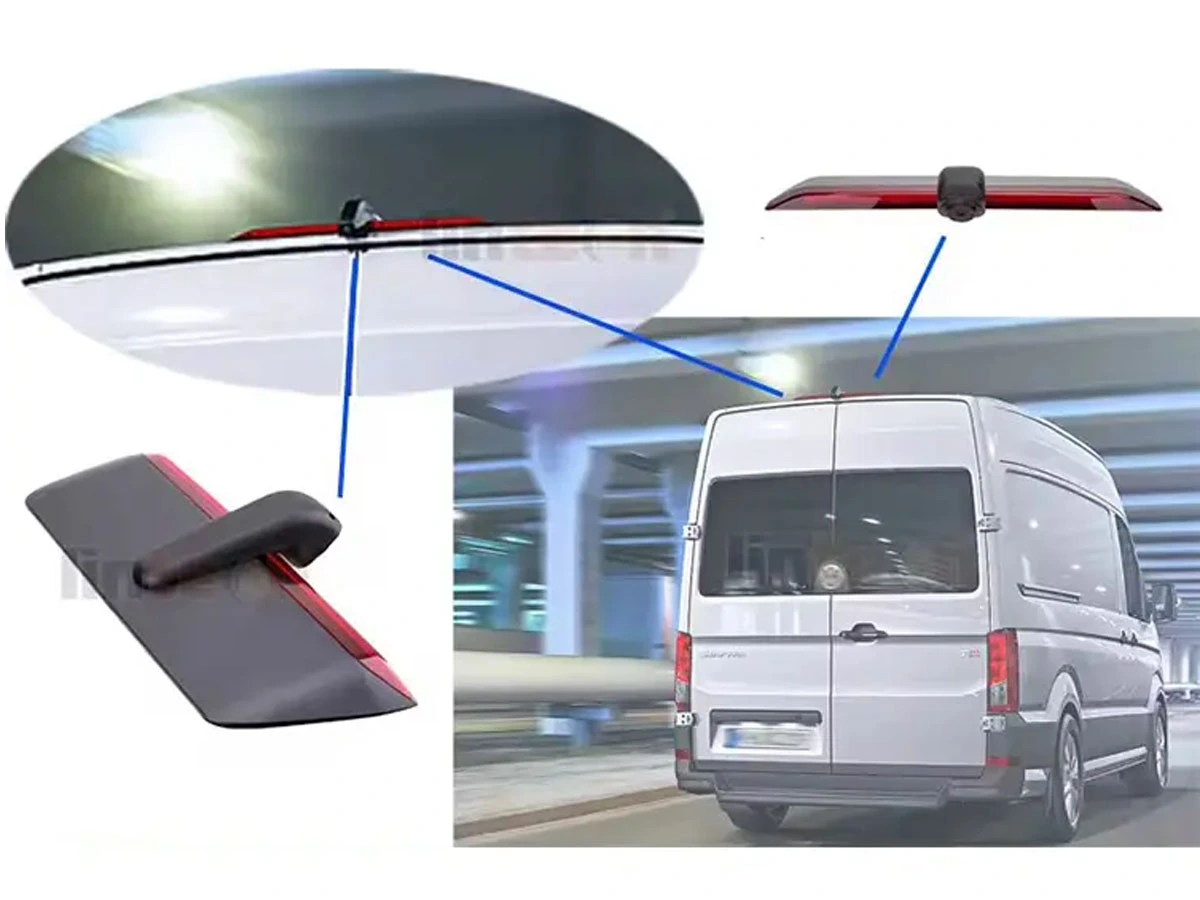

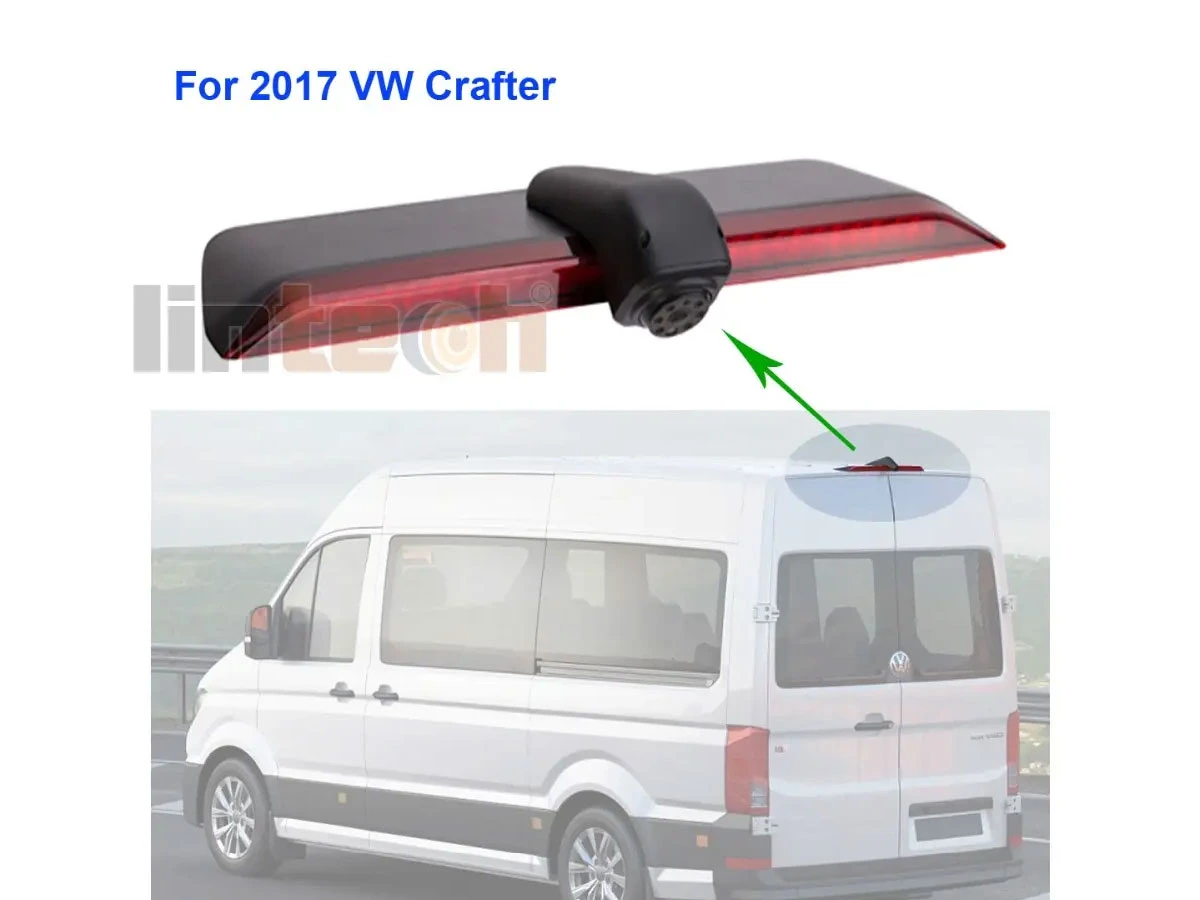

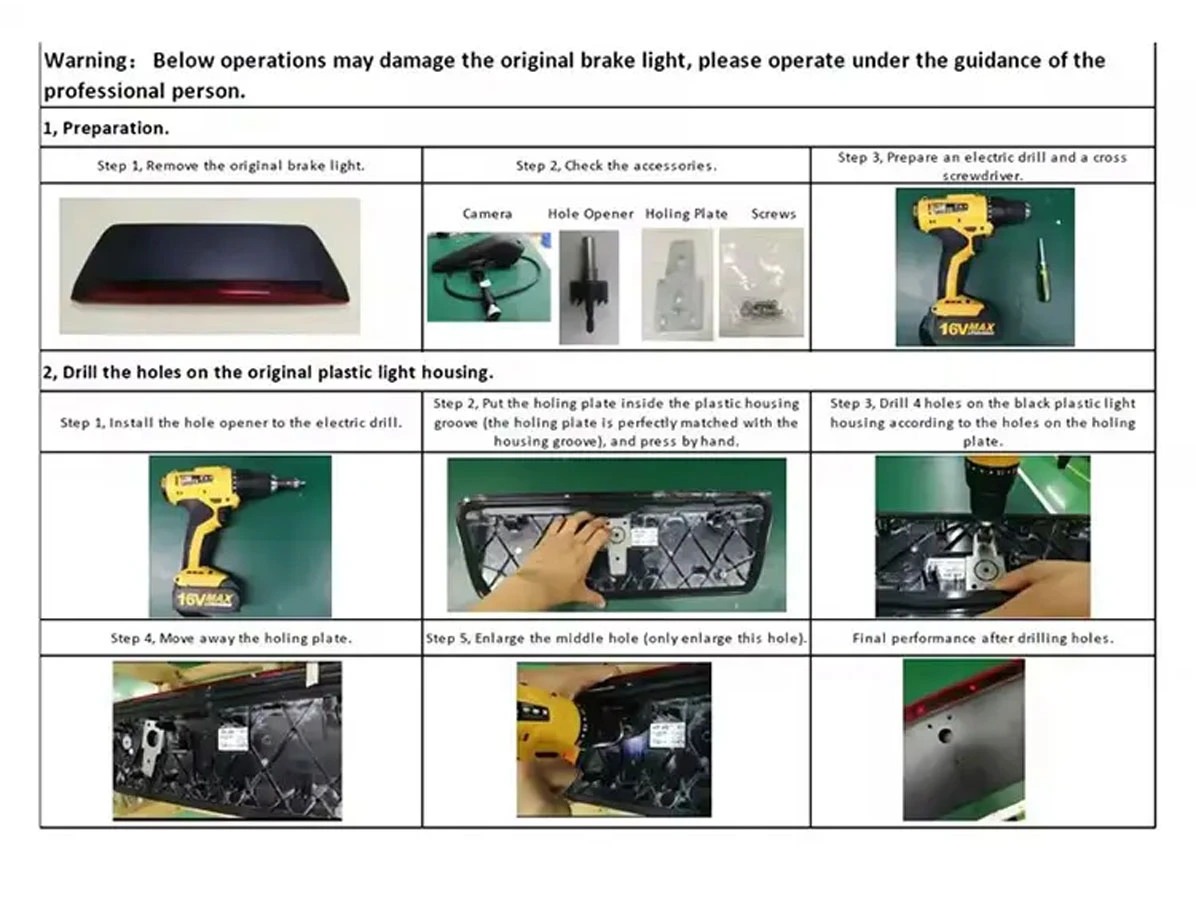

This camera special designed for VW Crafter brake lights housing (Black part) mounted, users need to take down the original brake lights housing, and use our drills (bracket tools) to install this camera part step by step according to the User guide.
Estimate takes 1~1.5 hour to mount this camera.

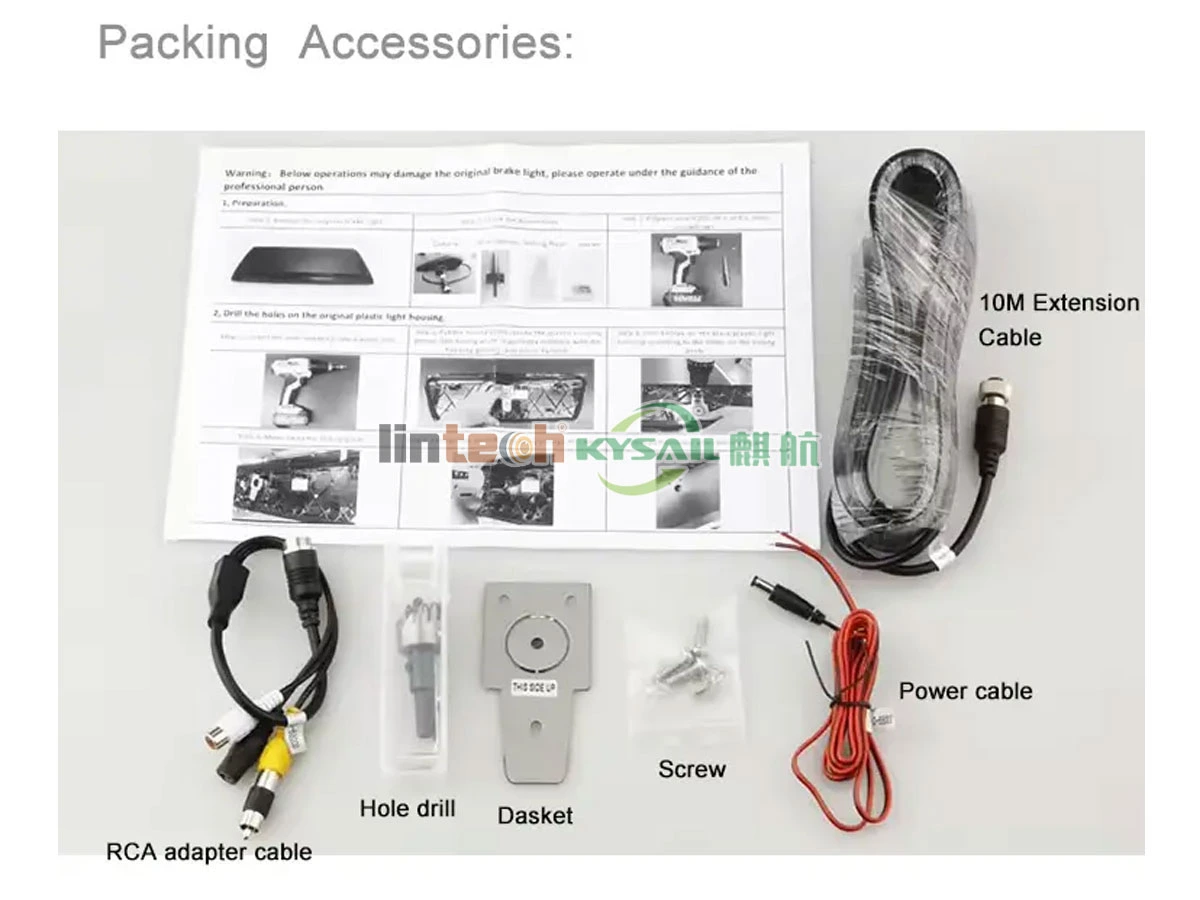

Camera packing detail:
1pcs x Camera for VW Crafter van;
1pcs x Extension cable 10m;
1pcs x RCA to 4-Pin connector cable;
1pcs x Installation user guide manual;
1pcs x Drill (boring crown);
1pcs x Fixing screws;
1pcs x Iron plate.
