Specification:
| 7 inches TFT-LCD AHD Monitor specifications: |
| (1)Screen size: 7″ LCD monitor |
| (2)Display Type: monitor (16: 9) display |
| (3)Monitor with video record function. |
| (5)Resolution: 1024 R.G.B x 600 dots digital display |
| (6)Power supply: DC 12V~32V(Suitable for 12V and 24V Forklifts ) |
| (7)Power consumption: less than 7W |
| (8)Operating temperature: -10 to +65 C-degree |
| (9)Storage temperature: -20 to +65 C-degree |
| (10) OSD Menu for Setting up the camera image normal or mirror / up and down image switch |
| (11) OSD Menu for Setting 4 Camera Views set up the priority of reverse camera |

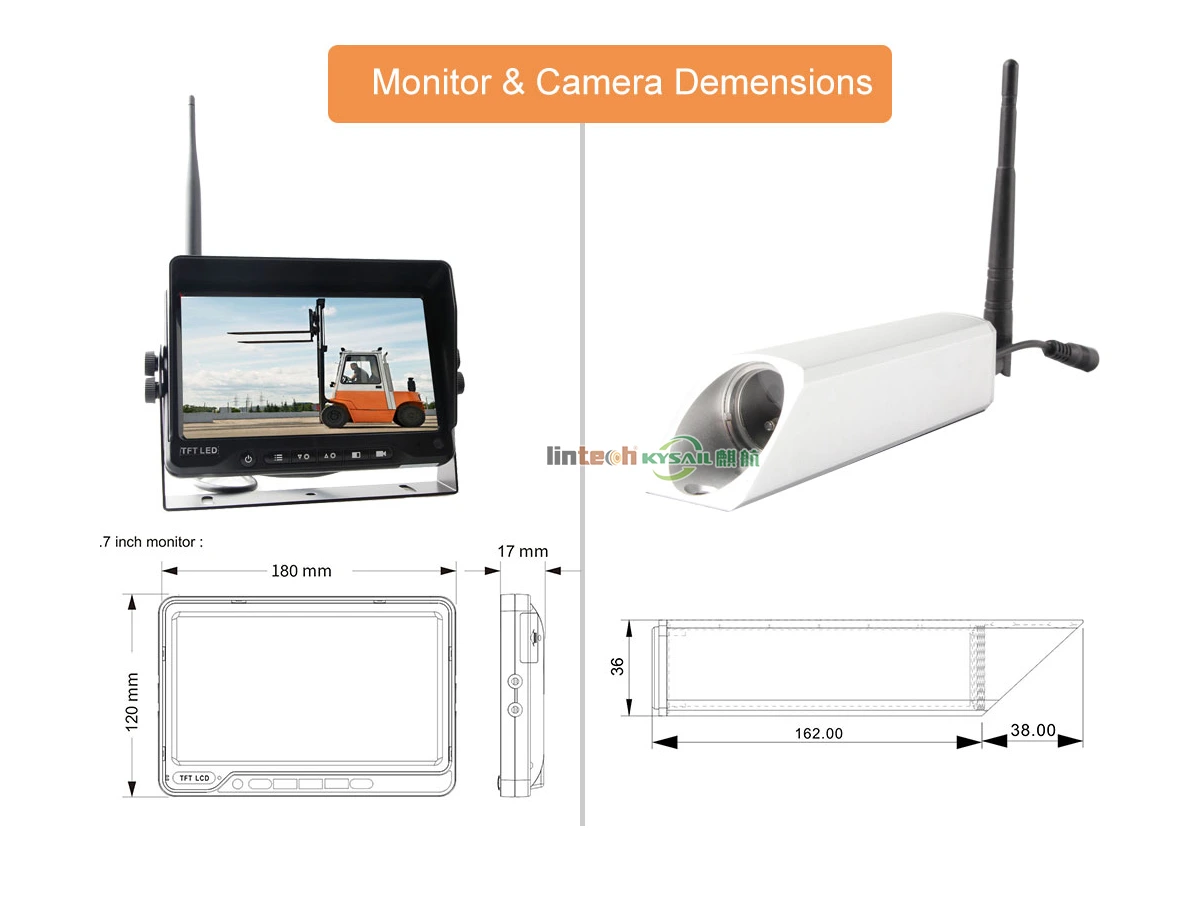

| (12)Dimensions: L:180mm x W:120mm x δ:75mm |
| (13)Built in parking guide line , Micphone |

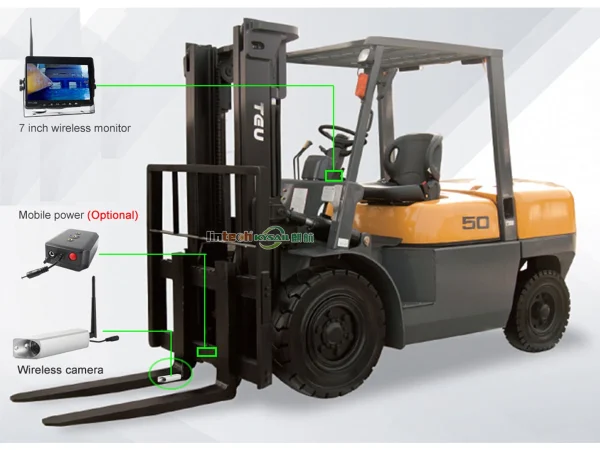

| (14) Suitable for Forklift |
Camera Specification:
| (1) Image Type: 1/3 inch Colour CMOS |
| (2) TV system : PAL/NTSC |
| (3) Resolution:AL:960(H)*576(V)/NTSC:960(H)*576(V) |

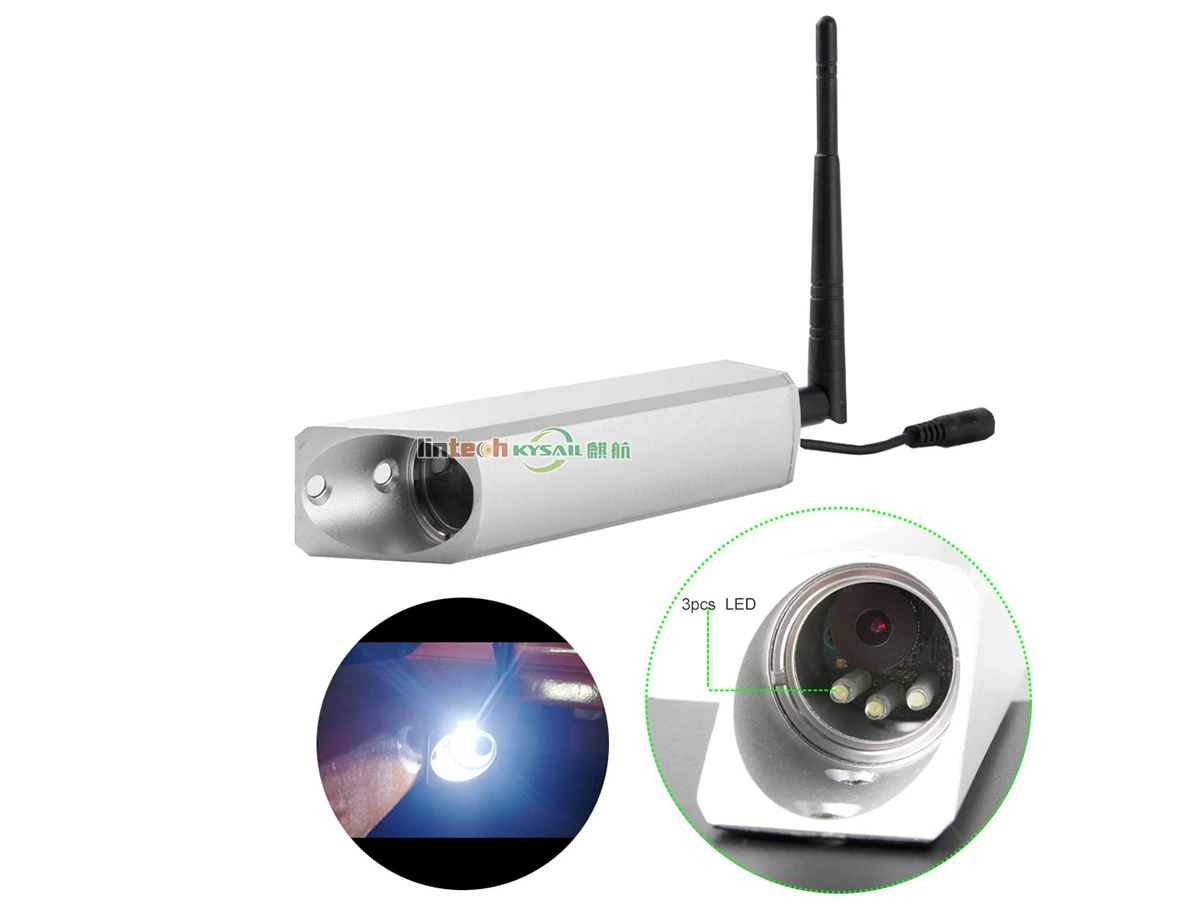

| (4) With 3pcs LED’s for Picture Support in the Dark |
| (5) Built in 2.4GHz Digital wireless transmitter |
| (6) 45 degree angle view |
| (7) Operating Voltage: 9~12VDC |
| (8) Operating temperature: -20~ +70 degrees , RH95% Max. |
| (9) Storage temperature: -40~ +80 degrees , RH95% Max. |

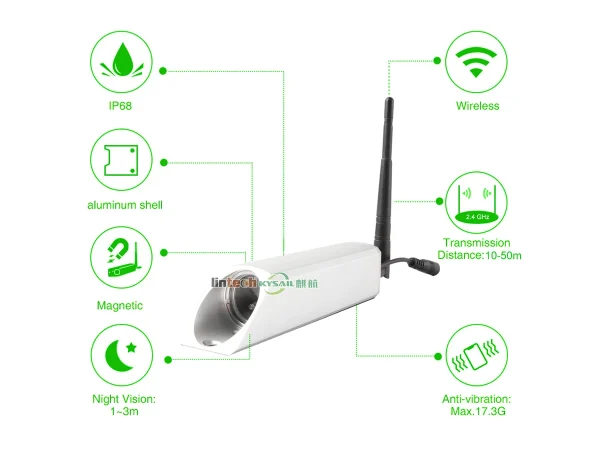

| (10) Alloy shell, Waterproof, silver color / |
| (11) Built in 6pcs high strength magnet (Shockproof level:ISO16750-3(Max 17.3G) |
| (12) IP Rating: IP68 |
Packing include:
1. 7 inches digital monitor*1
2. Camera *1
3. Power cable *2
4. U bracket *1
5.Antenna * 2
5. Screws, remote controller (Standard)
