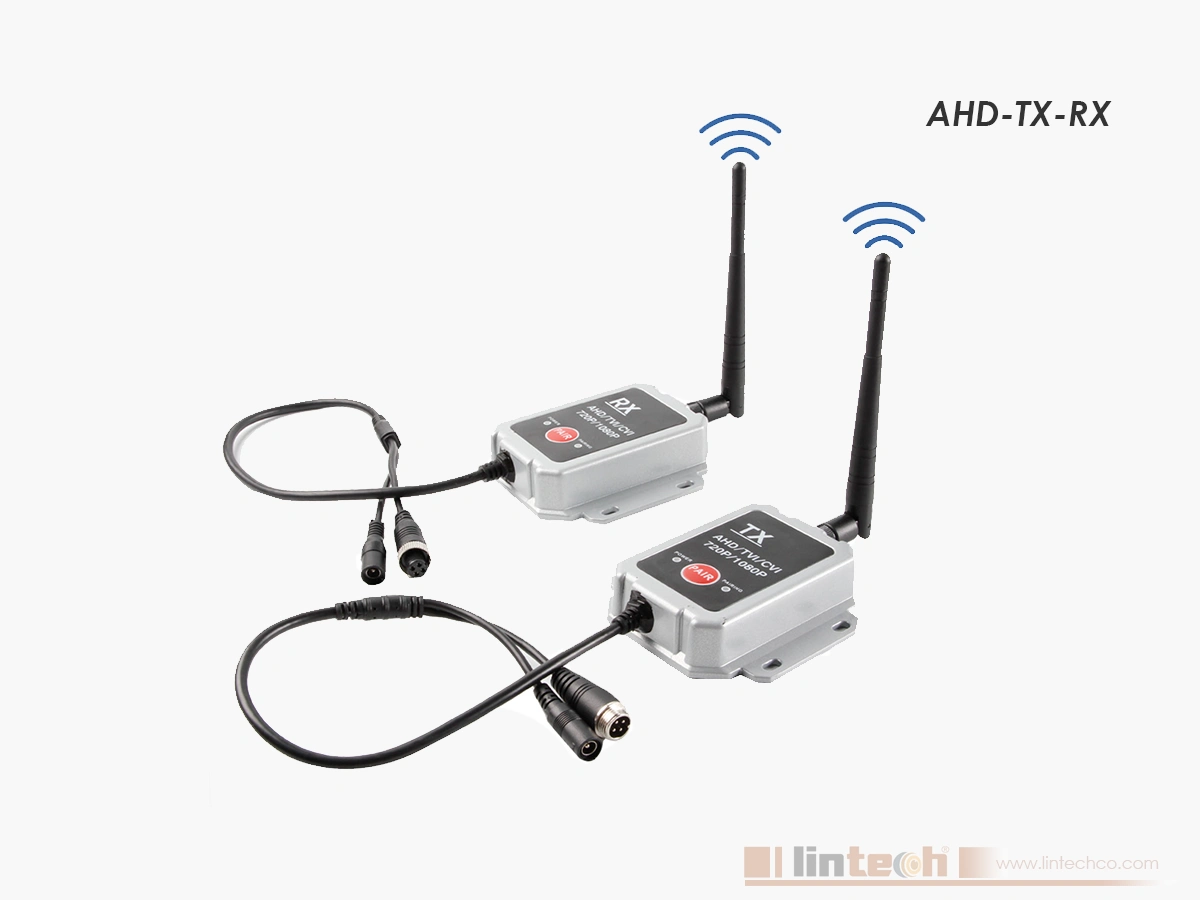

Wireless Transmitter Receiver for Truck Vehicles Backup Cameras AHD 1080P 720P signal

Model No.:AHD-TX-RX



  • Wireless transmitter and receiver for CCTV camera
  • Max resolution 720p / 1080p
  • Strong signal 50~200 meter range in sight
  • Ideal for connecting a security camera yourself
  • Ideal for use where cable pulling is not possible
  • Unique product that can transmit AHD, CVI and TVi signals (no analog)
  • Can also be connected to a DVR security recorder



Wireless Transmitter Receiver for Truck Vehicles Backup Cameras AHD 1080P 720P signal

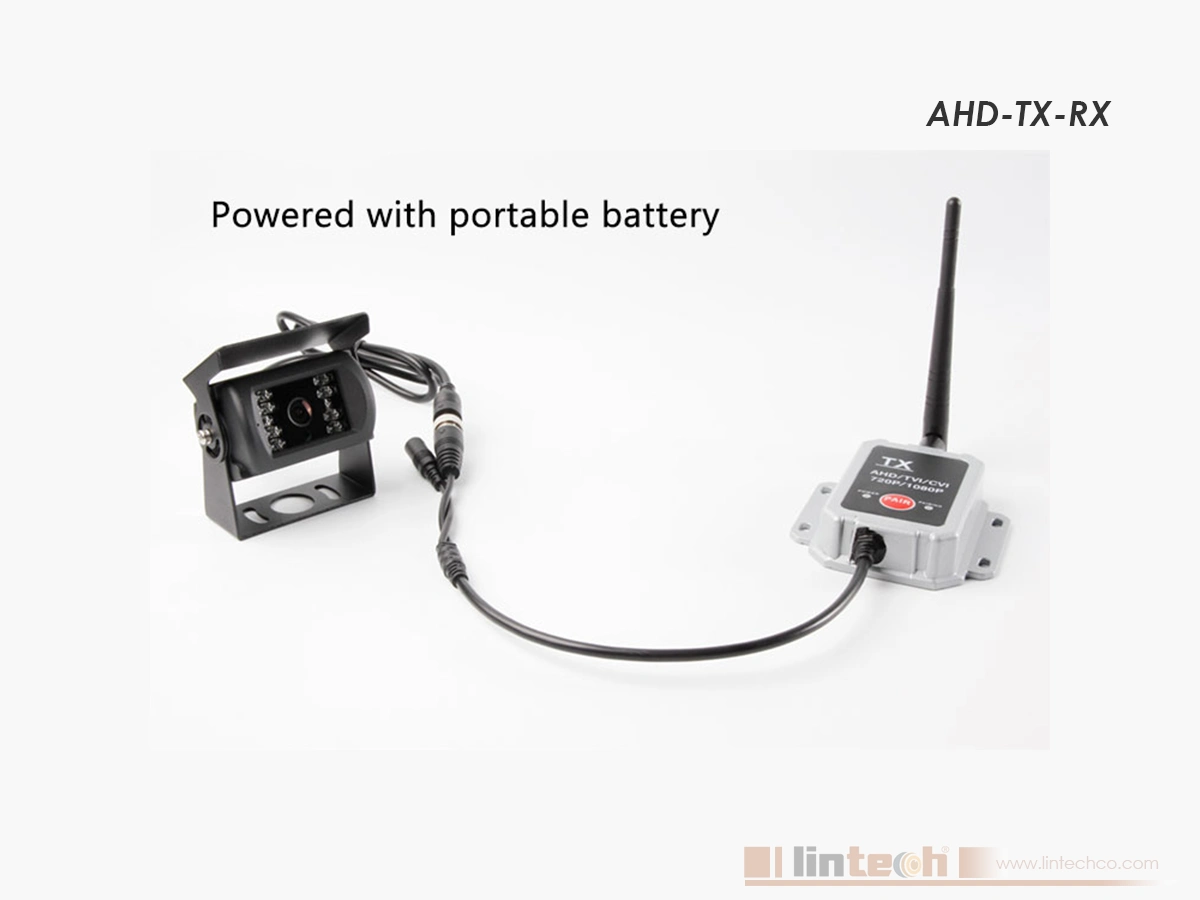

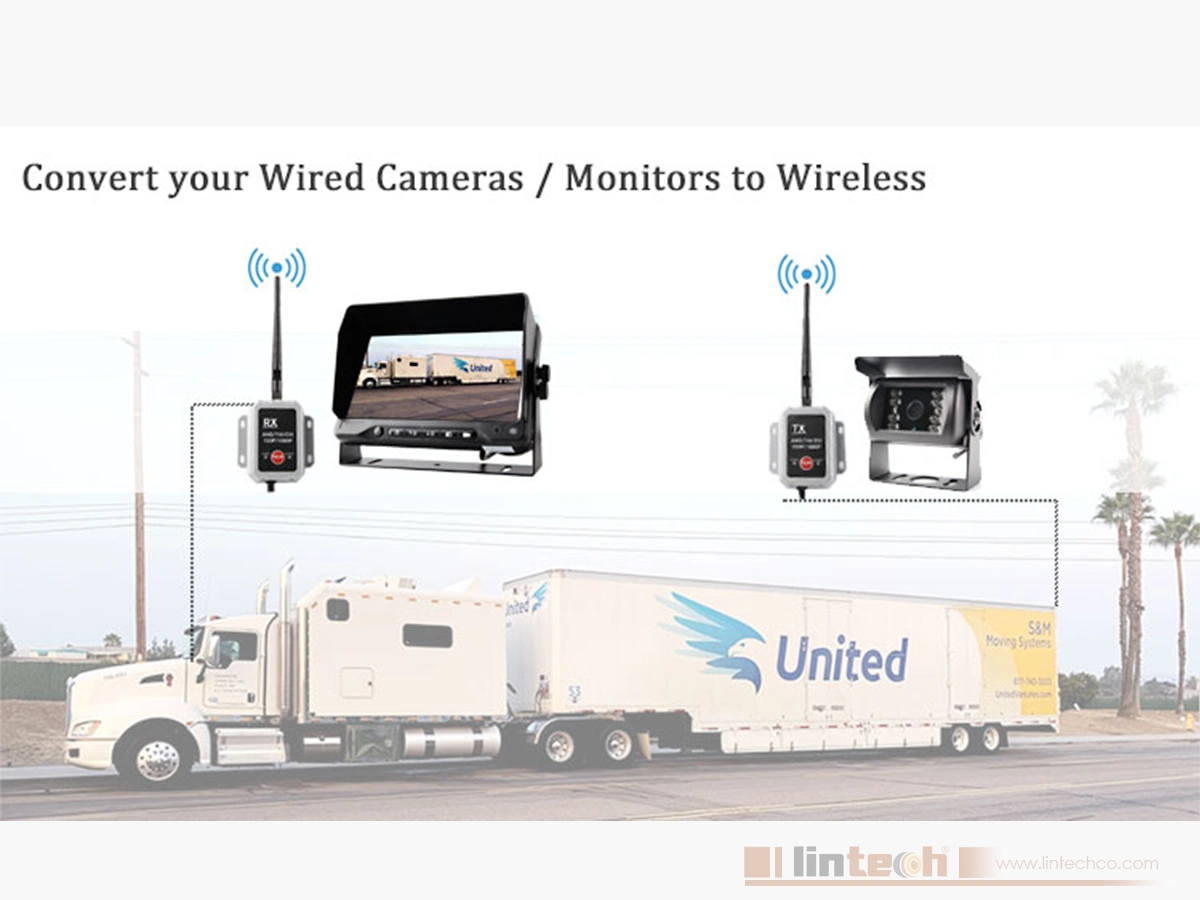

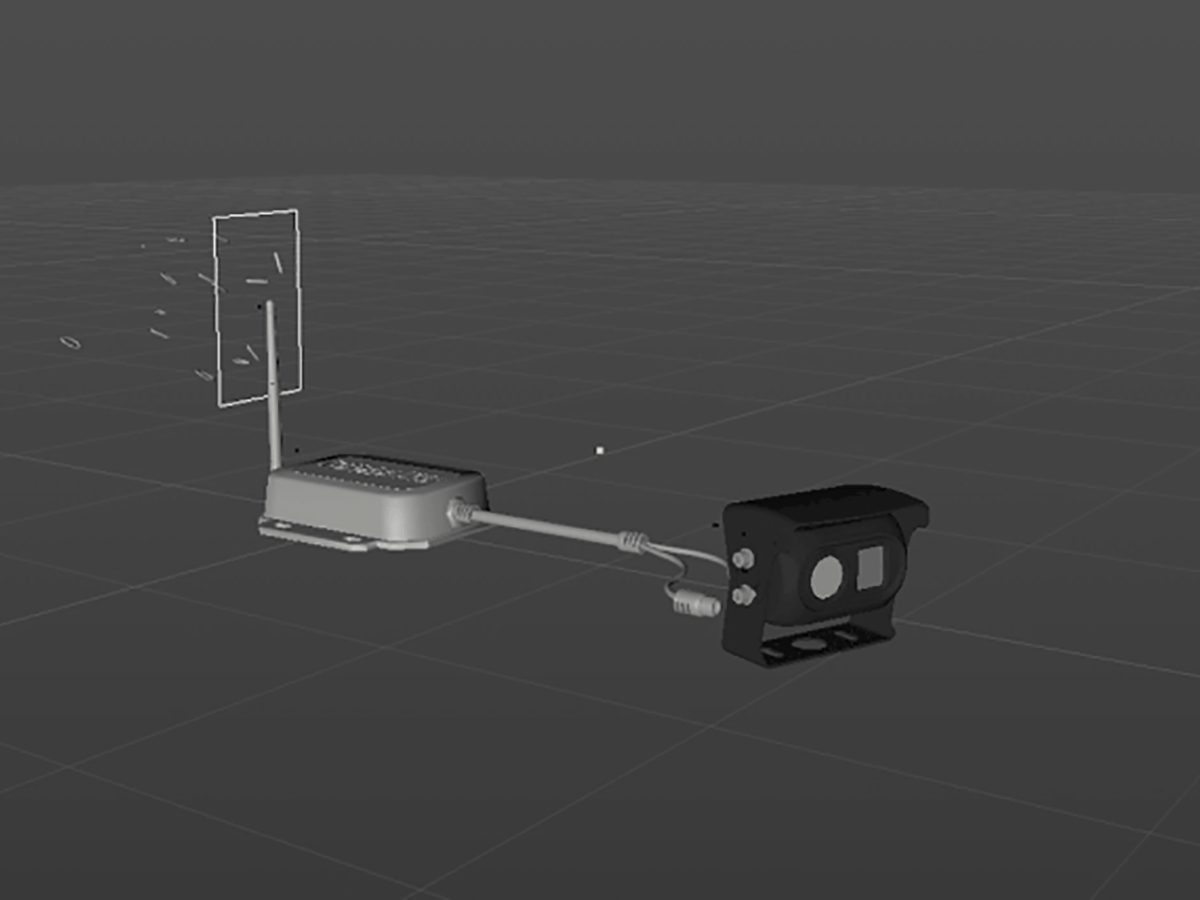

– Allows you to turn any wired AHD cameras into digital wireless cameras
– Transmits video signal up to 50~100Meter. with a good line of sight interference free
– Both transmitter and receiver are weatherproof
-Only for AHD1080P /720P, CVI, TVI
-Up to 2mp resolution suitable;

Type: transmitter / receiver
Operating voltage: DC12-36V
TX consumption: 200mA / 250mA max
RX consumption: 200mA
RF bandwidth: 12 Mbps
Tx channel: 1 channels
Working range: 200 meters
Jump Speed: 1200 / S
Boot Time: 2 S
Latency: 100 ms maximum
Video codec: H.264
T / R Frequency: 2400-2483.5 Mhz
Output power: 20 dB
Receive Sensitivity:  -86 dBm @ QPSK
Video TX in signal format: AHD / TVI / CVI / CVBS @ 1080P / 720P / 480P automatic detection

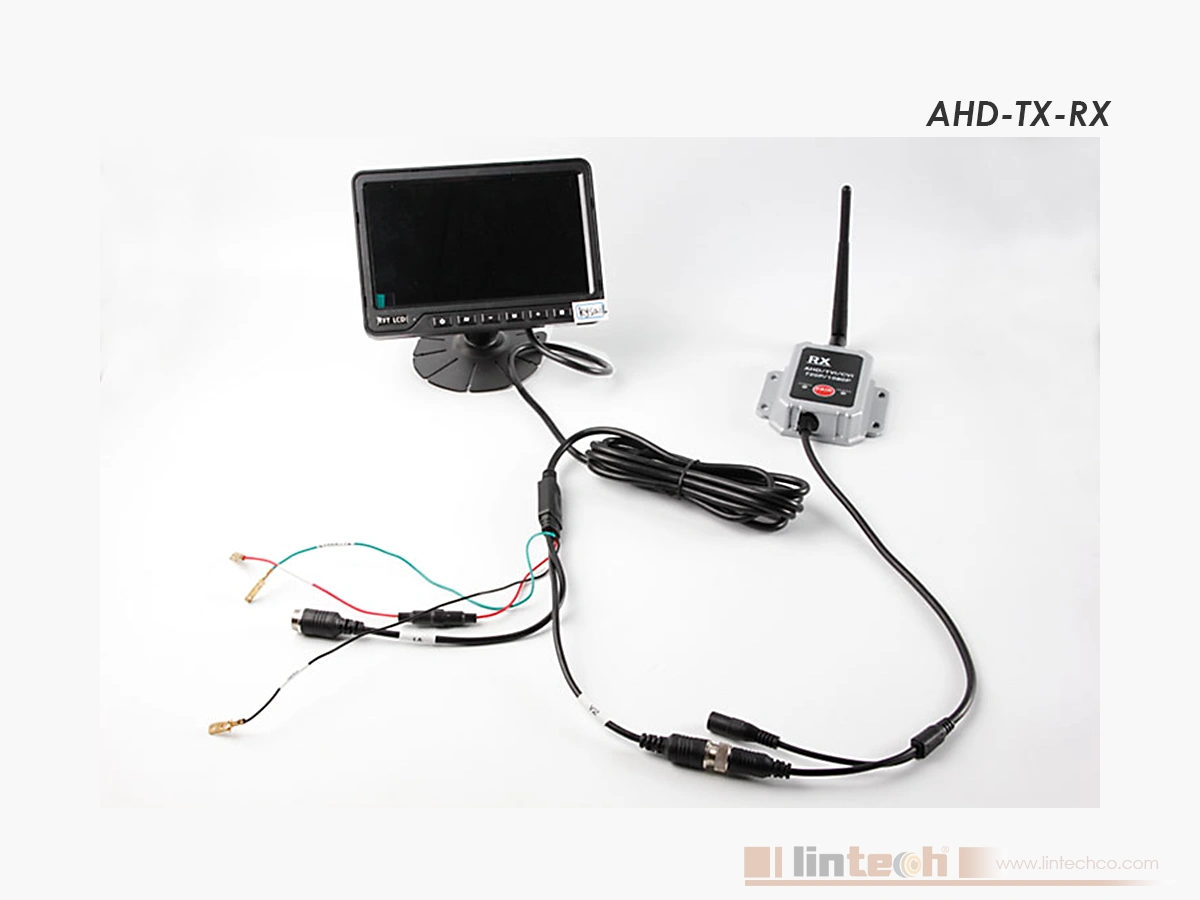

RX video output signal format: AHD / TVI / CVI / CVBS @ 1080P / 720P automatic detection
Video output impedance: 75, typ.
Video output level: 1Vp-p, typ.
Audio output impedance: 200, typ.
Audio output level: 5mv ~ 0.2Vp-p, typ.
Signal to Noise Ratio (340 Hz ~ 3.4 kHz): 63 dB, minimum
THD: 5%, max.
Waterproof: IP69K

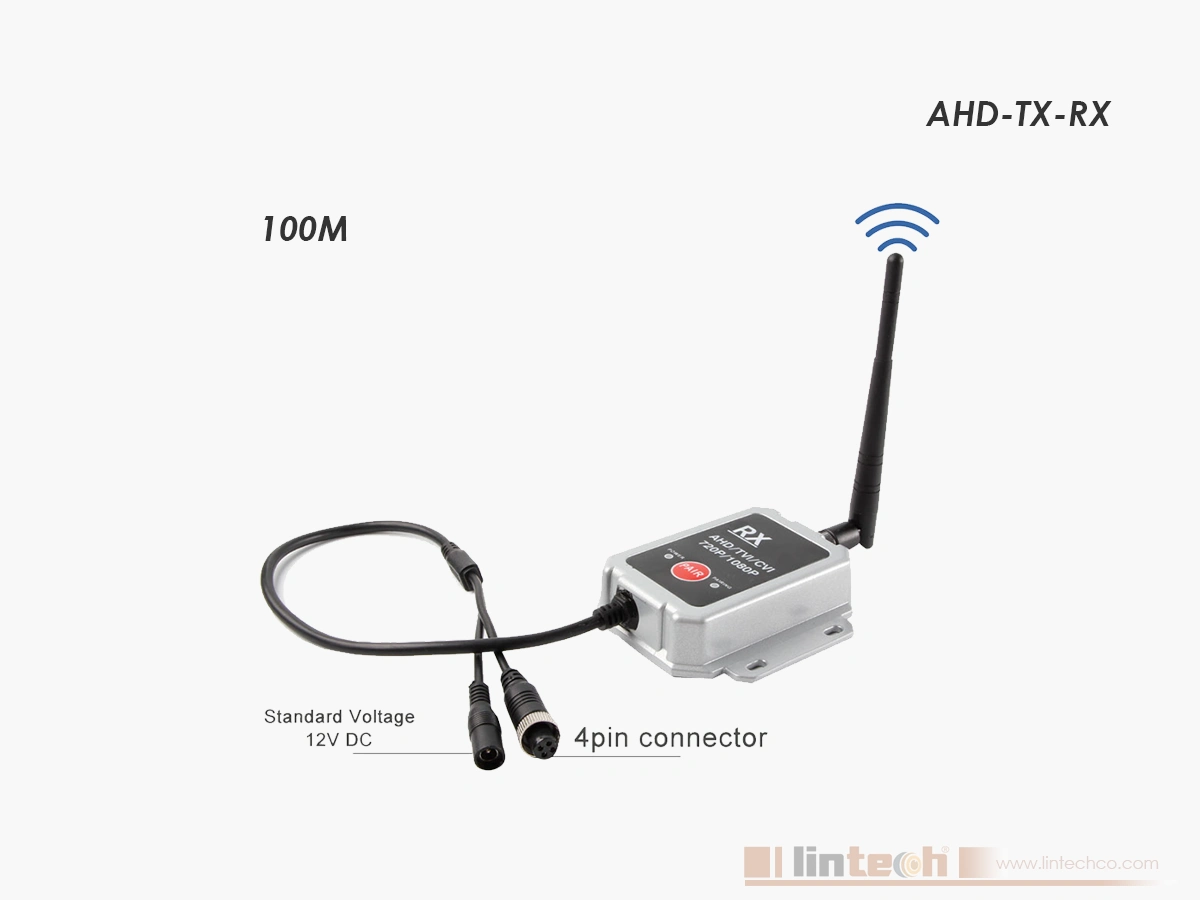

Connector: RCA / 4Pins M12

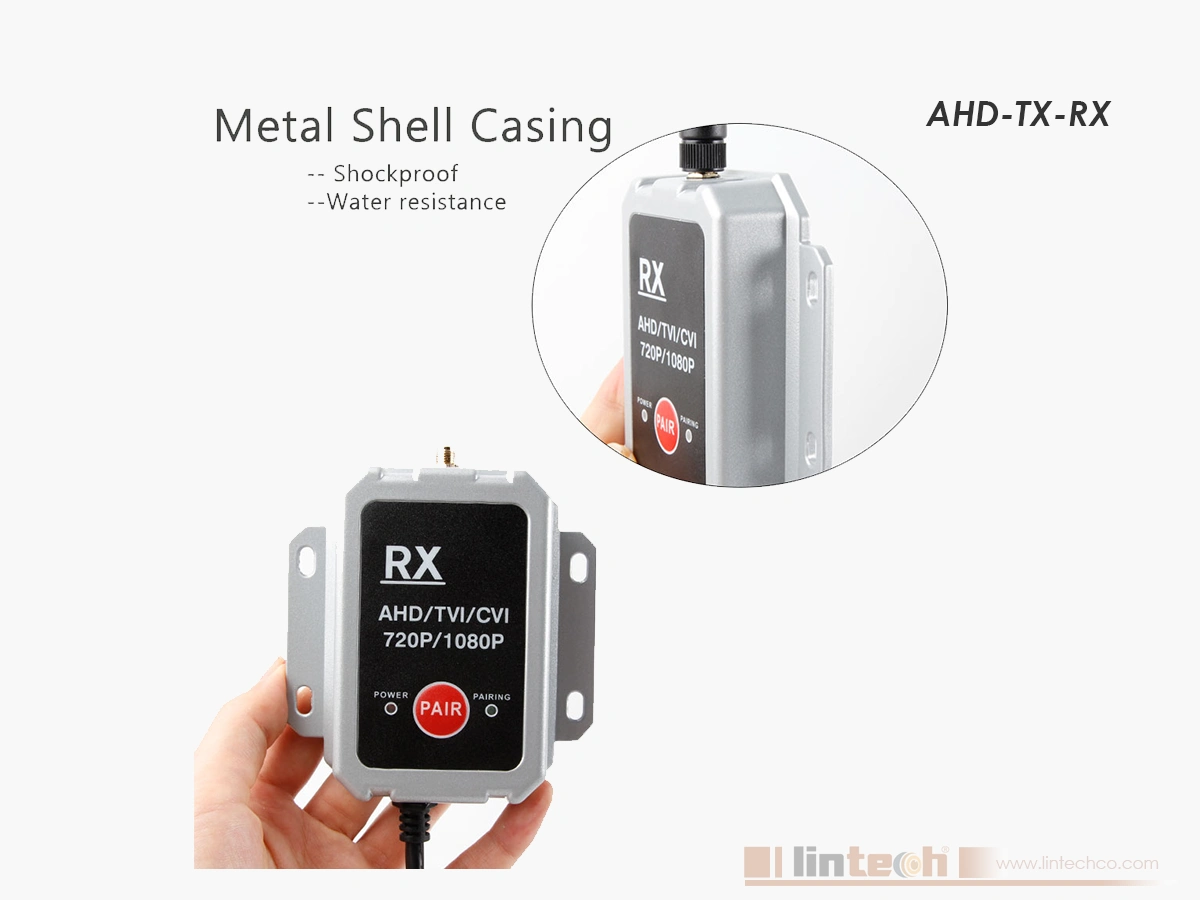

Housing material: die-cast aluminum
Power consumption: 200mA / 12V
Operating temperature:  -20 ° C ~ 80 ° C
Operating humidity:  85% RH
