At Lintech, we understand that heavy-duty vehicles like mining trucks face unique challenges, especially when it comes to ensuring safety and reliability on rough terrains. One of the most critical features for these vehicles is the 77GHz Rear View Backup Radar, which plays a pivotal role in preventing accidents by detecting obstacles during reversing. However, as with any advanced technology, users may occasionally encounter technical difficulties. In this blog, we’ll walk you through a common issue faced by one of our customers and show you how we helped resolve it efficiently and effectively.
A Real-Life Challenge: Fixed Distance on the Display and Continuous Beeping

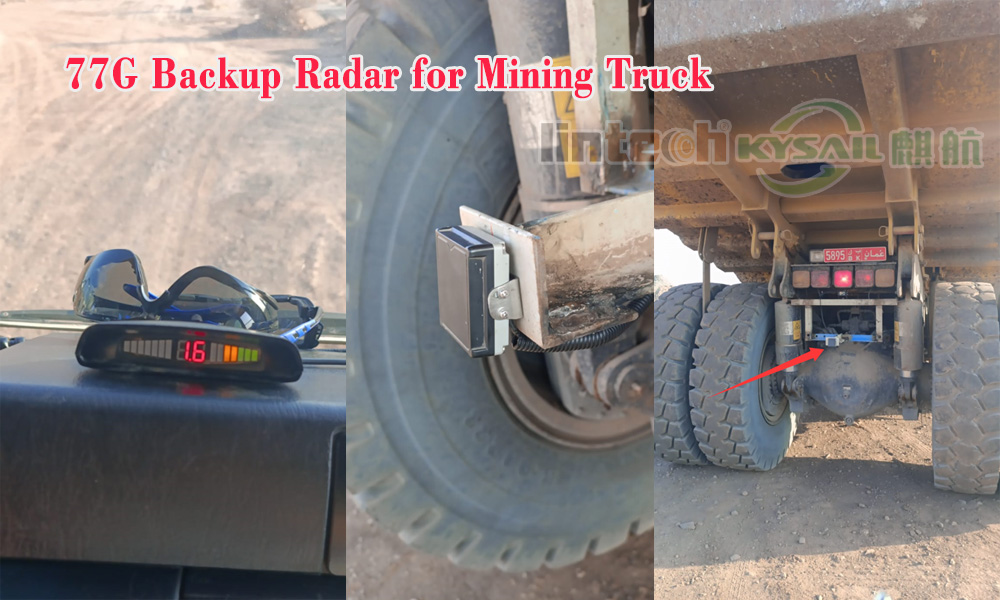

Recently, we received feedback from one of our clients in Chile who faced a specific issue with the installation of the 77GHz Rear View Backup Radar in their mining truck. After installing the radar, the display continuously showed a fixed distance of 1.6 meters, and the buzzer kept sounding. This problem persisted despite the radar being installed properly, leading to confusion and concern about its performance.

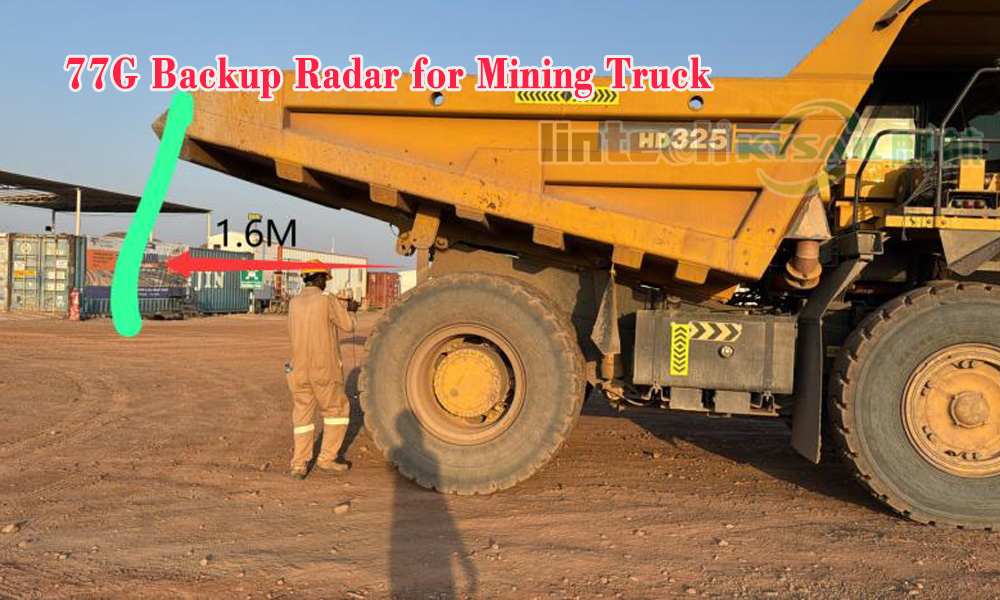

We quickly responded to the issue report. Our technical team asked the client to send installation photos and videos. After reviewing the footage, we found that the radar was installed too low on the vehicle. As a result, the radar signal was being reflected by the rear part of the truck, which was approximately 1.6 meters away from the radar surface.
The Solution: Customizing Radar Settings for Specific Vehicle Needs
Based on the customer’s feedback and our engineers’ analysis, we devised a tailored solution to fix this issue and ensure that the radar could function optimally in the unique environment of a mining truck.

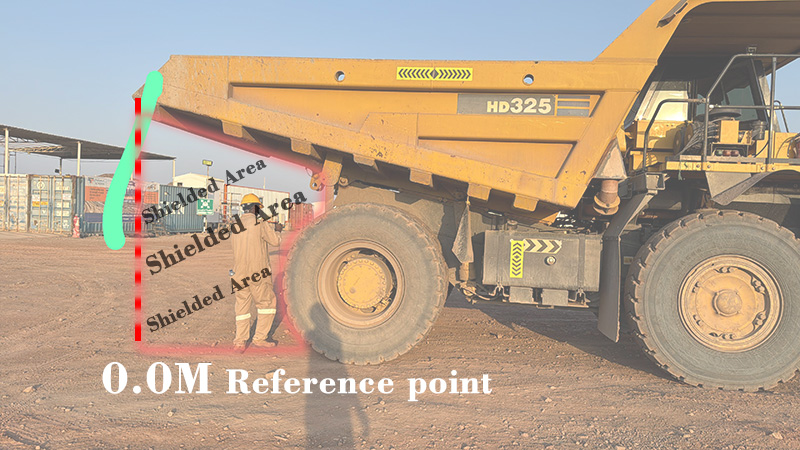

1. Creating a No-Signal Zone (Shielded Area)
The first step was to address the interference caused by the rear section of the truck. Since the radar was detecting the truck’s own structure as an obstacle, we decided to create a shielded zone from 0 to 1.6 meters. This meant that any signals returned from this range would be ignored by the system, effectively filtering out the interference from the vehicle itself.
This adjustment allowed the radar to focus on detecting real obstacles, rather than the truck’s rear section.
2. Moving the Radar’s Reference Point Outward
The second solution involved adjusting the radar’s reference point. To avoid false alerts and ensure the driver’s safety, we moved the radar’s 0-meter reference point 1.6 meters outward. This adjustment meant that the radar would start detecting obstacles from the vehicle’s actual rear end, rather than from a point too close to the truck.
Without this adjustment, the radar would have mistakenly detected an obstacle at 1.6 meters as if it were a collision, potentially misleading the driver and delaying braking. By resetting the reference point, we provided the driver with more accurate and timely alerts, preventing any confusion or risks of collision.

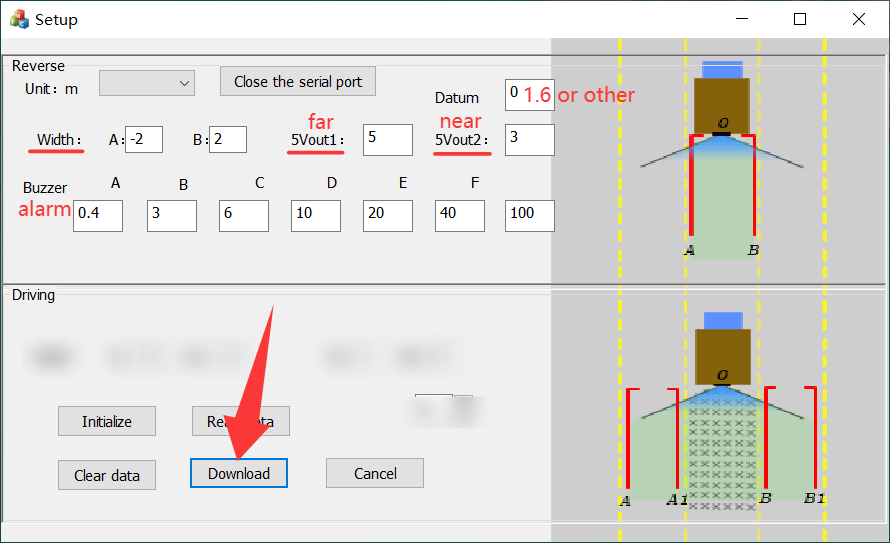

3. Easy Customization with Configuration Software
The best part of this solution was the customization capability built into the radar system. Thanks to the flexible design of the 77GHz Rear View Backup Radar, the client could easily update the settings themselves using our configuration tool. All they needed was a laptop and an internet connection to download the updated firmware and upload it to the radar’s main control board.
This self-sufficient solution not only saved the client time but also provided them with the flexibility to adjust radar settings based on different truck models or operational environments. It’s a perfect example of how Lintech’s products are designed to be user-friendly and adaptable, making troubleshooting and system adjustments quick and efficient.
The Importance of Customization in Mining Truck Safety
Mining trucks often operate in rugged and unpredictable environments, so having a backup radar system that can adapt to specific vehicle configurations and terrains is essential. The 77GHz Rear View Backup Radar for Mining Trucks is equipped with advanced radar technology that ensures reliable obstacle detection in challenging conditions.
The radar system filters interference, adjusts detection ranges, and customizes reference points. This helps provide accurate warnings and reduce accident risks. It’s an indispensable tool for mining trucks, where safety is paramount and precision is critical.
Why Choose the 77GHz Radar System for Your Mining Trucks?
The 77GHz Rear View Backup Radar is not just another piece of equipment—it’s a game-changer for mining and construction vehicles. Its long-range detection, built-in safety features, and customizable settings make it an ideal solution for mining trucks and other heavy-duty vehicles. Here’s why:
-
Long-Range Detection: Capable of detecting obstacles from up to 20 meters away, the radar ensures that drivers are aware of hazards before they become a danger.
-
Shielded Zone Technology: Customizable settings like shielded zones eliminate interference from the vehicle’s structure, ensuring accurate obstacle detection.
-
Automatic Alerts: The system’s integrated buzzer and LED display provide clear and immediate warnings, allowing drivers to react quickly and safely.
-
Self-Adjustable Configuration: Easily update and adjust radar settings using the provided configuration tool, making it adaptable to different vehicles and operating conditions.
Conclusion: A Reliable Solution for Mining Truck Safety
At Lintech, we are committed to providing innovative, reliable solutions that enhance the safety of heavy-duty vehicles like mining trucks. The 77GHz Rear View Backup Radar is an essential tool for reducing blind spots, preventing collisions, and ensuring efficient operations in challenging environments. Whether you’re facing technical issues or simply want to optimize your system for different conditions, our team is here to help you every step of the way.
If you’re operating mining trucks or other commercial vehicles and want to improve safety, don’t hesitate to contact us for a customized solution that meets your needs. The 77GHz radar system is ready to provide the reliable performance and flexibility you need for safer, more efficient operations.
