Ambulance camera system with 360 degree surround view technology

An ambulance camera system with 360-degree surround view technology helps emergency workers stay safe and see better. High-resolution cameras watch the whole ambulance, so mistakes are less likely and crashes can be avoided. Emergency workers can watch what happens inside in real time, which makes things clearer and keeps everyone in the vehicle safer.

Key Takeaways

The 360-degree camera system lets ambulance drivers see everywhere around the vehicle. This helps reduce blind spots and stops accidents from happening. Night vision and AI detection make things safer. They help drivers see clearly at night and find obstacles or people fast. Good installation, training, and strong privacy rules help the system work well. They also keep patient information safe.

Ambulance Camera System Basics

What It Is

An ambulance camera system uses special technology to help emergency teams see all around and inside the vehicle. The system has four ultra-wide fish-eye cameras, and each camera can see 200°. These cameras work together to cover every angle, so drivers and crew can spot dangers fast. The cameras connect to a digital video recorder (DVR) that saves high-definition video on safe memory cards. The system shows a live 3D panoramic image on a monitor inside the ambulance, so the team can see their surroundings clearly.

Tip: The ambulance camera system works with different vehicles and has features like waterproof housing, night vision, and a lockable control unit for extra safety.

Here is a table showing the main technical specifications:

Specification	Details
Sensor	Sony IMX307
Resolution	1920 x 1080 (Full HD 1080p)
Horizontal Field of View	200°
Number of Cameras	4 ultra-wide fish-eye cameras
Lens Type	Fish-eye, ultra-wide
Video Outputs	VGA, HDMI, CVBS, AHD
Monitor Options	7″, 9″, 10.1″ LCD
Additional Features	Waterproof, night vision, G-sensor, parking monitoring
Power Supply	DC 9V-36V / DC 12-36V
Camera Material	Metal
Operating Temperature	-20°C to 70°C
DVR Integration	Built-in DVR for recording
Vehicle Compatibility	Universal fit for various vehicle models
Warranty	12 months

How It Works

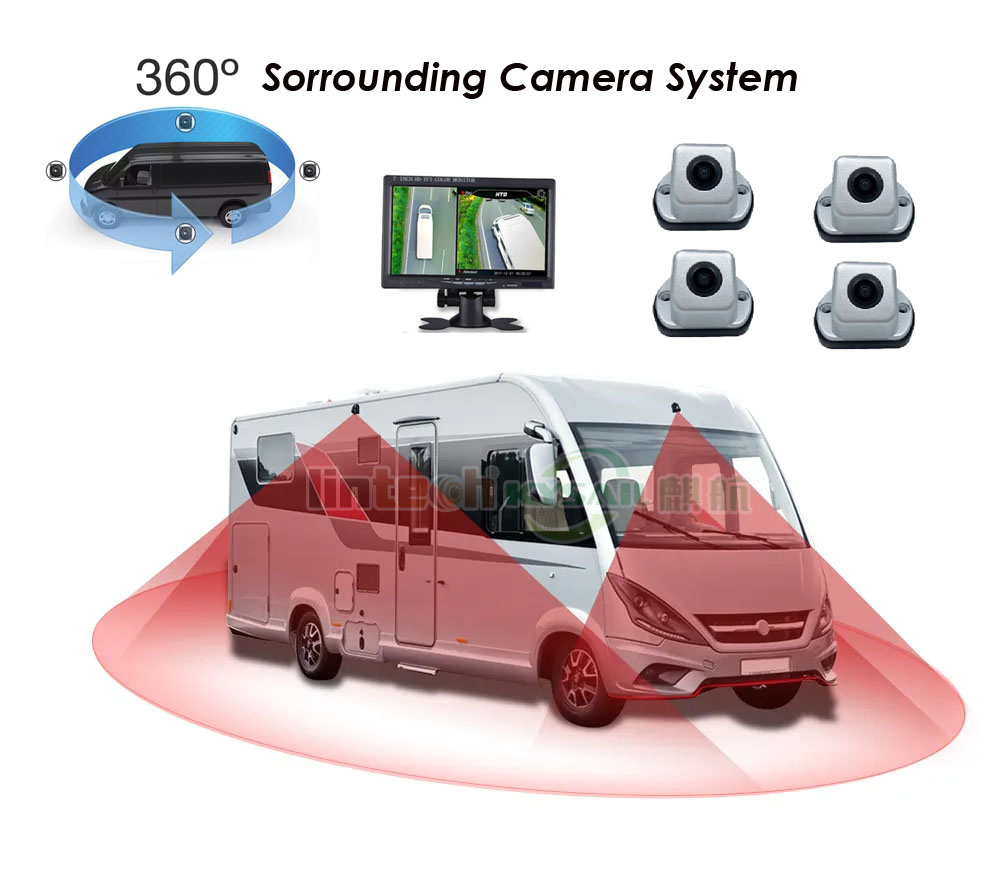

The ambulance camera system puts cameras at the front, back, and both sides of the ambulance. Each camera takes a wide-angle video, and the DVR puts these images together into one 360-degree scene. The system switches between camera views by itself, like turning on the ambulance rear view camera when the driver goes in reverse. Graphical overlays help drivers see how far things are and avoid hitting anything, especially when moving slowly or parking.

Blind-spot cameras are important because they help get rid of hidden spots around the vehicle. By giving a bird’s-eye view, the system helps drivers see people, bikes, or cars that might be in a danger zone. This technology lowers the chance of accidents and makes it easier to drive safely in busy or tight places.

360° Around View Monitoring

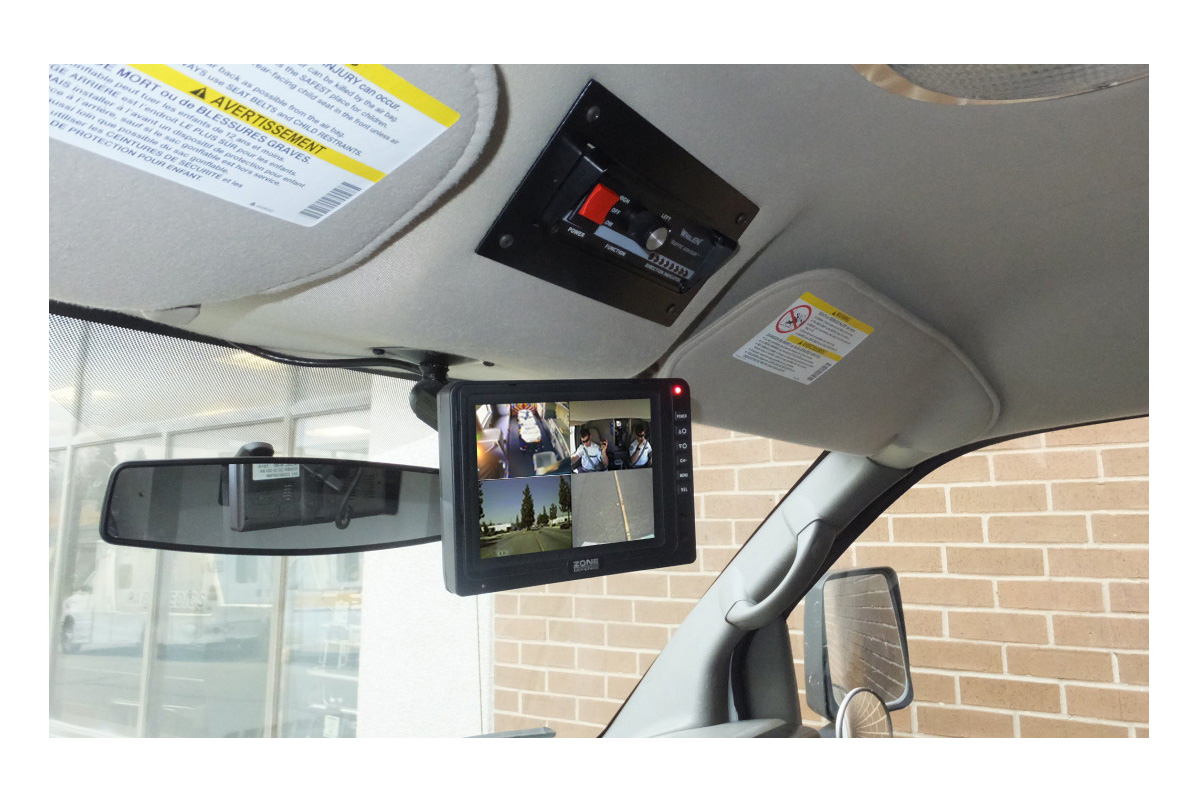

360° around view monitoring lets the ambulance crew see everything around them. The system sends live video to a monitor, so the team can react right away. Real-time monitoring starts as soon as emergency lights turn on, and the DVR records every moment from many angles. GPS location stamps and cloud access let staff check footage from far away, even after something happens.

Records show that using DVR systems with ambulance camera setups helps people know what is happening around them. Live video and event recording help command centers watch emergency response and work with other teams. The system also helps with reviewing incidents and training, making it a good tool for safety and learning.

Note: Real-time monitoring and recording help keep track of incidents, support investigations, and give proof for training and review.

Key Features and Benefits

360 Degree Surround View Camera System

A 360 degree surround view camera system lets ambulance drivers see all around them. Four ultra-wide cameras work together to make one big picture. This setup gets rid of blind spots. It helps the crew see obstacles, people, or cars right away. The system shows live video on a monitor. Drivers can make safer choices when turning, backing up, or parking.

The ambulance camera system uses video-based driver safety technology to record every angle. This video helps with looking back at incidents and teaching drivers. In cities with these camera systems, crash rates dropped by about 21%. More than half of the places with cameras had fewer crashes. Only a few places without cameras got better. These results show that advanced safety systems like multi-camera setups can help lower accidents and make roads safer for ambulances and other vehicles.

Note: Multi-camera coverage also goes inside the ambulance. It helps watch patient care and what the crew does for better accountability.

Night Vision and AI Detection

Ambulances often work at night or in bad weather. Night vision features, like infrared cameras, help the system see clearly even in darkness, smoke, or dust. The technology uses both 8-bit and 14-bit thermal data. This makes it easier to drive and spot obstacles when it is dark. The table below shows how infrared night vision helps ambulances:

Research Aspect	Numerical/Technical Data	Explanation
Use of 8-bit thermal data	Applied in stereo odometry, SLAM, and optical flow algorithms	Helps with navigation in low light.
Use of 14-bit thermal data	Improved algorithm consistency and reduced need for corrections	Offers better performance in darkness.
Navigation in darkness	Enabled robust feature selection and odometry estimation	Works well in smoke, dust, and darkness.
Fusion of thermal and optical data	Enhanced navigation accuracy in adverse conditions	Improves situational awareness.
Onboard processing	FLIR Tau2 and Intel NUC-i7 used for real-time navigation	Shows practical use in dark environments.

Nighttime is a big factor in ambulance safety. For example, 14% of helicopter air ambulance crashes happened at night. Night vision goggles and infrared systems have shown they can lower accidents and make things safer in these times.

AI detection gives even more protection. Modern systems use deep learning models to find obstacles, people, and other vehicles right away. One study showed an AI-based system could spot ambulances and their parts with high accuracy, even in noisy or dark places. The system answered in as little as 0.25 seconds. It worked well with traffic lights to help ambulances move faster, cutting wait times and making emergency response better.

Safety and Efficiency

Advanced safety systems in ambulances do more than just record video. They help drivers see better, lower accidents, and make things run smoother. Multi-camera setups, with AI and GPS, help drivers avoid danger and pick the best routes. Real-time data processing and edge computing cut down delays, so ambulances get to emergencies faster.

Real-time audiovisual detection can reach up to 98.95% accuracy. It helps spot unsafe events quickly.
Video linked to GPS data lets people look closely at incidents and coach drivers.
Daily driver behavior scoring helps drivers be safer and lowers risks.
Watching vehicle health all the time stops breakdowns and keeps ambulances ready.
Audiovisual alerts find tiredness or distraction, stopping accidents before they happen.
Multi-camera views also watch patient areas, making things safer and more accountable.

In Santo Domingo, putting in over 1,300 surveillance cameras in the emergency system led to a 19–20% drop in traffic deaths. These results show how video-based driver safety technology and multi-camera systems can save lives and make emergency response better.

🚑 Tip: Using these technologies helps ambulance teams get there faster, avoid crashes, and give better care to patients.

Implementation and Considerations

Installation and Integration

Putting a 360-degree camera system in an ambulance takes planning. Technicians put cameras on the front, back, and both sides. The cameras connect to a digital video recorder and a main monitor. The system works with GPS and other tools in the ambulance. This helps the team work better and faster. Many groups say using AI-powered cameras and sensors helps change traffic lights and open lanes. This setup helps ambulances move faster and reach emergencies sooner. The system can fit different city designs and old vehicles. This makes it useful for many ambulance fleets.

Tip: A positive attitude about technology helps teams learn new tools fast and keeps things improving.

Training and Maintenance

Training is important so staff can use the camera system well. Training teaches how to use monitors, watch videos, and answer alerts. Teams keep learning about new features and best ways to use the system. Regular checks make sure cameras and monitors work right. Agencies plan updates and repairs so the system does not break during emergencies. Staff also learn to fix small problems. This keeps the ambulance ready to help people.

Cost and Privacy

Getting new camera systems costs money for equipment and setup. Agencies also need money for training, updates, and fixing things. Privacy is very important. It can be hard to find private places for talks or to keep patient info safe on video. There are risks like hacking or bad internet, so strong security is needed. Agencies use safe passwords, check who is using the system, and teach staff about digital safety. They also have clear rules for paying for things and keeping equipment up to date. Patient surveys show most people feel their privacy is safe when these rules are followed.

Environmental: Safe private spaces, getting consent, other ways to talk.
Technological: Strong passwords, new software, safe networks, digital skills.
Operational: Staff training, fixing equipment, clear rules.

Camera systems help emergency teams stay safe and work better. They let teams watch live video and get alerts while driving. Remote help from experts can make things go smoother. In the future, new AI and smart city tools will help even more. Teams should think about the good and bad parts before picking new technology.

FAQ

How does the 360-degree camera system help ambulance drivers?

The system lets drivers see all around the ambulance. It helps them find dangers and avoid crashes. Drivers can stay safe, even in crowded places.

Can the camera system record video at night?

Yes. Infrared night vision helps cameras see in the dark. It works in smoke and bad weather too. This makes nighttime emergencies safer.

Is patient privacy protected with these camera systems?

Agencies use strong security and special rules to keep things private. These steps protect patient information and keep videos safe.
