Easy Backup Camera Wiring Diagram: Step-by-Step Guide

Key Highlights

A backup camera wiring diagram is important if you want to do the installation on your own. It helps make sure that each connection is safe and works well.
The main things you need are the reverse trigger wire, the RCA video cable, the head unit, and the reverse light power.
When you know the usual wire colors and symbols, the wiring job is easier, even for people who have not done this before.
If you route the wires the right way from the license plate up to the dashboard, you cut down on interference and keep your new setup safe.
A step-by-step guide shows you how to connect both wired and wireless backup camera systems.
You also get help for fixing problems, plus tips for adding extra features, like an override switch, so your rear view is always reliable.

Introduction

Are you looking to make your vehicle safer and help make reversing easier? A backup camera on your license plate can help you get rid of blind spots and keep your car safe. It doesn’t matter if you drive a small car, a truck, or an RV. When you know the basics of backup camera wiring, you feel good about reversing in every situation. This guide will take you through each step. It is written so even someone working on wiring for the first time can install their backup camera system without stress.

Essential Tools and Materials for Backup Camera Installation

Starting your backup camera job starts with the right things in hand. You want to have wiring tools like a wire stripper, crimpers, and electrical tape for safe and steady wiring. A good rca video cable helps the video go from the backup camera to your head unit, so be sure to get one. Also, get some easy tools to help you put the camera on the dashboard. This will make the work smooth and simple for you.

Having these things with you, and following the right wiring diagram, helps things go well. The tools you pick matter. They save you time, and they stop wiring problems from happening later. Now, let’s talk about the wiring tools that every beginner should have.

Must-Have Wiring Tools for Beginners

Getting your wiring tools ready is key before you start your backup camera install. The right equipment helps you not make mistakes. It makes every wiring connection safe and strong. Do you want to know what you must have for a DIY backup job? Let’s look at it and get you set up to do it the right way.

Essential wiring tools and materials include:

A wire stripper can help you take off insulation from wires without making a mess.
A crimp tool is good to get tight cable connections.
Use electrical tape or heat shrink tubing—they protect the area where wires join.
The rca video cable is used to carry the camera signal. A video cable like the rca makes sure the picture goes through.
A test light or a multimeter lets you check if a wire has power or not.

Wire strippers help you get the ends of the wires ready without breaking the strands. Crimpers help keep your wiring connections tight. This is important because your car shakes when you drive. A multimeter helps you find the reverse trigger wire or check the outputs on the head unit. With these tools, you can follow a backup camera wiring diagram well. You will feel more sure and work faster when hooking up the trigger wire, the backup camera, or the rest of the wiring on your head unit.

Components Included in Most Backup Camera Kits

Most backup camera kits give you all the things you need for a normal setup. It helps to know what is in the box. This way, you can spot each part and match it with the wiring diagram. Doing this makes backup camera setup smoother and helps you avoid mix ups.

Common parts you will find in a backup camera kit include the following:

The backup camera, often called a license plate backup camera, is included.
There are power and ground cables, too.
A reverse trigger wire helps to turn on the view when you switch to reverse gear.
An RCA video cable, which usually comes with yellow RCA connectors, is part of the kit.
You will get mounting hardware and some basic instructions as well.

You will also get a head unit or monitor. You can also use the same dashboard display you have now. A lot of kits come with an extra red wire for the reverse trigger. This wire is marked, which makes it easy for beginners to find. Every part works together so the backup camera turns on right when you shift the car into reverse. If you want a step-by-step diagram, you can check your kit’s manual or look at this guide. Both will show you how to connect everything you need for your backup system.

Understanding Backup Camera Wiring Diagrams

Understanding a backup camera wiring diagram is the first thing you need for a simple setup. A diagram shows every wire, like RCA and the one for reverse gear, and how they all be linked. This way, you do not have to guess where each wire goes. There are symbols and color codes shown in the diagram to help stop mistakes. With this, you can set up a backup camera without any trouble.

Start by learning the legend that tells you what the wire colors and the diagram symbols mean. It is a good idea to know this because every step of the wiring will feel easier. You will use this information when you power the camera, hook up the head unit, or find and fix a problem. Now, let’s talk about the symbols and labels you will find in the diagram.

Interpreting Common Symbols and Wire Labels

Reading a wiring diagram gets easy when you know the common marks and names used for vehicle camera systems. The diagrams use simple and common shapes to show parts, like the camera, RCA cable, reverse light, and other things.

Typical symbols and labels you’ll see include:

Use squares or rectangles to show connectors, like the head unit.
A zigzag line is used for ground wires.
Arrows or circles show where the reverse trigger wire, reverse trigger, or trigger wire is.

Knowing these symbols helps make things easier and cuts down on mistakes. You can see the table below. It gives a fast list of the common symbols and what they show.

Symbol/Label	Meaning
CAM	Camera
RCA	Video cable (yellow RCA)
+12V (Red Wire)	Power supply
GND (Black Wire)	Ground connection
TRIG (Trigger Wire)	Reverse trigger or signal

Knowing these signs on your diagram helps you link every wire the right way. You can feel sure that it will be done well.

Typical Wire Colors and Their Functions

Backup camera wiring often uses certain colors to show what each wire does. The red wire and black wire are the most common. But you will also see yellow and white wires, and these are important, too, in your backup camera wiring setup.

Here is a short guide to what the main wire colors show:

The red wire is used to get 12V power from the reverse light.
The black wire is there for ground.
The yellow RCA is to send the video signal to your screen.
If you see more wires like a white one or another black wire, these are often for extra ground or signal.

Take a look at the table below. It will help you know what most wire colors mean.

Wire Color	Function
Red	Power (+12V, reverse light)
Black	Ground
Yellow RCA	Video signal
White/2nd Black	Video ground or signal
Blue	Reverse trigger wire

Knowing these color codes helps you match each wire to its job. It makes your wiring diagram simple to read and follow. This can also help stop mistakes when you are putting things together.

Step-by-Step Guide to Wiring a Backup Camera

Wiring a backup camera begins when you plan out how to run the video cable. First, you need to decide the way the RCA video cable will go from near the license plate to your dashboard. Take your time to make sure you get it right.

Next, connect the trigger wire. This wire is what turns on the camera when you put your car in reverse. Make sure all the connections you make are tight, as this will help the backup camera give you a good picture whenever you need it.

After every wire is connected, be sure to test your whole setup. This is how you know the backup camera shows a clear image on your dashboard screen when you go into reverse. Each part of wiring, from placing the rca video cable to hooking up the trigger wire, is important. A good plan and careful work mean better safety and backup help when you drive.

With your wiring diagram ready, this part shows you each step in a simple way. You can use it to connect every part of your backup camera, whether you have a backup camera that works with any car or one made for a certain vehicle. The next steps will help you get your backup camera system working the right way.

Preparing and Planning Your Wiring Route

Planning the wiring route is one of the most key steps when you set up a backup camera. It is good to get ready for this step. A good plan helps your cables stay safe. This means the cables will not get damaged or get in the way of other parts. A well-planned route also keeps your wiring away from water and sun. This keeps your backup camera working well for a long time.

Think about these tips when you set up your wires:

Begin at the license plate area, since most cameras attach here.
Run the wiring by following the factory paths under the panels, door sills, or under the carpeting.
Be sure not to go over hot surfaces or moving parts under the vehicle, as it can hurt the wiring.
Plan how you will get the wires up to the dashboard and the head unit’s spot.

Start by figuring out the shortest and safest way for the RCA video cable and any trigger wires to go. Use zip ties to hold the wires in place as they go along this path. If you are working with an RV or an old car, you can use rubber grommets and wire looms for more safety. This planning helps to keep wires from being pinched or damaged. It also stops accidental short circuits, so you have a camera setup that is safe and works well. The rca video cable, as well as other video cable wiring, will last a long time if you do this right.

Connecting to the Reverse Light Circuit Safely

Connecting your backup camera to the reverse light is the best way to make sure it turns on only when you shift into reverse gear. But, you have to do this the right way and be safe. This is important for the backup system to work well every time.

To make a safe connection:

Find the reverse light wire in your tail light area.
Use a wire stripper so you can carefully show the part of the wire.
Attach the red power wire from your camera to the positive reverse light wire.
Connect the black wire to a clean metal surface or to a ground wire.

Always look at your car’s wiring diagram or manual first to check the wire colors. It is good to use butt connectors or solder when joining wires, as this helps make a solid joint. Be sure to cover the connection with electrical tape or heat shrink tubing. If you attach your trigger wire the right way, your head unit or display will switch to rear view as soon as you go into reverse. This way, your backup camera works right away for a smooth backup every time.

Integrating with Aftermarket Head Units or Displays

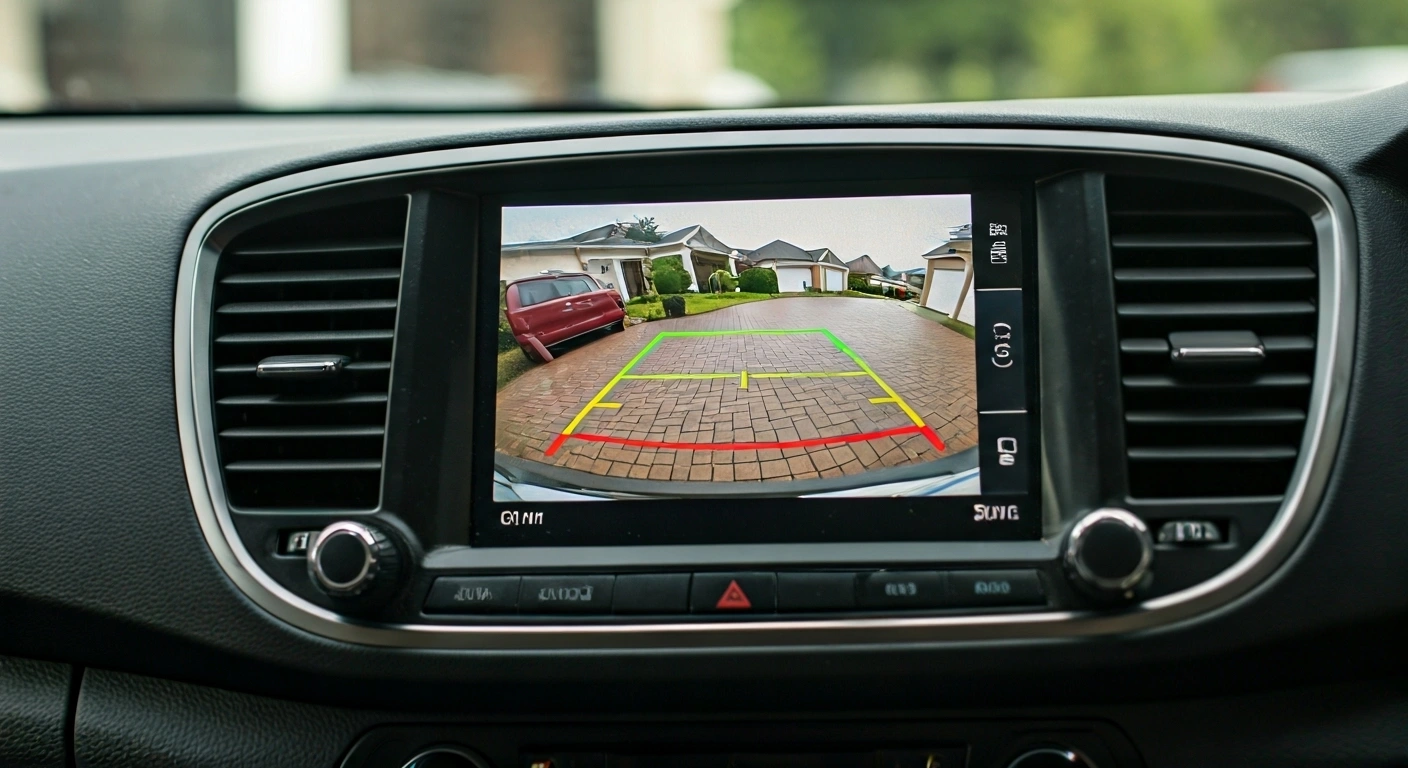

Modern aftermarket head units help you show the backup camera feed on your screen. For this to work well, good wiring is important. You need to run the camera’s RCA video cable from the back of your car to the dashboard. Next, connect the reverse trigger wire. This will make sure the system turns on when you are reversing. A solid reverse trigger is important for the backup camera to come up on the screen at the right time. When the video cable is set up well with the right wiring, you will get a clear backup view on your dashboard when you go into reverse. This way, you use every part like the trigger wire and rca video cable for the backup camera to work, so you feel safe when backing up.

These steps help make sure that your camera works well with most of the popular brands. This way, you can see the camera feed clearly on your dashboard display. In the next sections, you will find practical tips about wiring. There are also techniques for connecting signal wires and working with different head unit models.

Running Signal Wires to the Dashboard

Running the signal wires up to the dashboard is an important step when you put in a backup camera. The RCA video cable, which is usually yellow, carries the video from the backup camera to the head unit or display. This video cable lets you see what the backup camera picks up right on your screen or dashboard. Make sure you connect the RCA video cable well to get a clear picture on your head unit.

Start by putting the RCA cable under the inside panels of your car. Try to follow the path of the other wires if you can. Use a plastic tool when you do this, so you do not scratch the panels. If the car is big, has a long wheelbase, or has more than one row, you will need more cable. You can add extra cable or use extension cords for this.

The reverse trigger wire, which is often red or blue, needs to go to the dashboard too. Plug this trigger wire into the “BACK” or “CAMERA-IN” spot on your head unit. This will help your setup work the right way.

Check every connection to be sure it fits right. Try to keep wires tight, without extra slack. This helps keep the backup camera working well. It lowers the chance of problems with the image, cuts down on noise or static, and stops wires from coming loose by accident. If you take these steps, your backup camera will work each time you put your car in reverse.

Wiring Tips for Popular Head Unit Brands

Each head unit brand can have its own connection points. But, there are some wiring tips that work for almost all of them. If you use these, your install will be easier and more smooth.

Find the dedicated reverse camera input on the head unit. This is often marked as “CAM-IN” or “BACK-VIDEO-IN.”
Plug the yellow RCA cable from the camera straight into this port.
Connect the reverse trigger wire from the camera to the head unit’s “BACK” or reverse signal wire.
Make sure you check the polarity: Connect the red wire to the positive, and the black wire to the ground to stop power issues.

For brands like Pioneer, Kenwood, and Sony, you need to go into the settings menu to turn on the camera input after you do the wiring. A lot of the aftermarket head units also need the reverse trigger wire hooked up so the screen switches by itself when you back up. If you are not sure how to do this, look at the wiring diagram that comes with the unit or read the manual that is included. If you follow these steps, your backup camera will work well with your dashboard’s system, no matter which model you have.

Wired vs. Wireless Backup Camera Wiring Explained

Choosing between wired and wireless backup camera systems comes down to your vehicle and how you feel about setting things up. A wired backup camera uses RCA cables and a reverse trigger wire. You have to run these cables from the rear view area to the head unit, which can take time but gives a good and steady image. A wireless backup camera uses a transmitter and a receiver to send the video. There is less wiring with this type because signals go through the air from the rear view camera to the head unit.

It is important to understand the differences in wiring diagrams for both systems. The parts below explain what makes each one different. This will help you pick the one that is best for you.

Key Differences in Wiring Diagrams and Setups

Wired and wireless backup camera systems have their own wiring steps. The setup for both is not the same. Knowing these differences will help you pick the right backup camera. This also makes installing it much easier and helps you not get confused while you work on it.

Key distinctions include:

Wired systems work by running RCA video cables straight from the camera to the head unit or display.
Wireless systems use a transmitter at the camera and a receiver at the dashboard.
Both wired and wireless systems need power from the reverse light.
Wired diagrams show a cable going all the way, but wireless diagrams show where the transmitter and receiver are placed.

While wireless systems make it easy to send video, the camera still needs to be connected to power and ground. Wired setups can take more time to put in, but they often give you a steady video and you do not need to worry about wireless issues. You should always look at the wiring diagram for your system, whether it is wired or wireless, to make sure you set up everything in the right way. This will help your rear view backup camera work well every time.

Choosing the Best System for Your Vehicle

Choosing a wired or wireless backup camera comes down to your car, the way you install things, and what features you want. You should check if the backup camera will work with your head unit. The size of your car, truck, or RV can also change what works best for you.

Wired systems work well in cars, trucks, and vans where you can run a video cable without much trouble. They give you the best video reliability. If you want your rear view camera to work all the time and you can reach the dashboard easily, a wired RCA video cable is a good idea. On the other hand, wireless backup cameras are better for big vehicles or RVs. These work well when running an RCA cable from the rear view to the dashboard takes too much time or is too hard to do.

If you need to use more than one camera or have an older head unit, make sure to check if the system will work for you before you buy it. Think about all the details before making your choice. When you know the wiring diagram and what you need, it helps you pick the best and easiest backup camera for your car. This way, you get a backup camera that works well with your setup.

Troubleshooting Common Backup Camera Wiring Issues

Troubleshooting is a normal part of doing any DIY backup camera install. When you run into wiring issues, connection errors, or problems with the image, it helps to know where to look and what to do. There are some common problems people see, like the backup camera not turning on, the screen showing nothing or flickering, or the head unit not going to the rear view when you put your car in reverse. If you know how to spot and fix these issues, the job gets much easier.

This part talks about the most common wiring mistakes people make. It will also show you fixes for them. With this help, you can get your backup camera system working well again, and feel sure about what you are doing.

Camera Not Powering On: Possible Causes

If your backup camera does not turn on after you have carefully looked at the wiring diagram, there are a few things you can check. First, look at the red power wire for the camera. Make sure it is connected to the reverse light power. If there is a missed or loose connection with the reverse light, the backup camera may not get power at all. This simple wiring step can make all the difference in getting your camera to work when you need it.

Next, you should check the ground link. Make sure the black wire is tightly attached to a bare metal part of the chassis or a spot you know is ground. A lot of power problems come from bad grounds. If your car has an aftermarket head unit, check again to see if the reverse trigger wire is hooked up. Many cameras need the reverse trigger to get a signal and turn on. The trigger wire is important for this to work.

Lastly, use a multimeter and check if you get 12V at the camera’s power terminals when the car is in reverse. If the wiring is right but the camera still does not turn on, look at the kit manual or ask for help from a professional. There could be a problem with the camera itself.

Fixing Image Problems and Connection Errors

Image problems and connection errors can be annoying, but you can often fix them fast if you know what to do. A blurry, flickering, or missing image is often caused by something wrong with the RCA video cable or the connections. It helps to check the video cable and see if the rca cable is plugged in well. This is the first thing you should try when you have these problems.

To resolve these issues:

Look at the yellow RCA cable. See if the connectors are loose or dirty.
Make sure the video cable is plugged into the right spot on the head unit.
If the RCA cables or connectors look damaged, you should change them.
See if there is interference, especially in wireless systems.

Sometimes, you have to check the head unit settings or clean the camera lens. If you see “No Signal” on the screen, try changing the RCA cable or making sure it is connected well and tight. By using these simple steps, you can get your backup camera working again. This will help you get clear images when you are reversing and make it safer for you to back up your car.

Adding Advanced Features to Your Backup Camera System

Once you have your basic backup camera system set up and working, you can make it even better with more features. A good option is to put in an override switch. This switch lets you see the backup camera feed at any time, not only when the car is in reverse. It helps a lot for people with RVs, big cars, or if you need to park in small spaces. This is a great way to take your backup setup to the next level.

Special wiring steps are needed for old cars or special setups. This is true when you want to hook things up to old dashboards or if you have an RV with its own head unit. The next parts will show you how to add these extras, so you can feel sure about what you do.

How to Add an Override Switch Using the Diagram

Adding an override switch can be a good way to use your backup camera whenever you want, not just when you are reversing. The wiring diagram will show you how to put the switch in the right way.

Here’s how to add an override switch:

Connect a three-position switch to the camera’s power wire. The switch should go between the reverse light circuit and an accessory 12V source.
Attach one terminal of the switch to the reverse trigger wire. The other terminal connects with the accessory 12V. The common terminal goes to the camera power input.
Place the switch on your dashboard so you can reach it easily.

When you wire it this way, turning the switch on will send power to the camera whenever you want. This is simple and useful for RV drivers or people who want more safety in their vehicle. Be sure to check every connection using your wiring diagram. It’s also good to label the switch clearly, so you do not get mixed up.

Special Considerations for RVs and Older Vehicles

RVs and old vehicles can be tricky when you work with backup camera wiring. There can be long cable runs and dashboards that do not look like the new ones. Some head units may not match today’s standards. You may need to change the backup camera wiring to fit right.

For RVs, it is good to use high-quality, shielded RCA video cables. This helps cut down signal loss, even when the cable is long. If your vehicle does not have a reverse trigger, you will need to run a new trigger wire right to the transmission’s reverse gear switch or the fuse box. In some older vehicles, you might not see clear places for mounting. Because of this, many people go with license plate backup cameras. They are often a good choice.

Always look at the wiring diagram that matches your car’s year and model. If you feel unsure, there are many car radio and camera kits that give guides just for your car or have customer support to help you. When you plan out where the wiring will go and check each connection, you feel better when you drive, no matter how old your car is.

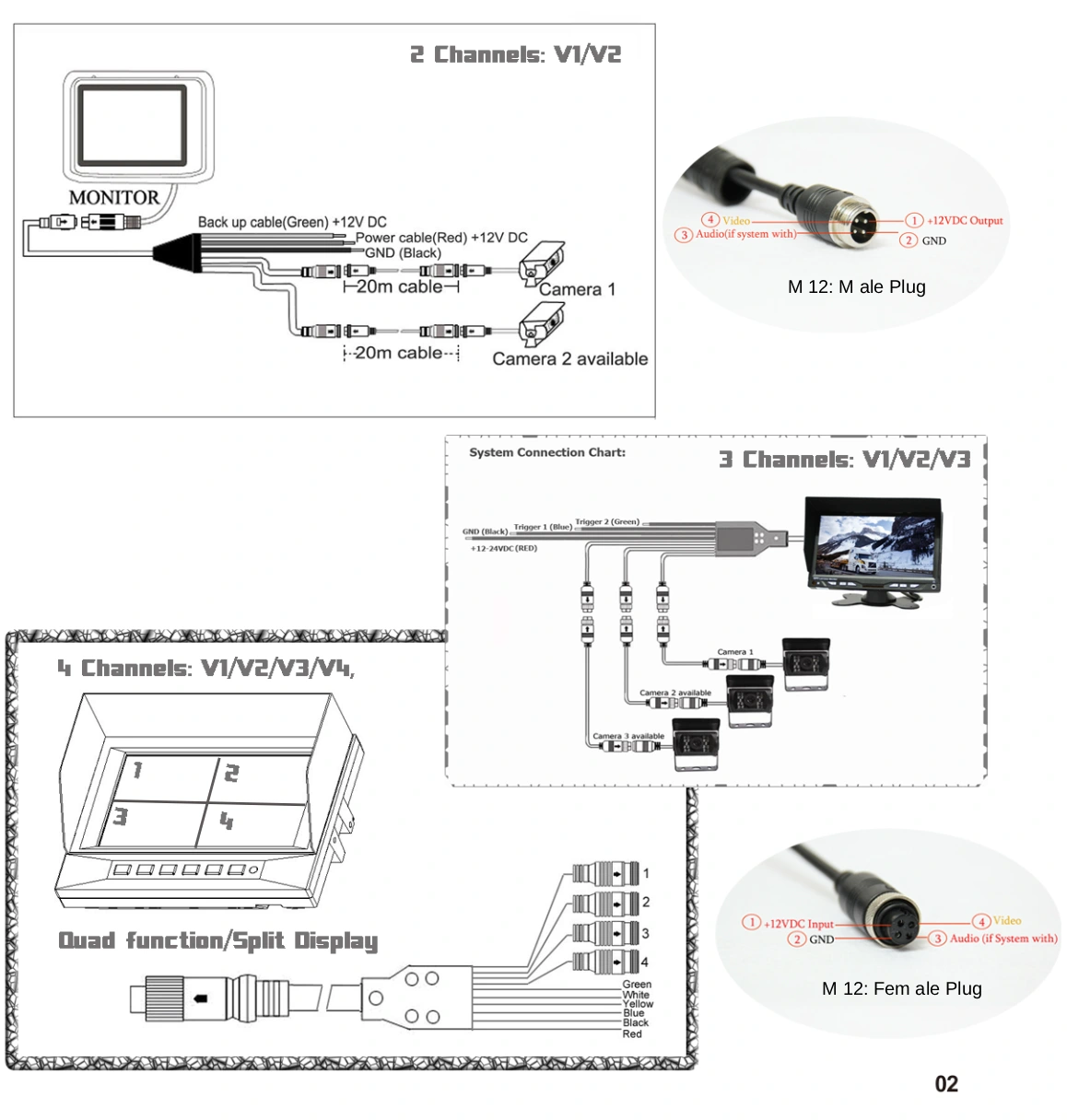

The Lintechco Safety Vision Backup Camera Wiring Diagram PDF

The Lintechco Safety Vision Backup Camera Wiring Diagram PDF provides a detailed visual representation of how to correctly wire and set up your safety vision backup camera system. This diagram includes step-by-step instructions on connecting the camera to the power source, monitor, and any additional components. It highlights the importance of following proper wiring procedures to ensure the camera functions efficiently and effectively in enhancing vehicle safety. Additionally, the PDF may include troubleshooting tips and maintenance guidelines to keep your backup camera system in optimal working condition.

Download lintechco safety vision backup camera wiring diagram pdf

Conclusion

To sum up, wiring a backup camera might look hard at first. But if you have the right tools and you read the wiring diagrams well, you can do it. Just follow the steps in this guide. You will feel good wiring the backup camera into your car’s system. Make sure you look at the colors and signs in the wiring diagrams. They help you make the right backup camera wiring connections. It does not matter if you pick a wireless or wired setup. The job must be done right, so your backup camera can help you drive safer and make things easier for you. If you have questions or need more help about backup camera wiring, feel free to ask. This will help you get your backup camera put in the right way.

Frequently Asked Questions

Can I install a backup camera myself if I’m a complete beginner?

Yes, even if you are new to this, you can install a backup camera by using a clear wiring diagram and easy step-by-step instructions. Most do-it-yourself kits come with all you need. This includes the backup camera, an RCA video cable, and a reverse trigger wire. With these, you can hook up your camera, video cable, and trigger wire. The job is simple if you take your time, read the diagram, and be extra careful when you work with the reverse gear wiring.

Do all backup cameras use the same wiring colors and diagrams?

Not all backup cameras have the same wire colors or wiring diagrams. Most cameras will use red for power, black for ground, and a yellow RCA for video. Some kits or head units may use different colors for the reverse trigger wire or other signal wires. You should always check the manual that comes with your backup camera to be sure of the correct wiring. This helps you know where the reverse trigger, yellow RCA, and other wires go for your backup camera setup.

What should I do if my backup camera still doesn’t work after wiring it up?

If your backup camera does not work after wiring, start by looking for loose connections. Check if each wire is in the right place. Make sure the head unit is set to the right input for the backup camera. If you have image problems or connection errors, test the RCA video cable. Look over all power and ground connections. This can help you find and fix the problem with the backup camera, the RCA, or the video cable.
