When managing a fleet of vehicles, staying connected is essential. A reliable MDVR (Mobile Digital Video Recorder) system ensures live video streaming, GPS tracking, and remote monitoring. But what happens when your MDVR suddenly goes offline?

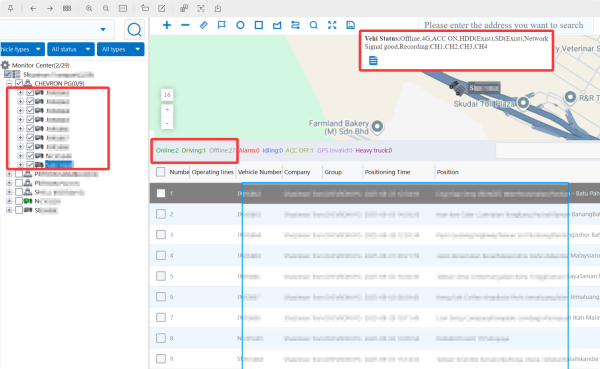

Recently, a fleet operator in Malaysia, Raj, faced this exact problem: all his MDVR devices went offline at the same time. At first, it looked like a system-wide failure. However, after proper MDVR offline troubleshooting, the root cause was found — the SIM card data plan was completely consumed due to incorrect platform settings.
This real-life case highlights the most common causes of vehicle DVR connectivity problems and provides a step-by-step guide to troubleshoot MDVR offline issues.
Step 1: Check SIM Card Data Usage
One of the leading causes of MDVR offline status is exhausted mobile data. Since MDVR systems rely on 4G/5G networks, no data means no connection.
Case Example:
Raj’s MDVR fleet had a hidden cloud video backup task enabled, which uploaded recordings to the server 24/7. This consumed the SIM card data plan much faster than expected, leaving no bandwidth for real-time fleet monitoring.
Solution:
-
Check SIM card usage directly from the telecom operator.
-
Recharge or upgrade to a larger data package if usage is high.
-
Optimize MDVR data settings to prevent unnecessary data drain.
Keyword Tip: Always link MDVR SIM card data usage with your fleet monitoring plan.

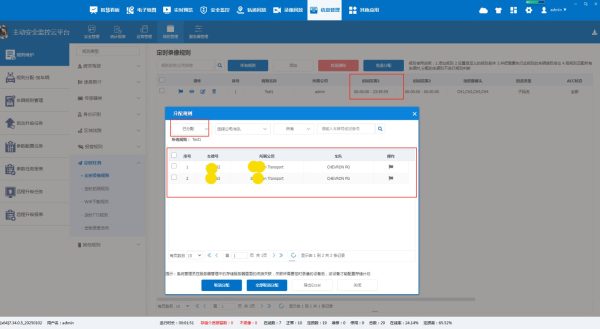

Step 2: Review MDVR Cloud Backup Settings
Another major cause of unexpected vehicle DVR connectivity problems is incorrect system configuration. Continuous cloud video backup consumes data rapidly and often leads to all devices going offline.
Solution:
-
Disable 24-hour cloud backup unless absolutely necessary.
-
Instead, enable event-triggered uploads or schedule backups during off-peak hours.
-
Regularly review your MDVR platform settings to ensure they match your actual needs.
This small adjustment can save thousands of MBs in data usage per month.
Step 3: Inspect MDVR Device Connectivity
If data is not the problem, check basic MDVR device connectivity issues:
-
Ensure SIM card is properly seated.
-
Verify APN settings are correct for your SIM provider.
-
Check 4G/5G network signal in the area.
-
Confirm the MDVR has stable power input.
Even a small issue like a loose SIM card can cause fleet monitoring downtime.

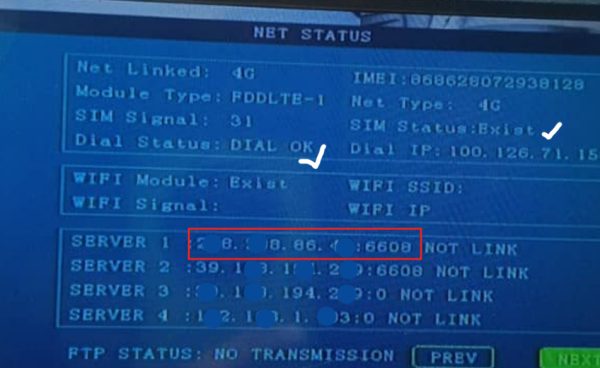

Step 4: Confirm MDVR Server Communication
Sometimes the device works fine, but the MDVR server connection fails. This can happen due to:
-
Wrong server IP or port configuration.
-
Firewall blocking the communication.
-
Server-side overload or temporary downtime.
Always test connectivity from both ends — device and server — when troubleshooting.
Step 5: Prevent Future MDVR Offline Issues
To keep your fleet monitoring system running smoothly, follow these preventive measures:
-
Set Data Alerts: Ask your SIM provider to notify you when usage reaches 80–90%.
-
Monitor Device Status: Use the MDVR platform’s health-check tools.
-
Train Staff: Ensure your operators understand the impact of cloud backup settings.
-
Choose the Right Data Plan: Estimate consumption per device and add a safety buffer.
Final Takeaway
Raj’s case from Malaysia is a perfect example of how MDVR offline troubleshooting can prevent unnecessary panic. The devices themselves were fine — the issue was SIM card data exhaustion caused by 24-hour cloud video uploads.
By following a structured approach:
👉 Check SIM card data → Review platform settings → Inspect connectivity → Confirm server communication
…fleet managers can quickly restore their MDVR systems and avoid downtime.
Proper MDVR configuration and proactive monitoring are the keys to preventing vehicle DVR connectivity problems and ensuring your fleet stays online 24/7.
Any question just contact with Lintech at [email protected]
