Introduction
FPV (First Person View) cameras are the “eyes” of any drone system, directly influencing flight experience, control precision, and visual clarity. But when browsing the market, one thing becomes immediately obvious: FPV camera prices vary dramatically—from under $20 analog units to $200+ digital systems.
So what exactly drives this price difference?
This article breaks down the true cost structure of FPV cameras, analyzing how hardware design, video signal type, resolution, color processing, and lens characteristics impact pricing. Whether you’re a manufacturer, integrator, or FPV enthusiast, understanding these factors helps you make smarter purchasing decisions.
1. FPV Camera Price Overview
Before diving into technical factors, let’s define the typical price ranges:
| Category | Price Range | Typical Use |
|---|---|---|
| Analog FPV Cameras | $10 – $50 | Racing, budget builds |
| Mid-range Digital FPV | $80 – $150 | Freestyle, semi-pro |
| High-end Digital FPV | $150 – $300+ | Cinematic, professional |
Analog systems remain popular due to affordability, while digital systems command higher prices due to advanced processing and image quality .
2. Hardware Architecture: The Core Cost Driver
At the heart of every FPV camera lies a combination of:

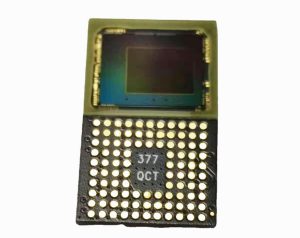

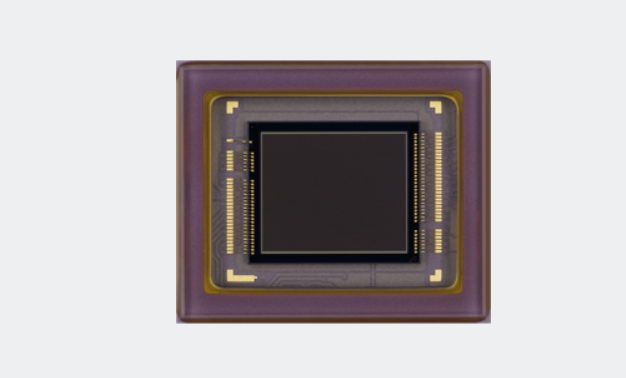

- Image sensor (CMOS)
- ISP (Image Signal Processor)

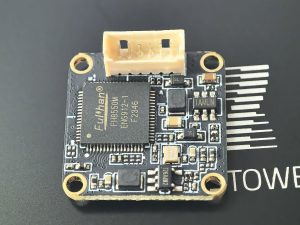

- PCB design
- Heat management
- Shielding and durability
Why Hardware Matters
Higher-end cameras use:
- Larger sensors → better low-light performance
- More powerful ISP → better image processing
- Multi-layer PCB → signal stability
These directly increase production cost.
For example, digital FPV systems integrate encoding chips and transmission modules, which significantly raise the bill of materials compared to simple analog cameras .

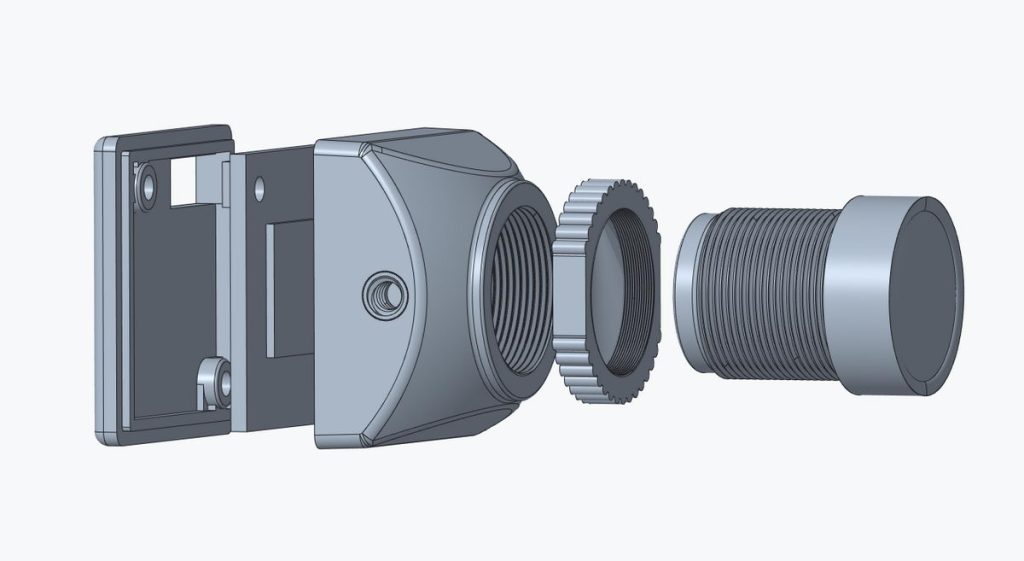

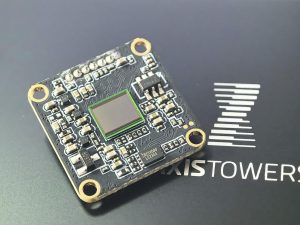

📷 Image Placeholder
( FPV camera PCB, sensor module, exploded view)
3. Video Signal Output: Analog vs Digital Pricing Gap
One of the biggest price differentiators is video signal type.
Analog (CVBS) FPV Cameras
- Output: Continuous analog signal
- Latency: Extremely low (as low as 5–25ms)
- Resolution: Typically 480p equivalent
- Cost: Very low
Analog cameras are simple and cost-effective because they avoid compression and encoding, resulting in lower hardware complexity.
Digital FPV Cameras
- Output: Encoded digital signal (HD transmission)
- Resolution: 720p to 4K
- Latency: 20–45ms or more depending on system
- Cost: High
Digital systems require:
- Encoding chips (H.264/H.265)
- Transmission modules
- Decoding systems in goggles
This added complexity is the main reason digital FPV cameras cost significantly more .
🎥 Video
4. Resolution: More Than Just “Clarity”
Resolution is often misunderstood in FPV systems.
Analog Resolution (TVL)
- Measured in TV lines (e.g., 600TVL–1200TVL)
- Higher numbers don’t always mean better quality
- Over-processing can introduce noise
Digital Resolution
- Measured in pixels (720p, 1080p, 4K)
- Higher resolution = sharper image
- Requires more processing power
Price Impact
Higher resolution increases:
- Sensor cost
- Processing requirements
- Transmission bandwidth
However, real-world usability matters more than specs. A well-optimized 600TVL camera can outperform a poorly tuned 1200TVL unit in flight conditions .
5. Color Processing and Image Quality
Color science is a hidden but critical factor affecting price.
Key Elements
- Dynamic range (WDR)
- Color accuracy
- Low-light performance
- Noise reduction algorithms
High-end cameras invest heavily in image tuning, including:
- HDR/WDR processing
- Adaptive exposure
- Digital noise filtering
These features require advanced ISP chips and software optimization, increasing development and hardware cost.
Practical Insight
Cheap cameras often produce:
- Washed-out colors
- Overexposed skies
- Poor shadow detail
Premium cameras deliver:
- Balanced contrast
- Natural color reproduction
- Better obstacle visibility
This is especially important in high-speed flight scenarios.

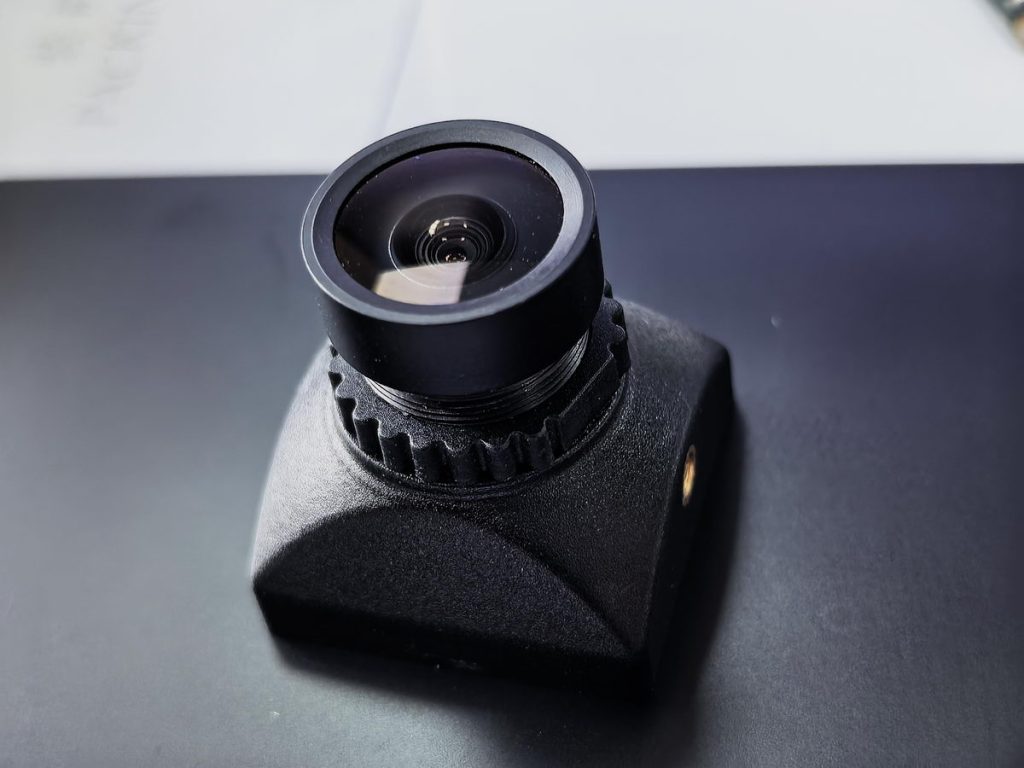

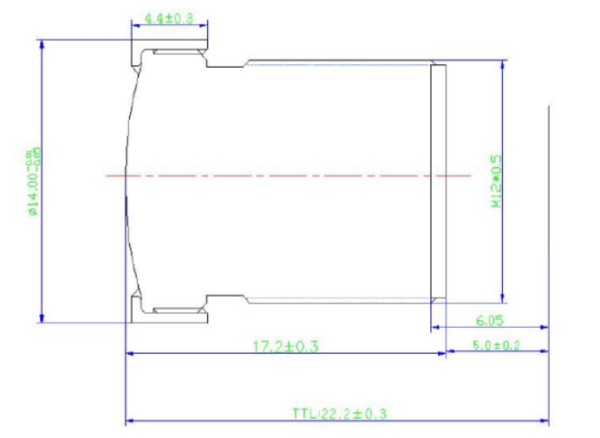

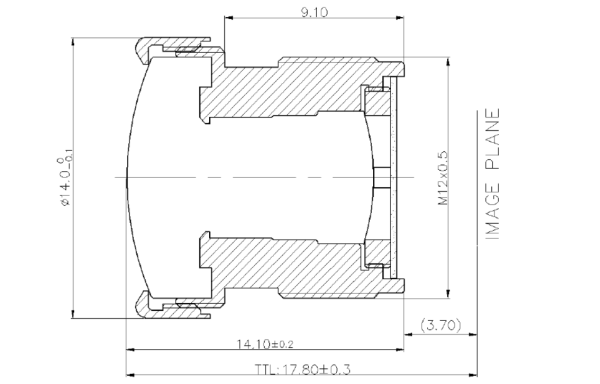

6. Lens and Field of View (FOV)
The lens plays a surprisingly large role in pricing.
Typical FOV Range
- 90° → Narrow, less distortion
- 120°–150° → Balanced
- 150°–170° → Ultra-wide
Price Factors
- Glass vs plastic lenses
- Multi-layer coatings
- Precision manufacturing
Trade-offs
- Wider FOV → better situational awareness
- But more distortion at edges
A wider FOV is often preferred in racing, but high-quality wide lenses cost more due to optical complexity.
📷 Image Placeholder
(Insert: comparison of different FOV angles)
7. Latency: Performance vs Cost Balance
Latency is not just a performance metric—it also impacts price.
- Analog: ~10–25ms
- Digital: ~20–80ms depending on system
Low latency requires:
- Faster sensors
- Optimized ISP
- Efficient transmission pipeline
High-performance low-latency digital systems are particularly expensive due to engineering complexity.
8. Additional Factors That Influence Price
1. Build Quality
- Metal housing vs plastic
- Vibration resistance
- Waterproofing
2. Size and Weight
- Nano cameras often cost more due to compact design
3. Brand and Ecosystem
- DJI / Walksnail ecosystems command premium pricing
- Compatibility with goggles and VTX affects cost
4. Integration Level
- Standalone camera vs integrated air unit
9. Real-World Pricing Logic
Putting it all together:
| Feature Upgrade | Price Impact |
|---|---|
| Analog → Digital | +100% to +300% |
| HD → 4K | +50% to +100% |
| Better sensor | +20% to +50% |
| Wide FOV premium lens | +10% to +30% |
| Advanced ISP/color tuning | +20% |
10. Choosing the Right FPV Camera for Your Budget
Budget ($10–$50)
- Analog CVBS
- Low latency
- Basic image quality
Mid-range ($80–$150)
- Entry digital systems
- Better clarity
- Moderate latency
High-end ($150+)
- 4K recording
- Advanced ISP
- Professional-grade optics
Conclusion
FPV camera pricing is not random—it reflects a complex balance of hardware capability, signal processing, optical design, and performance optimization.
If you strip it down:
- Hardware determines baseline cost
- Signal type (analog vs digital) defines price tier
- Resolution and ISP define image quality cost
- Lens and FOV refine user experience
The smartest buyers don’t just chase specs—they match camera characteristics to real-world application.
FAQ
Q1: Why are digital FPV cameras so expensive?
Because they require encoding, transmission, and decoding hardware, unlike simple analog systems.
Q2: Does higher resolution always mean better FPV performance?
No. Usable clarity and latency matter more than raw resolution.
Q3: Is analog still worth it in 2026?
Yes—especially for racing due to ultra-low latency.
