If you want to build a drone, an FPV camera is one of the most important components to include. The receiver receives video or photos from the FPV camera. As a result, a camera is necessary for the drone’s construction. This FPV camera supports the PAL Video format which broadcasts data over-the-air signals to your Receiver and the Lens can be tilted up to 130 degrees.
Camera Specification:

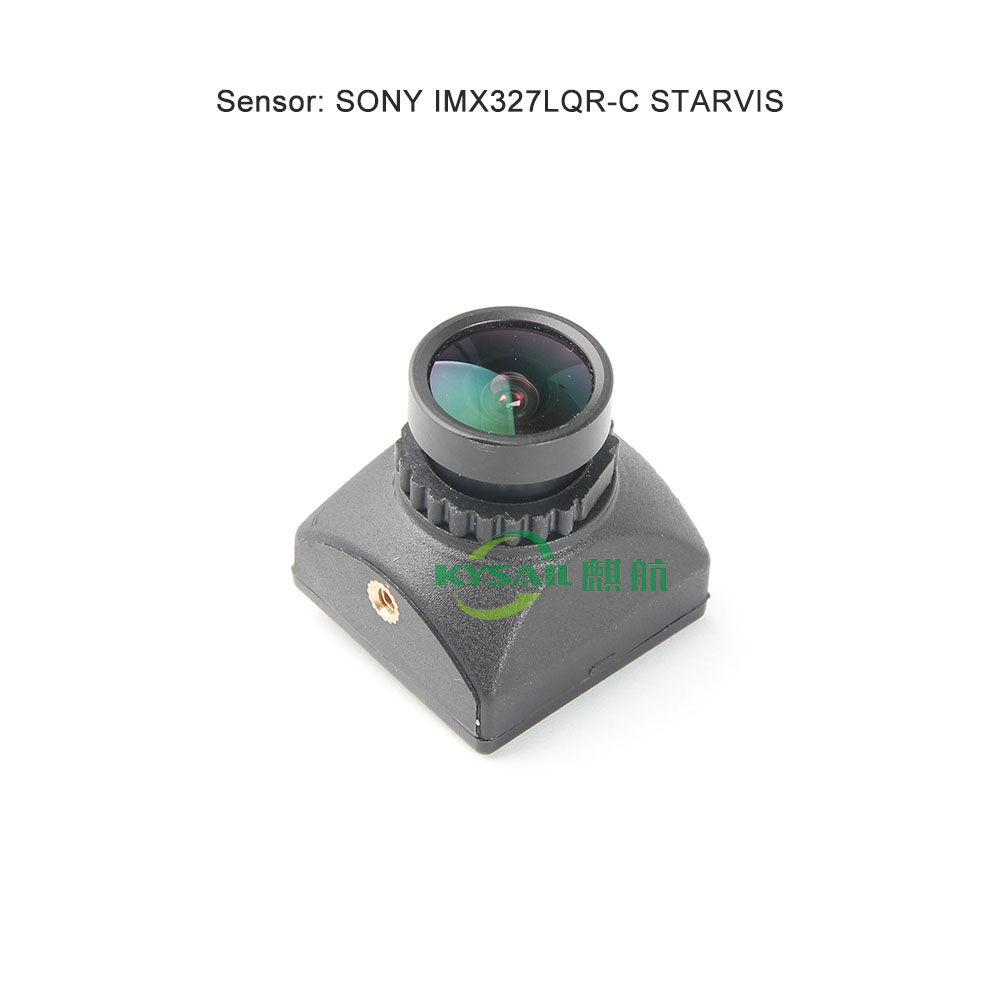

| Sensor Type: | SONY IMX327LQR-C STARVIS |
| Screen Ratio: | 4:3/16:9 switchable |
| Signal System: | PAL / NTSC (OSD Internal adjustable) |
| Pixel: | 2.07M pixel [2.9um (H)*2.9um(V)] ,AHD 200M Pixel |
| Resolution: | 1920*1080 |
| Frame Rate (fps): | 30fps / 60fps |
| Lens: | Horizontal 145° / 110° optional |
| Shutter: | 1/25(1/30)s to 1/50,000s |
| Video Output: | AHD 1080P/ 720P / CVBS optional |
| Minimum Illumination: | Yes |
| White Balance: | AUTO |
| Noise Reduction: | 2D/3D noise reduction |
| Wide Dynamic: | Yes |
| Day/Night: | Day time |
| OSD: | Yes |
| Input Voltage: | 4-28VDC |
| Menu Language: | Chinese, English, German, French, Portuguese, Russian, Italian, Spanish, Dutch, Turkish, Polish |
| Weight: | 9g |
| Package includes: | FPV camera x 1pcs

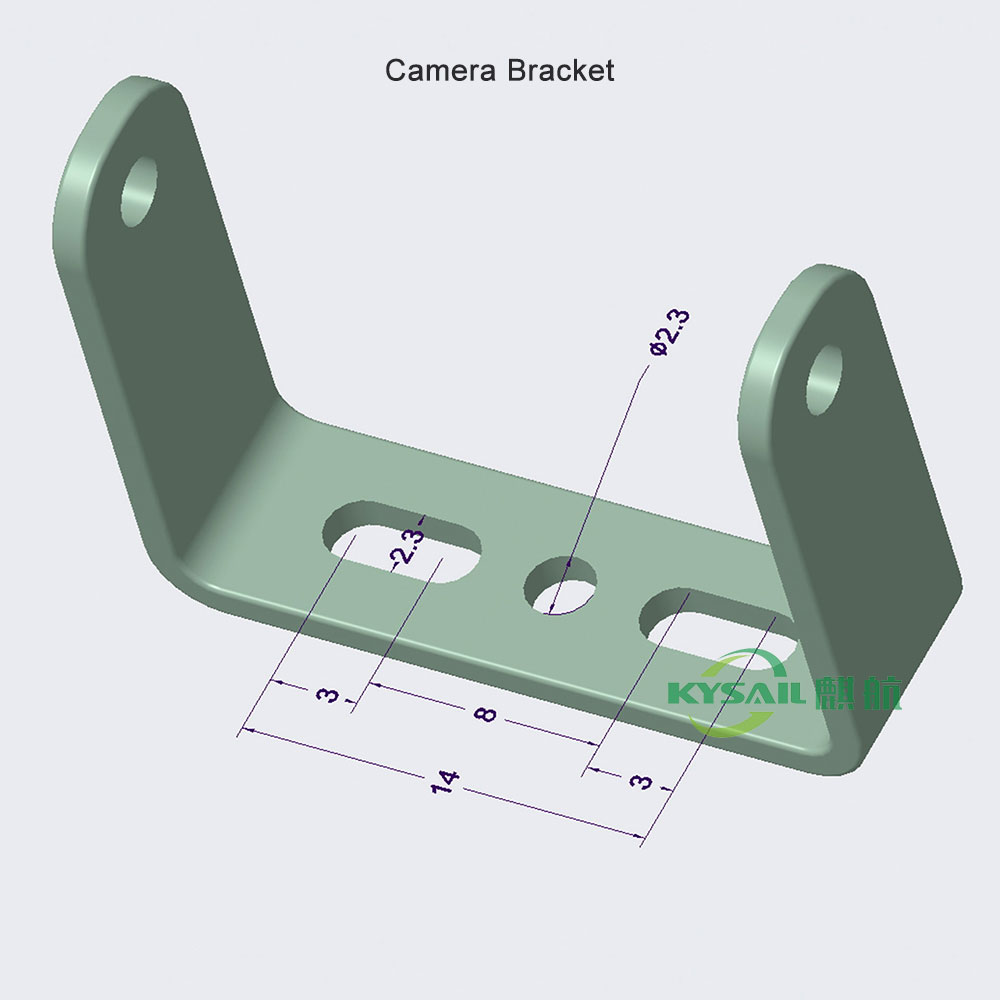

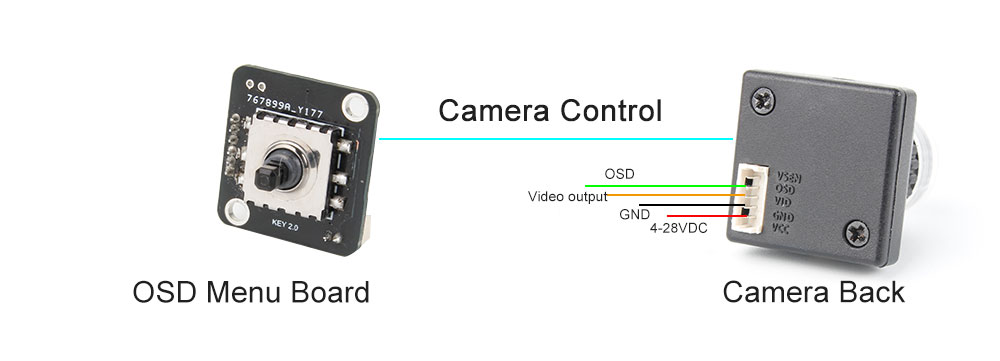

U aluminum bracket x 1pcs 3P 1.25mm cable x 1pcs 2P 1.25mm cable x 1pcs M2-4 fixing screws x 2pcs OSD menu board x 1pcs |
