How to DIY Quickly Install Your 79Ghz Radard BSM BSD Blind Spot Detection System? How to DIY Quickly Install Your 79Ghz Radard BSM BSD Blind Spot Detection System?

How to DIY Quickly Install Your 79Ghz Radard BSM BSD Blind Spot Detection System?

1. Tools need to prepare:

BSD install Tools need to prepare — BSD install Tools need to prepare （ Circuit Tester or multimeter）

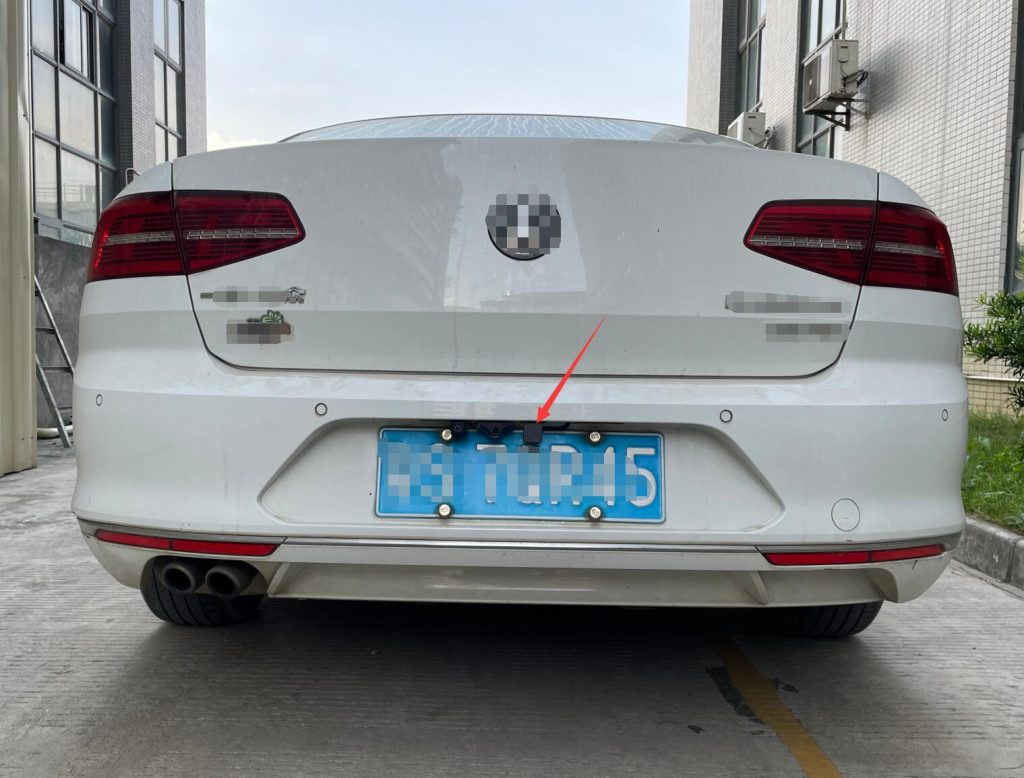

Car Radar BSD install on car — Car Radar BSD install this position, or hidden behind the Rear bumper is OK

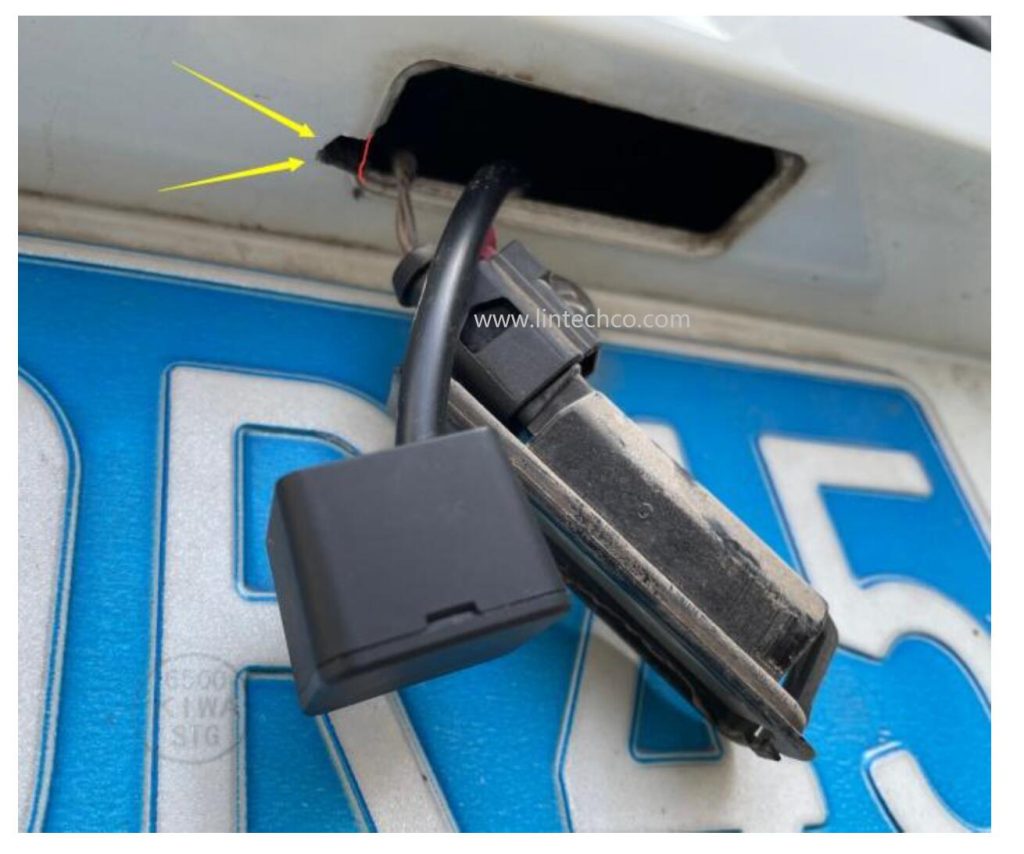

Cable out from License lamp — Cable out from License lamp, cut a hole for detector’s cable

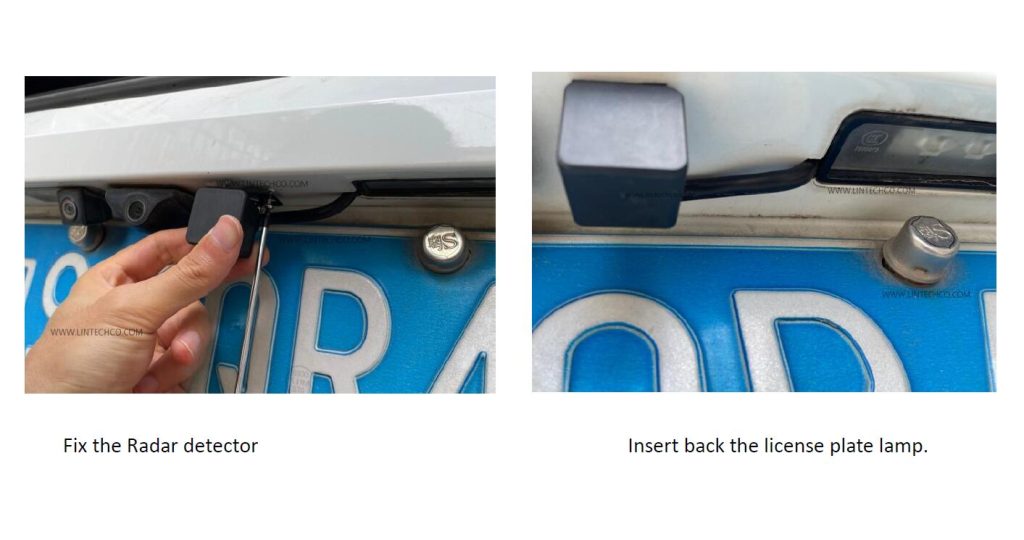

Fix the Radar detector

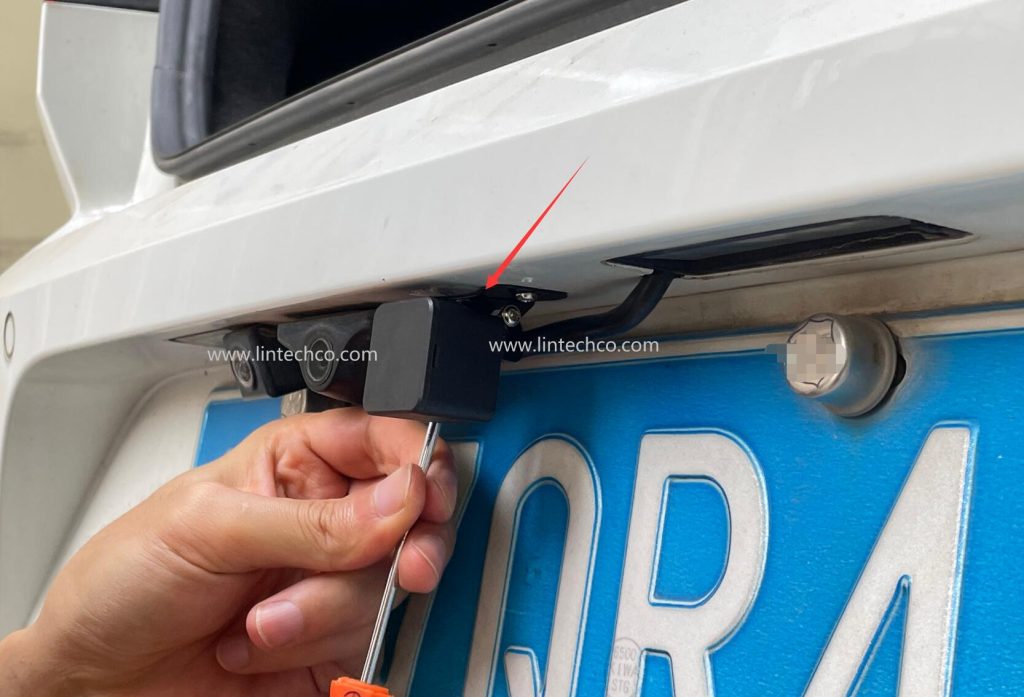

Car Radar BSD install Easy

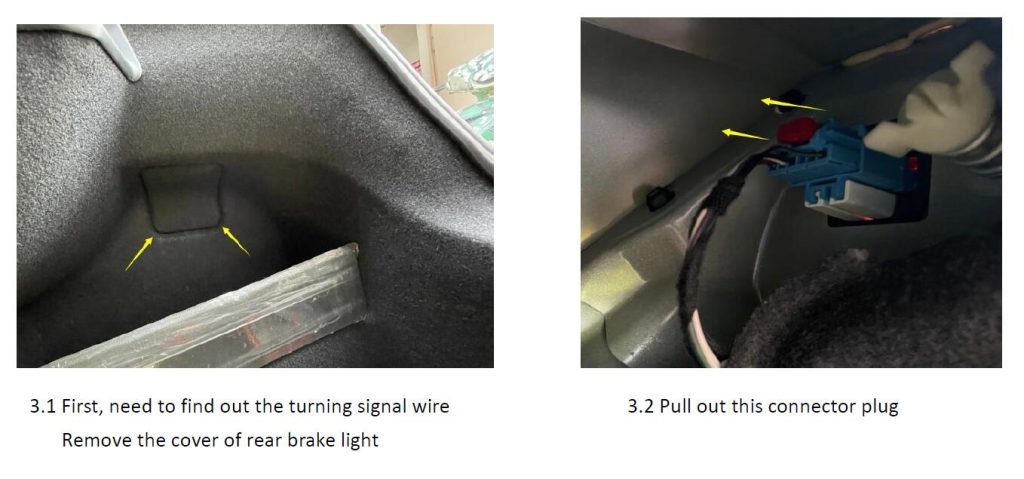

Take out the Rear lamp connector — Take out the Rear lamp connector, to find the turn signal

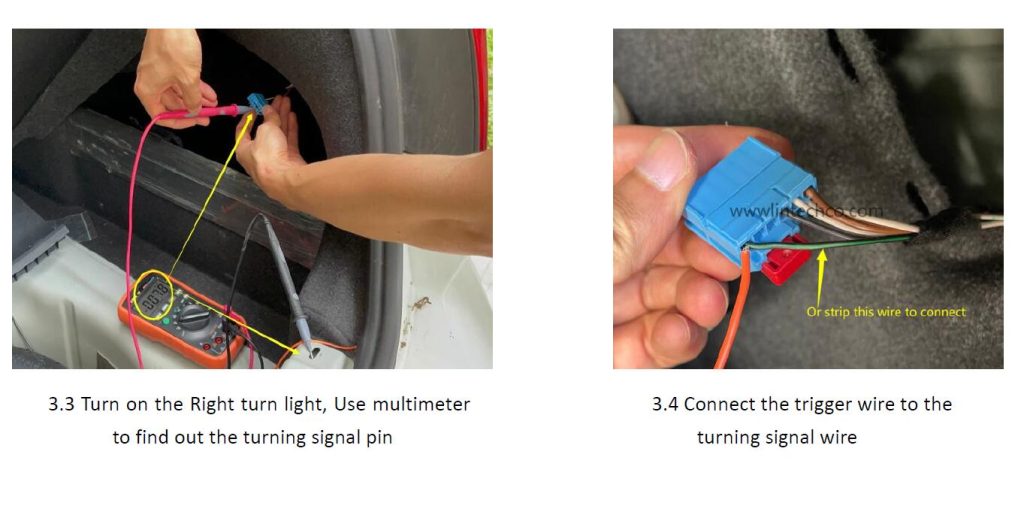

Find out the turn signal wire — Find out the turn signal wire, and connect to the trigger wires

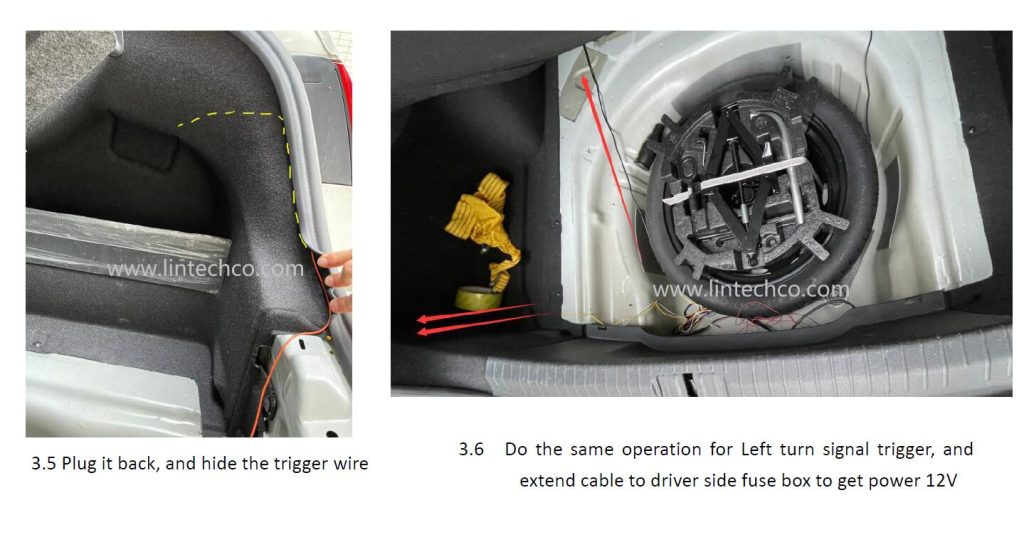

Hide the wires

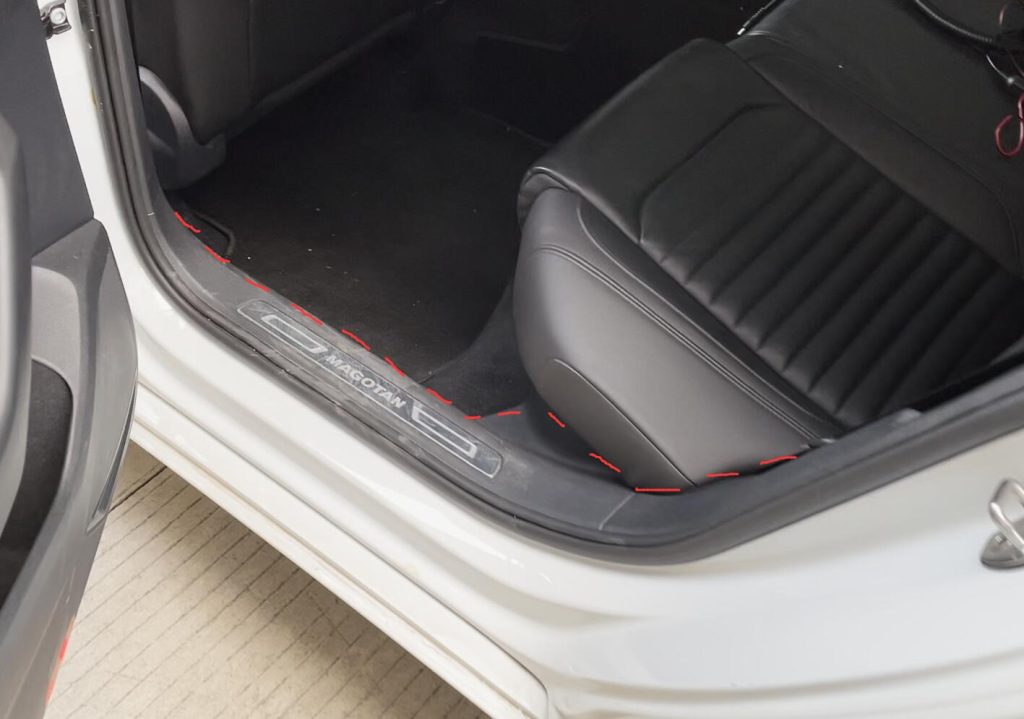

BSD Wiring hide under the seat

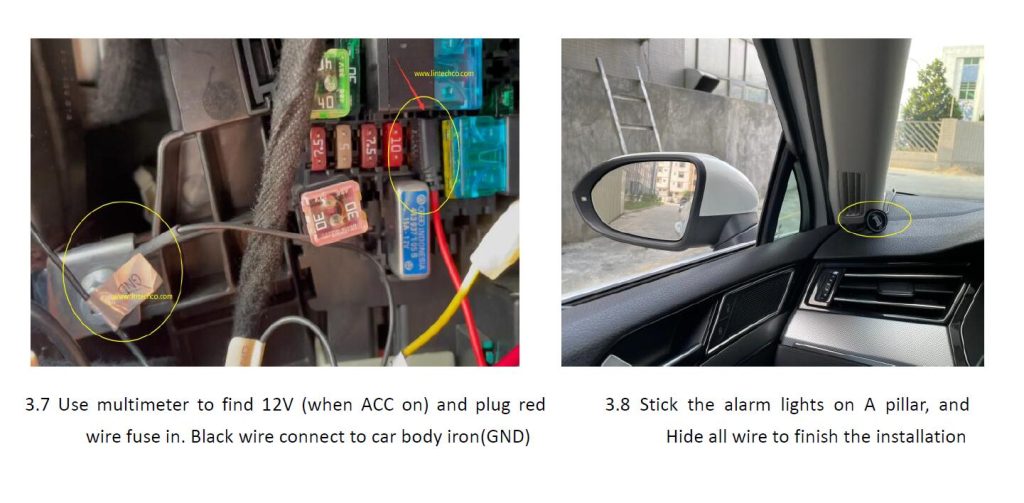

Power from Fuse box — Power from Fuse box, then fix the indicator lights on the A pillars.
