7″ Mirror Monitor Rearview Camera System Kit for Trailer Motorhome
This 7″ Rearview Mirror Monitor Reversing Camera kit, you can reduce blind spots , maneuver easily and park like a piece of cake. Reverse camera monitor has 3 Video inputs that allow you to connect up to 3 cameras. This package comes with 1x Eyeball CCD image sensor reversing camera with 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor outputs digital signals that has better picture clarity, Colour contrasting and sharpness.
Another camera included is a Mini CMOS 4PIN Camera with 150 degree wide angle view. Small color mini camera which can be mounted easily on vehicle’s bumper / license plate.
The rearview mirror monitor has an anti-reflective clear vision. This camera is suitable for use with Trucks, Caravans, Cars and more. Package comes with Advanced 4 PIN cable which allows the monitor to power up cameras. No need to connect another power cable.
Start installing a reverse camera now and get it from Lintech & Kysail, your trusted and reliable partner in the road.
7″ LCD Monitor
- Anti-reflective clear vision rear view mirror
- Automatically shows rear view when reversing
- Rearview image can also be shown on screen at all times
- Resolution degree 800 x 3 (RGB) x 480 / Or AHD version is available.
- Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
- Allows the monitor to power up cameras. No need to connect another power cable.
- It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.
Heavy Duty 700TVL 4PIN Eyeball Reversing Camera
- Powerful 12 LEDs for night vision.
- Color: Black optional white
- 120 degree wide vide angle
- Clear view day or night
- Color infrared night vision waterproof CCD reverse camera

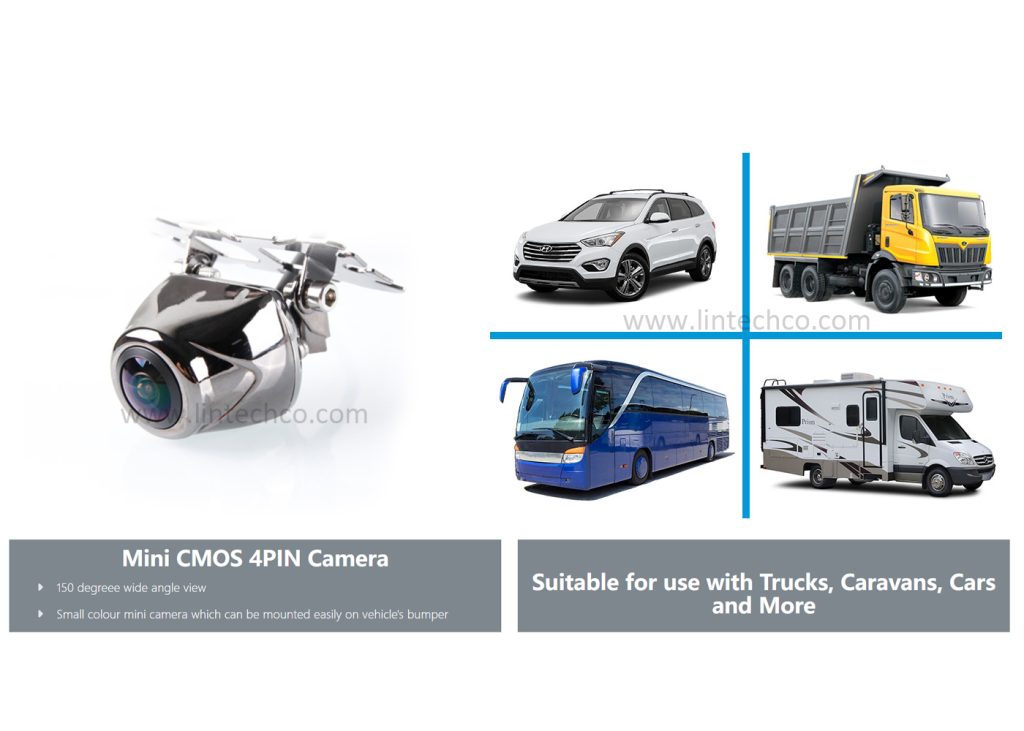

Mini CMOS 4PIN / RCA Camera
- 150 degreee wide angle view
- Small color mini camera which can be mounted easily on vehicle’s bumper
Suitable for use with Trucks, Caravans, Cars and More

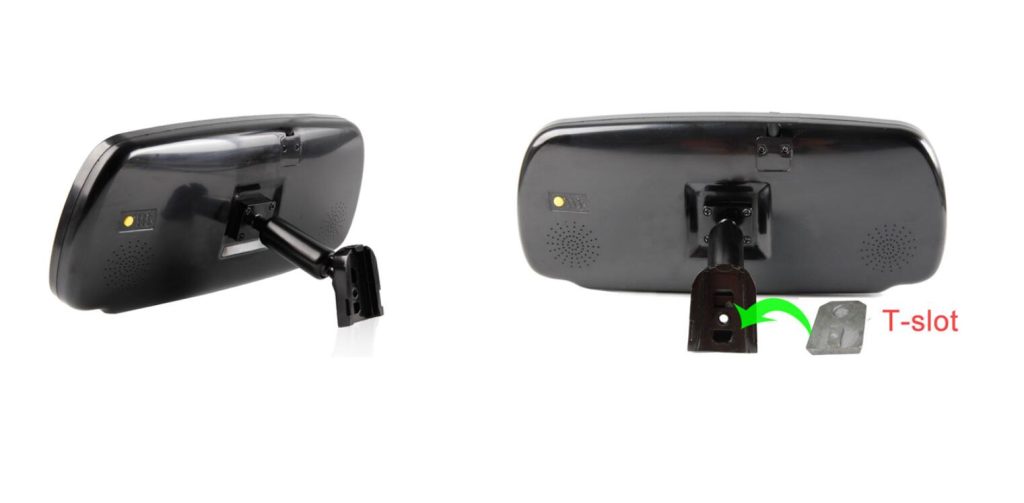

Adjustable Mounting Bracket
- The mounting bracket at the back, you can adjust the height
- It comes with T-slot that allows your rearview to fit on on your windscreen nicely

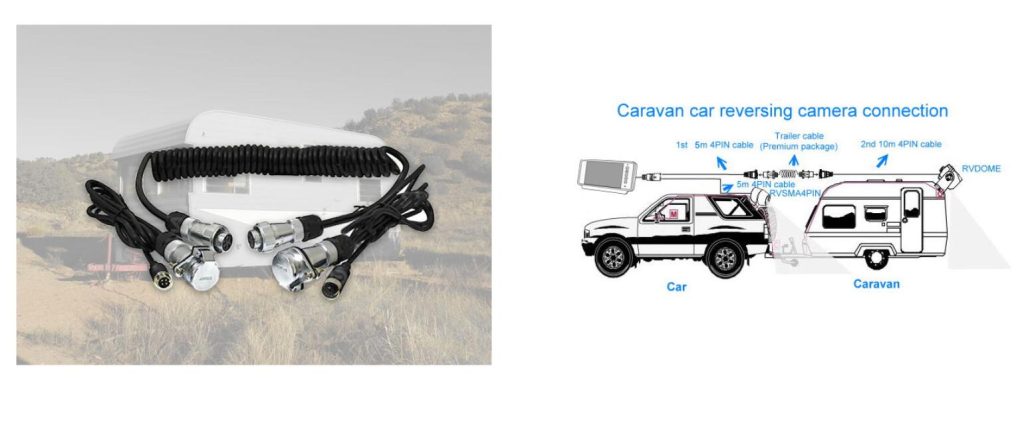

Heavy Duty Trailer Cable & Connectors
- 5PIN AP-TP20 metal connector with male and female connector
- Waterproof function
- 4PIN metal connector for CCD camera
- With elasticity length from 2000mm to 4000mm
- Very tight connection, durable and reliable
PRODUCT HIGHLIGHTS
- 7″ LCD Monitor
- Anti-reflective clear vision rear view mirror
- Automatically shows rear view when reversing
- Rearview image can also be shown on screen at all times
- Resolution degree 800 x 3 (RGB) x 480 / Contrast: 500:1
- Power supply: 10VDC to 32VDC , Power: About 5W
- Working temperature: -20°C-+60°C
- Five languages OSD menu: Chinese, English, Russian, German and French
- Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
- 2 Video Inputs, can be connected up to 2 reversing cameras
- Allows the monitor to power up cameras. No need to connect another power cable.
- Suitable for use with Trucks, Caravans, Cars and more
- Adjustable Mounting Bracket
- With T- Slot that allows your rearview to fit on your windscreen nicely
- Heavy Duty Trailer Cable & Connectors
- Very tight connection, durable and reliable
- Heavy Duty 600~700TVL 4PIN Eyeball Reversing Camera
- Powerful 12 LEDs for night vision.
- 120 degree wide vide angle
- Clear view day or night
- Colour infrared night vision waterproof CCD reverse camera
- Mini CMOS 4PIN Camera
- 150 degreee wide angle view
- Small colour mini camera which can be mounted easily on vehicle’s bumper

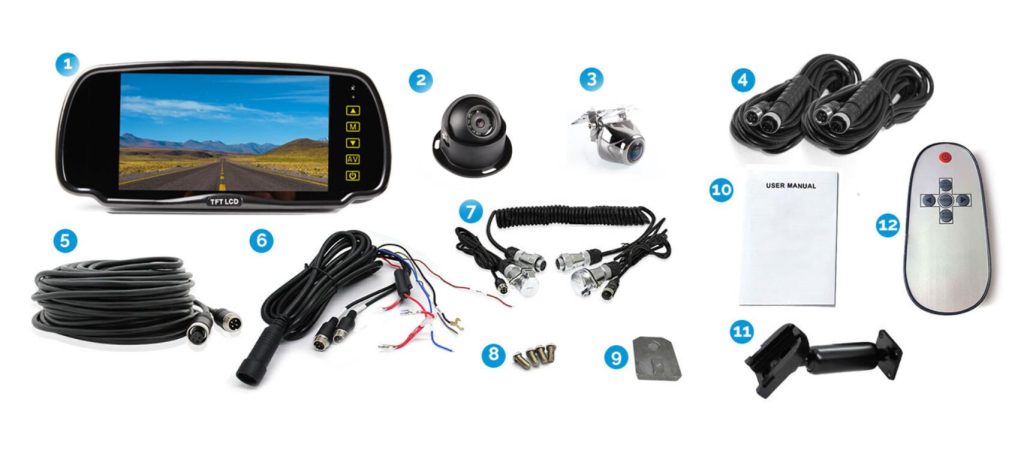

WHAT’S INCLUDED
- 1x 7″ LCD Rearview Mirror Monitor
- 1x CCD Eyeball Camera
- 1x Mini CMOS Camera
- 1x 5m 4PIN Cables
- 1x 10m 4PIN Cable
- 1x Power Cord
- Trailer Cable Suzy Coil
- Screws
- 1x T-Slot
- User Manual
- Bracket for Mirror screen mounting
- 1x Remote(*No Batteries included)
