From Inquiry to Solution: How System Integrators Can Deliver a Complete Oil Tank Truck MDVR & Live Monitoring Project
If you are a system integrator or surveillance solution provider, oil tank truck projects are both high‑value and high‑risk. Your customer is not only buying hardware — they are trusting you with safety compliance, data reliability, and long‑term service capability.
This article is written from an integrator’s point of view, based on a real oil tanker fleet inquiry. It shows how we work behind the scenes to help integrators design, quote, deploy, and support a live monitoring CCTV camera system for oil tank trucks with confidence.
Step 1: What Integrators Really Need First – Clear Scope, Not Just Price
The initial inquiry looked simple:
“Please explain your oil tanker MDVR and camera system and how SD card recording works.”
But experienced integrators know this usually means:
- The end customer is still defining their scope
- Compliance and safety requirements will follow
- Future expansion (monitoring center, new trucks, third‑party customers) is very likely
Instead of rushing into a quotation, we helped the integrator structure the requirement discovery correctly.
For example inquiry customer more detail requirments:
• Do you need the system to upload or view live video online (4G)?
• Or do you prefer local recording only on SD card / HDD, without live streaming?
• How many oil tankers are you planning to equip?
• Any specific safety requirements (explosion-proof camera housing, wide-angle side cameras, driver monitoring, GPS tracking, etc.)?

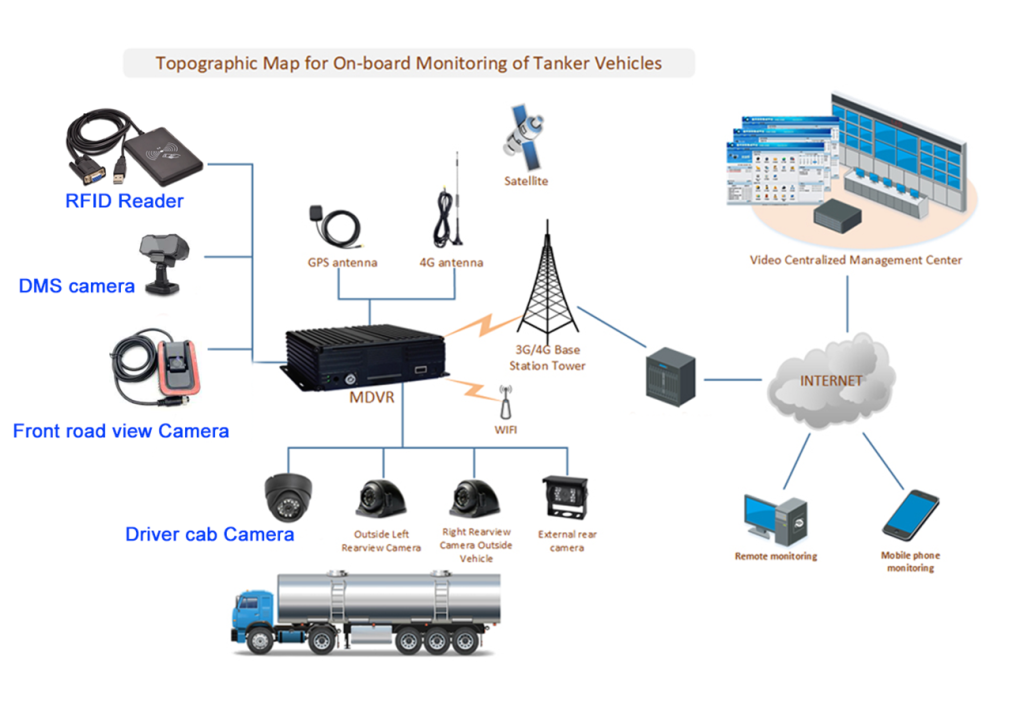

Step 2: Translating End‑User Needs into a Deployable System Design
After clarification, the real project scope emerged:
- 17 oil tank trucks (diesel, Mogas, Jet A1)
- Loading at pipeline depots
- Continuous 4G live monitoring

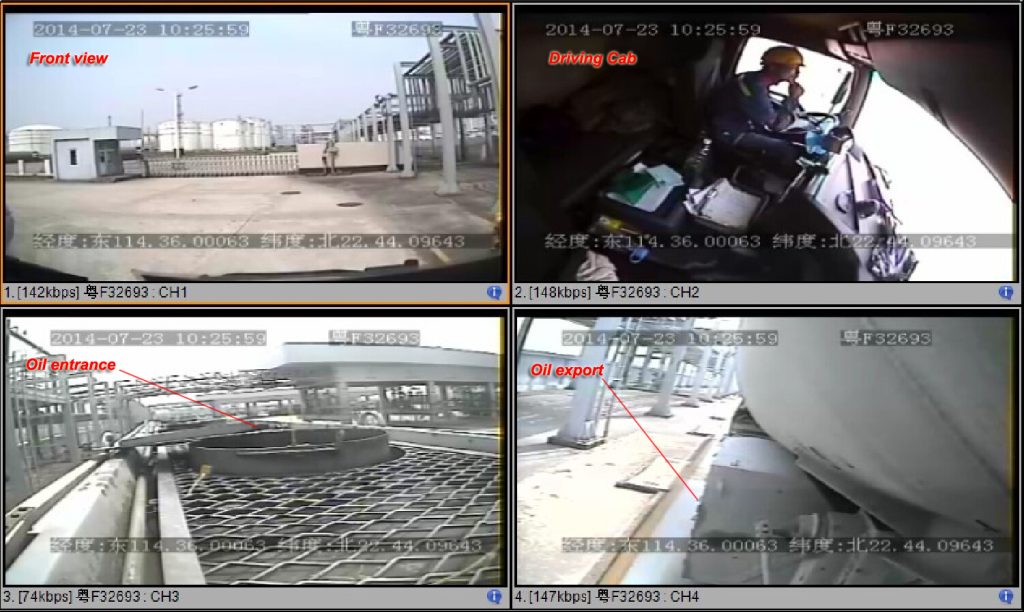

- Multi‑camera coverage:
- Front road view

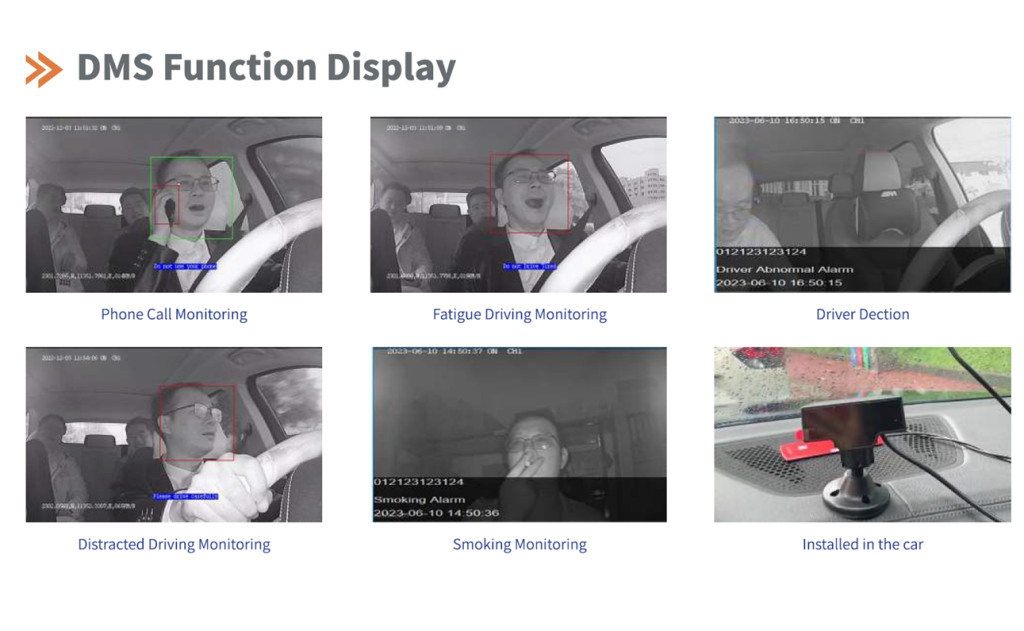

- Driver cabin (behavior & identification)
- Two side cameras (tank sides)
- One top camera (tank top monitoring)
- Explosion‑proof camera requirement
- Fuel level monitoring integration
- Central monitoring staff handling alerts and random checks
- Full trip playback for audits and incident verification
For integrators, this is where many projects fail — if hardware, platform, and server architecture are not aligned from day one.
Step 3: MDVR Selection That Integrators Can Support Long‑Term
For oil tank truck applications, we recommended a professional‑grade oil tank truck DVR with:
- Multi‑channel AHD camera input
- Dual SD card or SD + HDD recording
- Automatic loop recording
- Event‑triggered video locking
- Stable performance under vibration and heat
This gives integrators a system that:
- Is easy to maintain onsite
- Continues recording even if 4G drops
- Reduces post‑installation support issues

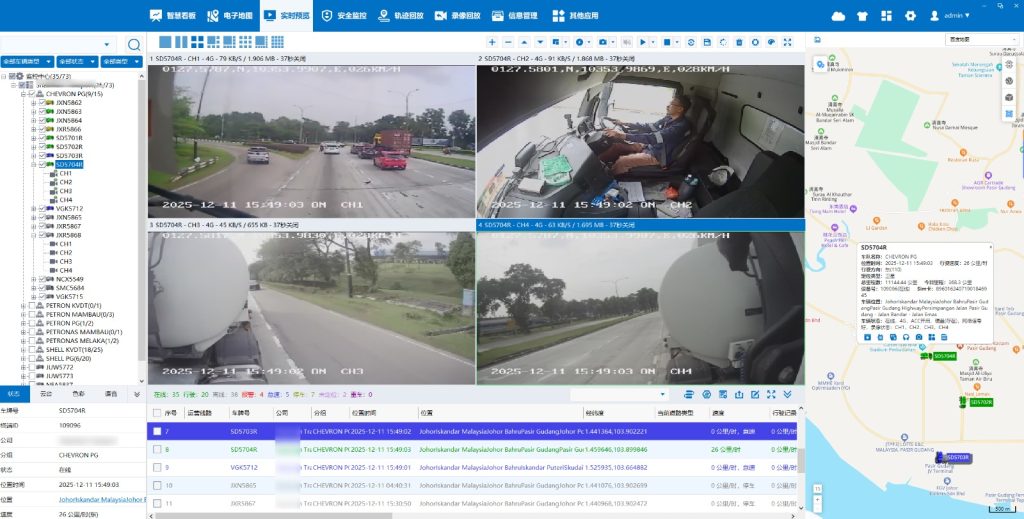

Step 4: Live Monitoring Platform – Integrator‑Friendly by Design
A key concern from integrators is software cost and complexity.
Our approach keeps things simple:
- MDVRPlayer (Playback Software): Free
- CMSV6 Live Monitoring Platform: Free
Capabilities include:
- Real‑time video viewing
- GPS tracking & route playback
- Alarm management (harsh braking, sensor alerts)
- Historical trip review and evidence export
This allows integrators to:
- Avoid recurring license negotiations
- Focus on installation and service revenue
- Scale projects without hidden software costs

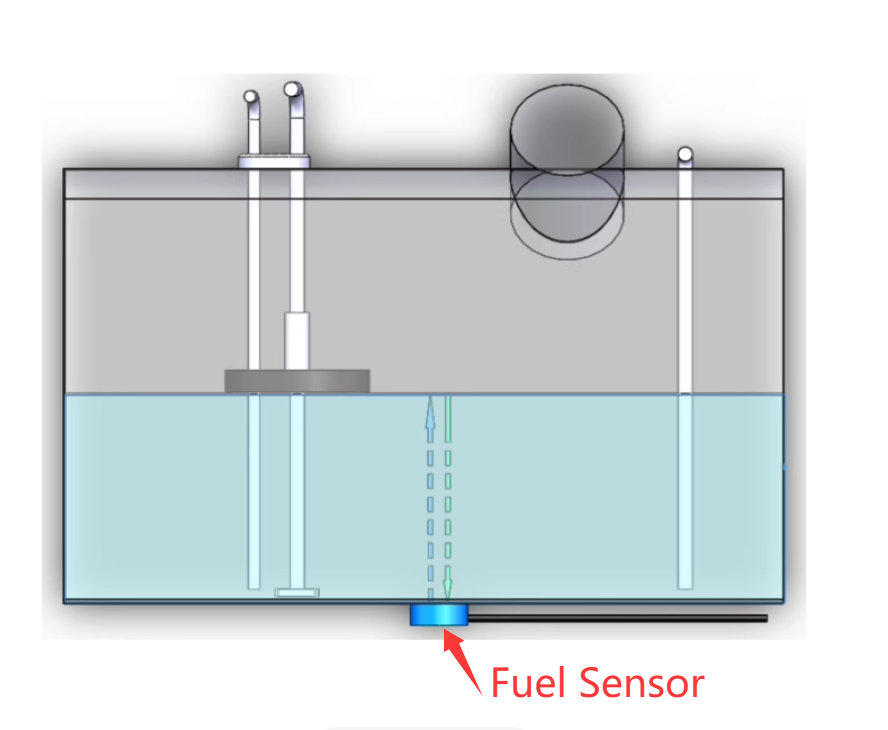

Step 5: Fuel Monitoring Integration – Accuracy Impacts Your Reputation
Fuel monitoring is often where integrators get blamed if expectations are not managed.
We clearly explained sensor options:
- Entry‑level ultrasonic fuel sensors (~USD 50): basic trend monitoring
- Higher‑accuracy models (~USD 80): significantly improved precision
By aligning sensor accuracy with customer expectations, integrators avoid disputes later.

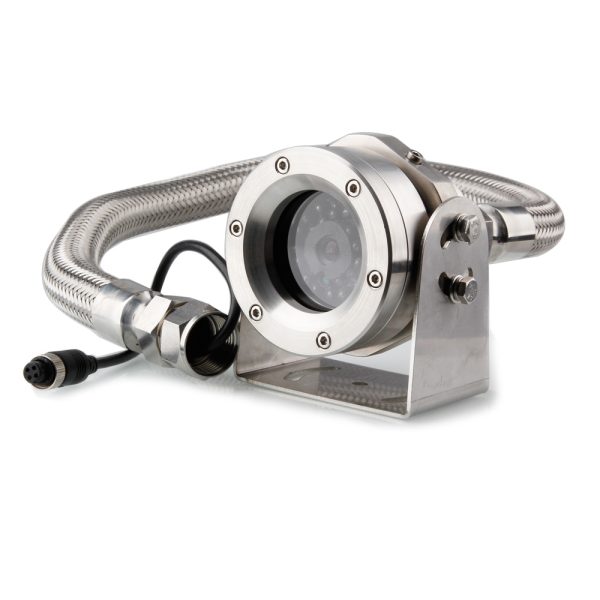

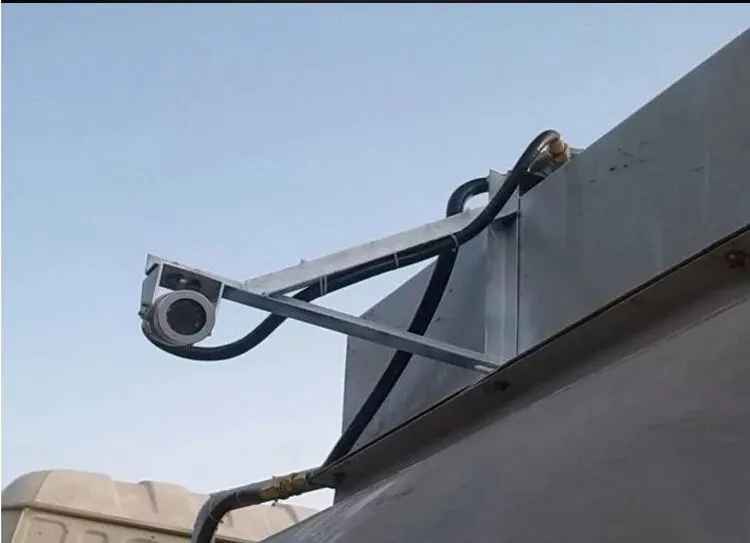

Step 6: Explosion‑Proof Cameras – Non‑Negotiable in Oil Tanker Projects
For hazardous environments, we provided explosion‑proof camera options suitable for:
- Tank top monitoring
- Side blind‑spot coverage
- Fuel loading and unloading zones
This helps integrators meet:
- Safety regulations
- Customer insurance requirements
Tender and audit documentation needs

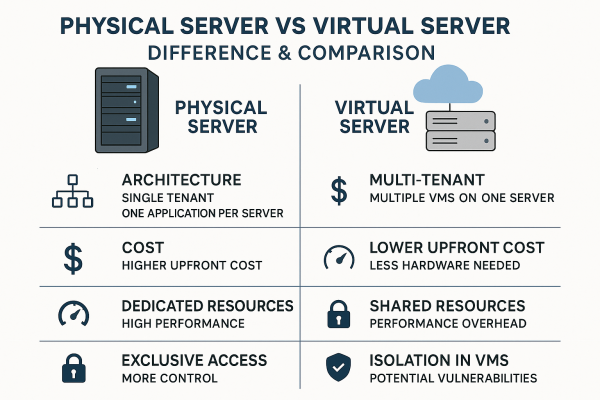

Step 7: Cloud Server vs Local Server – What Integrators Should Recommend
Once live monitoring is confirmed, server architecture becomes critical.
Cloud Server (AWS, Ali‑Cloud, etc.)
Advantages for integrators:
- Fast deployment
- Ideal for multi‑customer operations
- Easy to scale as new fleets are added
Considerations:
- Recurring cloud cost (can be billed to end customer)
- Requires stable internet connectivity
Recommended for:
- Integrators offering monitoring services
- Regional distributors
- Growing fleets
————–
Local Server (On‑Premise)
Advantages for integrators:
- Full data ownership for customer
- No monthly cloud fees
- Strong selling point for security‑sensitive clients
Considerations:
- Higher upfront cost
- Requires basic IT maintenance
- Needs a UPS to in case the power off
Recommended for:
- Single control center projects
- Customers with strict data policies
We guide integrators to choose based on business model, not just technical preference.
Why System Integrators Choose Us as a Technology Partner
From an integrator’s perspective, value comes from reliability and support:
- Clear system architecture advice
- Honest explanation of limitations and options
- Experience with real oil tank truck fleets
- Flexible configurations for different projects
- Long‑term technical support mindset
If you are a system integrator or surveillance solution provider looking to deliver a professional oil tank truck DVR and live monitoring CCTV camera system, we are ready to support you — from first proposal to long‑term operation.
