LM-116-Q is biggest size dash board monitor for rear/quad , good for big vehicle
Compatible with AHD1080P,AHD720P,CVBS camera

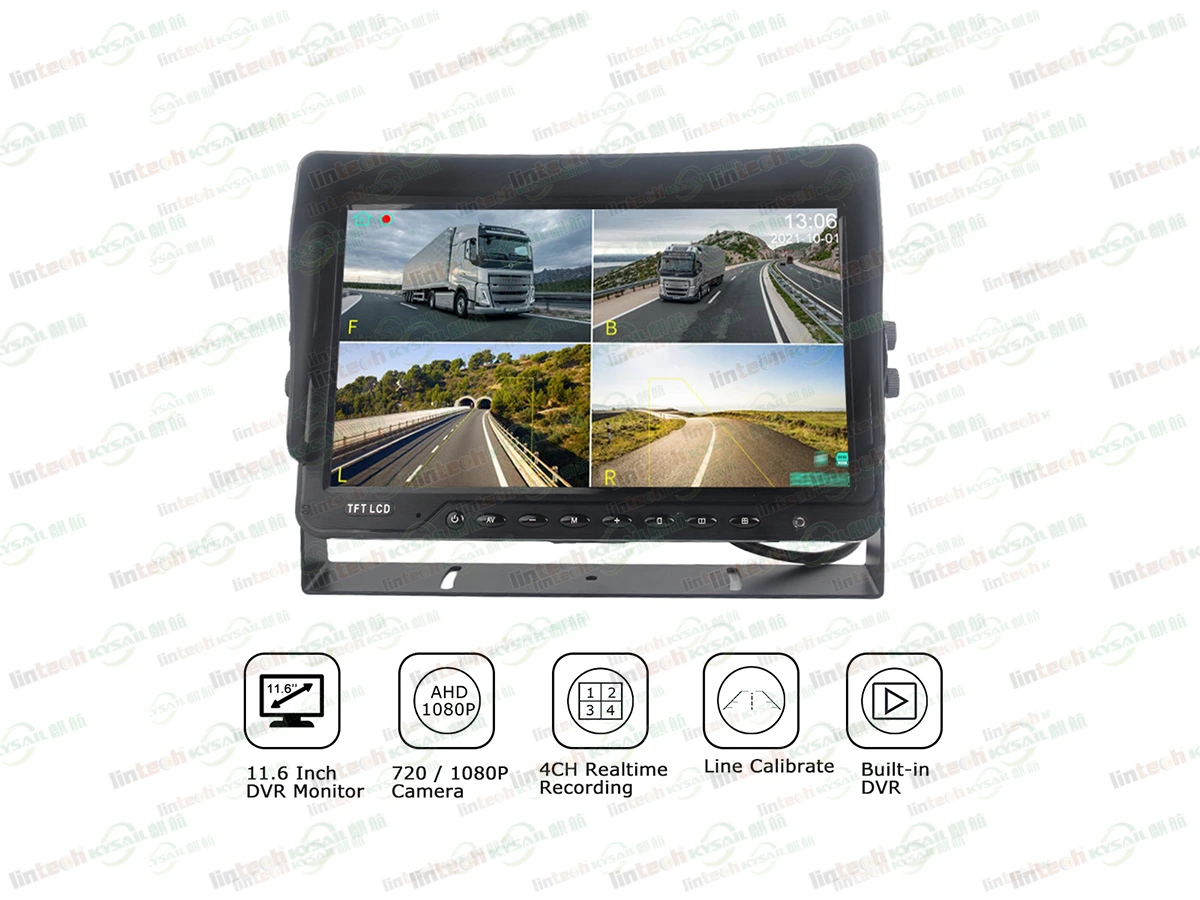

—Built in quad function ( support 4x1080P/4x720P AHD camera ,optioanl function)

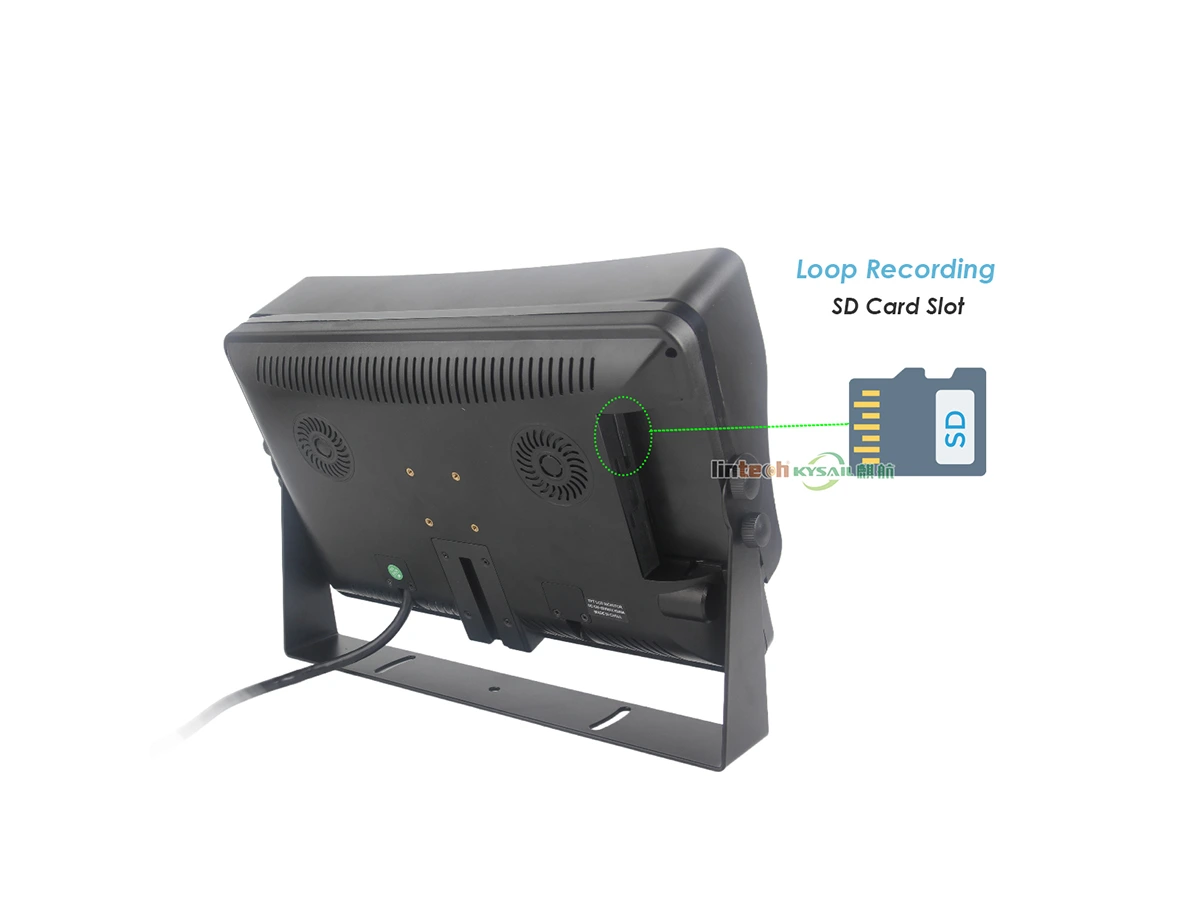

–DVR function ( optional function,built in micro SD card slot,record camera footage,optioanl function)
Monitor Specification:
|
Product Name
|
11.6″ AHD Monitor
|
|
Sun visor
|
Detachable
|
|
Resolution
|
1024*600px [IPS]
|
|
Backlight brightness
|
LED, 400cd/m2
|
|
Viewing angle range
|
Up and down—180°, left and right—180°
|
|
Connector
|

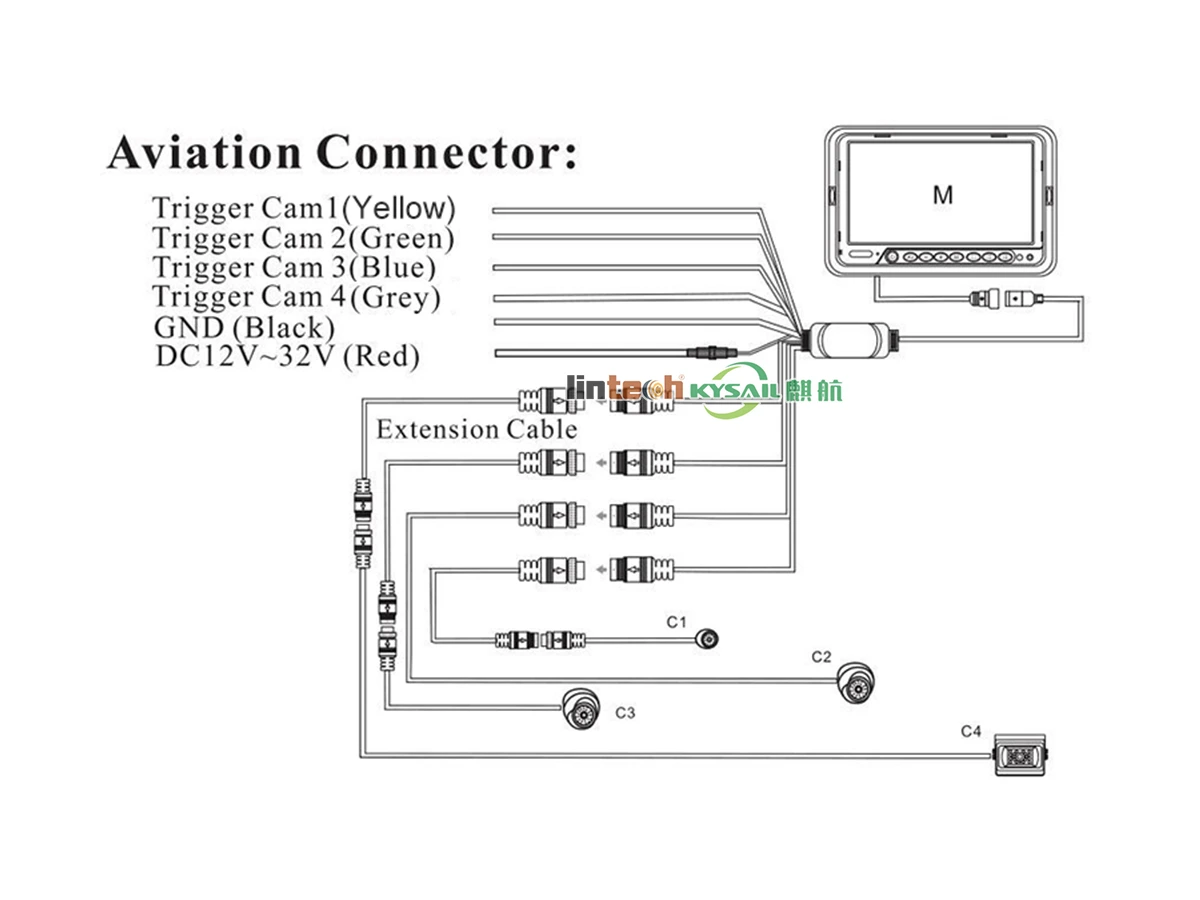

4PIN aviation head/RCA head [optional]
|
|
Video input format
|
CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC |
|
Signal type
|
Support 720P/960P/1080P [compatible: CVBS/AHD/TVI]
|
|
Sound
|
Built-in speakers [optional], one audio input [V2]
|
|
4 way trigger sequence
|
V2>V1>V3>V4
|
|
Reversing setting
|
Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set
|
|
System
|
Compatible with PAL&NTSC system, automatic conversion
|
|
Adapt to the car
|
12V-36V power supply, power output DC12V
|
|
Protection function
|
high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A
|
|
Working temperature
|
`-20℃ to 70℃
|
|
Storage temperature
|
`-30℃ to 80℃
|
| Recording and Playback | The video recording function will be automatically turned on and the recorded video filewill be saved to the memory card after starting the engine. On the other hand, when thememory card is ful, it will automatically overwrite the oldest file and continue recording. |
|
Bracket
|
Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional]
|

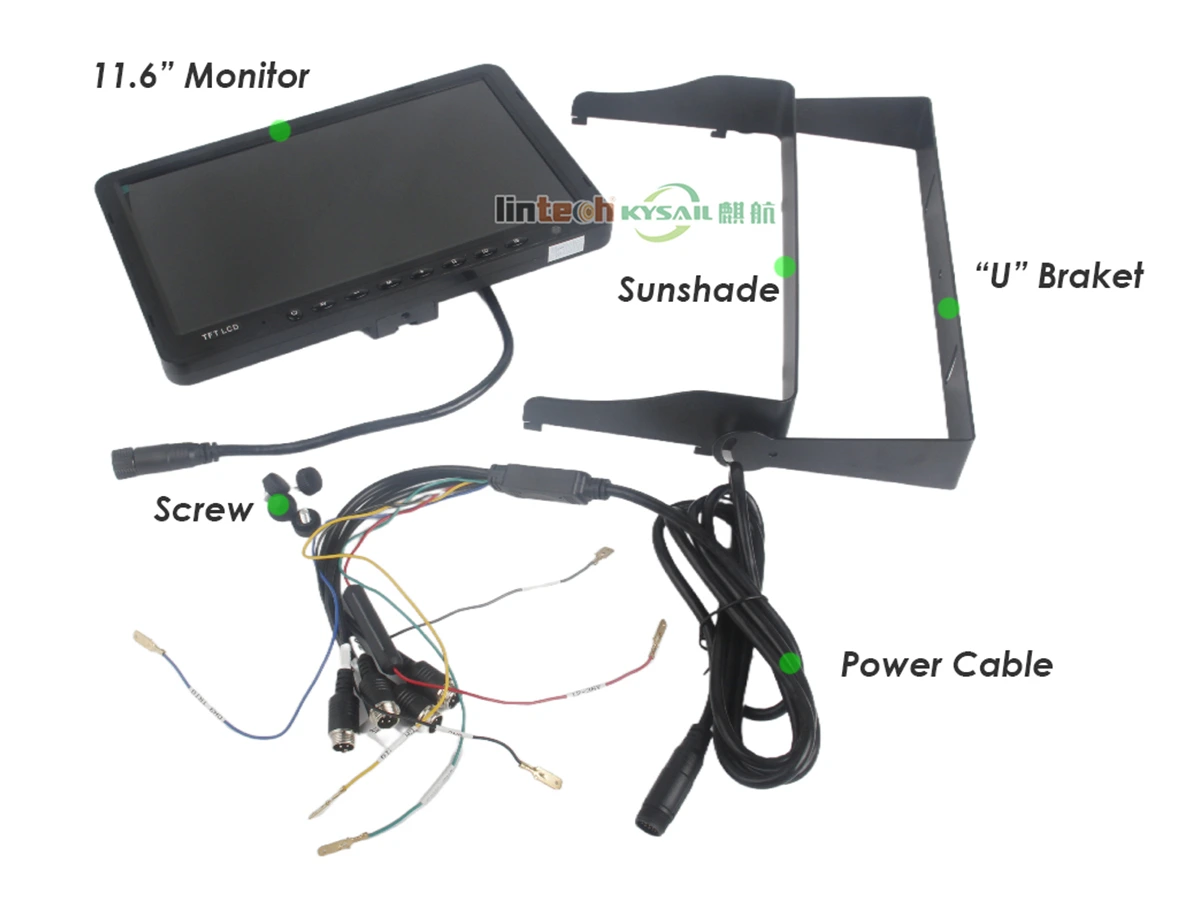

Packing List:
- 11.6 inches DVR monitor * 1pcs
- Remote Control * 1pcs
- Power Cable * 1pcs
- SunShade * 1pcs
- Screw * 4pcs
- U-bracket * 1pcs
