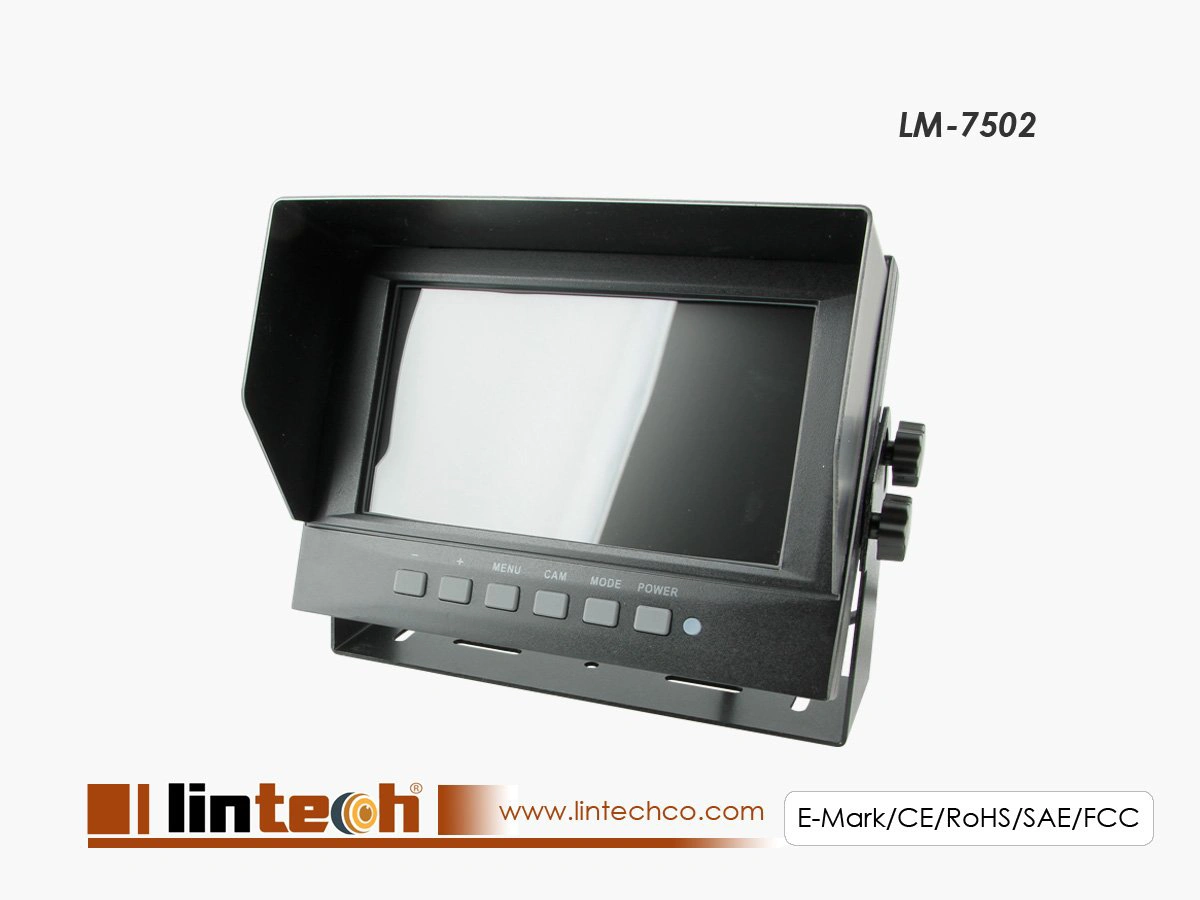

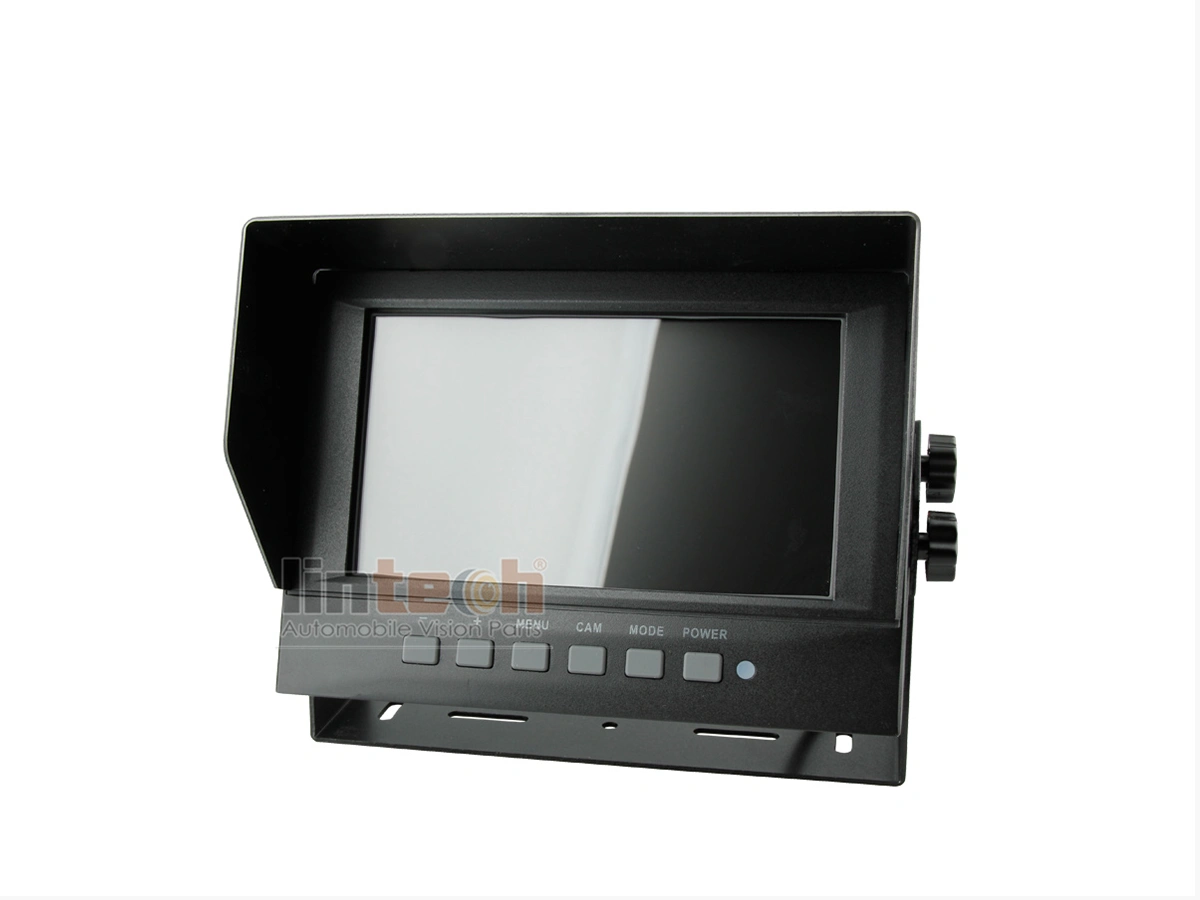

7 inches IP69K Waterproof Screen for car

Model No.: LM-7502/LM7504Q



  • 800 x 480 / 1024 x 600 Pixels
  • Waterproof, IP69K
  • Full aluminium alloy housing, Heavy duty
  • Support two camera input/4 cameras input split display
  • With remote controller
  • 7 languages OSD display
  • PAL/NTSC
  • MIRROR/NORMAL image adjustable
  • 12-24 VDC
  • E-Mark/CE/RoHS/FCC





LintechCo: Leading Chinese B2B Waterproof Screen for car Supplier.

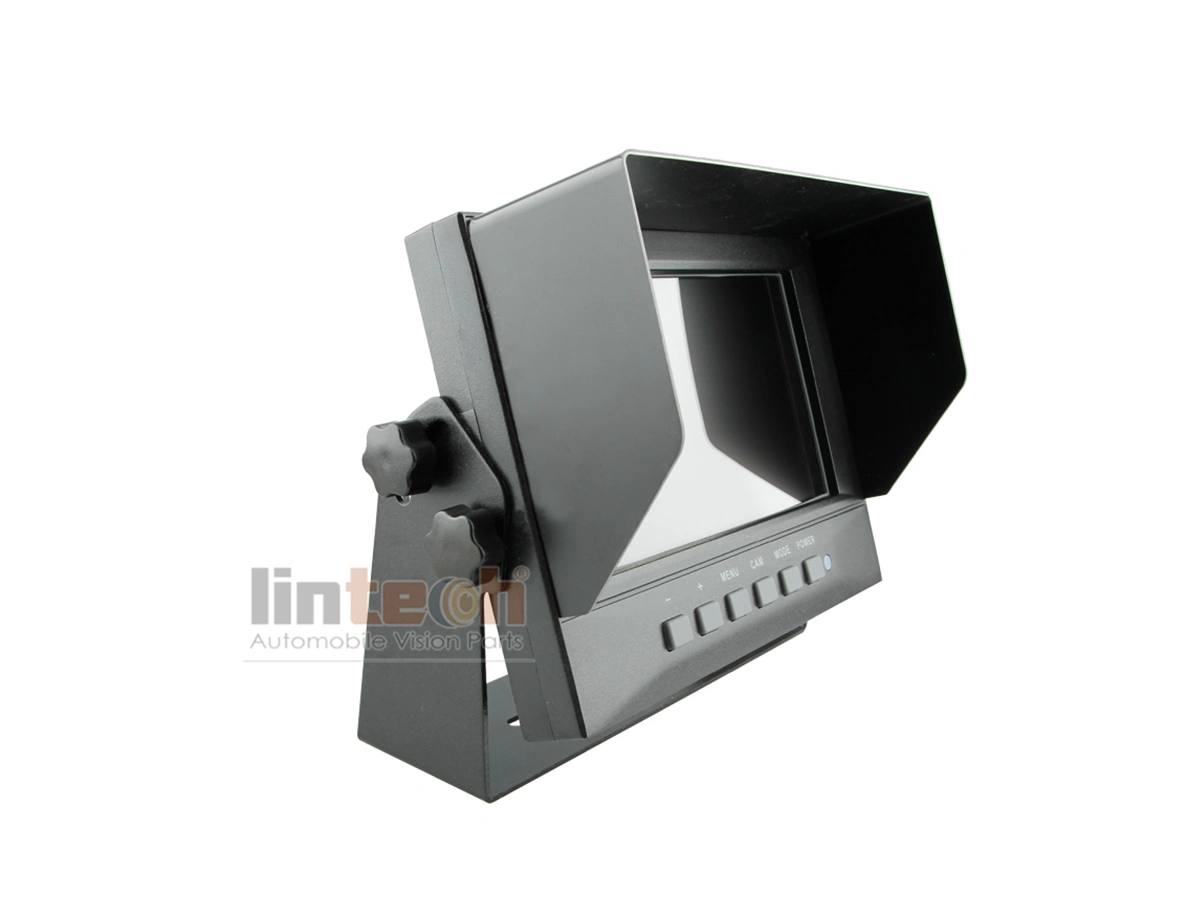

Lintech waterproof LCD monitor special design for extreme environment application scene. Such as high humidity, low temperatures, outdoor vehicle, underwater purpose etc.

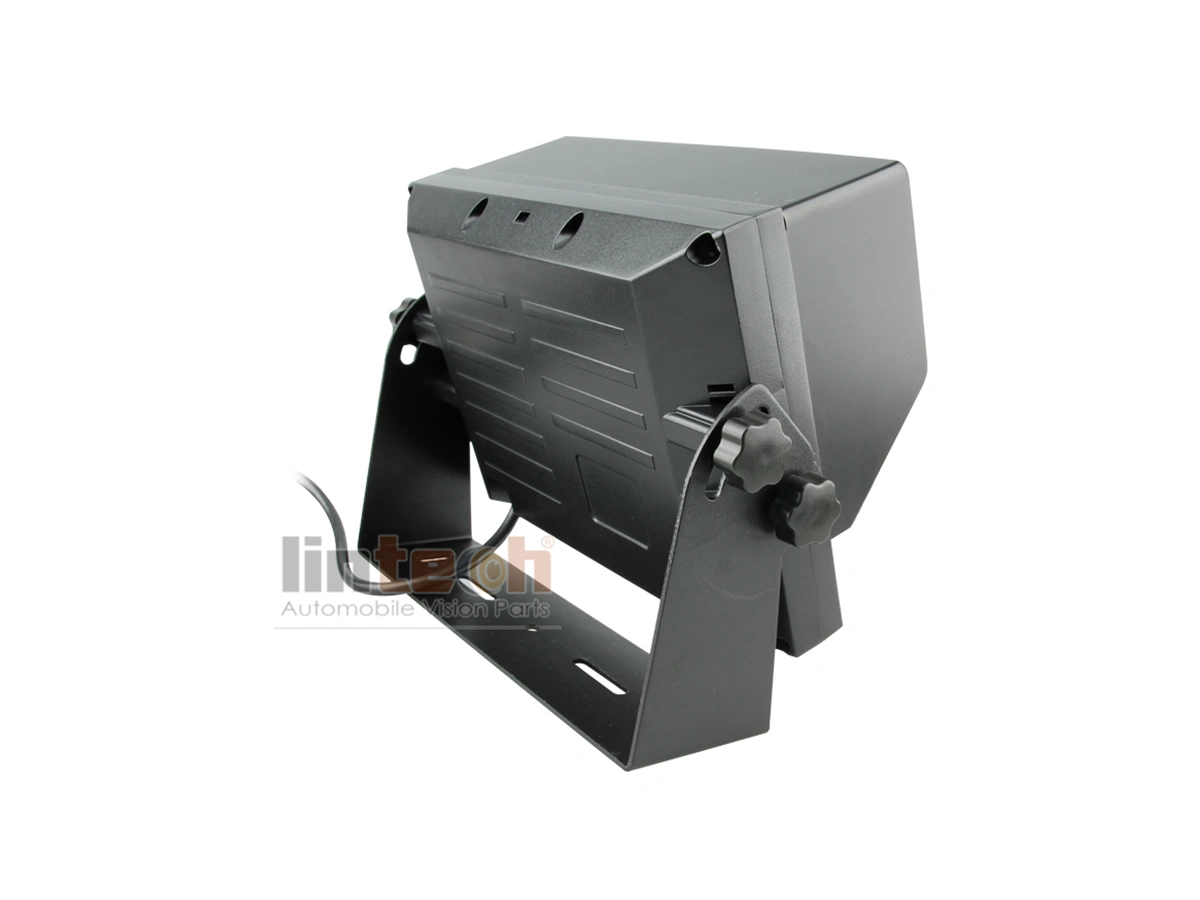

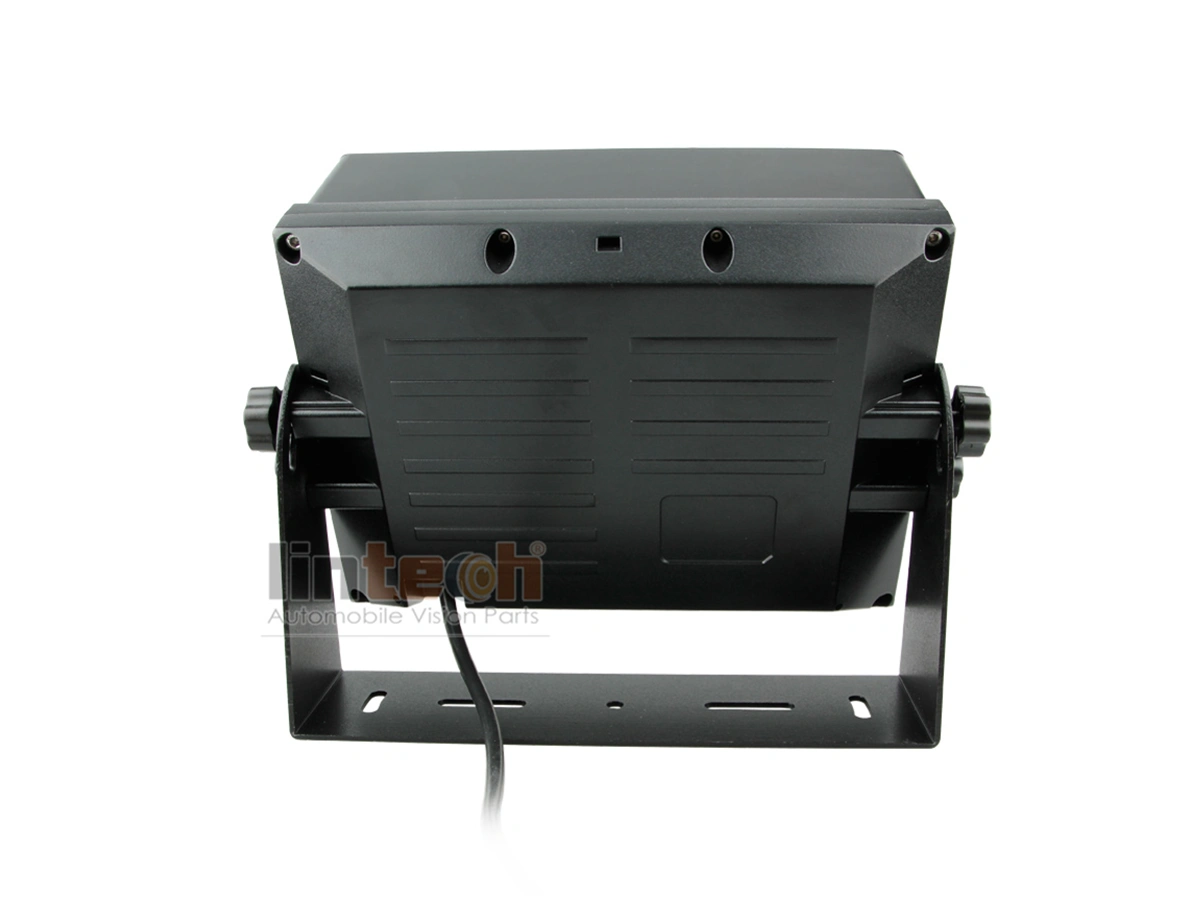

This monitor housing is made of aluminium, strong and heavey duty design, impact resistant. In front of monitor display pannel, there is 2mm thinckness high transmission rate PMMA material.

Silicon botton both good for press feeling and waterproof feature purpose. Also support ODM laser character on the button (for black and red color button). Button with backlight indicate customized.

The 7 inches waterproof LCD monitor, support both 2 channels video input and 4 channels video input with split display, triple display, dual display, single display and alternate switch display function. Each channel video can be set mirror or normal image display, each channel has a relate trigger cable for physical connection to make a certain video(camera) display in full screen. For example, backup vehicle, the monitor will automatic display the back camera’s video on full screen. When for the 4 channels version, when driving and turn left, the monitor should display the left side camera’s full video; if turn right, it display the right side camera’s video.



Subjects LM-7502 LM-7504Q
Screen size: 7 inches
Waterproof rating IP69K
Screen size ratio 16 : 9
Resolution: 800 x R.G.B x 480 dots
Brightness: 400cd/m2
Contrast: 500 : 1
Viewing angle: U: 50/ D: 60, R/L: 70 Degree
TV system NTSC / PAL
Video input: 2CHs video input 4CHs video input, split display
Display mode Switch, interval Split, triple, dual, single
Mirroring support Horizontal/Vertical 180 degree turned
(mirror function)
Parking guide line Adjust when camera finished install
Reference distance unit Feet/Meter
Video delay display 1-20 second (after triggered)
Menu language English, French, Russian, Spanish, Portuguese, Italian, German
Pannel light source LED
Button backlight NO
Connector type M12 4pins male connector / RCA Female
Power supply: 12~24VDC
Output voltage 12VDC
Power consumption Less than 7W
Bracket: U-type bracket

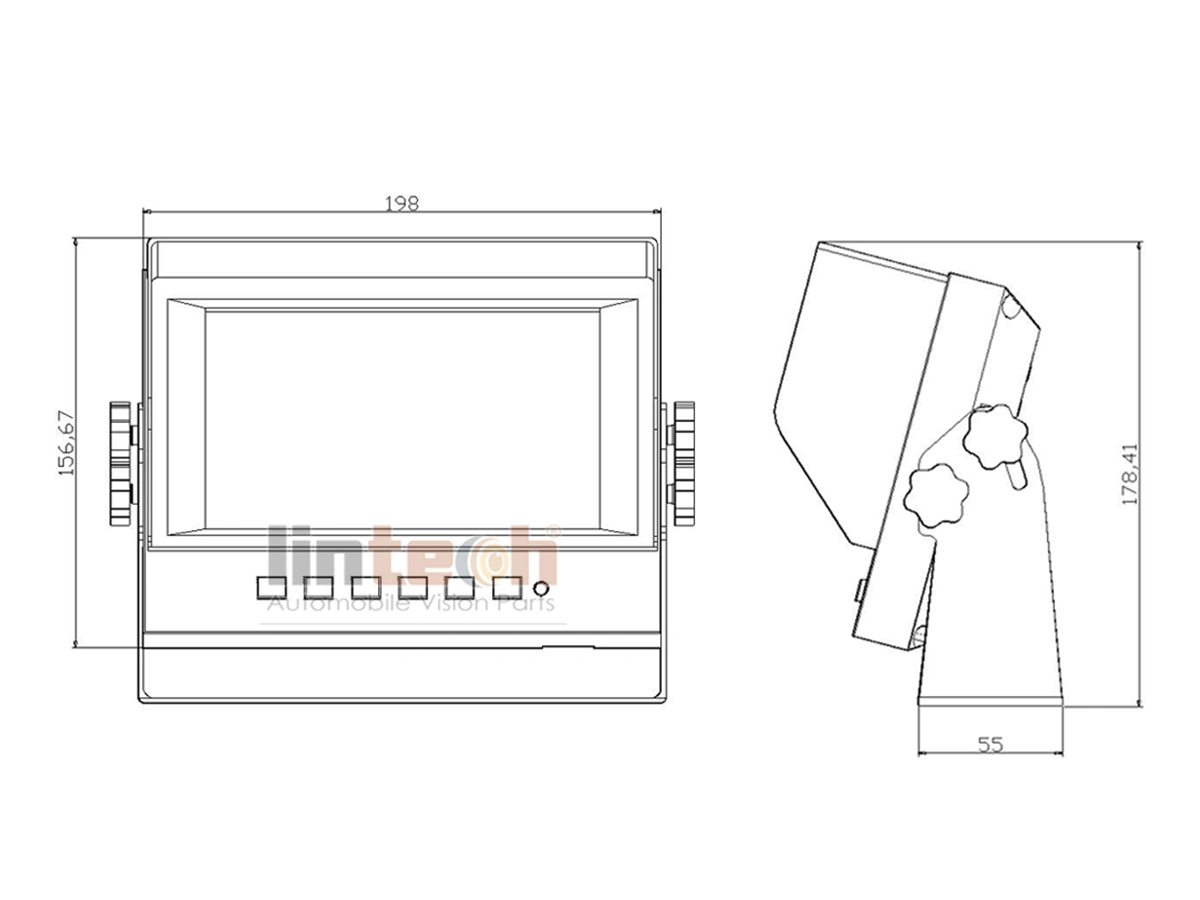

Outer dimension: 223mm x 163mm x 55mm (Max)
Net weight 1800g 2000g
