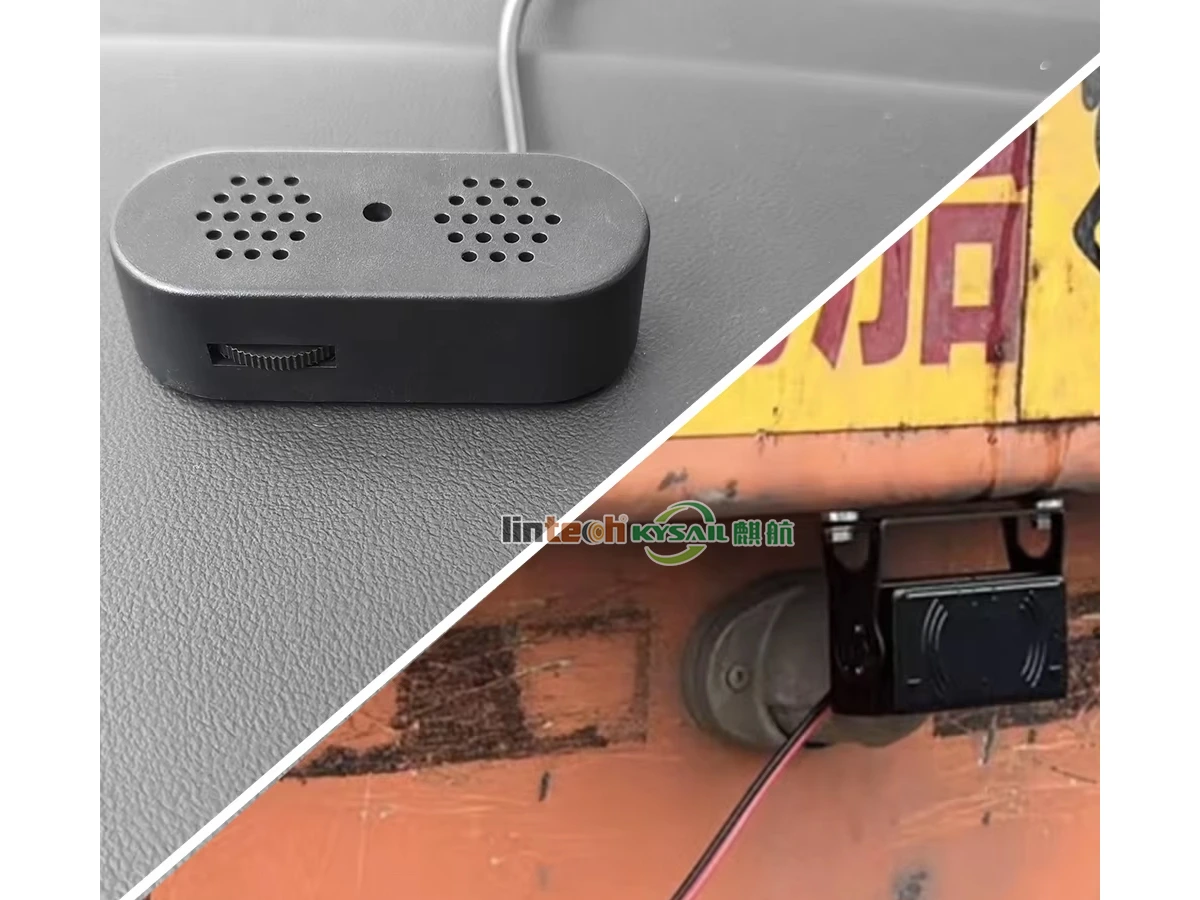

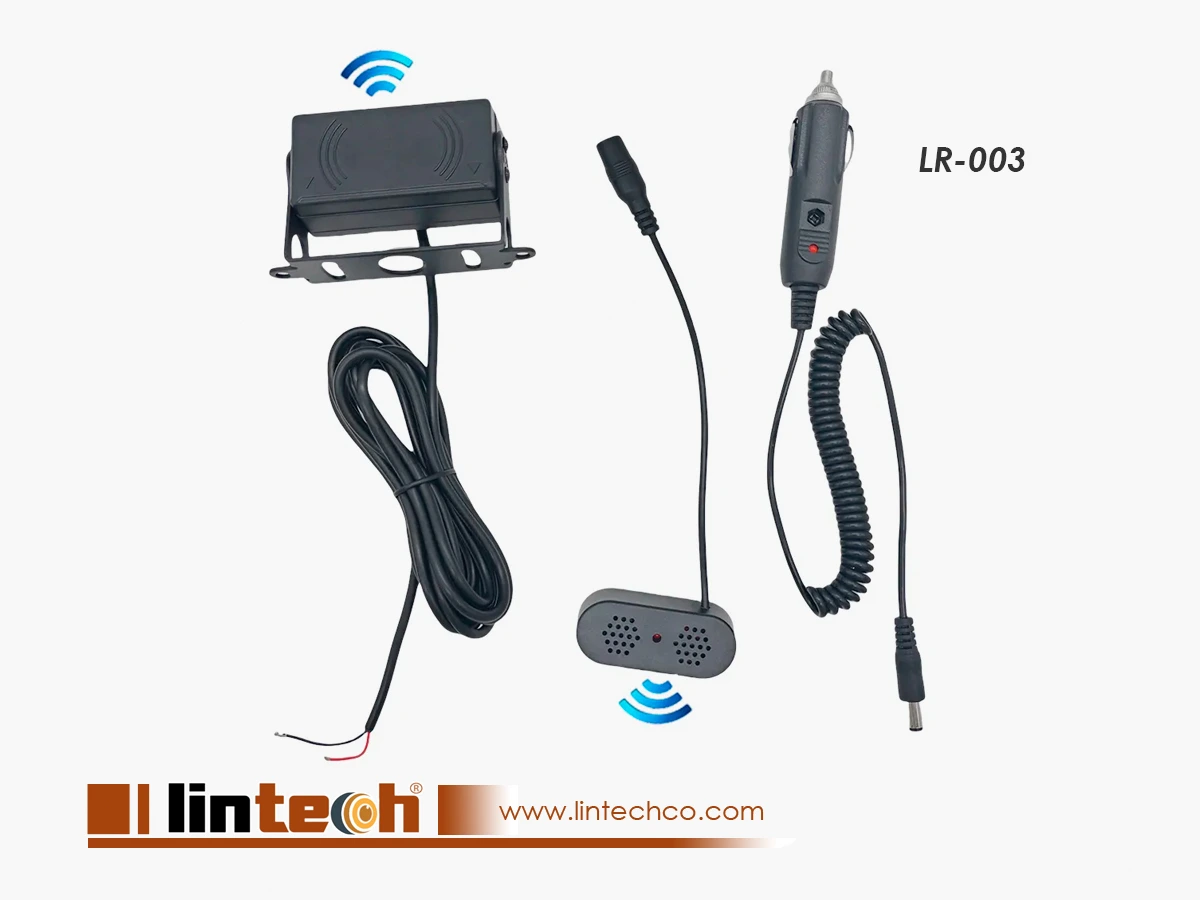

11Ghz Wireless Millimeter Wave Radar Car Anti-Collision Reversing Sensor System for Truck Bus Semi Truck Lorry

Model No.:LR-003

  1. Microwave sensor has high sensitivity and low false alarm rate;
  2. Rain, fog, light, dust, and temperature have little impact on the sensor;
  3. Actively detect moving objects and obstacles and issue an l0 alarm;
  4. A single sensor is easy to install and has a wide signal angle;
  5. 10 alarm output can be connected to other sound and light alarms;
  6. Detect moving objects or obstacles accurately.
  7. No need to drill holes, no wiring, one sensor can cover the entire blind spot range of the reversing car, the sensor up to the reverse gear to start working~

About this item

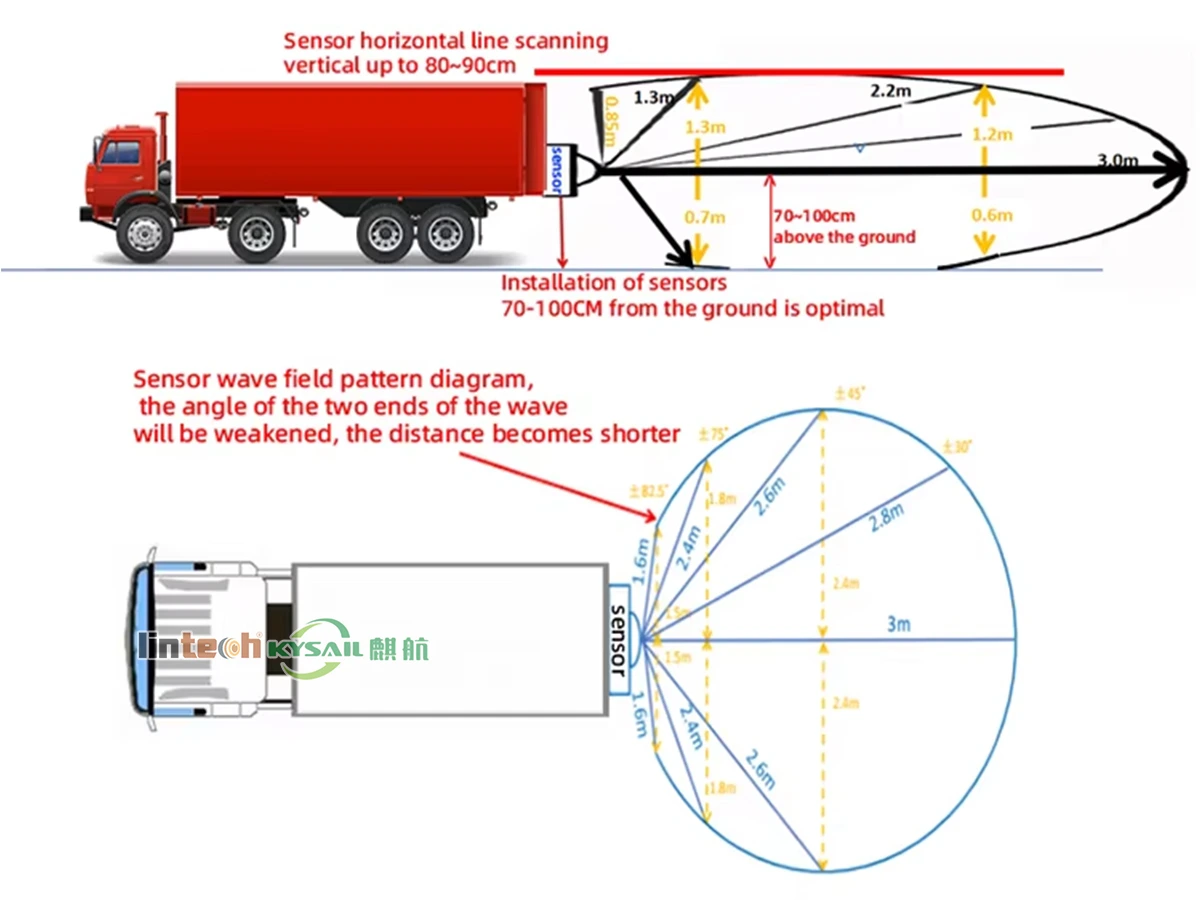

  • Real-time,Nolatency detection: Using advanced millimeter-wave technology, the wireless parking sensor kit for truck provides real-time detection, ensuring timely awareness of the surrounding environment during reversing. With a 40-meter wireless range and 160 degree detection angle, the parking radar can detect and warn of relative moving objects within a 3-meter range, using intermittent beeps to indicate distance – slow, intermittent beeps for 2-3 meters, and continuous beeps for 0-2 meters.

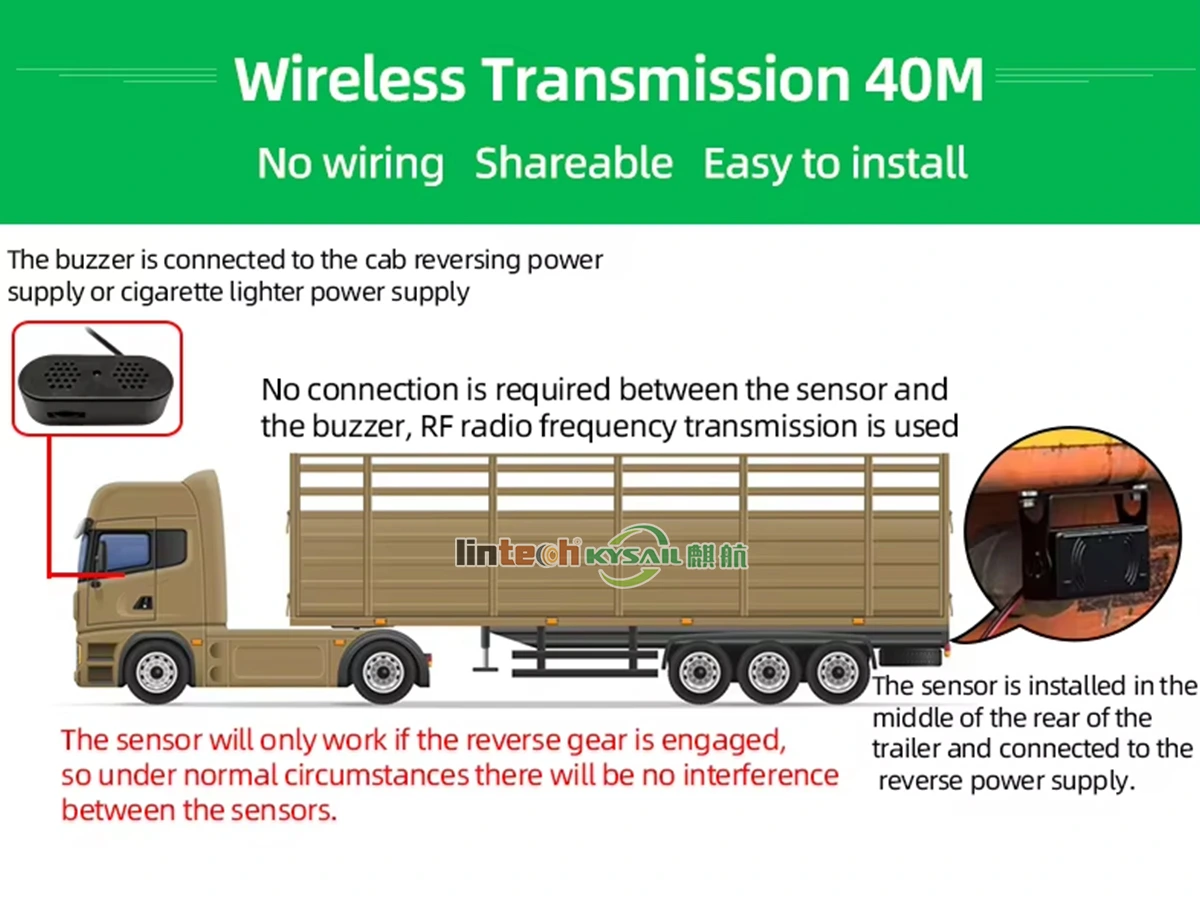

  • User Friendly:The wireless reverse radar requires no drilling or wiring, ensuring easy installation. It features an adjustable volume buzzer and a wide detection angle with no blind spots for precise detection. This versatile device functions as both a reverse radar and a collision warning system, making it suitable for a wide range of vehicles including trucks, trailers, vans, lorries, pickups, buses,forklifts and excavators etc.

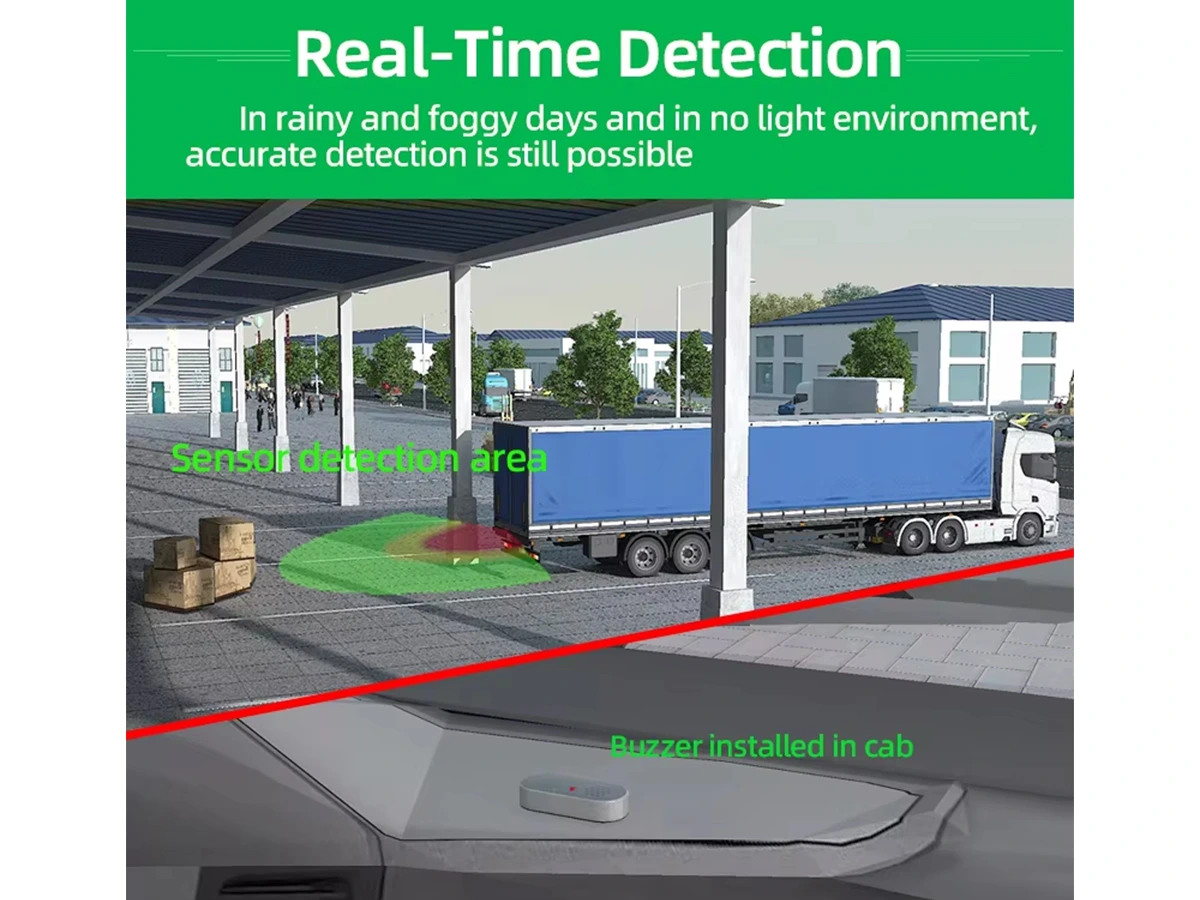

  • All-Weather Blind Spot Detection Radar: Engineered for unparalleled reliability, this blind spot detection radar is built to withstand extreme temperatures, boasting an IP67 waterproof rating. It delivers precise detection in scorching heat, freezing cold, rain, snow, and dense fog, even in complete darkness. Designed for 24/7 operation, it ensures consistent, high-performance monitoring in all weather conditions
  • Flexible Voltage and Volume Adjustment: Compatible with 12V and 24V power supplies.Please note that for vehicles such as forklifts and excavators without reverse power supply, the positive terminal should be connected to the vehicle’s ACC power

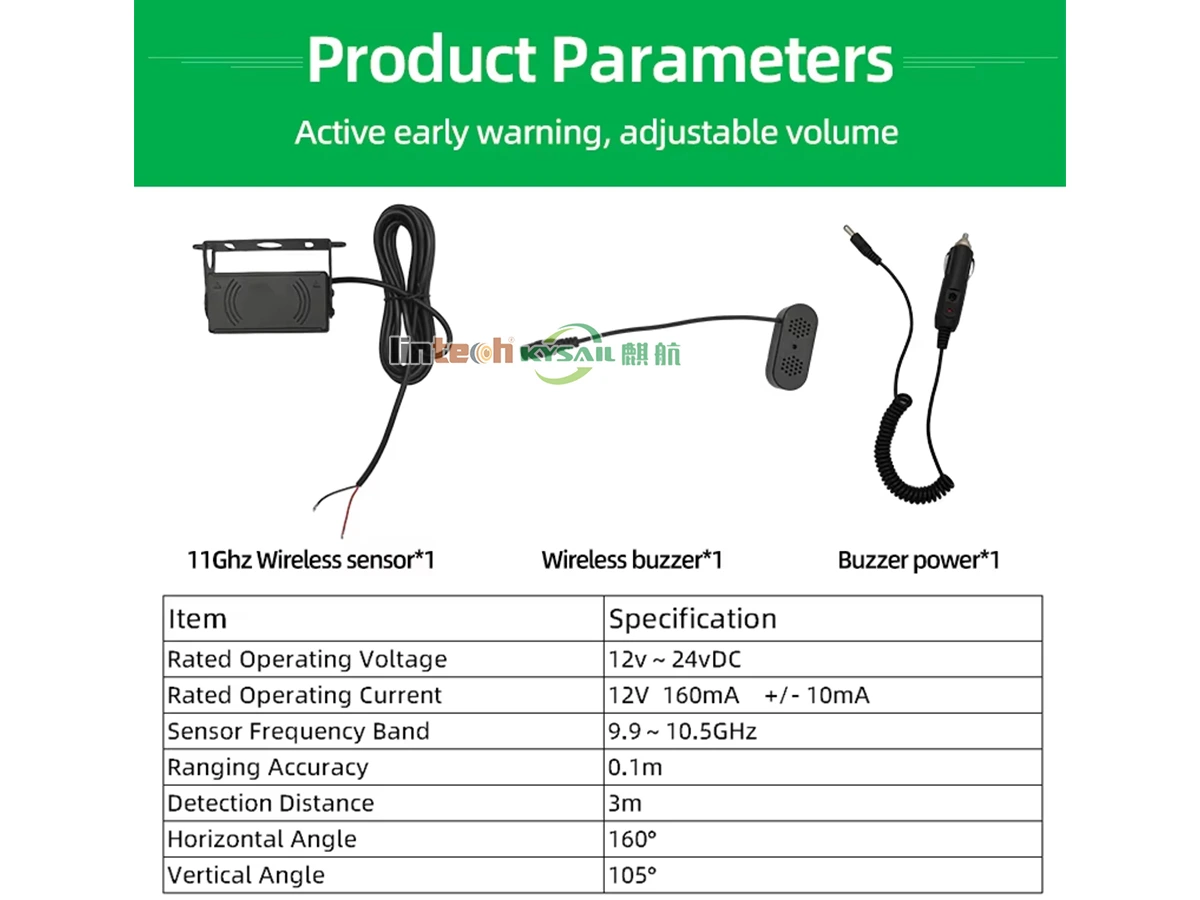

Specification:

ltem Specification
Rated Operating Voltage 12v~24VDC
Rated Operating Current 12V 160mA +/-10mA
Sensor Frequency Band 9.9~10.5GHz
Ranging Accuracy 0.1m
Detection Distance 3m
Horizontal Angle 160°
Vertical Angle 105°
