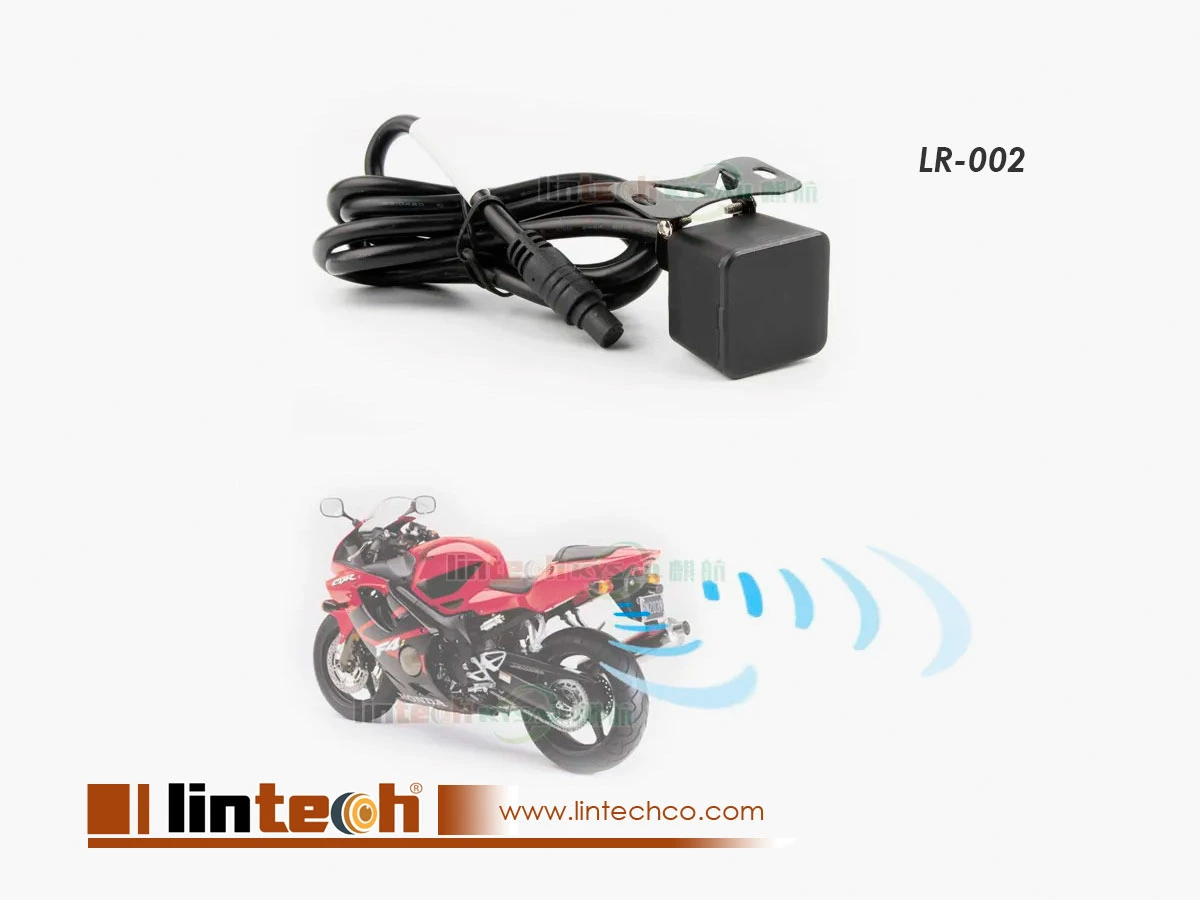

Model NO.:LR-002

  • Wide field of view: 150° horizontal detecting range, helps rider to get more time to react and respond to emergencies.
  • High precision: This 77Ghz Radar achieves super-good performance in range resolution, velocity measurement, and accuracy.
  • Durable and flexible: Aluminum alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +70℃.
  • Up to 64 targets: Detecting 64 targets simultaneously in a 50m maximum detecting range.

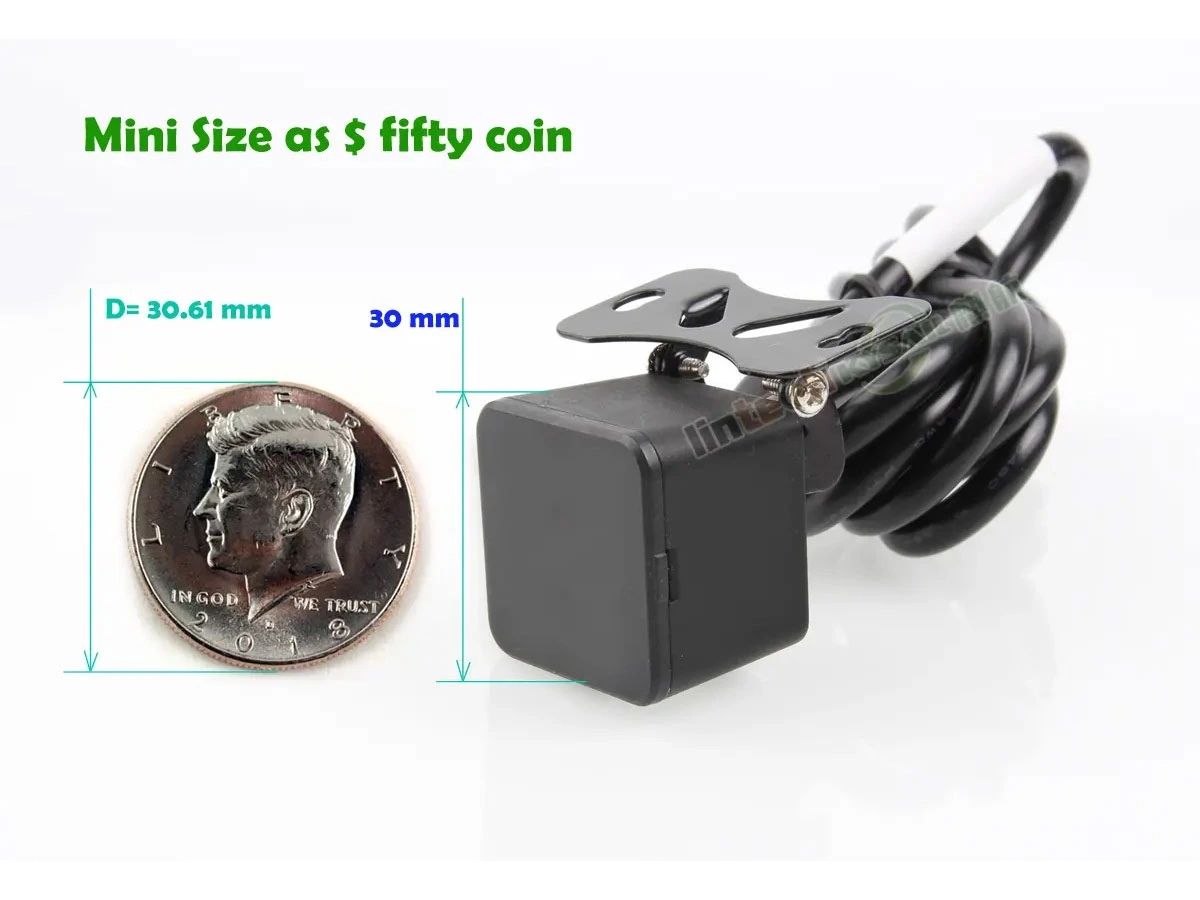

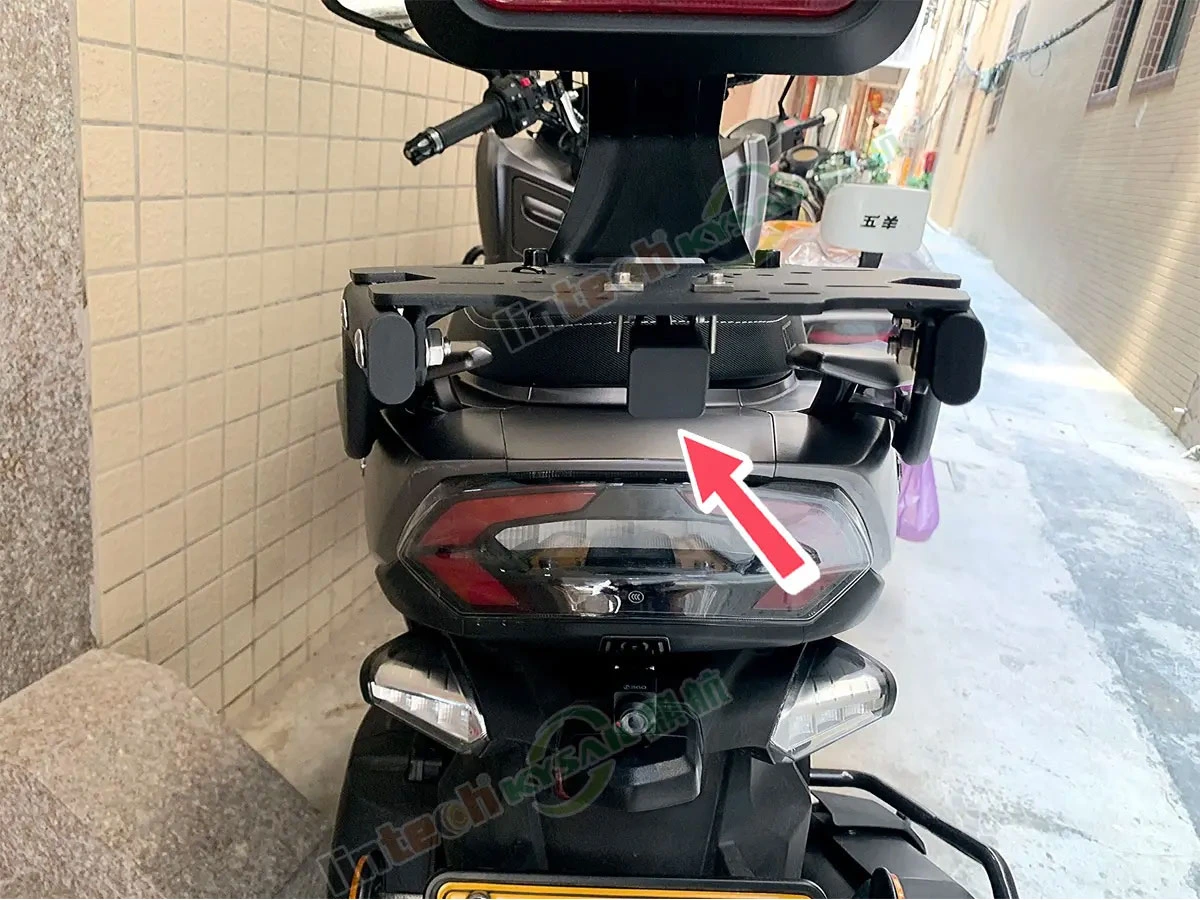

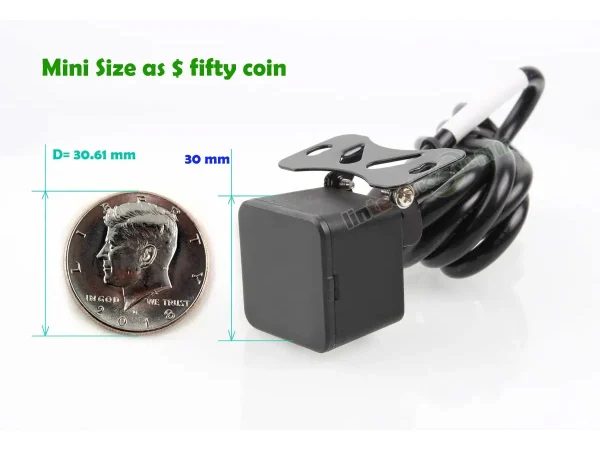

  • Easy to Install: Small and Compact sizes make the product quite easy to install within 1 hour.
  • Waterproof Rating IP68: superior performance against water, dust and excellent performance in high& low-temperature environments.
Category:
ENQUIRY!

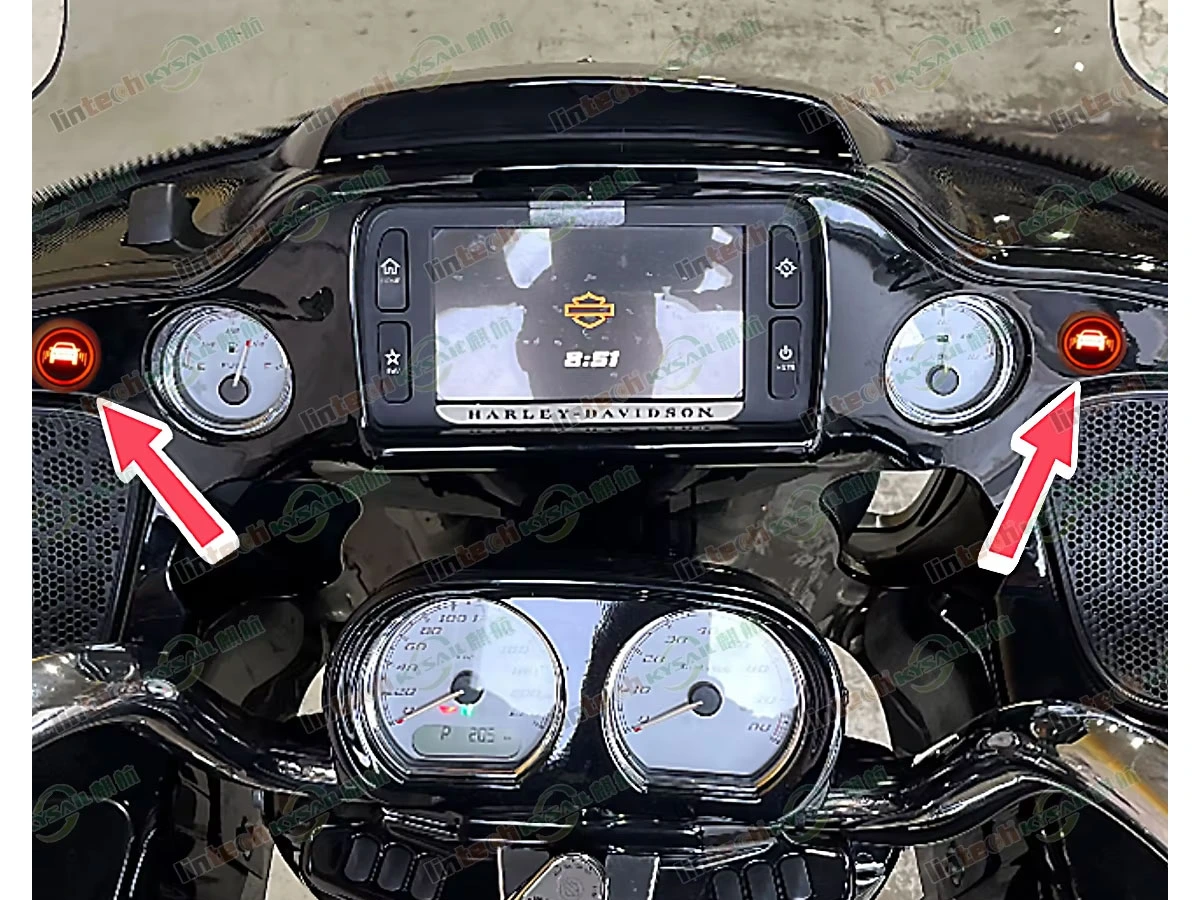

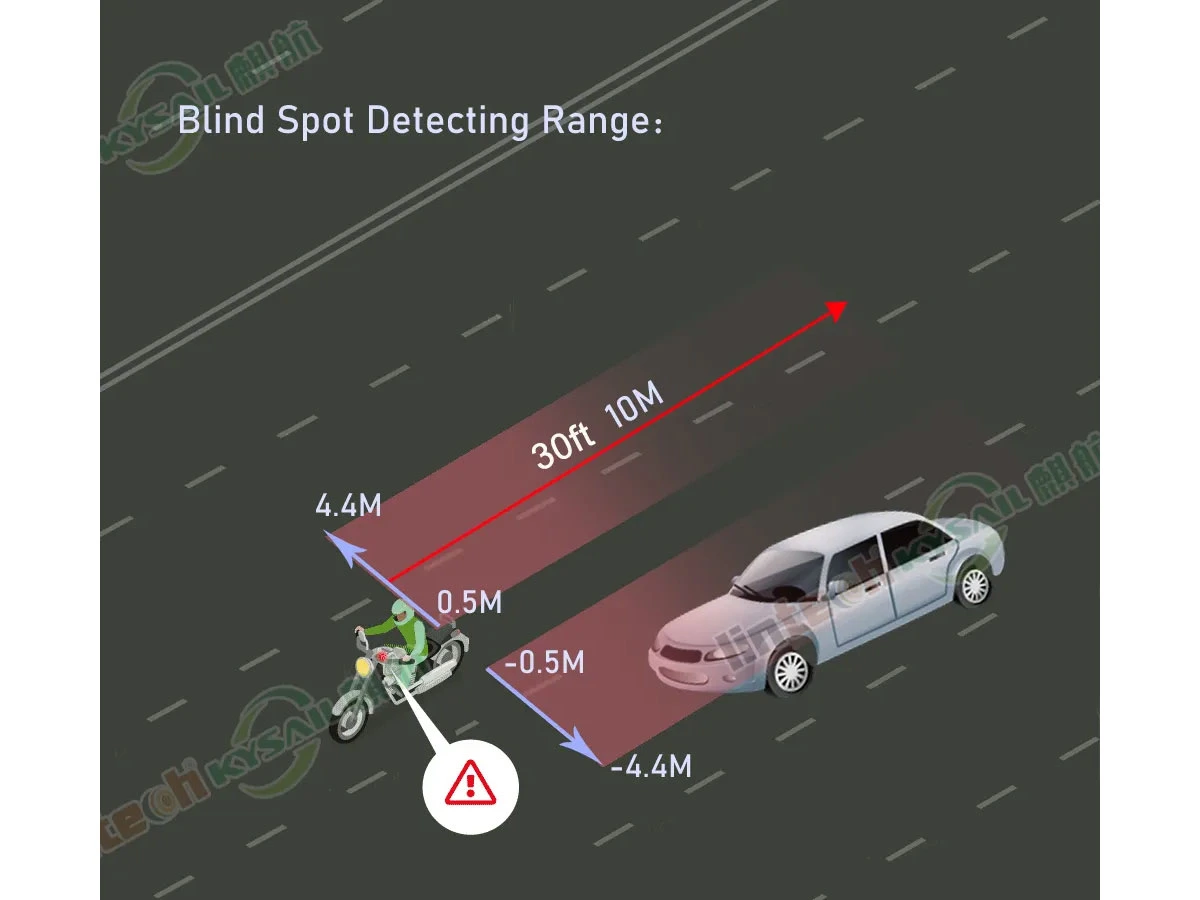

This product can give early warning to dangerous targets in the left and right rear of motorcycle. The LED indicators will signal you when there is a car/bike coming into your blind spots. This will increase your awareness of the surrounding traffic conditions. The radar’s monitoring zone covers the left and right adjacent lanes with a range of = 30ft and a width up to 14ft.

Dust & waterproof compliant IP68
Distance resolution 0.2M
Detection range 0-50M
Ranging accuracy Better than 0.1M
Horizontal angle range 150°

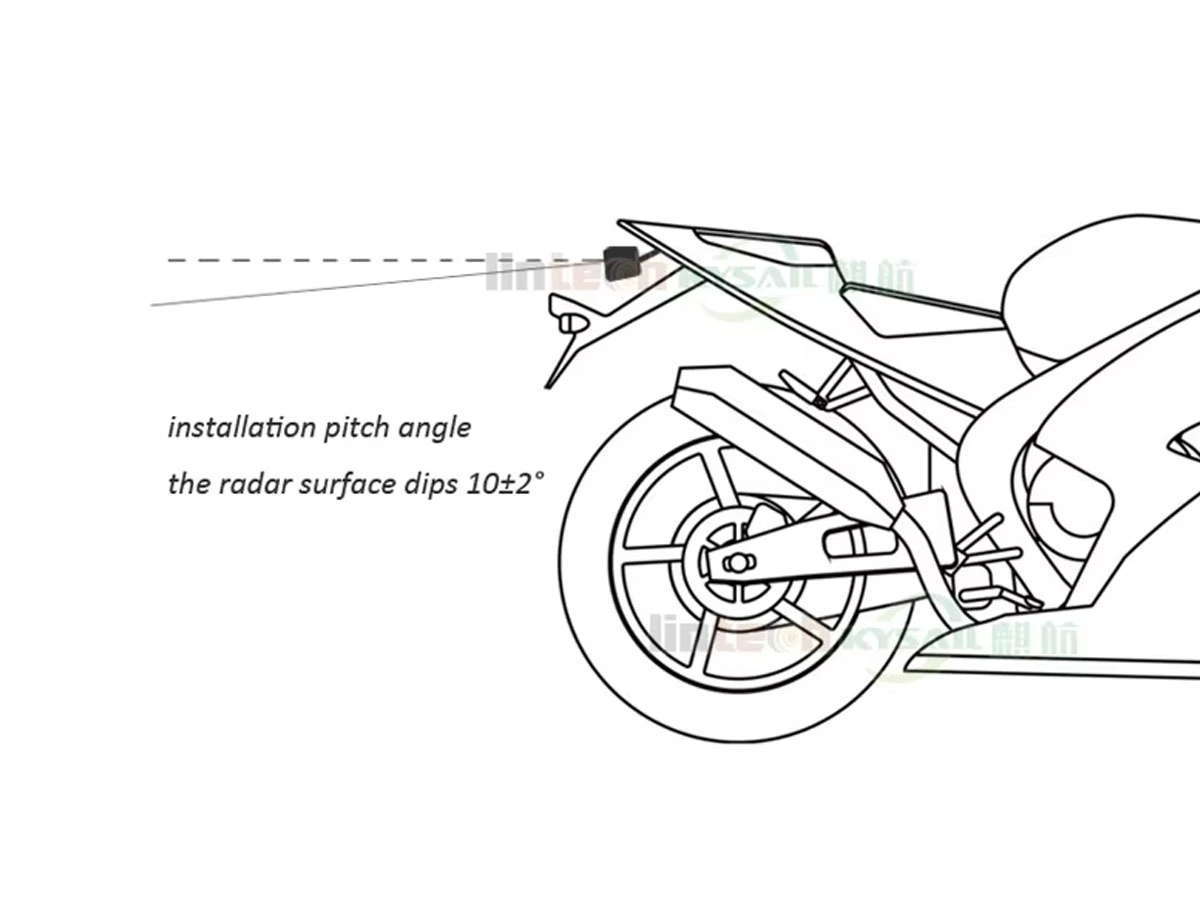

Pitch angle range ±10°
Velocity measurement accuracy 0.1m/s
Input Voltage Range 9V – 16V, 12V (Typical)
Current Consumption <200mA ± @12V (2.5W)
Operating temperature -30°C ~ +80°C
